Product Overview

Description

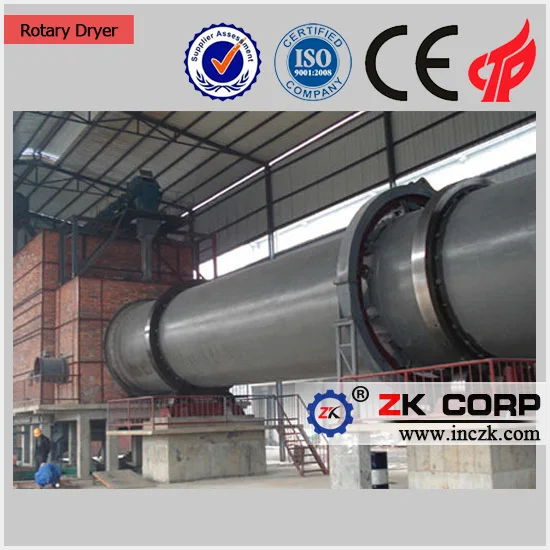

Hot Sales Mini Rotary Drum Dryer Machine for Sale



ZK rotary dryer with more than 50 years experience, professional technology support and all-around service can be offered to you.

Dryer also named as Drying Machine and Rotary Dryer. Rotary Dryer is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc.



Rotary dryer introduction

Rotary dryer is a machine that is able to process large quantities of materials and the advantages include reliable operation, elastic running principle, strong adaptability and big processing capacity. Rotary dryer is generally suitable for drying granular materials and has good drying effect especially when drying sand, river sand and quartz sand in building material, chemistry and casting industry.

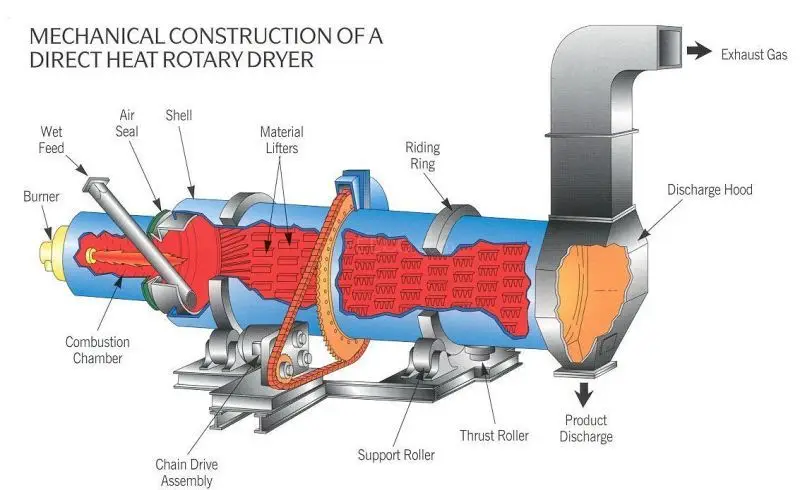

Structure of Rotary Dryer

A rotary dryer machine is mainly composed of cylinder, front roller ring, back roller ring, gear, catch roller, riding roller, pinion, discharging part, lifting board, reducer, motor, hot air pipe, feeding chute and blast furnace. In addition, according to the specific need of the customers, it can also be equipped with gas generator, combustion room or bucket elevator, belt conveyor, quantitative feeder machine, cyclone dust collector and air inducing machine.

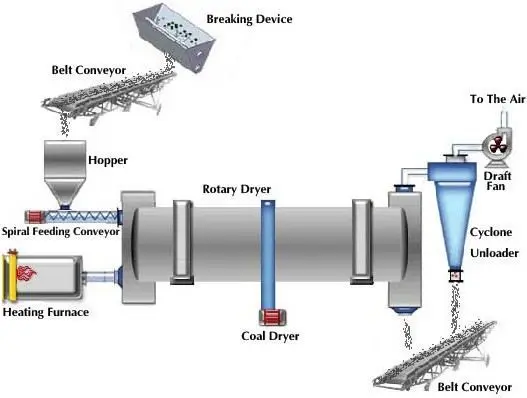

Working principle of rotary dryer

Wet material from the belt conveyor or bucket elevator to the hopper, and then by feeder feeding through the feeding device into the terminal. Rotary dryer cylinder into a slightly tilted to the horizontal rotating cylinder. Adding material from the higher end, low-end entry by the heat carrier, and the material into a counter-current contact, but also heat carrier and the material together and flow into the cylinder. With the rotating cylinder, the material runs by gravity to a more bottom end. Wet material in the cylinder body to move forward the process, directly or indirectly heating the heat carrier, the wet material to dry, and then the discharge end by the belt conveyor or screw conveyor sent.



Characteristics of rotary dryer

1.Reasonable design

2.High-efficiency dryer

3.Low consumption,energy saving dryer

4.Easy to operate and maintain

5.lower outlet tempreture, longer dust removal using life

6.lagre productive capacity,wide application scope

 Specifications of rotary dryer

Specific-ations(m)	Capacity(t/h)	Main motor		Main gear box		Weight(t)
		Power(kw)	Model	Model	Speed reduction ratio
Ø1.2*10	2.5	7.5	Y160M-R3	ZL50-16-I	-----	13.5
Ø1.5*12	3.3-4.9	10	Y160L-6-B3	JZQ500-III-2F	-----	18.9
Ø1.5*15	4-6	18.5	Y200L1-6	JZQ500-III-2F	-----	21
Ø1.8*12	4-6	18.5	Y160L-6	ZQ50-16II-2	16.46	22.83
Ø2.2*12	7-12	18.5	Y200L7-6	JZQ650-III	31.5	37.6
Ø2.2*14	7-12	22	Y200L7-6	JZQ650-III	31.5	40
Ø2.2*16	12	30	Y225M-6	JZQ750-III	31.5	45
Ø2.4*14	12	30	Y250M-6	JZQ750-III	31.5	51
Ø2.4*18	10-13	37	Y250M-6	ZL85-13-I	27.16	54
Ø2.4*20	10-14	37	Y250N-6	ZL85-13-I	27.16	54.14
Ø3*20	25	55	Y250M-4	ZL100-16-I	41.52	78
Ø3*25	32-36	75	YR280M-4	ZL100-16-I	41.52	104

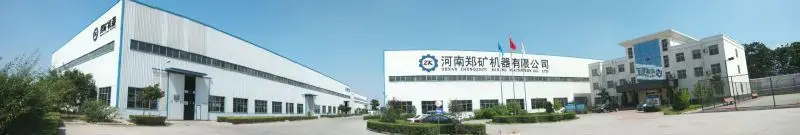

Our workshou & Equipment

Customers visit & Friendly exchange

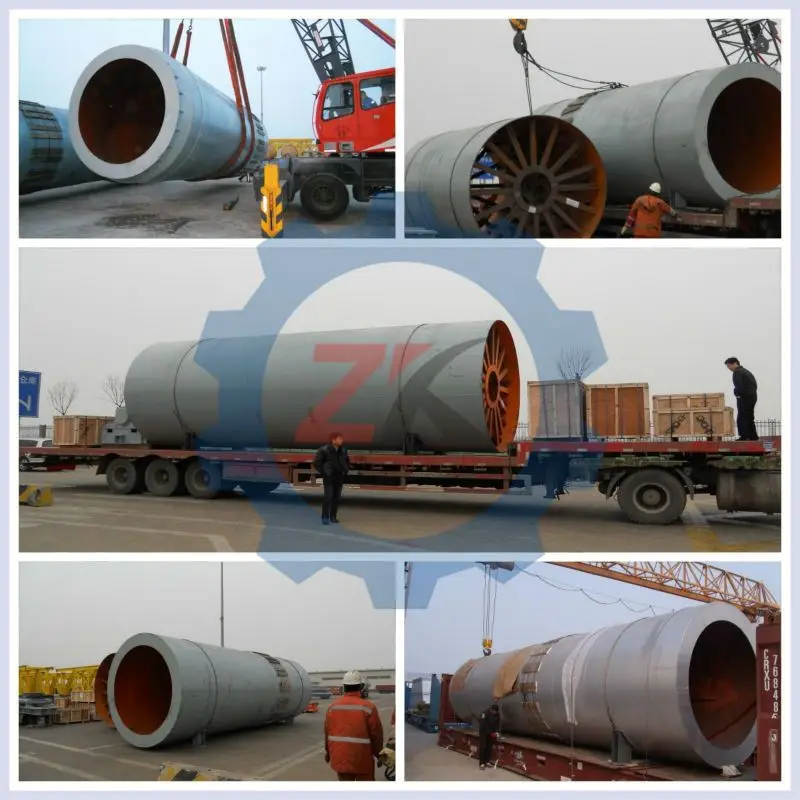

Packaging & Shipping
