Product Overview

Description


Electric advantages rotary drum dryer



Product Description






1.The rotary dryer is widely used to dry yellow sand, clay, slag, fly ash, iron powder, sand in casting, est.
2.The industrial drying machine adopts the alloy steel plate whose abrasion resistance is 3-4 times than common steel plate, but the investment is 1/6 of foreign brand.
3.The material initial moisture is 15%, after drying the moisture is below 0.5-1.0%,therefore, it is the first choice for the slag in the cement factories and premixed dry mortar production line.
4.Compared with single cylinder dryer, the three drum dryer reduce about 50% area investment and the groundwork consumption reduce a half.
5.The whole equipment have no leakage.

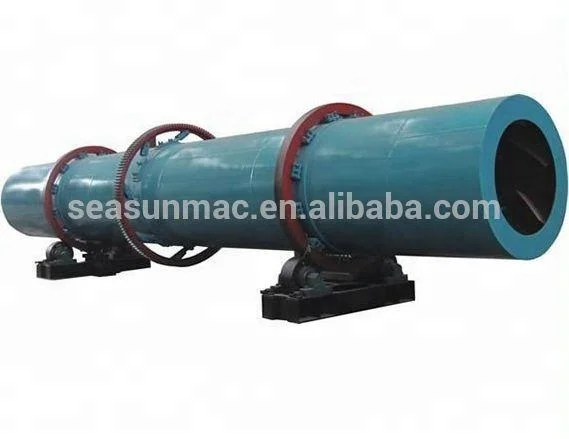

electric rotary dryerlignite rotary dryeradvantages rotary drum dryer





Technical parameters:












































































    Specifications

φ2.0*4



φ2.5*5



φ3.0*6



φ3.6*8



Diameter(mm)



2000



2500



3000



3600



Length(m)



4



5



6



8



Volume(m3)



12. 6



24.5



42.4



81.4



Shovelling plate



spiral type



Fill rate



10-20%



Material



refractory steel/stainless steel



Temperature available



≤700C°



Evaporation



20-80Kg water/m3.h



Heating system



downstream/direct heat



Heat source



coal,gasoline,electricity,biofuels etc



Revolving speed



4-10 r/min



Power



5.5 Kw



11 Kw



15 Kw



22 Kw



Support equipment



conveyor,airheater,separator,dust collector,draught fan etc.






General characteristics:
1.Triple-drum rotary drier use telescope-feed structure, dry the material quickly.
2.Refined experience, stable operation.
3.Simple design, self-insulation, thus improving the heat efficiency to exceed 80%.
4.Good drying performance. coal consumption (8kg coal/ 1t material).
5.The fuel can be coal, oil, natural gas etc, dry mass, granule and powder material.
6.60% power consumption can be saved.
7.Product moisture can be adjusted depends on requirement of client.
8.The 3 drum dryer was drive by tug not gear and pinion.
9.Finished product temperature lower than 60oC,packing can be done continuously.

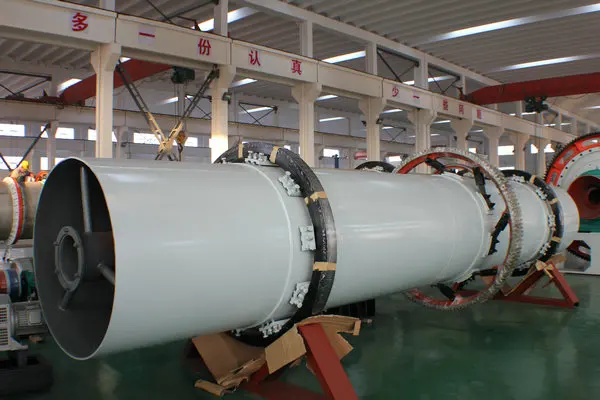

electric rotary dryer


Main features:
1.Drum Rotary Dryer is processed by making it contact with heated gas.
2.The dryer is made up of a large, rotating cylindrical tube, the dryer slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under.





Working principle:


1.Material to be dried was sent to the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lined in the inner wall of the dryer.
2.When the material gets high enough to roll the fins, it falls back down to the bottom of the dryer, thus passing through the hot gas stream as it falls.
3.This gas stream can either move toward the discharging end from the feeding end (known as co-current flow), or toward the feeding end from the discharging end (known as counter-current flow).
4.The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the dryer is called a direct heated dryer.
5.Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated.
6.When the gas stream is preheated by some means where burner combustion gases do not enter the dryer, the dryer known as an indirect-heated type.

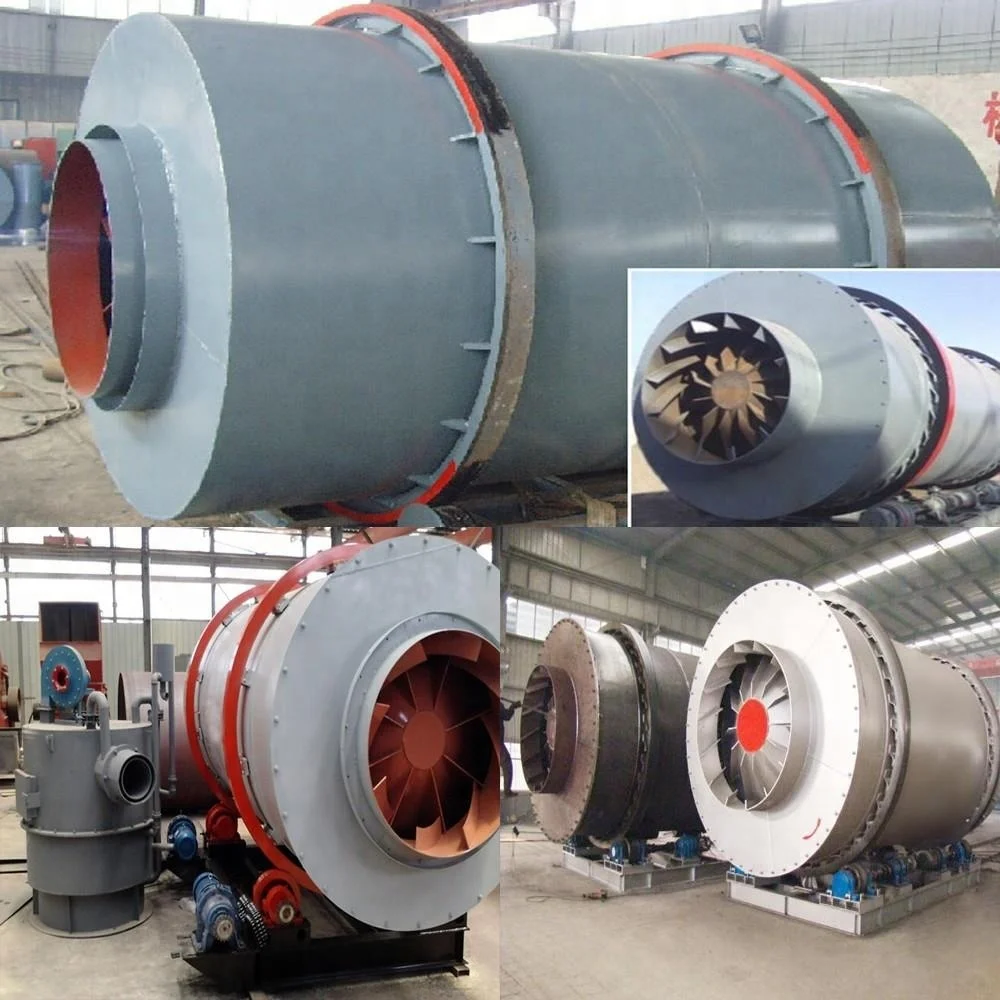

lignite rotary dryer









Our Workshop

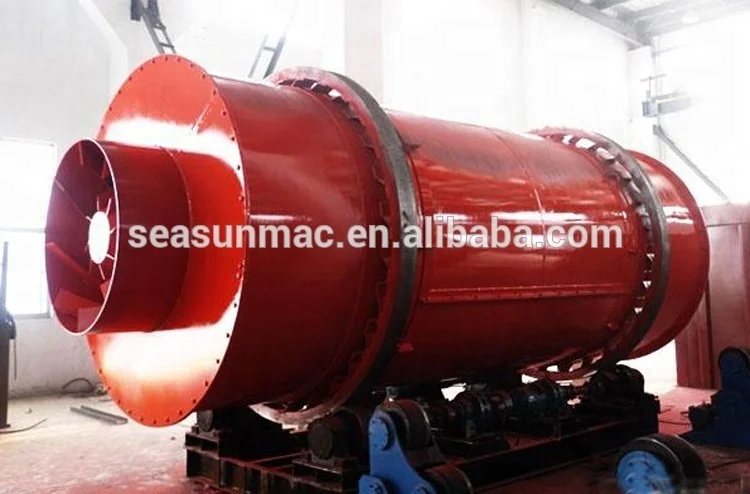

advantages rotary drum dryer





Company Profile


Henan Seasun Heavy Industry Machinery Co.,Ltd.is large group enterprise,mainly produce heavy mining machinery,integrated of scientific research,production and sales as one.the company is located in Zhengzhou National Hi-tech Industrial Zone,covering 100,000 square meters,owns 60,000 square meters standardized heavy industrial plants,more than200 sets of various large and medium-sized metal processing,welding,assembly equipment,online staffs are more than 960 people,including medium and senior title management officials and more than 120 engineering and technical persons.the company has introduced advanced technology and process from US,Germany,Japan,Australia and other countries,the establishment of the international advanced production line and first-class modern testing base,and set up sand machine laboratory,milling machine laboratory,mineral processing research room.with scientific management methods,excelsior manufacturing processes and innovative manufacturing concepts,our company rapidly expand and become China mining machinery production and export base.


our company regard the quality as life,serve users to God,and always follow the quality policy of responsible for every process,responsible for each pruduct,responsible for every user,and wholeheartedly service for the customer,all products have passed the ISO9001 international quality system certification,the company's produced"Seasun brand"machine was named "Chinese famous brand".Reliable and stable quality make our our production and sales and the overall economic indicators in the forefront of the domistic same industry,tens of thousands of users all over the country and exported to over 30countries.


electric rotary dryer





Cooperation


lignite rotary dryer








Our Services


Our company regard the quality as life,serve users to God,and always follow the quality policy of responsible for every process,responsible for each pruduct,responsible for every user,and wholeheartedly service for the customer,all products have passed the ISO9001 international quality system certification,the company's produced"Seasun brand"machine was named "Chinese famous brand".Reliable and stable quality make our our production and sales and the overall economic indicators in the forefront of the domistic same industry,tens of thousands of users all over the country and exported to over 30 countries.





Packaging & Shipping


1.International export standard packing of apron feeder
2.small parts are woodened box package
3.main engine nude,container,or customer 'requirement








FAQ


In order to give you a responsible quotation, you can inform us the following information:


1).  What's the material you are going to deal with?


2).  What's the granularity of the material?


3).  What's the granularity of the final products are you going to achive?


4).  What's the producing capacity you are going to achieve?


Our engineers will suggest you the most suitable one for you according to your information.


...
