Engraving 6040 for mould, 3 axis cnc engraving machine with Japanese servo motor
Features
Standard features:
1. Cooling system:Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle 2. Gantry structure: On both sides of the column and beam are one to increase rigidity. Ensure the dimension accuracy of the highest and best surface quality and the largest cutting efficiency 3. Qualityassurance: Each device before leaving the factory, we will test the cue with laser interferometer
4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motorand drives: from Japan with high precision and long life
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium
7. Schneider Electronic System: from Germany
Application:
Processing material: Steel, iron, copper, aluminum, plastic, organic glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests; 2.Control system: Weihong(Syntec or FAGOR) or as your request 3.Control box can be 3 axis and 4 axis or 5 axis universal.
Product Description
1.Description of CNC Machine
Main Specification
Unit
Cnc engraving machine
X-axis travel
mm
600
Y-axis travel
mm
400
Z-axis travel
mm
140
Z-axis space
mm
300
Positioning accuracy
mm
0.01/300
Repeatable Accuracy
mm
0.005
Worktable size
mm
625X450
Max. Loading
kg
150
Rapid speed
m/minute
8
Spindle speed
rpm
24000
Machine weight
T
2.0
Overall size
mm
1410X1410X1860
Power
three-phase 380V
5KVA
Servo motor power
W
400W
Servo motor drive
W
400W
Tool holder
Er16
Standard Accessories
Linear Guides(HG20)
Hiwin/Taiwan
Ball Screw(2005)
Hiwin/Taiwan
Servo Motor(400w)
Panasonic/Japan
Servo Motor Drives(400w)
Panasonic /Japan
High-speed Spindle(1.5kw)
Bohua / China
Spindle Inverter(1.5kw)
Taian/Taiwan
Electronic Hand-Wheel(EHDW-BA5S-1)
Yuanzhan/Taiwan

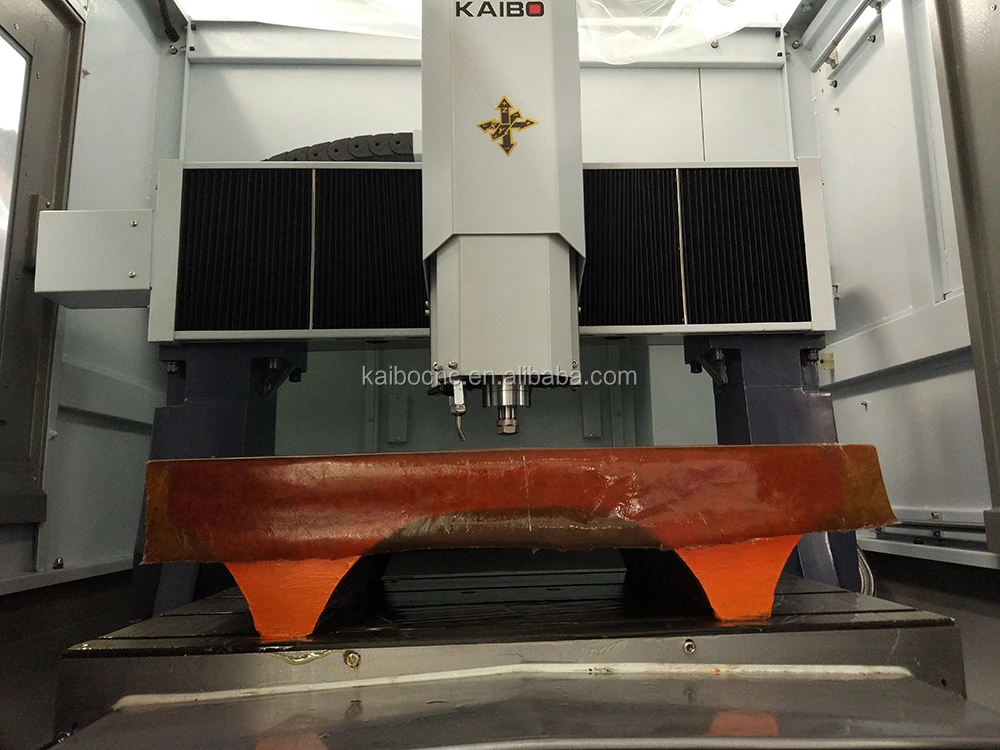

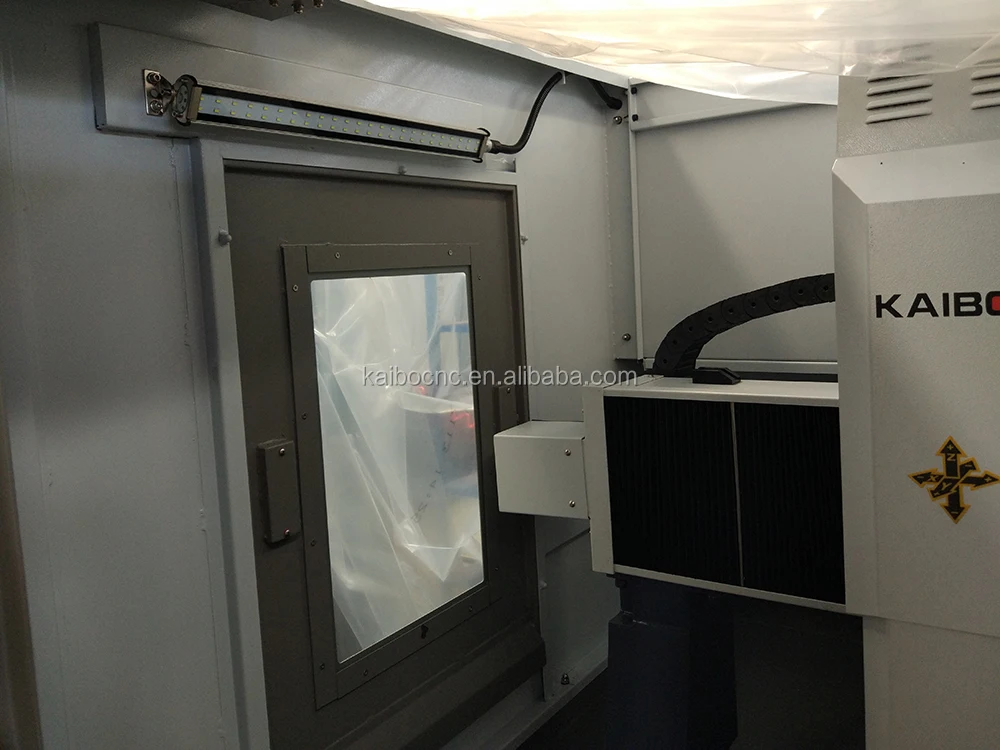

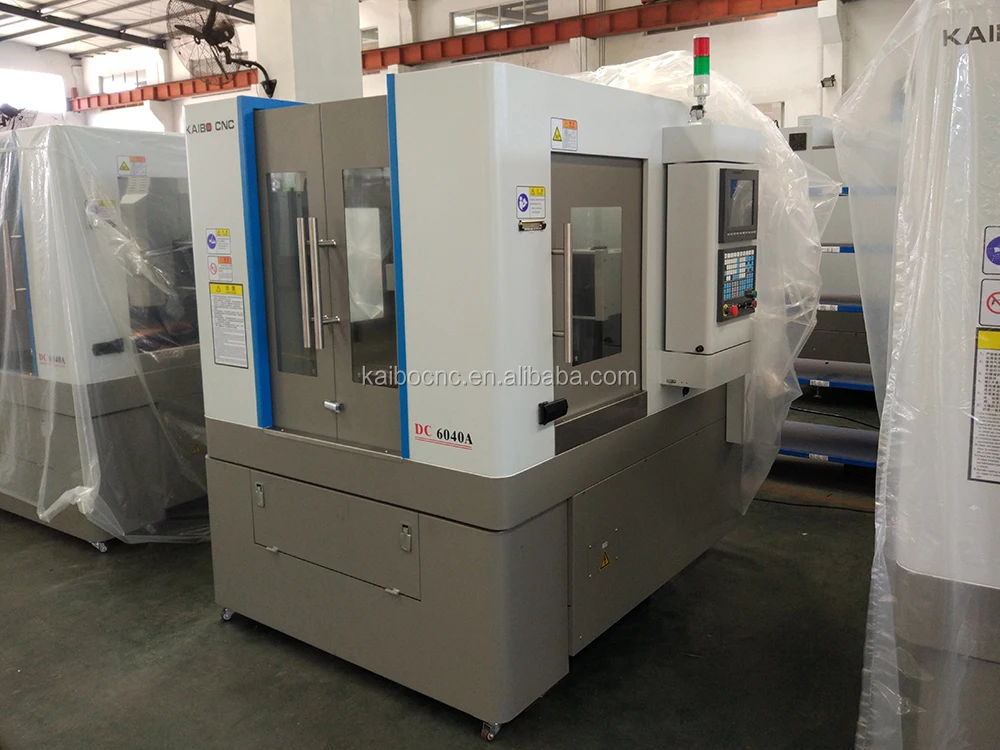

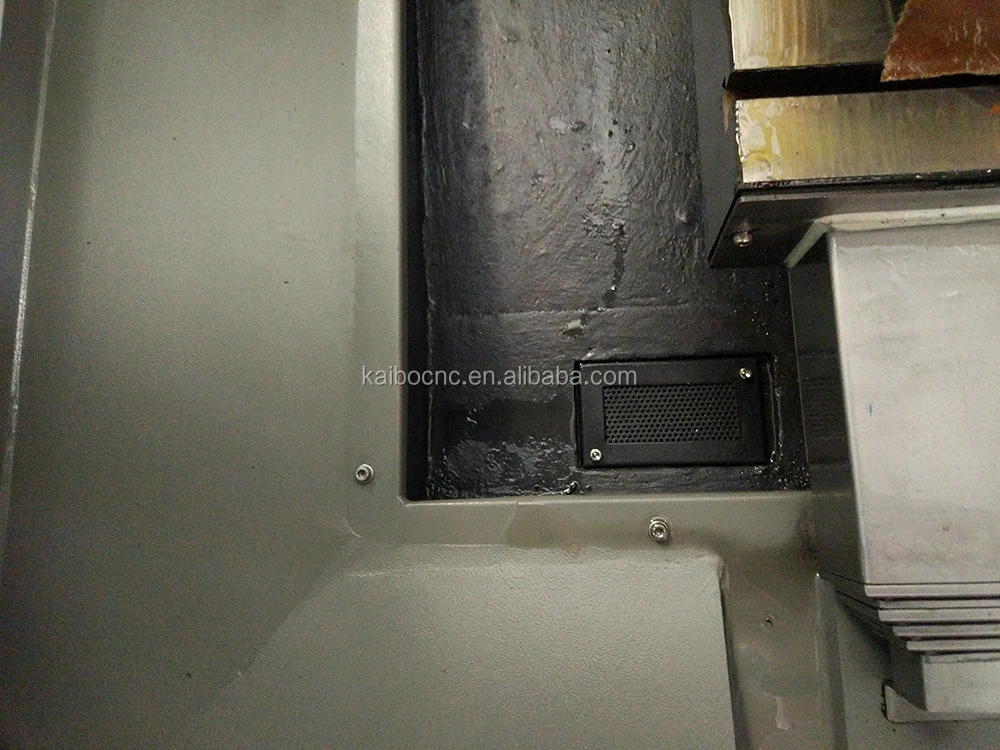

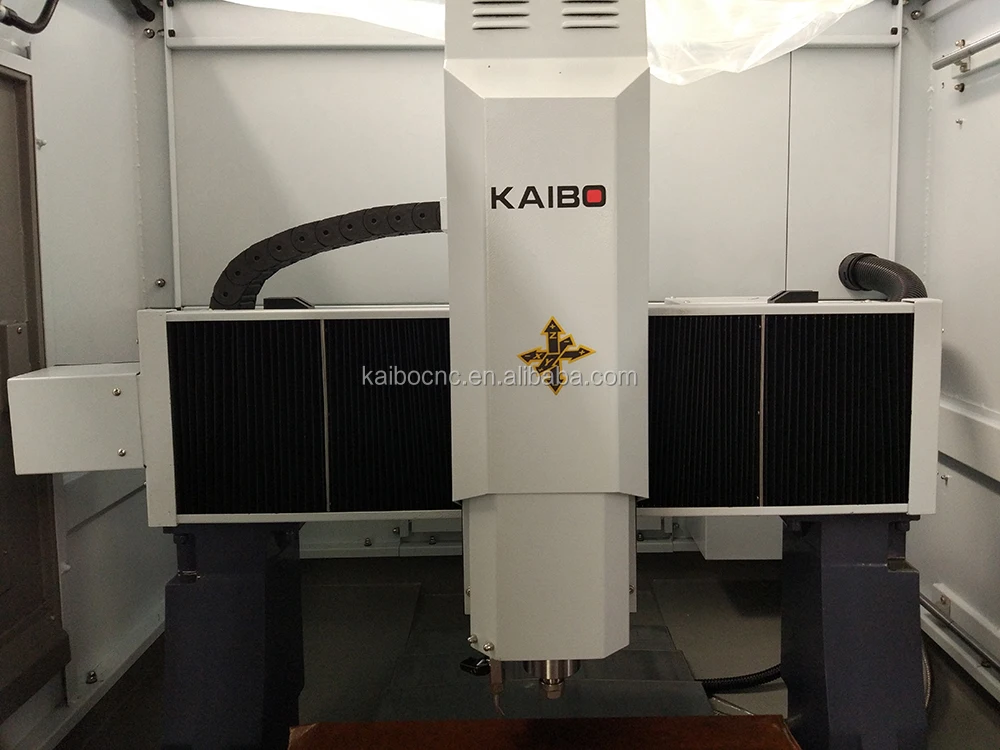

2.Pictures of CNC Machine
4.More Products For Your Choice
Packaging & Shipping
Trade Item Of Products
Transportation
always by sea
Payment terms
T/T,L/C At Sight or as your request
Package
1 piece/carton,piece into a master carton
Delivery time
by sea,within 45 work days
Our Services
Our Best Services For You
1.Technician available for training and installation at customer's company
2.Internet service by sending emails and videos,communicating online or calling
3.We will reply you as soon as possible after we receive your email
4.We can offer both OEM and ODM service according to customers' request
5.If novelties exist in any non-human-made problems,please contact us at your first time and we will offer you a satisfied
solution according to your suitation
