Hoston engine lathe machine horizontal C6236 C6240 C6250 lathe turret
- Category: Lathe >>>
- Supplier: Jiangsu Hoston Machine Tools Co. Ltd.
Share on (60347807910):
Product Overview
Description
Machine Features for Hoston ENGINE LATHE MACHINE C6236 C6240 C6250
Standard Accessories:
Whole casting foot stand, Foot brake, Coolant system, Work light, Three jaw chuck, Four jaw chuck, Steady rest, Follow rest, Face plate, 4-way tool post, Splash guard, Thread chasing dial,Reduction sleeves,Dead centers,Changing gears,Toolbox & tools 1se
Technical Parameter for Hoston ENGINE LATHE MACHINE C6236 C6240 C6250
Specification | Model | |
C6246 | C6246E | |
Swing over bed | 460mm(18”) | |
Swing over cross slide | 270mm(10-3/4’‘) | |
Swing in gap diameter | 690mm (27-1/8’‘) | |
Distance between centers | 1000mm(40”) 1500mm(60”) 2000mm(80”) | |
Valid length of gap | 165mm(6-1/2”) | |
Width of bed | 300mm(11-13/16”) | |
Spindle nose | D1-8 | |
Spindle bore | 58mm(2-1/4”) | 80mm(3-1/8”) |
Taper of spindle bore | No.7 Morse | |
Range of spindle speed | 12 changes, 25 -2000r/min | |
Compound rest travel | 128mm(5”) | |
Cross slide travel | 285mm(11-1/4”) | |
Max. section of tool | 25x25mm(1” x1’’) | |
Lead screw thread | 6mm or 4T.P.I. | |
Longitudinal feeds range | 42 kinds, 0.031 -1.7mm/rev (0.0011” -0.0633”/rev) | |
Cross feeds range | 42 kinds, 0.014 -0.784mm/rev (0.00033” -0.01837”/rev) | |
Threads metric pitches | 41 kinds, 0.1 -14mm | |
Threads imperial pitches | 60kinds,2 -112T.P.I. | |
Threads diametral pitches | 50kinds,4 -112DP | |
Threads module pitches | 34 kinds, 0.1 -7MP | |
Quill diameter | 60mm(2-5/16’’) | |
Quill travel | 130mm(5”) | |
Quill taper | No.4 Morse | |
Main motor power | 5.5kW(7.5HP)3PH | |
Coolant pump power | 0.1kW(1/8HP)3PH | |
Overall dimension(LxWxH) | 220x108x137cm 275x108x137cm 325x108x137cm | |
Packing size(LxW H) | 225x112x162cm 280x112x156cm 330x112x156cm | |
Net weight | 1645kg 1810kg 1965kg | |
Gross weight | 1910kg 2115kg 2295kg | |

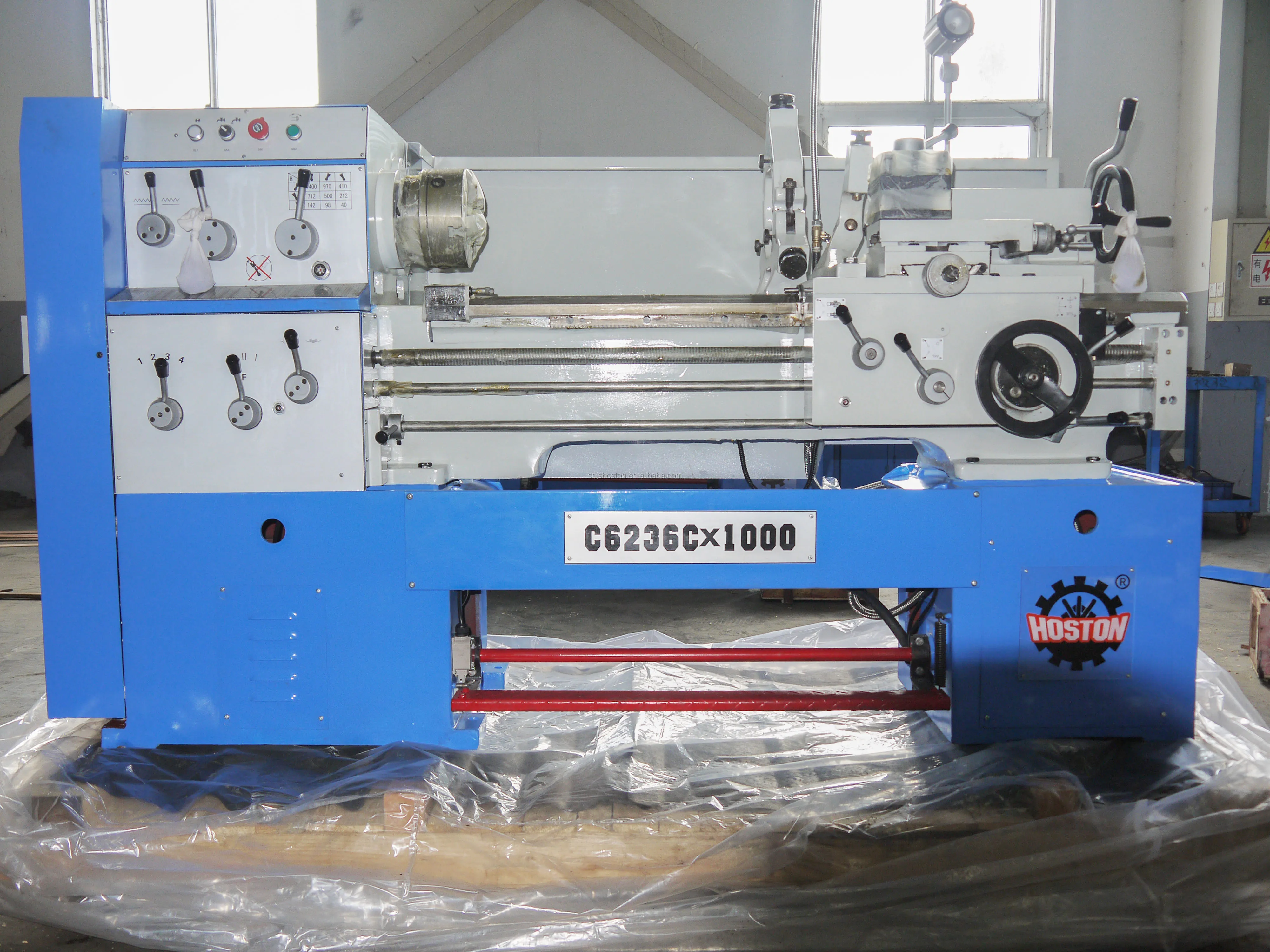

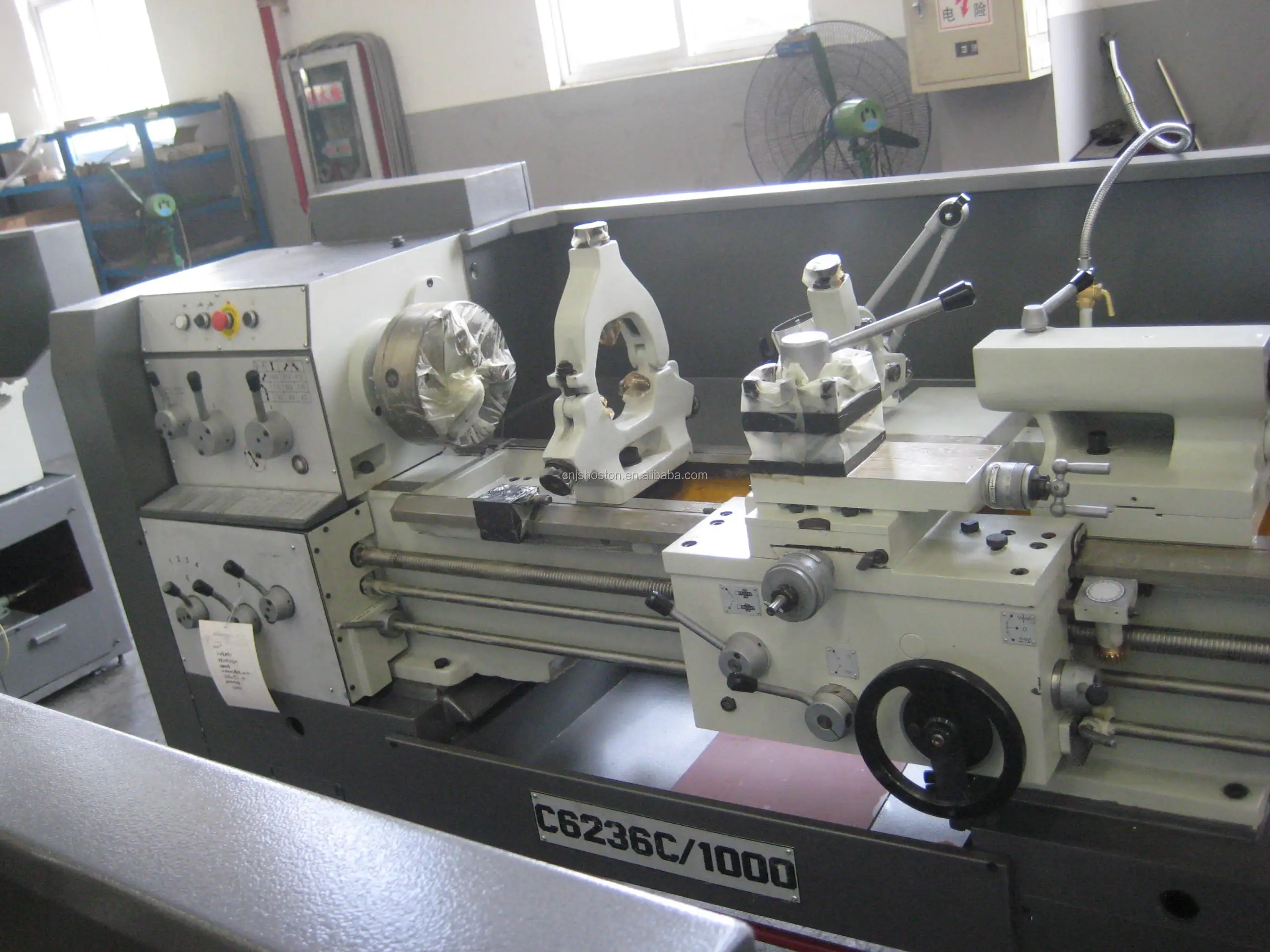

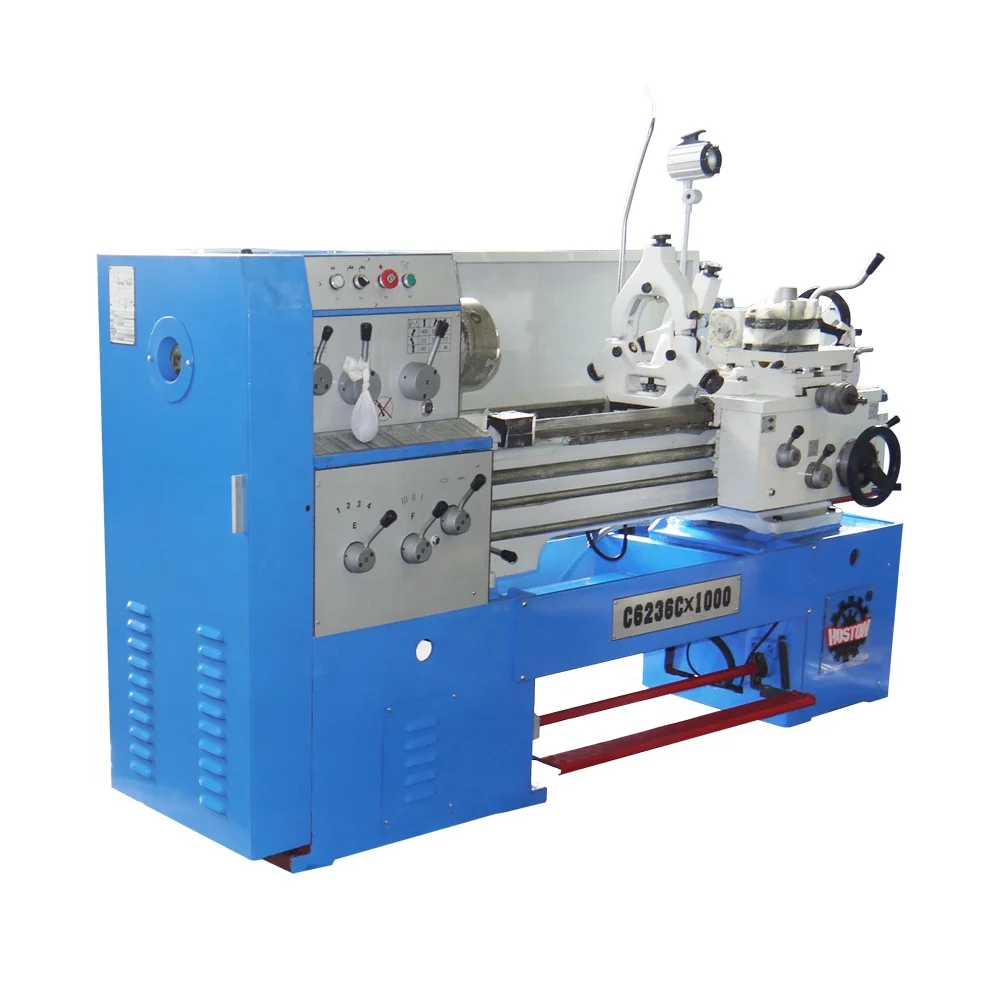

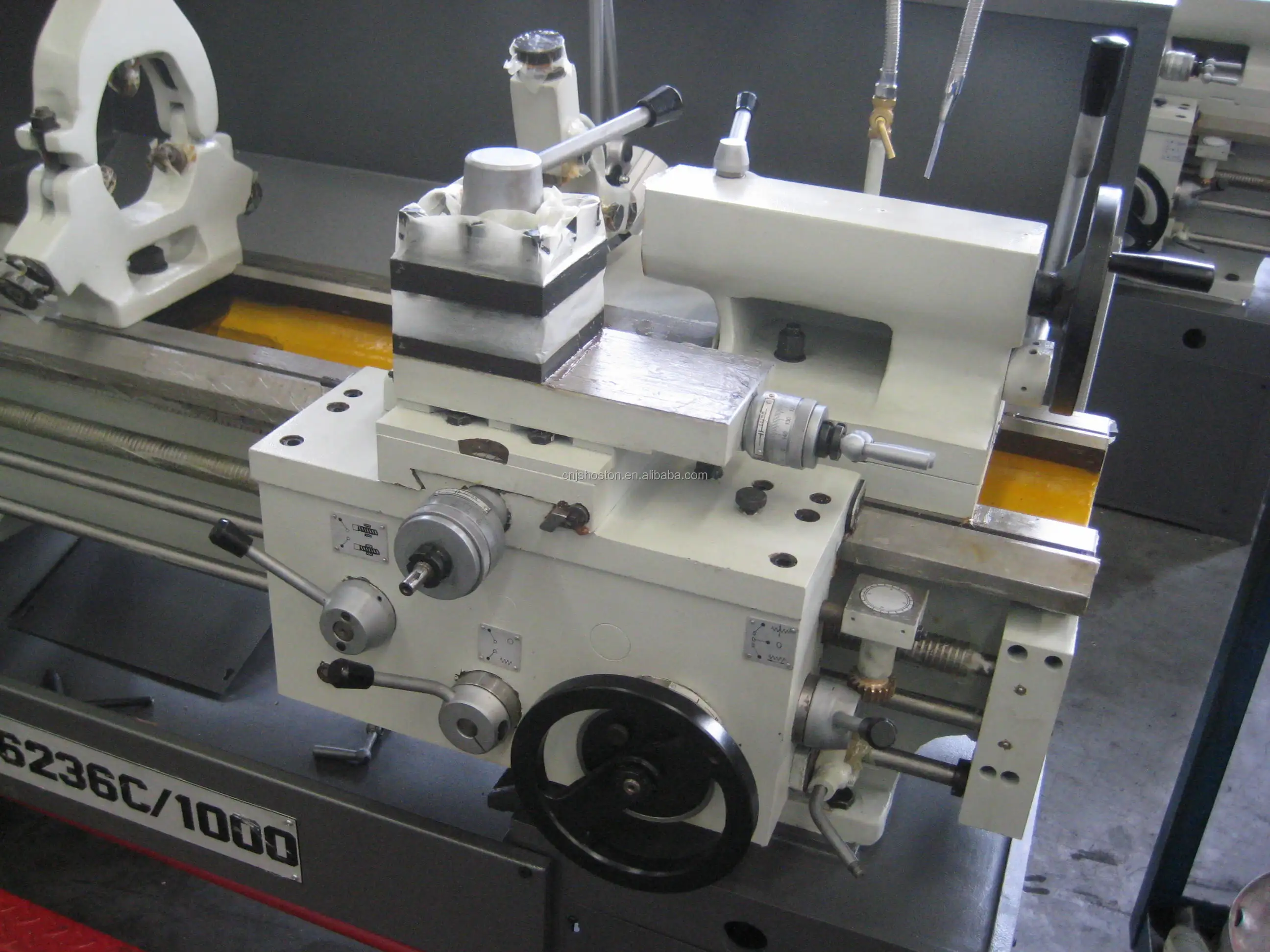

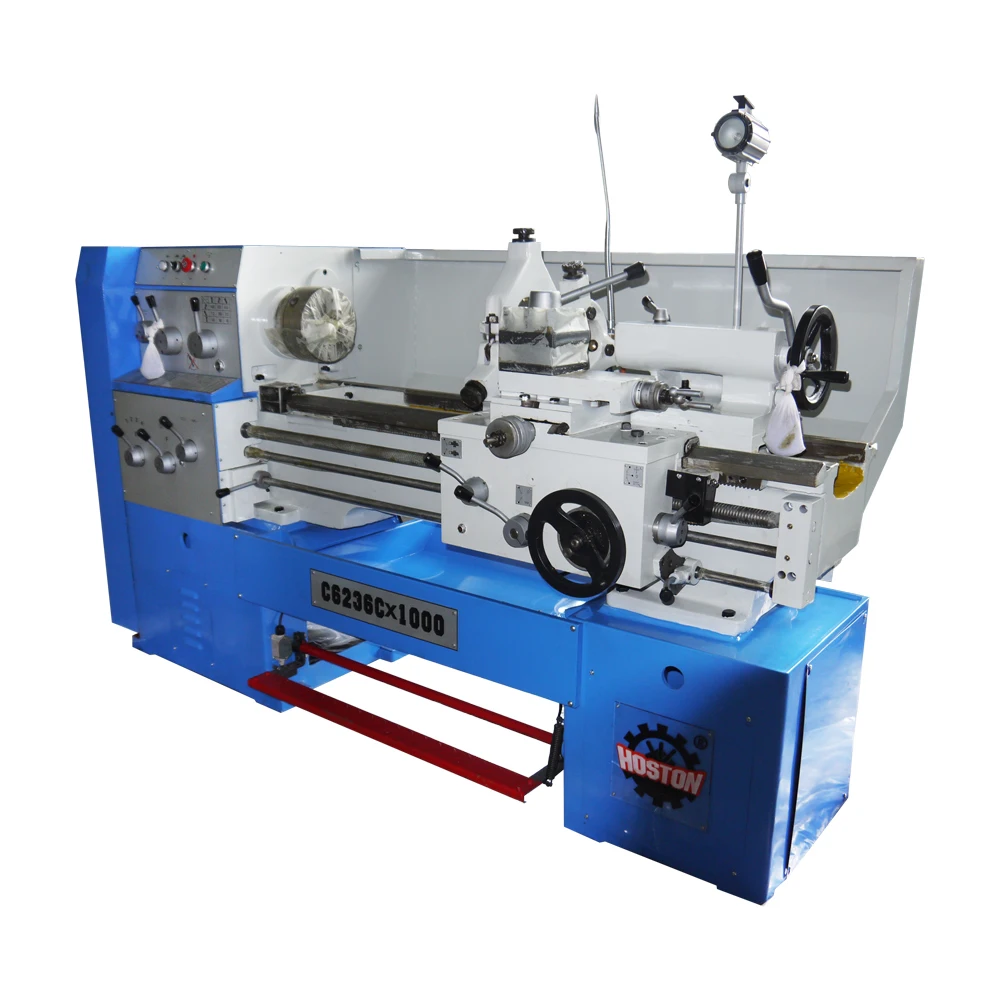

Product Pictures for Hoston ENGINE LATHE MACHINE C6236 C6240 C6250
Packing and Delivery for Hoston ENGINE LATHE MACHINE C6236 C6240 C6250
