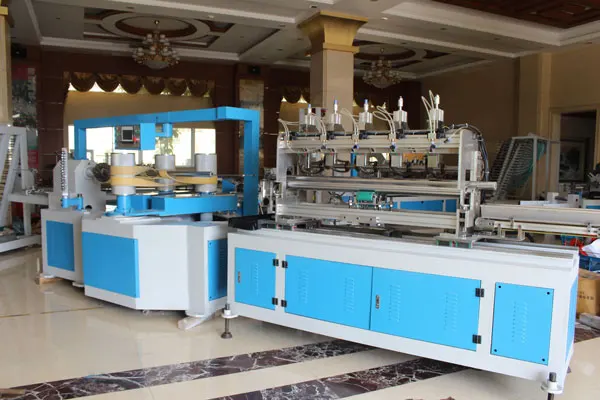

Numerical High Speed Multi Cutters Knives Spiral Cardboard Paper Tube Core Winding Making Machine Production Line
- Category: Paper Product Making Machinery >>>
- Supplier: Wenzhou Chuangfeng Machinery Co. Ltd.
Share on (60351504942):
Product Overview
Description
Product Description
CFJG-20 Multi-cutter tube & core making machine equipped with Numerical and Multi-blades Cutting System. Suitable for toilet paper core; preservative film etc.
--Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- Adopt with MULTI CUTTERS and inline cutting length reaches to 70-1400mm. Paper tubes can be finished in one time.
Technical Parameters
Technical Parameter | Control System | ||
Paper Layer | 12 layers | PLC | Xinjie |
Inner Diameter | 25-100mm | Man-machine Interface | Touch Screen (Xinjie) |
Wall Thickness | 1-5mm | Inverter | 7.5KW Delta (Taiwan) |
Winding Speed | 1-30 meters/min | Execute Components | CHNT |
Winding Nose | Two noses single belt | Signal Components | Hugong |
Shaft Fixing Way | Flange | Pneumatic Components | Jingwei |
Cutting System | Numerical Multi-blades (standard 5 pcs) | Electric Components | CHNT |
Synchronism tracking cutting system | Servo motor synchronism | Bearing | Haerbin |
Servo Motor | 1.3kw Yaskawa (Japan) | ||
Gluing Way | Single / Double (can be chose) | Screw Rod | Shangyin |
Length fixing | Encoder | Slider | Shangyin |
Operator | 2-3 persons | Configuration | |
Speed Control | By Inverter | Paper Reel Stand | 10 Layers Integral Type |
Power Supply | 380V/3Phase/50Hz (can be customized) | Gluing System | 10 Layers Spraying Type |
Size | Inner Paper Shelf | 1 Set | |
Mainframe(two parts) | 5100*1600*1750mm | Surface Paper Shelf | 1 Set |
Mandrel Shaft | 1 Piece (Size to be provide by buyer) | ||
Working Space | 10000*6000mm | ||
Weight | 3200kgs | Belt | 2 Pieces |
Driving System | Belt Adjusting | Manual | |
Main Motor | 5.5KW Wannan | Adjusting of paper reel stand & gluing shelf | Automatic |
Motor Rotating Speed | 1400r/min | Automatically Gluing | Gluing Pump 1.5kw |
Nose Rotating Speed | 48r/min | Lubricating Oil for Paper Tape | Automatically Supply |
Nose Output Strength | 1000N.m | Enclosed Spare Parts | |
Reduction Box | WPO135 | Mandrel Shaft | 1 Piece |
Gear Box | WPO135 | Useful Tool | 1 Set |
Driving Chain | 16A*2 |
|
|
Pictures

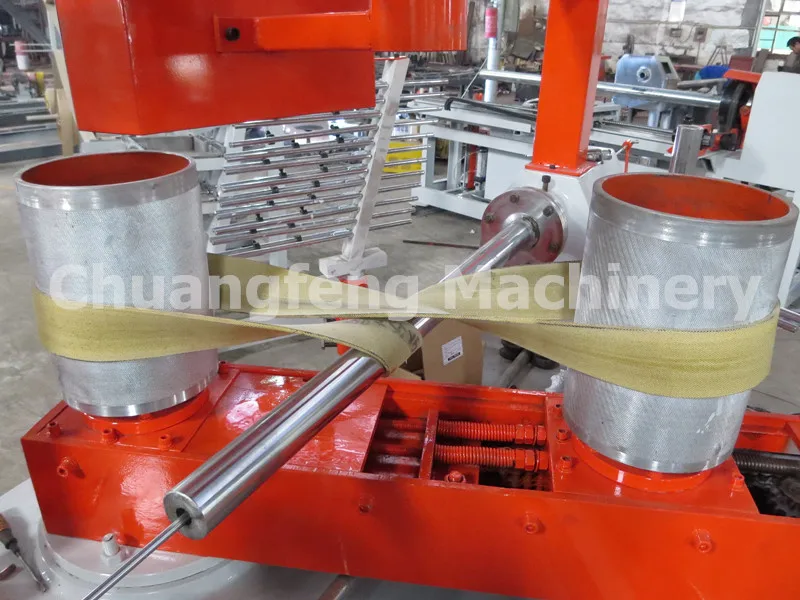

- Double Heads Single Belt Spiral Winding

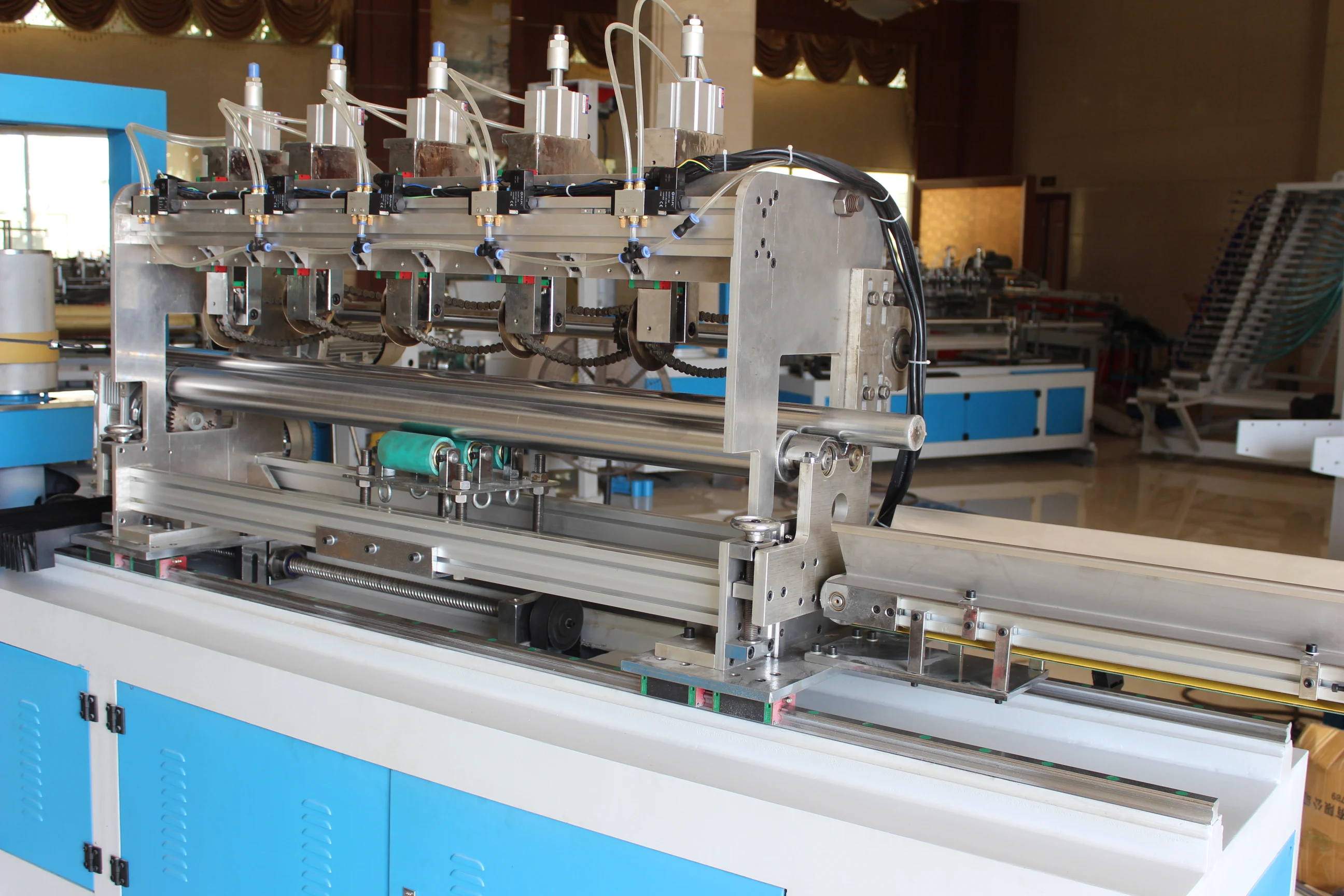

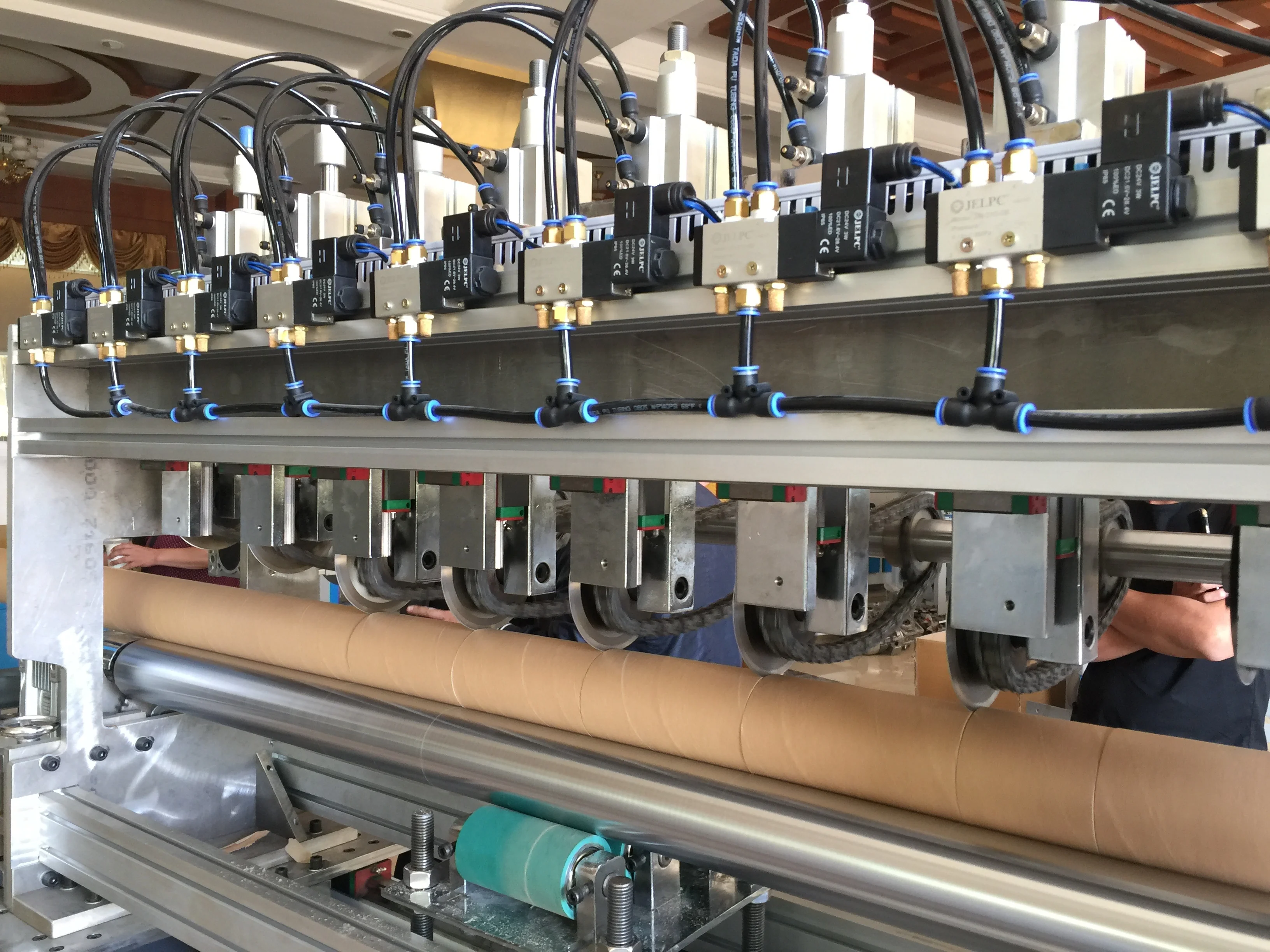

- CNC Multi Cutters Inline Cutting System (cutting length 70-1400mm; controlled by servo motor)

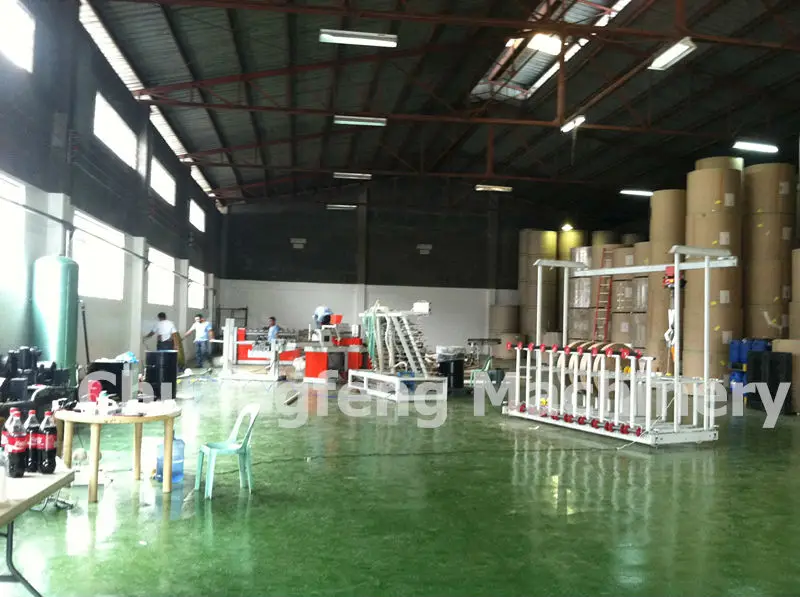

- Machines in Customers' Workshop

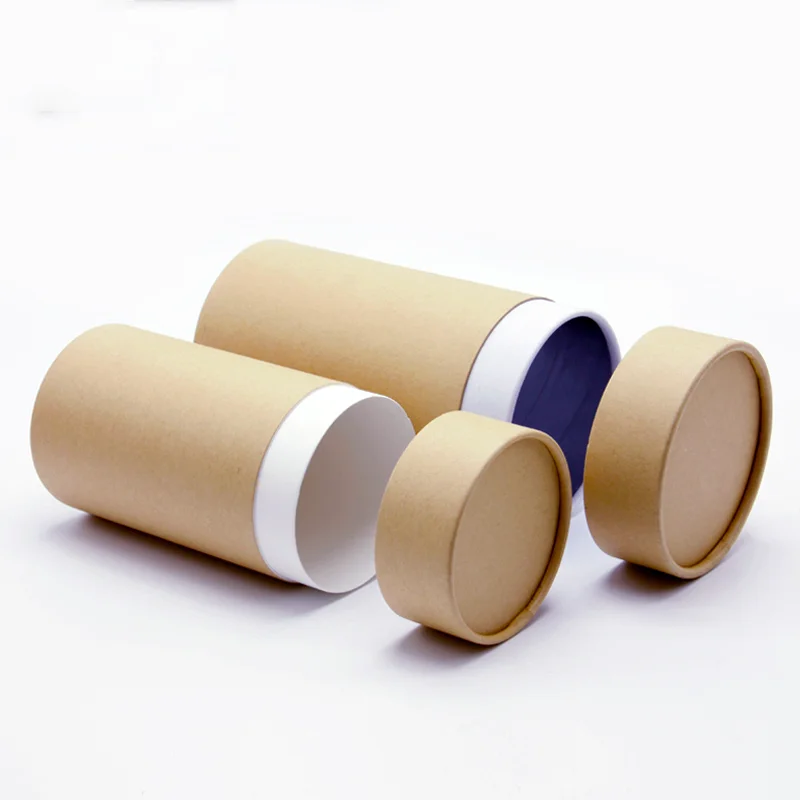

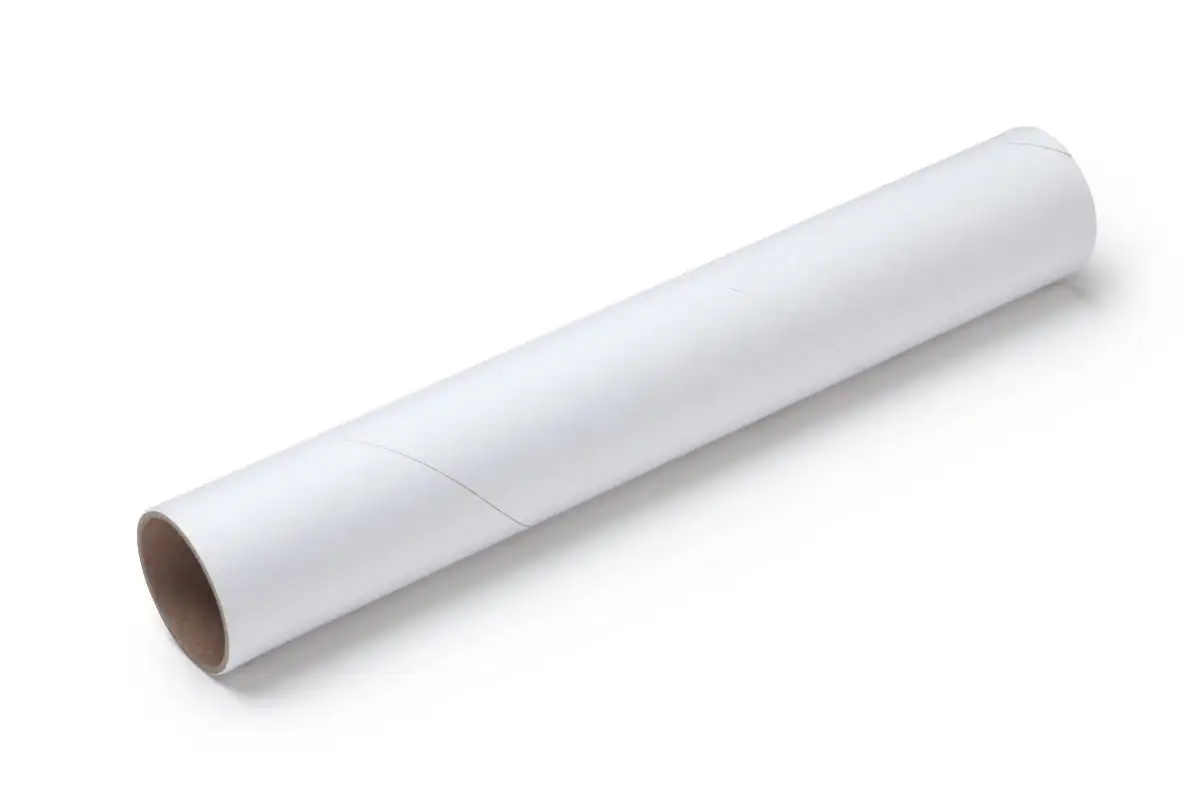

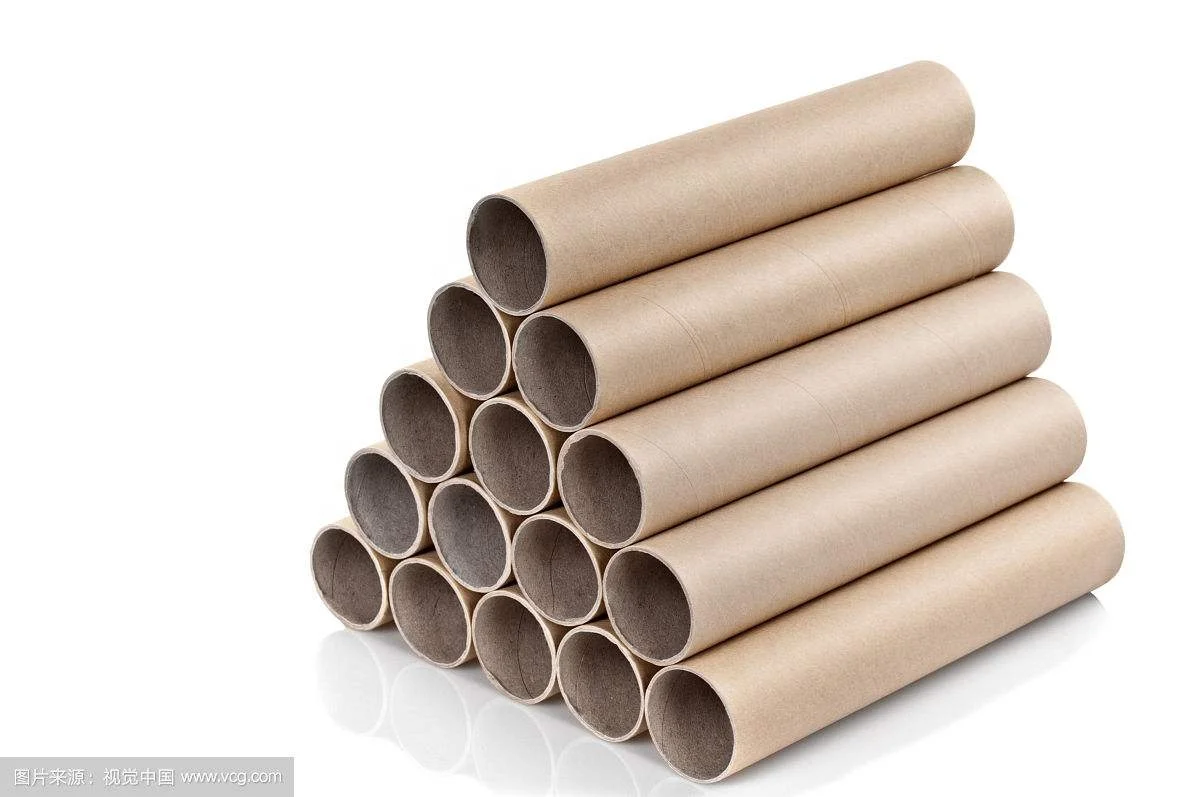

Finished Products
Company Information
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has 15+ years’ experience on paper tube & core machines manufacturing and 7+ years on paper straw machines manufacturing.
Main products are below:
-- Paper straws making machine
-- Paper tube & core making machine
-- Paper tube & core cutting machine
-- Jumbo paper slitting rewinding machine
-- Related machines
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain,UK, Ukraine, Russia, Uzbekistan,USA, Mexico, Colombia, Ecuador etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
