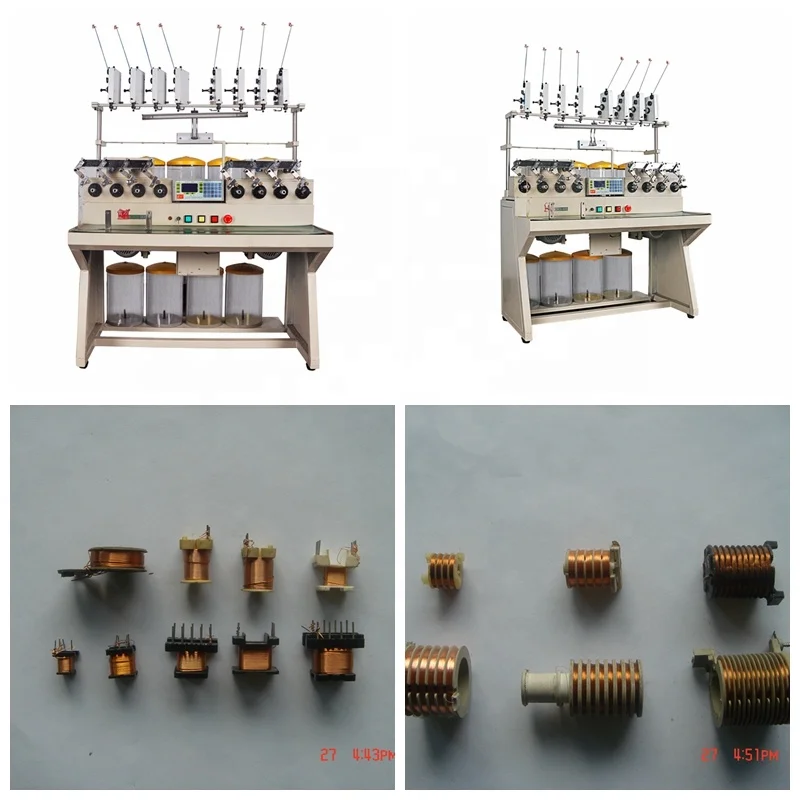

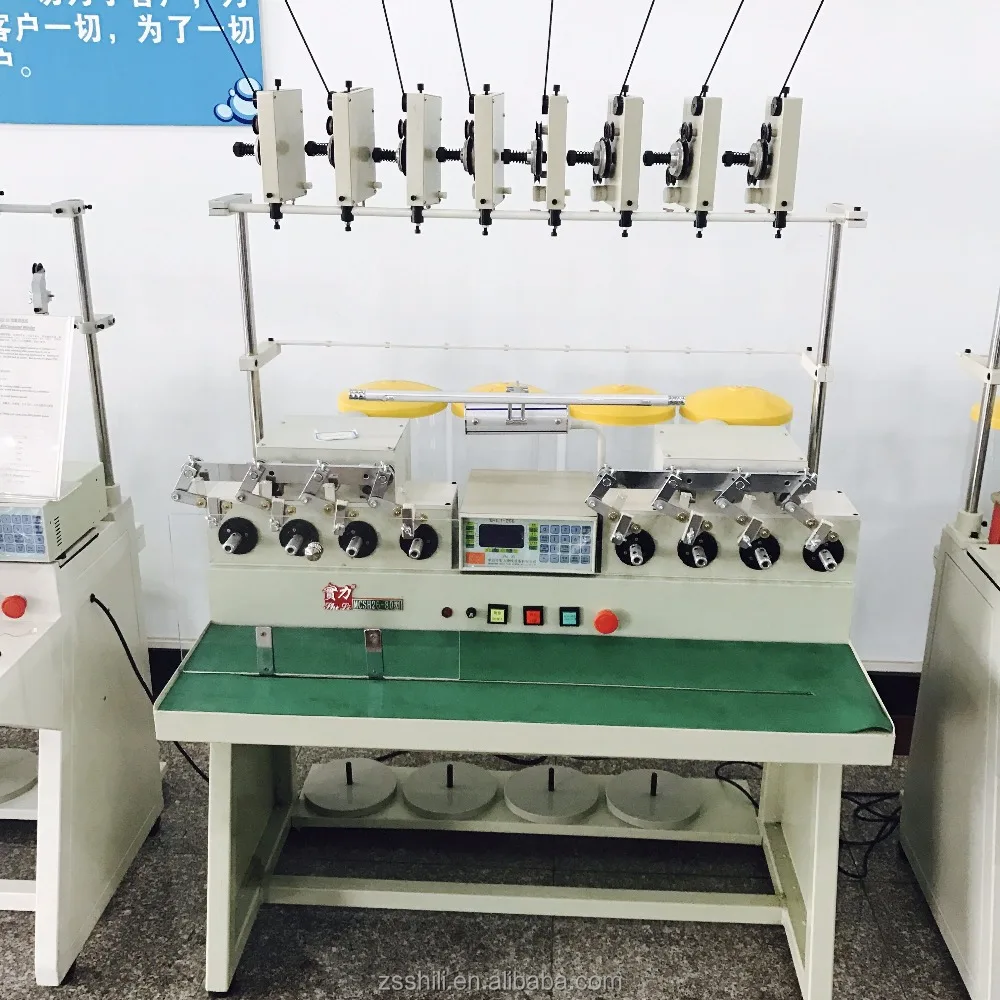

Горячая продажа MCSH26 80 8 шпиндельных пластиковых катушки обмотки машины
- Category: Coil Winding Machine >>>
- Supplier: Zhongshan Shili Wire Winder Equipment Co. Ltd.
Share on (60362586372):
Product Overview
Description
Products Description
This machine design of 32 bit controller chip, It’ll be faster and higher reliability.In Chinese and English display,easy to
operation,winding data retention after power failure, not to discarded products.All the parts for this machine are imported
prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,Japan GATES belt ,Taiwan Ball screw (TBI),Taiwan Transducers and so on.
Main Feature:

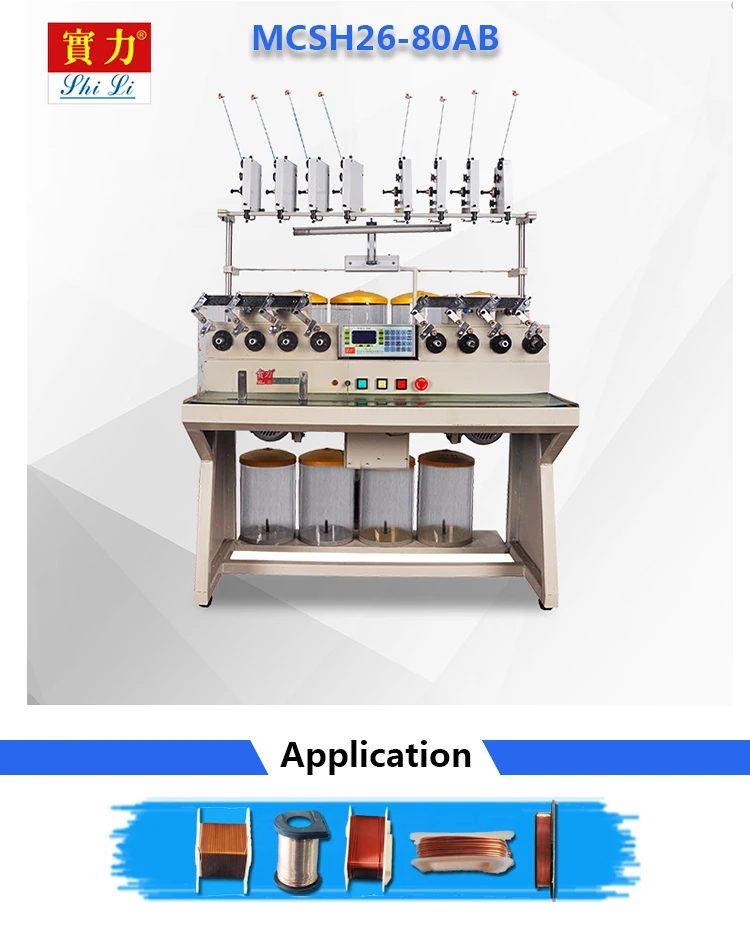

The MCSH26-80AB type is adapt to industry electronic transformer for high production, save manual work, adopts combined with thin
and thick wire structure , moving the shield will be able to change the products on thin or thick wire on two side in one time ,a
times or more time saving than the original single machine operation, truly can be use two way in one machine, time-saving and
high production. (This machine can be converted into AA type or BB tyfor thin wire, type B for the thick wire.)
Function:
1.Using the LCD latest synchronization with the coupling cable controller.
2.With self detection, including setting error, speed tracking and velocity calibration optional lifting speed of main spindle.
3. To start the operation speed of the spindle motor to climb time can decide for ourselves, to guarantee the product quality of
winding.
Application range:
Suitable for medium and small transformer and all kinds of small coil products, shaded pole motor.
operation,winding data retention after power failure, not to discarded products.All the parts for this machine are imported
prats,such as:Japan Bearing (NSK,NTN),Japan BANDO belt ,Japan GATES belt ,Taiwan Ball screw (TBI),Taiwan Transducers and so on.
Main Feature:
The MCSH26-80AB type is adapt to industry electronic transformer for high production, save manual work, adopts combined with thin
and thick wire structure , moving the shield will be able to change the products on thin or thick wire on two side in one time ,a
times or more time saving than the original single machine operation, truly can be use two way in one machine, time-saving and
high production. (This machine can be converted into AA type or BB tyfor thin wire, type B for the thick wire.)
Function:
1.Using the LCD latest synchronization with the coupling cable controller.
2.With self detection, including setting error, speed tracking and velocity calibration optional lifting speed of main spindle.
3. To start the operation speed of the spindle motor to climb time can decide for ourselves, to guarantee the product quality of
winding.
Application range:
Suitable for medium and small transformer and all kinds of small coil products, shaded pole motor.
Product Paramenters
Spindle number | 8 |
Wire size range | A(thin wire)0.04-0.2mm B(thick wire)0.1-0.35mm |
Loop diameter | 70mm |
Max wire distance | 9.99mm |
Winder width | 60mm |
Max speed | A:0-9000turn/min B:0-4200turn/min |
Spindle pitch | 85mm |
Input power | 220V 50HZ/60HZ |
spindle motor | AC1/2three phase motor+1HP transducer |
winder motor | stepping motor |
Machine size | 1080×800×1600mm |
Package size | 1180×960×1130mm |
net weight | 198kg |
gross weight | 250kg |
Company Profile
Product packaging
FAQ
Our Advantages
1. Free consultation service before, during, and after sales.
2. Adjusting and inspecting of equipment until everything is functional before leaving the factory.
3. Provide basic production techniques and formulas.
4.The whole set of machine is guaranteed for one year, not including normal consuming parts.
5. One year guarantee for whole machine.
2. Adjusting and inspecting of equipment until everything is functional before leaving the factory.
3. Provide basic production techniques and formulas.
4.The whole set of machine is guaranteed for one year, not including normal consuming parts.
5. One year guarantee for whole machine.
