MS2203 With RS232 Interface 9999 Counts Auto-range True RMS Digital 3 Phase Power Clamp Meter
Product Description
MS2203 Digital 3 Phase Power Clamp Meter
Features | ||
Display | 9999 counts | |
Jaw Opening | Φ50mm/2.0” | |
Auto Ranging | √ | |
Max/Min Value | √ | |
Data Logging | 28 groups | |
True RMS | True root mean square measurement | |
Data Hold | √ | |
Display Backlight | √ | |
Auto Power Off | √ | |
RS232 Interface | Windows OS | |
Power Supply | 4 x 1.5V AA Batteries | |
Size | 300mm x103mm x51mm(11.8" x4.1" x2.0") | |
Weight | 640g(1.4Ib) | |
Category | CE CAT .III 600V RoHS | |
Specifications | ||
Functions | Range | Accuracy |
AC Voltage(V) | 0.1V ~ 600V | ±(1.2% +5) |
AC Current(A) | 0.1A ~ 1000A | ±(2.0%+5) |
Active Power(kW) | 0.1kW ~ 600kW | ±(3.0%+5) |
Apparent Power (kVA) | 0.1kVA ~ 600kVA | ±(3.0%+5) |
Reactive Power (kVAr) | 0.1kVAr ~ 600kVAr | ±(3.0%+5) |
Power Factor | 0.3 ~ 1 | ±(2.0%+2) |
Active Energy | 0.001kWh~10000kWh | ±(3.0%+2) |
Frequency | 20Hz~1000Hz | ±0.5% |

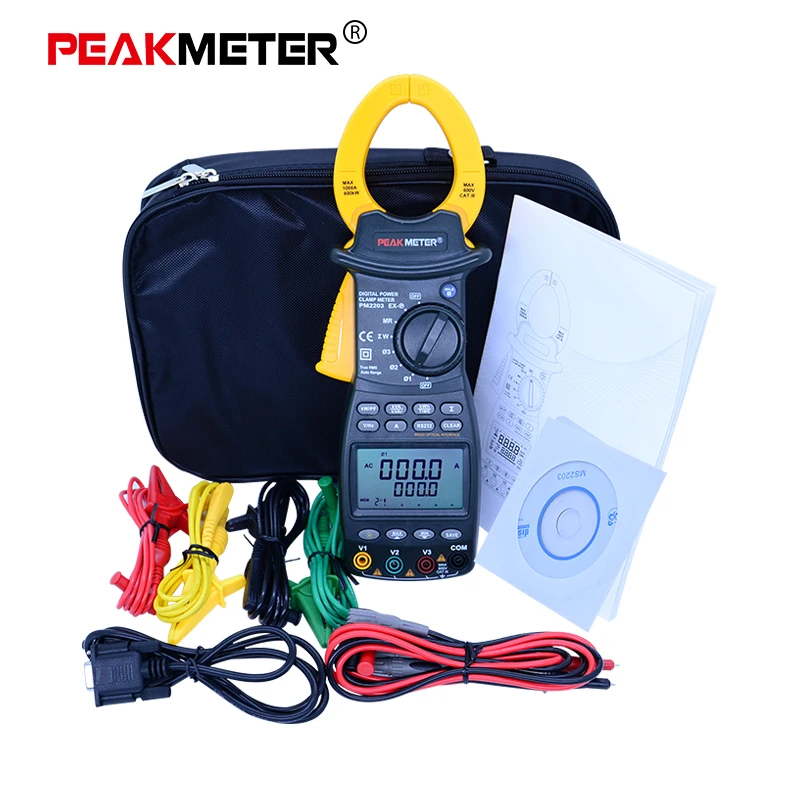

Accessories
MS2203 Digital 3 Phase Power Clamp Meter
User’s manual | One piece |
Test lead | One set |
Connect test clamp | One piece |
RS232C interface cable | One piece |
PC data record graph software | One piece |
1.5V AA battery | Four pieces |
Carry case | One piece |
Gift box | One piece |

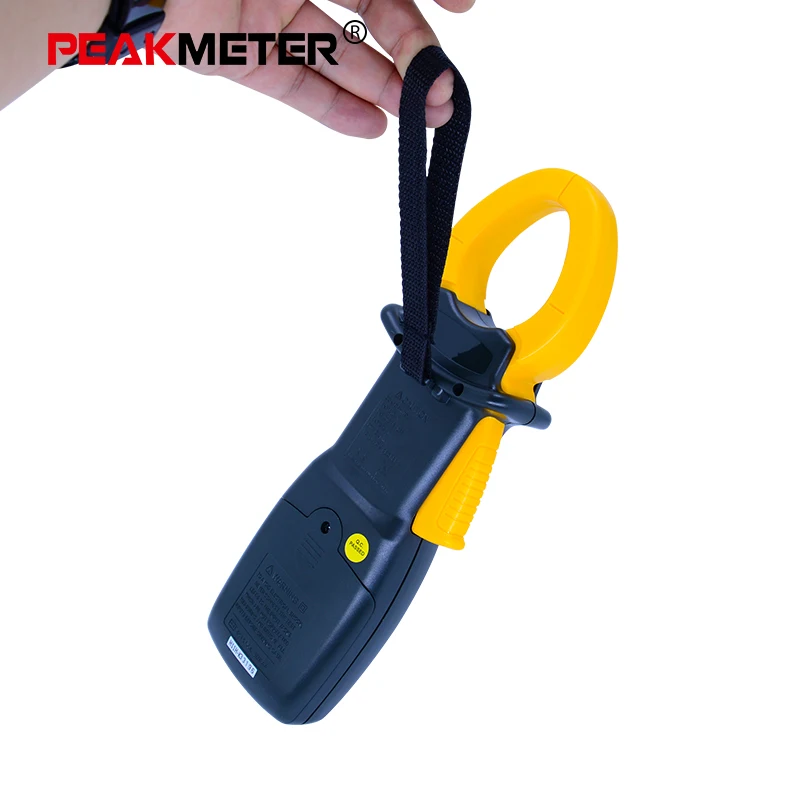

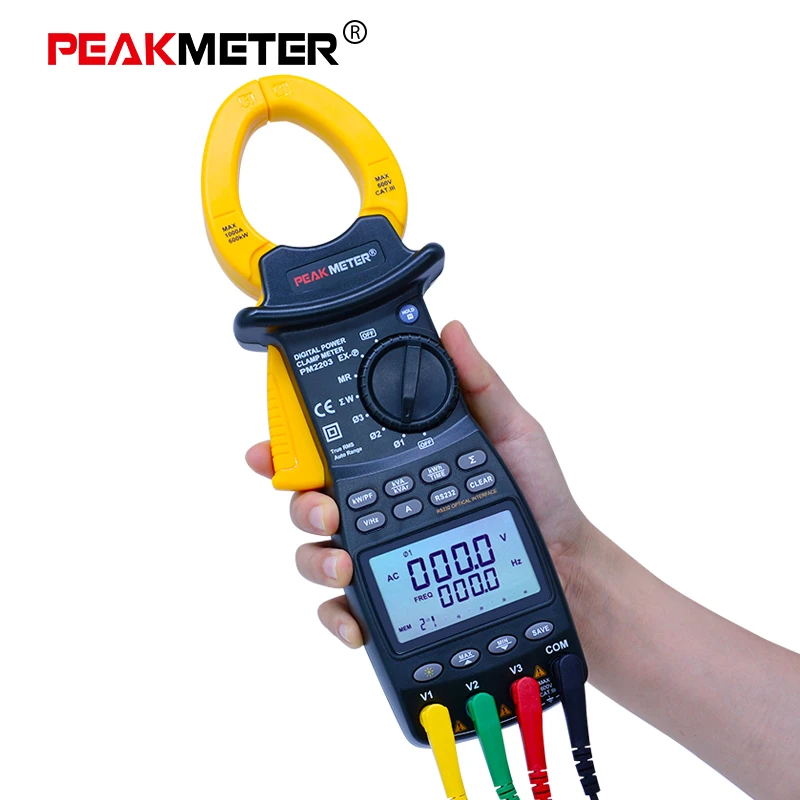

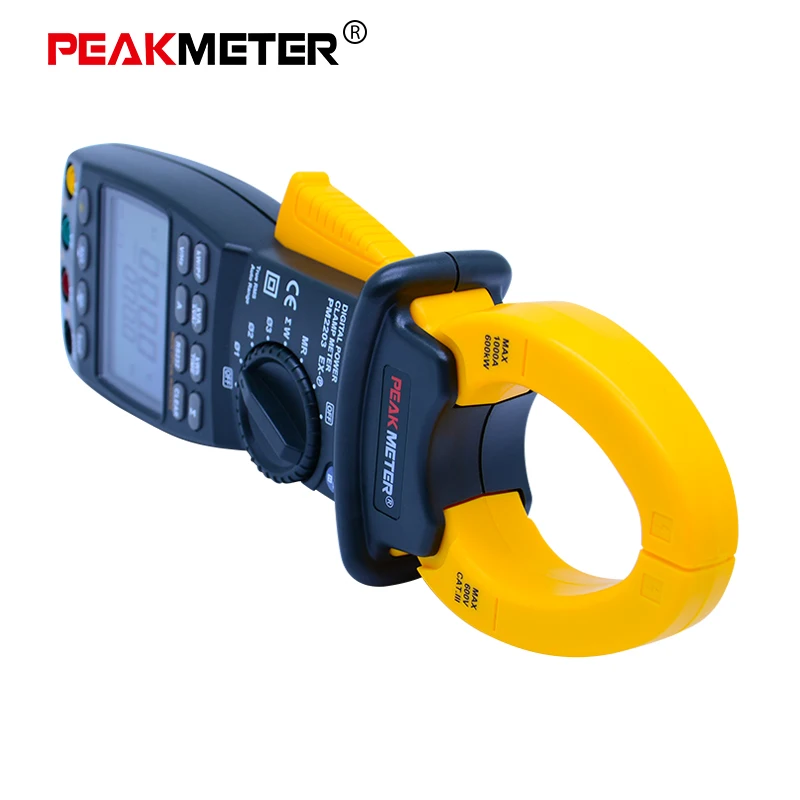

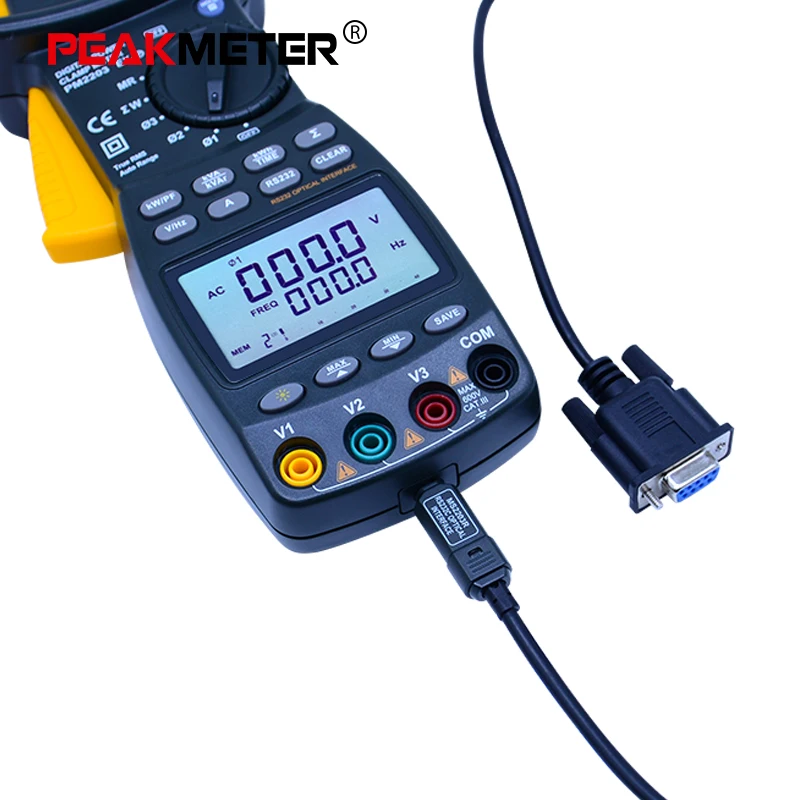

Detailed Images
