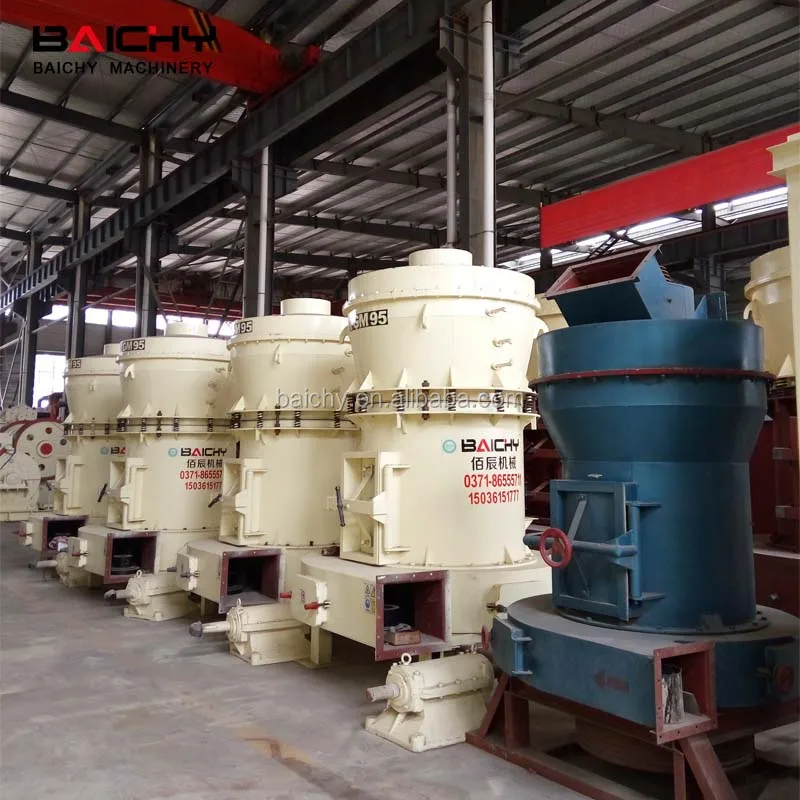

Stone Powder Grinding Machine Raymond Mill
- Category: Mine Mill >>>
- Supplier: Henan Baichy Machinery Equipment Co. Ltd.
Share on (60409348443):
Product Overview
Description
Stone Powder Grinding Machine Raymond Mil
♥ Brief Introduction of Raymond Mill
Raymond Mill is widely used to grind limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, diabase, quartz, bentonite, bauxite, iron ore and other non-flammable mineral in the field of metallurgy, building, chemical, etc. It is one of the mineral mill machines.

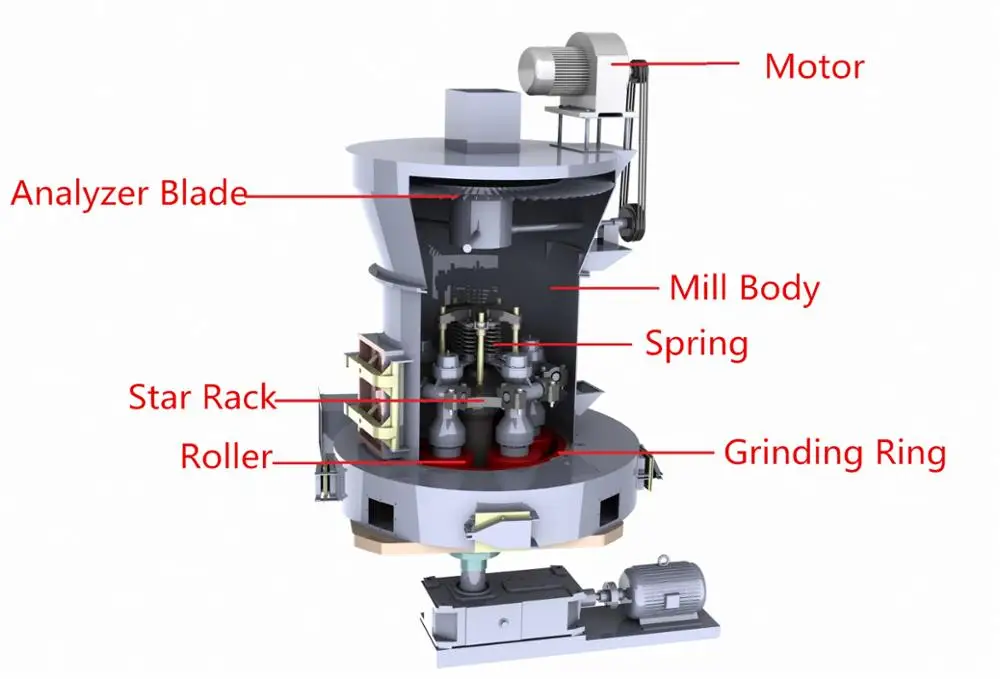

♥ The Main Part of Raymond Mill
♥ Working Prinpicle of Raymond Mill
1. The whole structure of Raymond Mill is mainly including the host, analysis machine, plumbing fixtures and the blower, according to user needs, it can be equipped with crusher, elevator, electromagnetic vibrating feeder, electric control motors etc.
2. After materials crushed to the desired particle size, enter into the storage hopper by the elevator, and then through vibrating feeder enter into grinding chamber of Raymond mill uniform continuously.
3. Due to the centrifugal force when rotating, the rollers swings outward, pressed on the grinding ring, shovel blade scoop up materials, then sent them between grinding roller and grinding ring, due to the grinding roller roller rolling to achieve crushing purpose.
4. After grinding material, the powder along with the circulating air which made by blower, is brought into the analysis machine for sorting, coarse material will regrind. Qualified powder along with the air enters into finished product cyclone powder collector, then discharge powder tube, that is finished product.
5. In the grinding chamber of Raymond mill, because there are certain moisture in the grinded material, when grinding, it will generate heat, moisture evaporates, and the pipe interface of the whole is not tight, the outside air is drawn into making the circulation pressure increased to ensure that the mill wok under negative pressure. The increased air flow enter into the dust through the duct, at last enter into the atmosphere after purification.
3. Due to the centrifugal force when rotating, the rollers swings outward, pressed on the grinding ring, shovel blade scoop up materials, then sent them between grinding roller and grinding ring, due to the grinding roller roller rolling to achieve crushing purpose.
4. After grinding material, the powder along with the circulating air which made by blower, is brought into the analysis machine for sorting, coarse material will regrind. Qualified powder along with the air enters into finished product cyclone powder collector, then discharge powder tube, that is finished product.
5. In the grinding chamber of Raymond mill, because there are certain moisture in the grinded material, when grinding, it will generate heat, moisture evaporates, and the pipe interface of the whole is not tight, the outside air is drawn into making the circulation pressure increased to ensure that the mill wok under negative pressure. The increased air flow enter into the dust through the duct, at last enter into the atmosphere after purification.
♥Technical Date of Raymond Mill

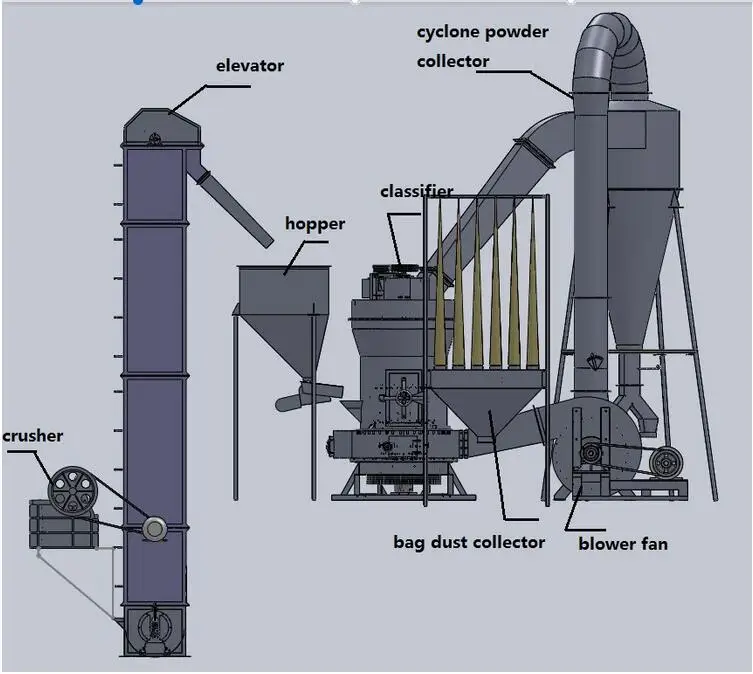

♥Structure of Raymond Mill
♥ Features of Raymond Mill
1. Small footprint, strong systemic
Vertical structure, small footprint, systematic, from raw materials roughing to transport to the milling to packaging, forming an independent production system.
2. Good stability, high reliability
Mainframe gearing adopts sealed pulley and gear box, smooth transmission , reliable operation. Raymond Mill important parts are made of high quality castings and extrusions , sophisticated technology and rigorous process to ensure that the durability of the equipment.
3. Good product size , through screening rate is 99%
Electrical system adopts centralized control, milling workshop basic enable unmanned operation. Compared with other milling equipment, through screening rate is 99%.

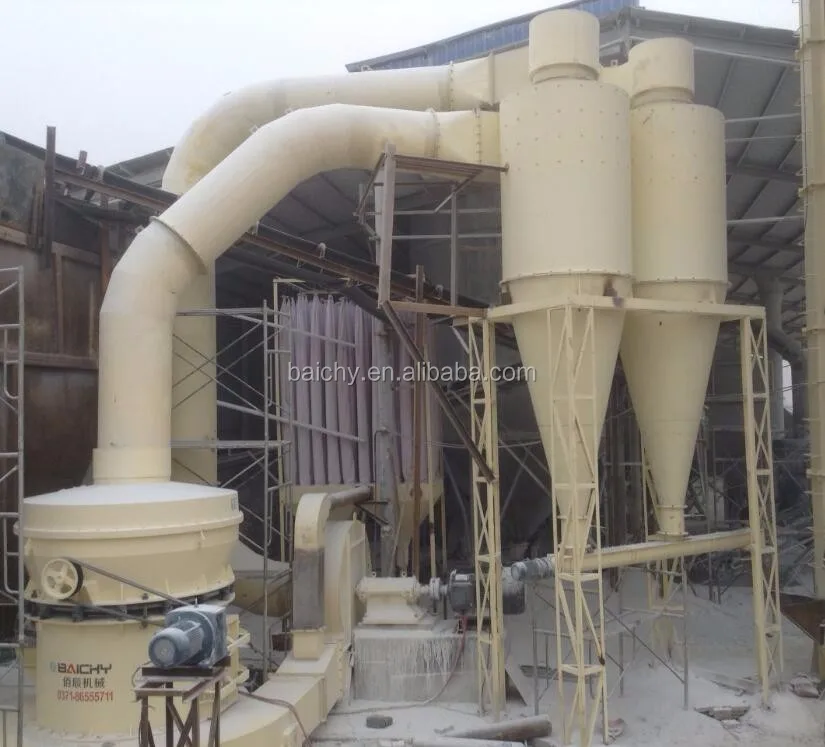

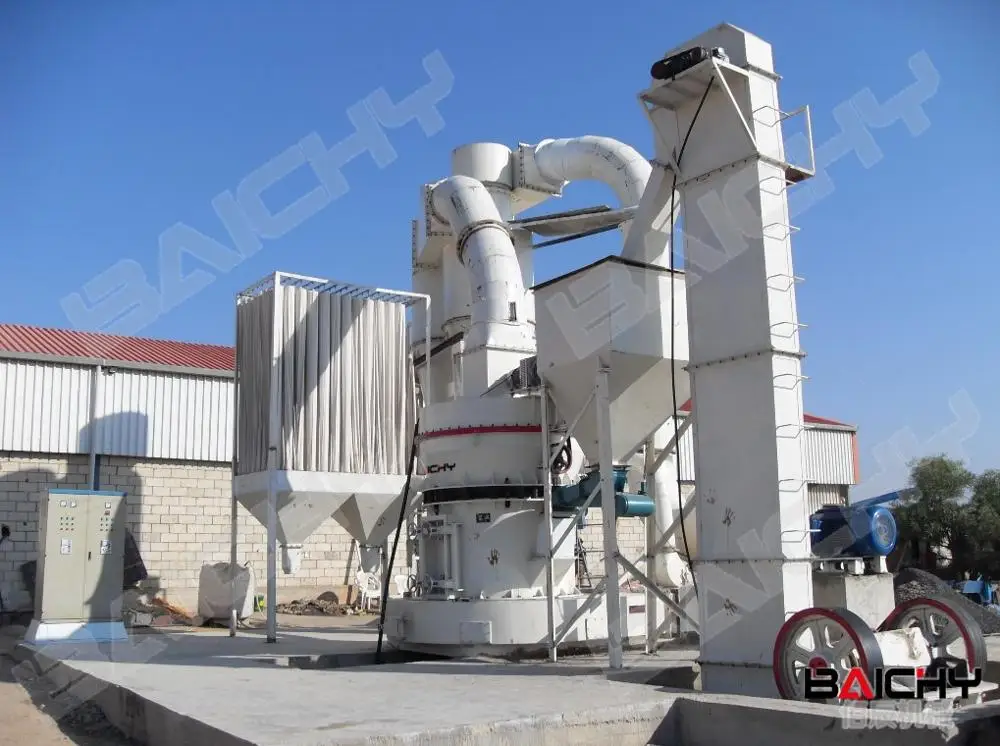

♥Customers' Spot

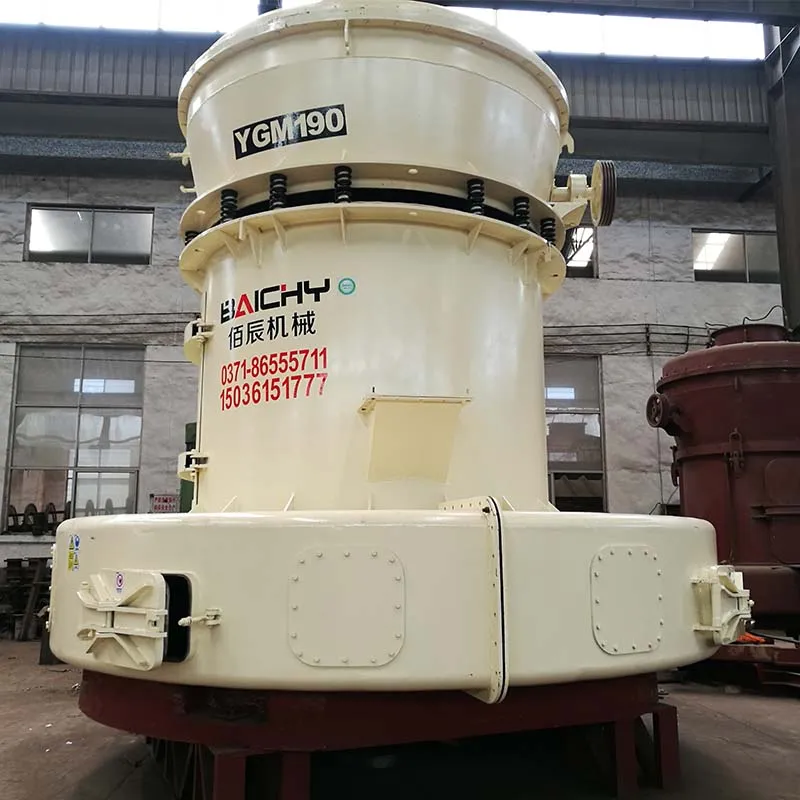

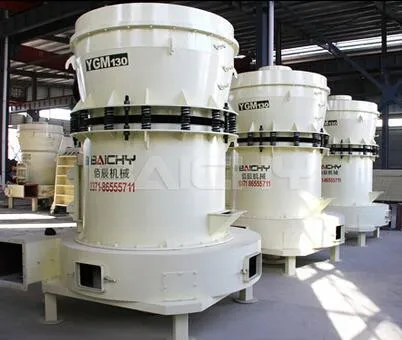

♥ Baichy Workshop

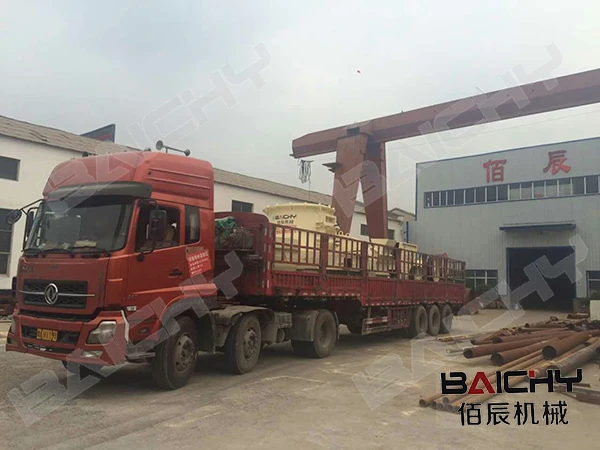

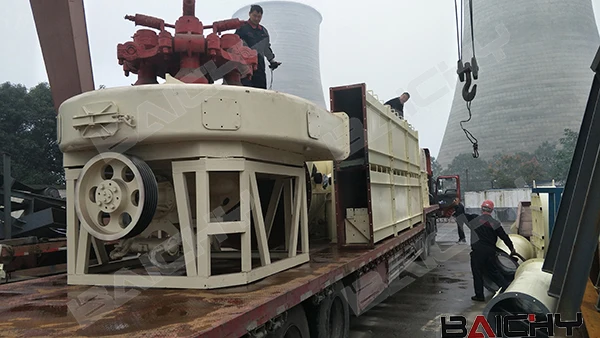

♥ Shipping Site
Welcome to inquire more and visit our factory and products. We are here patient and sincere to solve the problems for you!
