1. Cooling system:Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle 2. Gantry structure: The double column is whole part, greatly increase machine rigidity. 3. Qualityassurance: Each device before leaving the factory, we will test the cue with laser interferometer

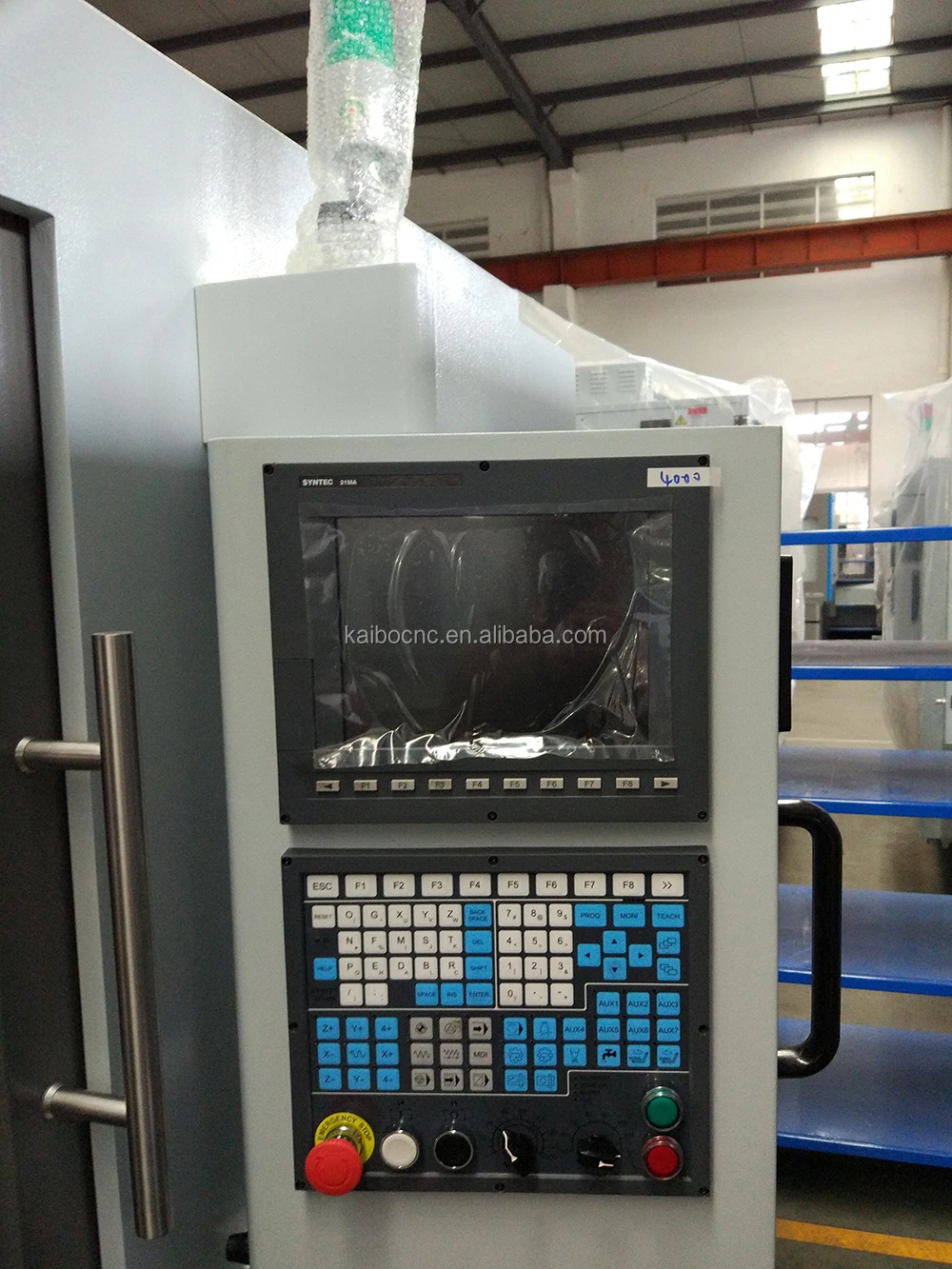

4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motorand drives: from Japan with high precision and long life
6. It applies roller pin guide-rail.
7. Main axle:3 kw high precision variable frequency main axle turns machining into a kind of artistic model.

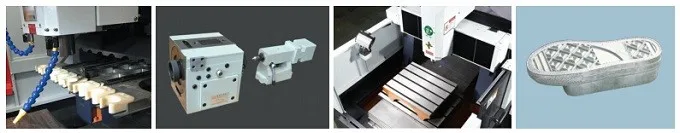

Application:
Processing material: Steel, iron, copper, aluminum, glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests; 2.Control system: Weihong(Syntec or FAGOR) or as your request 3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
Product Description

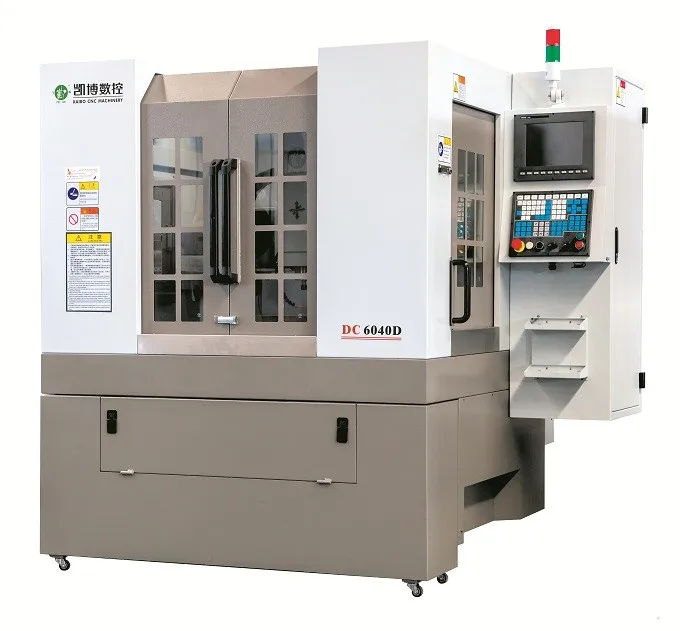

1.Description of CNC Machine
Main Specification
Unit
cnc metal engraving machine
X-axis travel
mm
600
Y-axis travel
mm
400
Z-axis travel
mm
170
Z-axis space
mm
300
Positioning accuracy
mm
0.01/300
Repeatable Accuracy
mm
0.01
Worktable size
mm
625X450
Max. Loading
kg
150
Rapid speed
m/minute
8
Spindle speed
rpm
21000
Machine weight
T
1.8
Overall size
mm
1410X1410X1860
Power
single-phase 220V
7KW
Servo motor power
W
750W
Servo motor drive
W
750W
Tool holder
Er20
Standard Accessories
Linear Guides(RG25)
Hiwin/Taiwan
Ball Screw(2005)
Hiwin/Taiwan
Servo Motor(750w)
Panasonic/Japan
Servo Motor Drives(750w)
Panasonic /Japan
High-speed Spindle(3kw)
Bohua / China
Spindle Inverter(3.7kw)
Taian/Taiwan
Electronic Hand-Wheel(EHDW-BA5S-1)
Yuanzhan/Taiwan

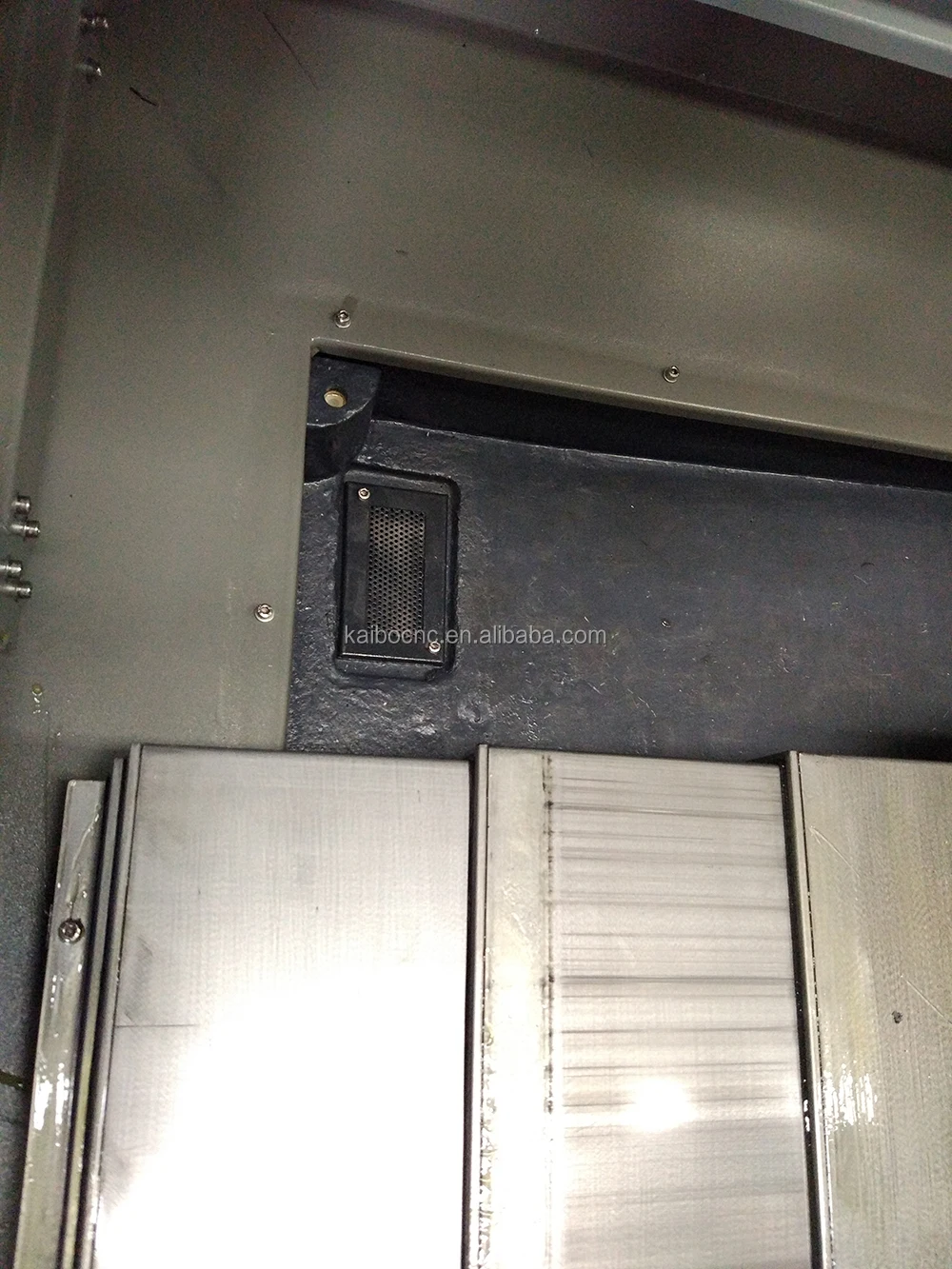

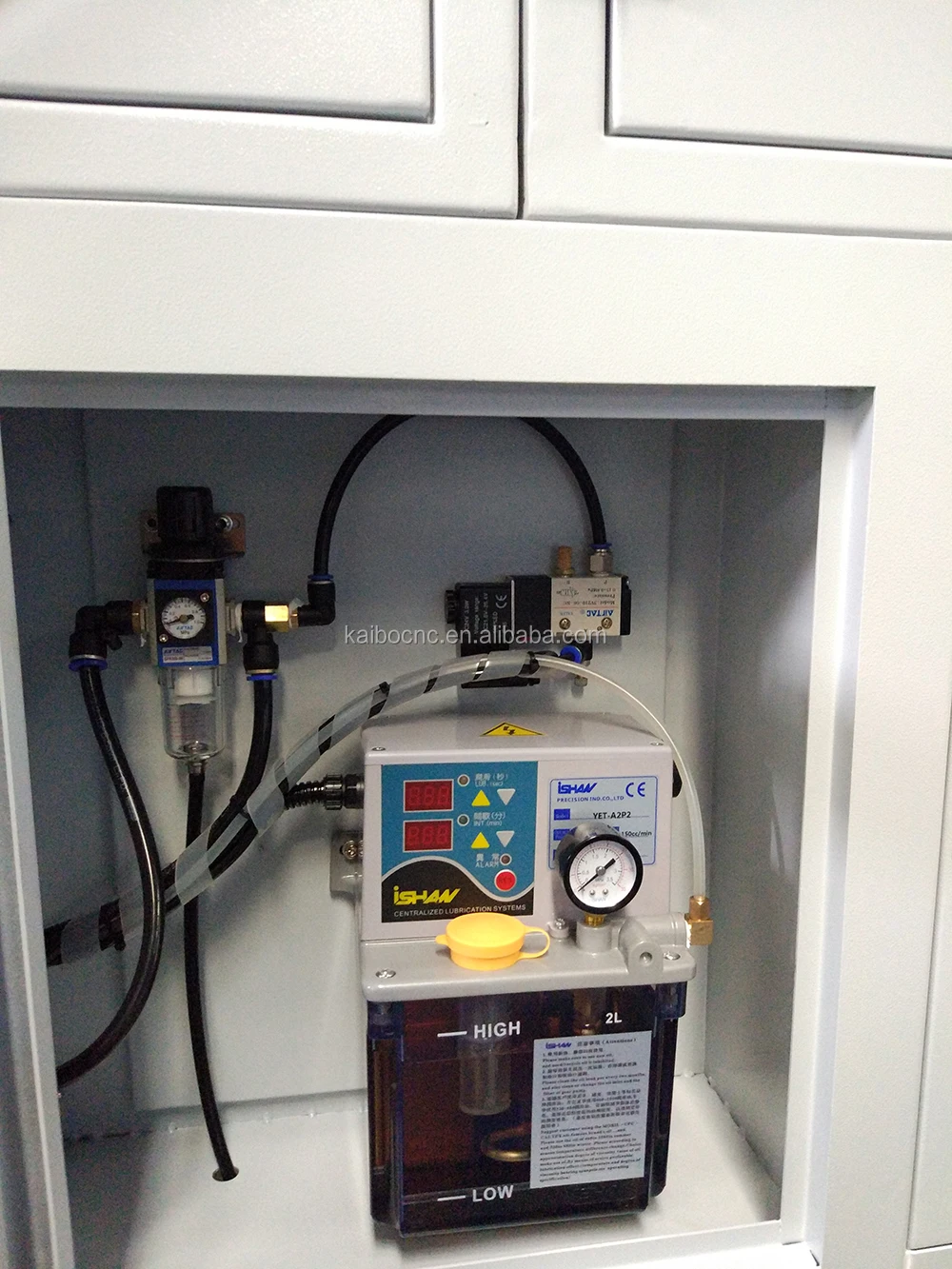

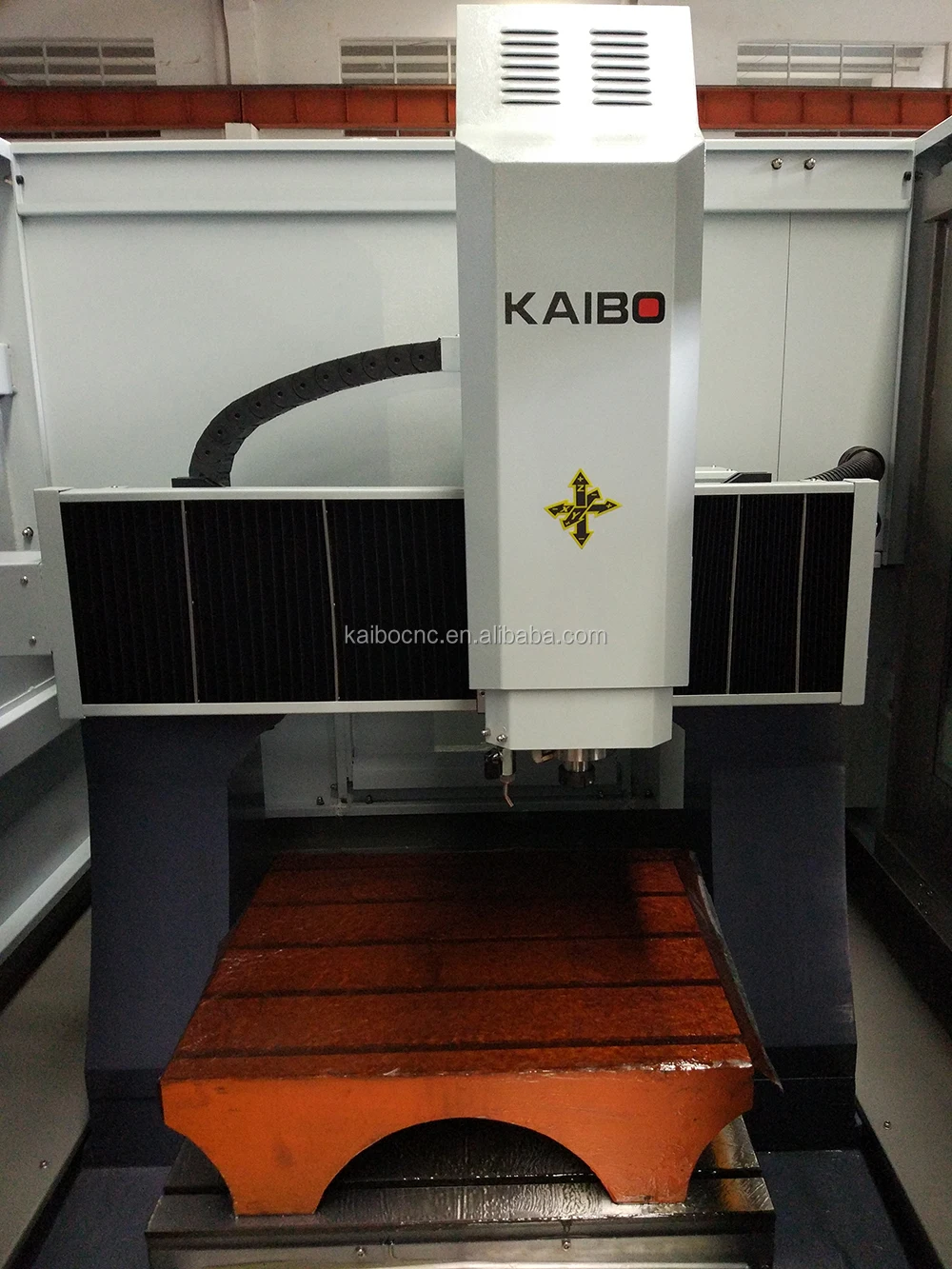

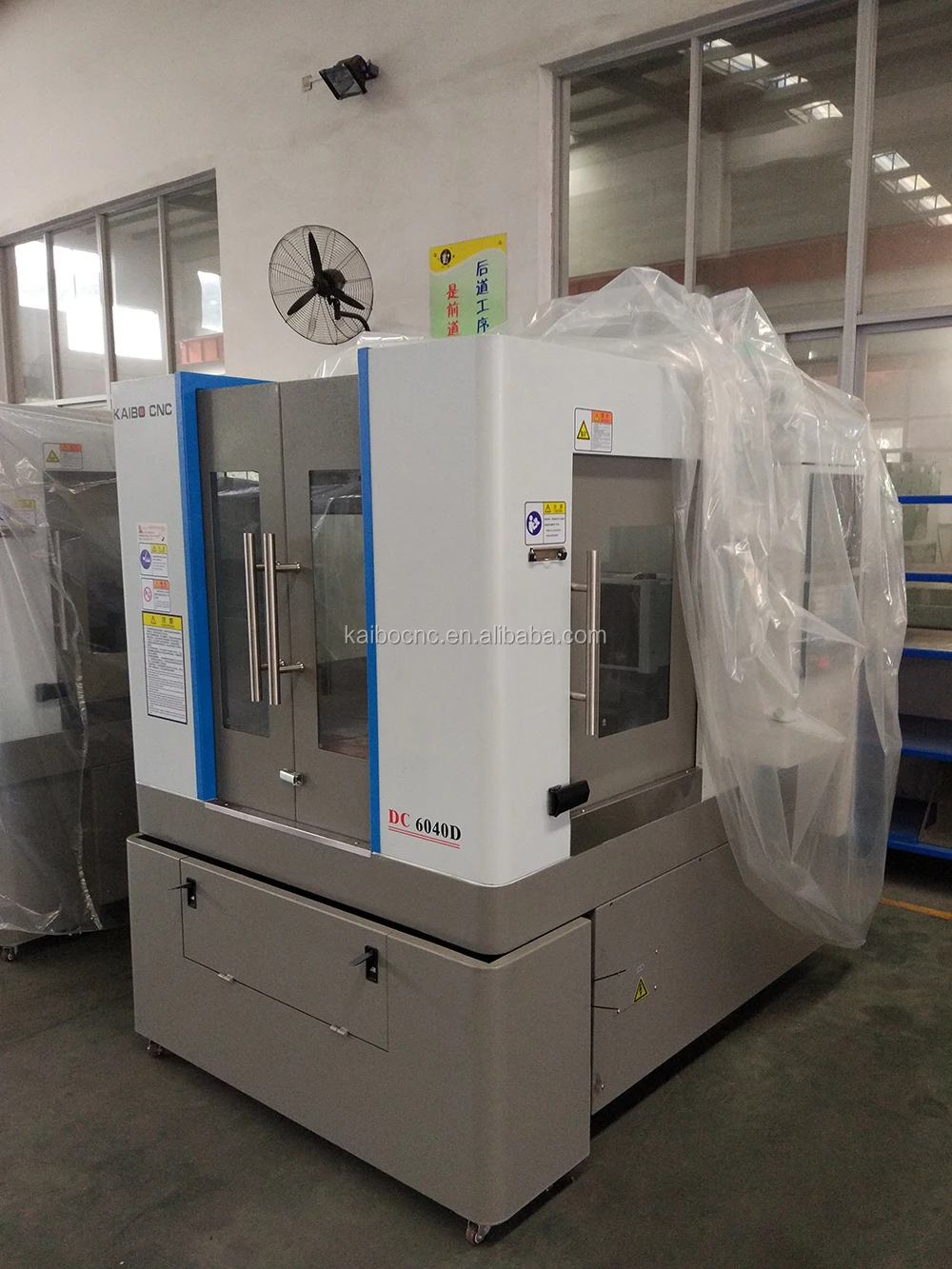

2.Pictures of CNC Machine
Packaging & Shipping
Trade Item Of Products
Transportation
always by sea
Payment terms
T/T,L/C At Sight or as your request
Package
1 piece/carton,piece into a master carton
Delivery time
by sea,within 45 work days
Our Services
Our Best Services For You
1.Technician available for training and installation at customer's company
2.Internet service by sending emails and videos,communicating online or calling
3.We will reply you as soon as possible after we receive your email
4.We can offer both OEM and ODM service according to customers' request
5.If novelties exist in any non-human-made problems,please contact us at your first time and we will offer you a satisfied
solution according to your suitation
