Automatic Blister Cartoning Machine

Product Overview

Description

Automatic Blister Cartoning Machine

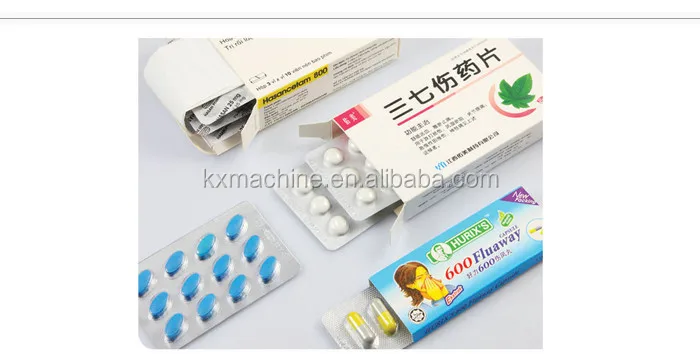

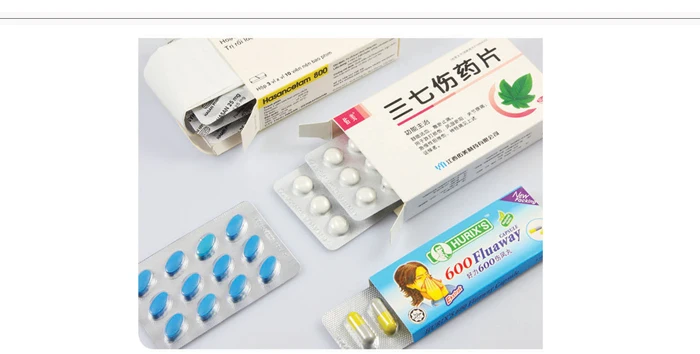

Product Sample:















Machine Description:

Our KXZ-100B  Automatic blister cartoning machine is suitable for pack blister, pharmaceutical, or similar product which pack by carton (box). Also have other model machine suitable for cartoning

(encase) bottle,pouchs,vials,medicine, cosmetis,condom, food, tube,wrapped products and daily product.

The machine finished running by a series of photo electro controller to make the machine stability and guarantee the packing quality. The machine can finish all jobs automatically such as leaflet(instruction manual) folding, carton opening automatically, inserting blister into carton box, bitch number printing,carton sealing and so on(also can use hot melt glue). It can be used alone, or be linked with the other device, to be a production line. Its and ideal cartoning machine.















Main Technical Parameters:

Encasing Speed	30-100box/min
Box Quality Requirement	250-350g/m2
Box Dimension Range	(70-220)mmX(14-90)mmX(14-65)mm
Instruction Manual Quality Requirement	60-70g/m2
Instruction Manual Unfolded Spefication	(80-250)mmX(90-170)mm
Instruction Manual Fold Range	(1-4)fold
Compressed Air Working Pressure	>=0.6mpa
Compressed Air Consumption	120-160L/min
Power Supply	220V 50Hz
Motor Power	1.5KW
Machine Dimension	3100X1100X1900mm
Machine Weight	1500KGS

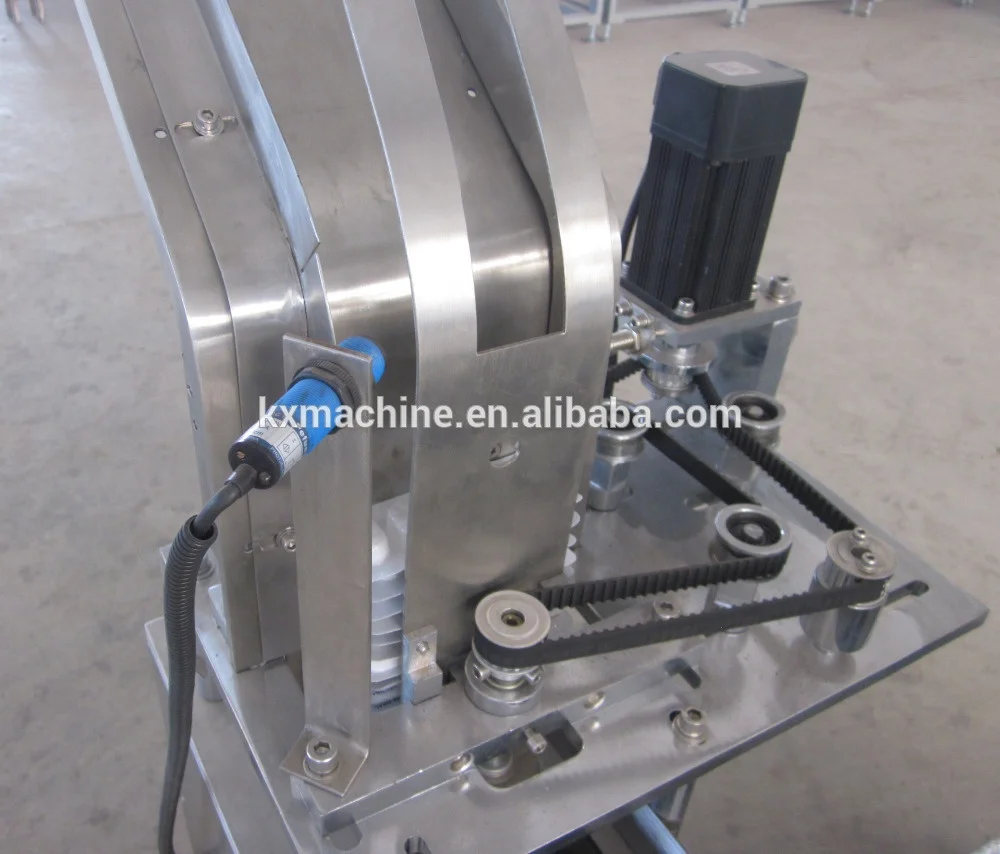

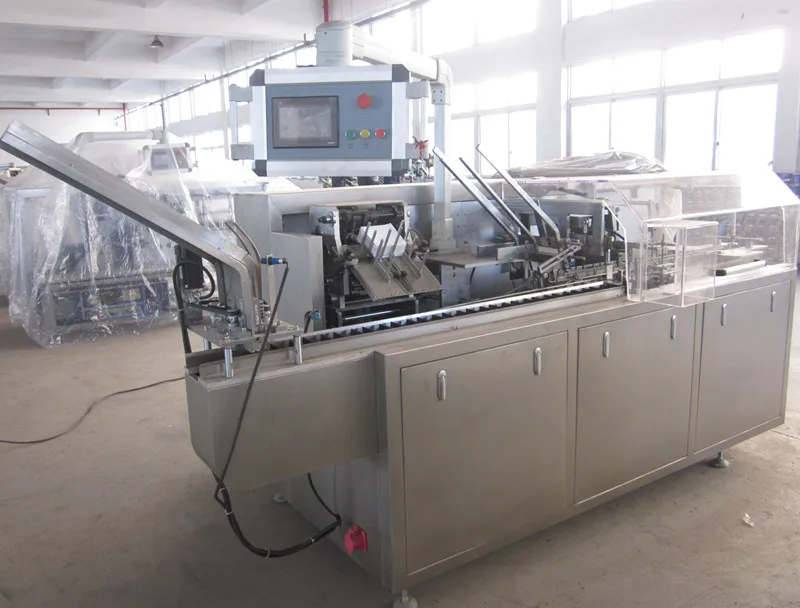

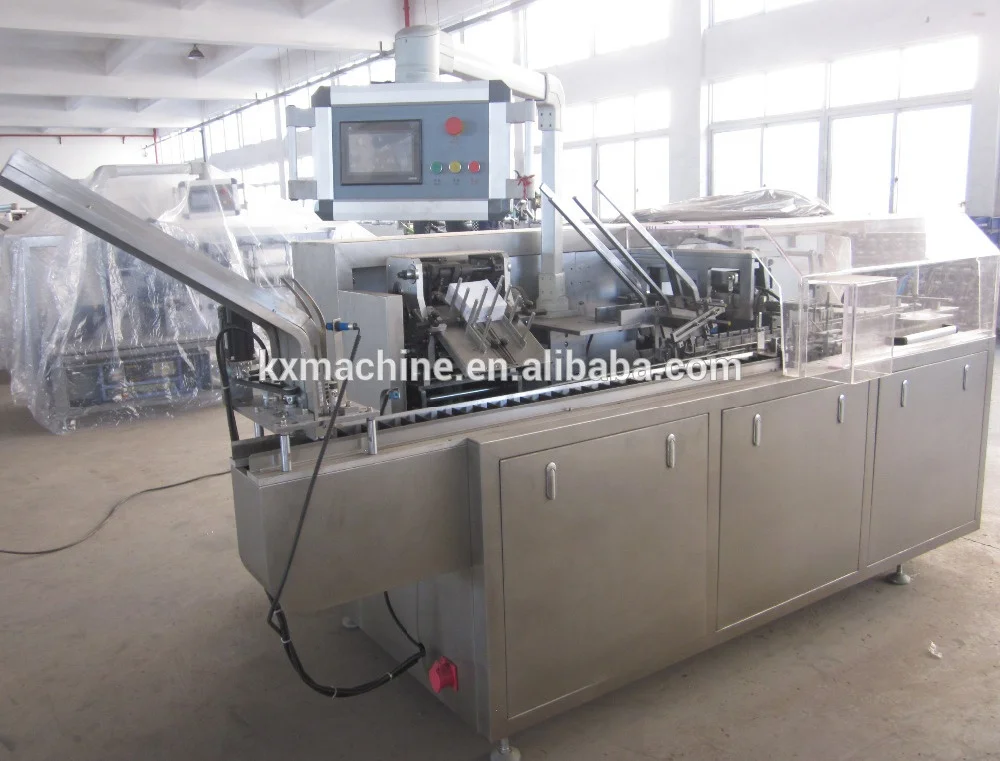

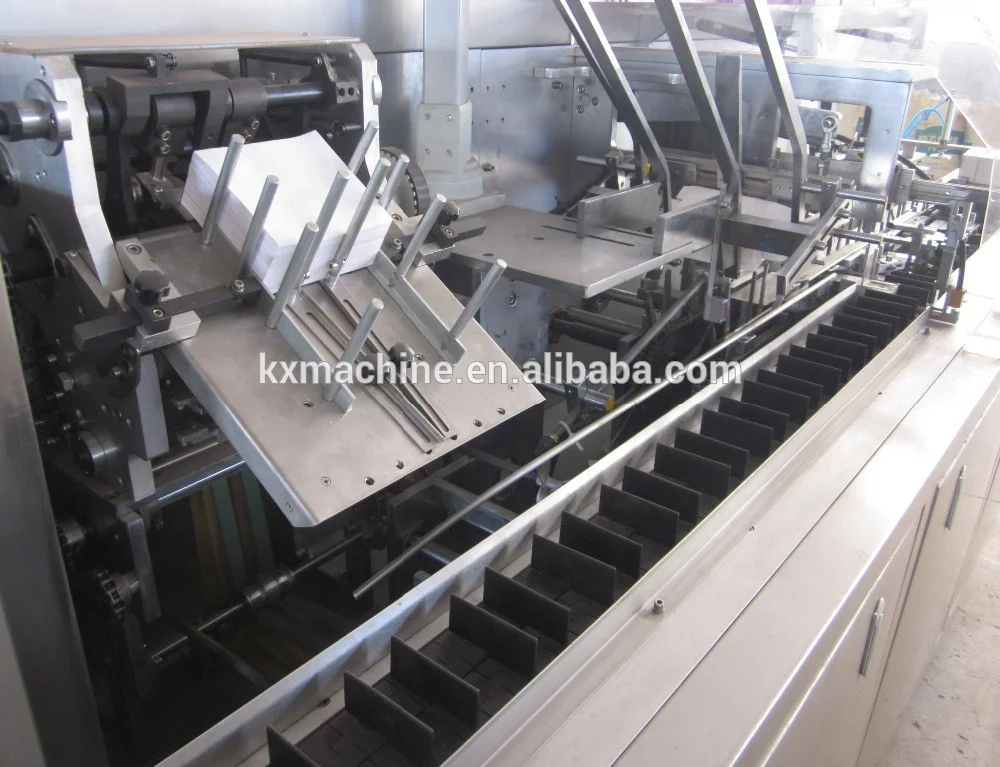

Machine picture:
