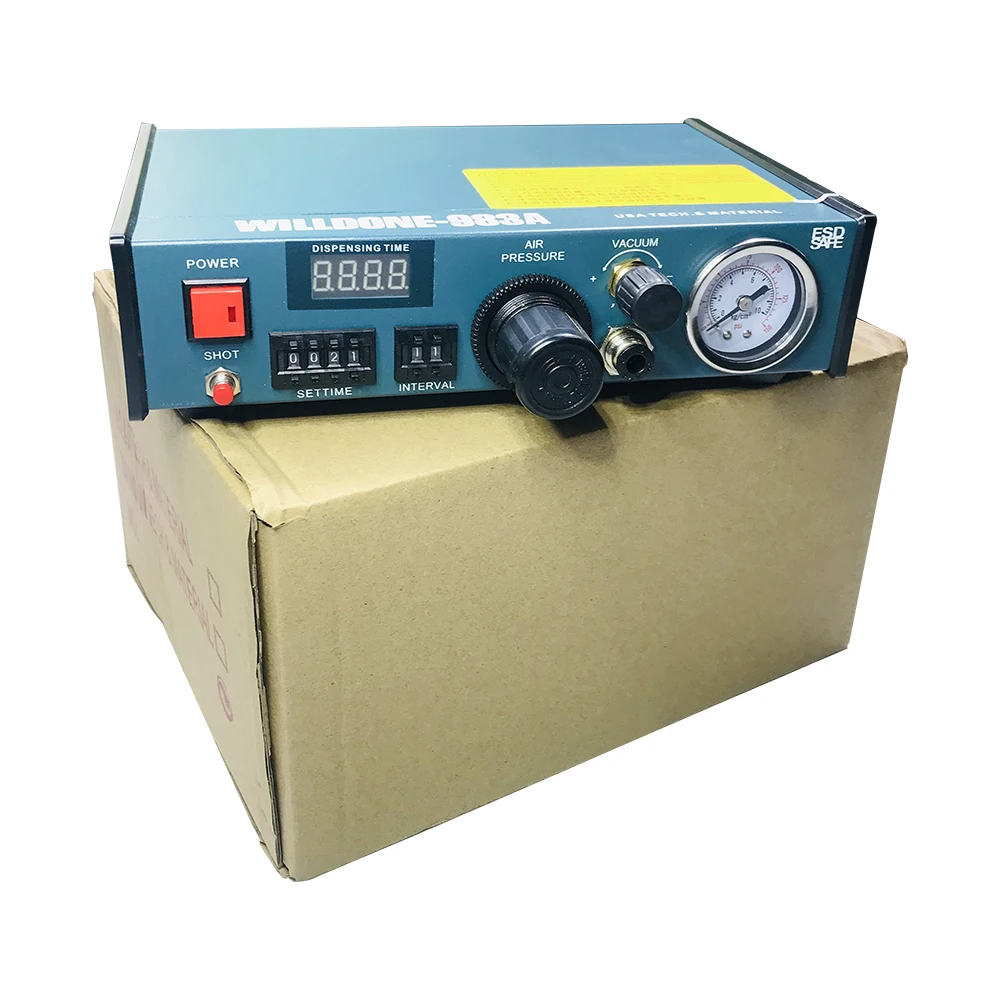

High Quality Automatic Liquid Glue Dispenser Epoxy Dispensing Machine Professional Precise Dispensing Controller 983A

Product Overview

Description

High Quality Automatic Liquid Glue Dispenser Epoxy Dispensing Machine Professional Precise Dispensing Controller 983A



Product Introduction:



It is a solution for the quantification of liquid during processes of industrial products.



Application:instilling of rubber gum elastomer,red glue,Spirit Gum,epoxy resin,silicon adhesive,lubricant,screw tightening adhesive,Solder tin paste,etc.

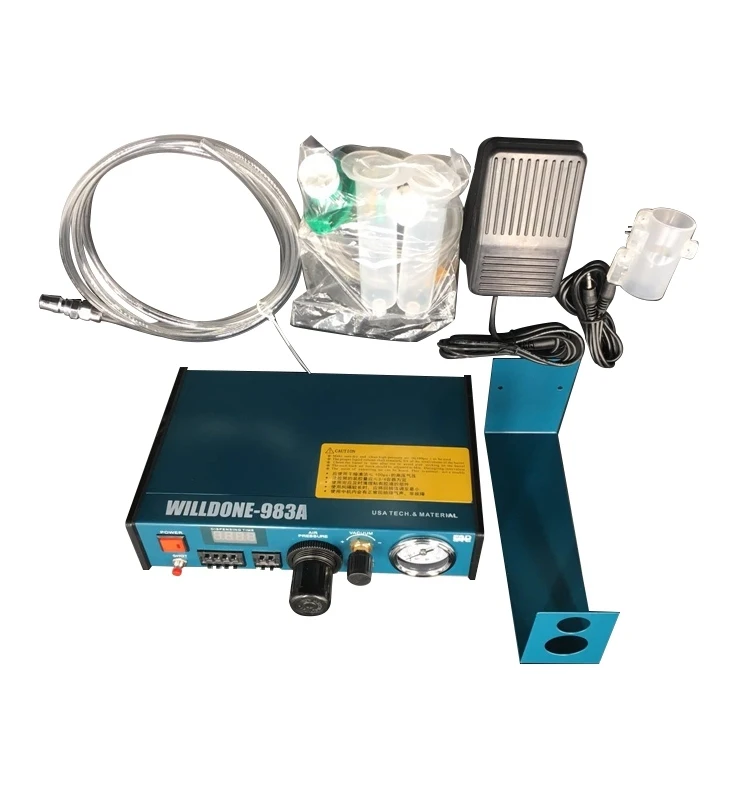

Liquid containers and glue needles come in different sizes and materials, and you can choose the right combination for you.



Model:	WILLDONE  983A
Feed flow time:	0.01s-1S,0.1s-10S,0.2s-20s,0.3s-30s (digital        demonstrated that digital control point rubber time, precision high);
Inner voltage	12VDC/24VDC
Power supply	< 8W
Input air pressure/output air pressure	10-100PSI/1-80SI
Timing Artificial sustained pedal (line painting) or Single-touch plastic tap
Minimum Spitting Volume Drops 0.001 ml.
Input barometric pressure:	0.5 Mpa 10.7 MPa;
Output barometric pressure:	0.05 MPa 10.7 MPa;
Spitting pressure adjustment range	0.05Mpa-0.99Mpa
Auto setting spitting time	0.01-99.99ss
Repeat accuracy:	0.5%;
Smallest drop out point quantity:	0.005ml;
Working speed:	>300/minute;
Manual setting spitting time	can contiune spitting
repeat Accuracy 0.01%  frequency	>800time/minute
Input voltage:	220V±10% 50Hz;
spitting interval time adjust	0.1-9.9s(auto setting function)
Consumed power:	Is smaller than 15W ;
External dimensions:	235mmX205mmX63mm;
Weight	2.2 kg



Application domain:

Industrial production each domain:

Handset pressed key, dye printing, switch, coupling, computer, digital product, digital camera, MP3, MP4, electronic toy, loudspeaker, buzzer, electronic primary device, integrated circuit, circuit wafer,LCD liquid crystal box, relay, speaker, crystal oscillator part, LED lamp, cabinet cementation, optical lens, mechanical part seal and so on.
