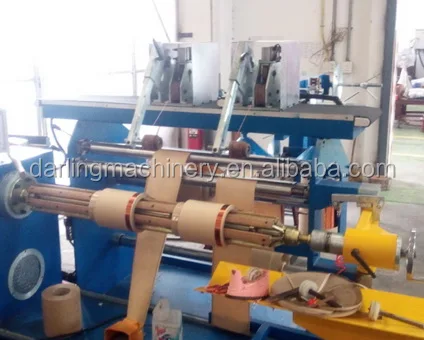

Hot sales CE ISO9001electric transformer core copper wire GRX 1600 Double Coils Transformer Automatic Coil Winding Machine

Product Overview

Description

Hot sales CE ISO9001electric transformer core copper wire GRX-1600 Double Coils Transformer Automatic Coil Winding Machine

Watching machine working video directly (Video link):

YouTube: https://youtu.be/UvcZYrjm_P0

QQ video: https://v.qq.com/x/page/i3218vvsss1.html

Baidu video: https://haokan.baidu.com/v?vid=4304951764462740042&bfe=1

main technology index

Center height	850 mm
Winding axis center distance	250-1600 mm
Working torque	max 300 N·M
Winding speed	0-240 r/min
Speed adjusting method	Stepless frequency control
Working range	Outer diameter ≤600mm Inner diameter ≥80mm Axial height ≤1500mm Diagonal length of rectangle coil: Max: 1500 mm Workpiece weight: Max: 800kg
Whole machine power	About 7kW
Max.setting turns of counter	99999.9
Guide wire specification	Enameled flat wire: Max 3x15mm Enameled round wire: Φ0.3mm-Φ4mm
Automatic cabling function	Adjusting wire diameter min.gap 0.01mm
Counting method	5 digit display, can set total turns, can be divided 30 sections in total setting turns, can counting in reverse winding, keep data when power off.
Voltage	380V/50Hz
Color	Green (customer indicated)
Whole weight	About 2000kg

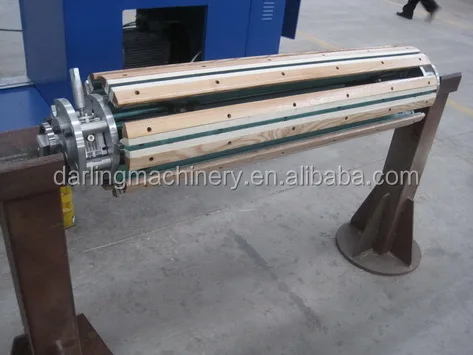

Winding mandrel size	According to client requirement

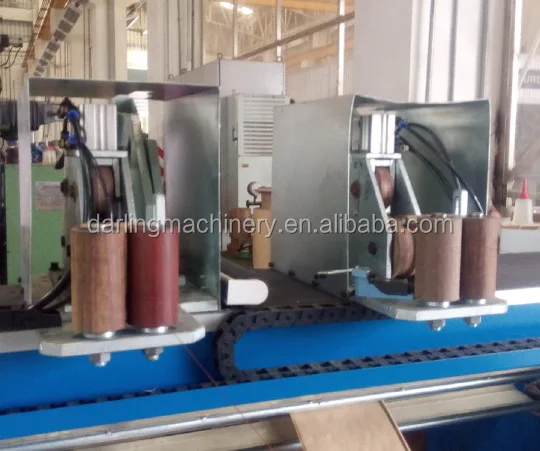

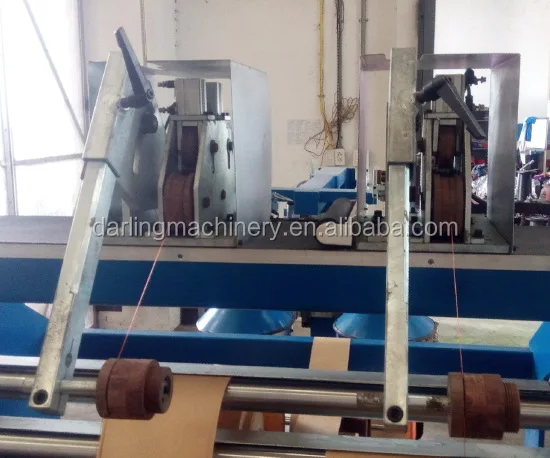

Interlayer insulation	3 sets

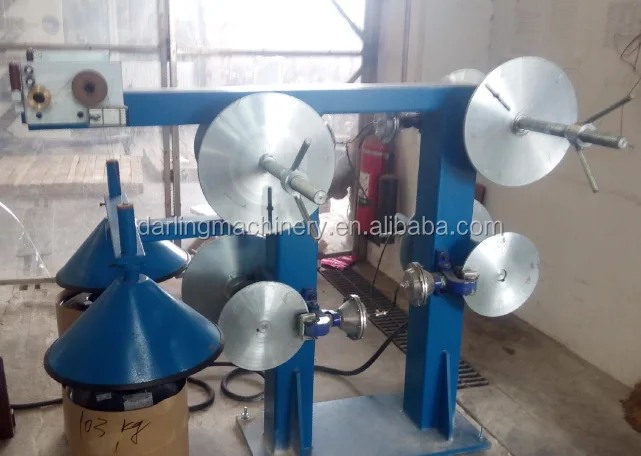

others	2 axis pneumatic tension wire uncoiling shelf

main component and manufacture

Item	Manufacture
transformer	Mitsubishi of Japan
Can programming controller PLC	Mitsubishi of Japan
Human-computer interface (liquid touch screen)	Mitsubishi of Japan
RS-485 communication mould	Mitsubishi of Japan
RS-485 communication wire	Mitsubishi of Japan
RS-422 communication wire	Mitsubishi of Japan
Photonics coder	Shanghai
Electromagnetism braking 3 phase synchronization motor	Wannan
Foot-touch switch	Taiwan
AC contactor	DELIXI or Schneider
