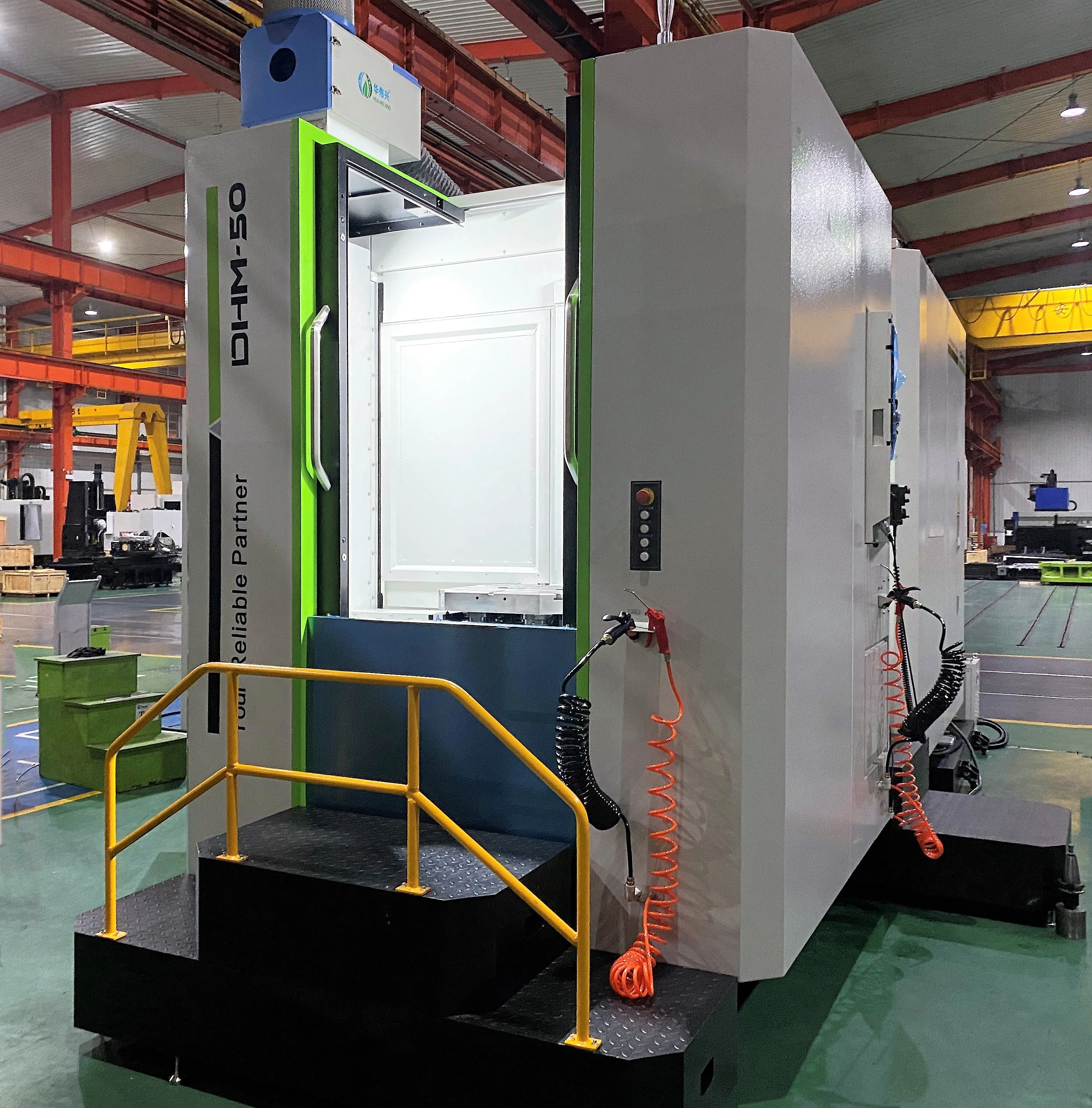

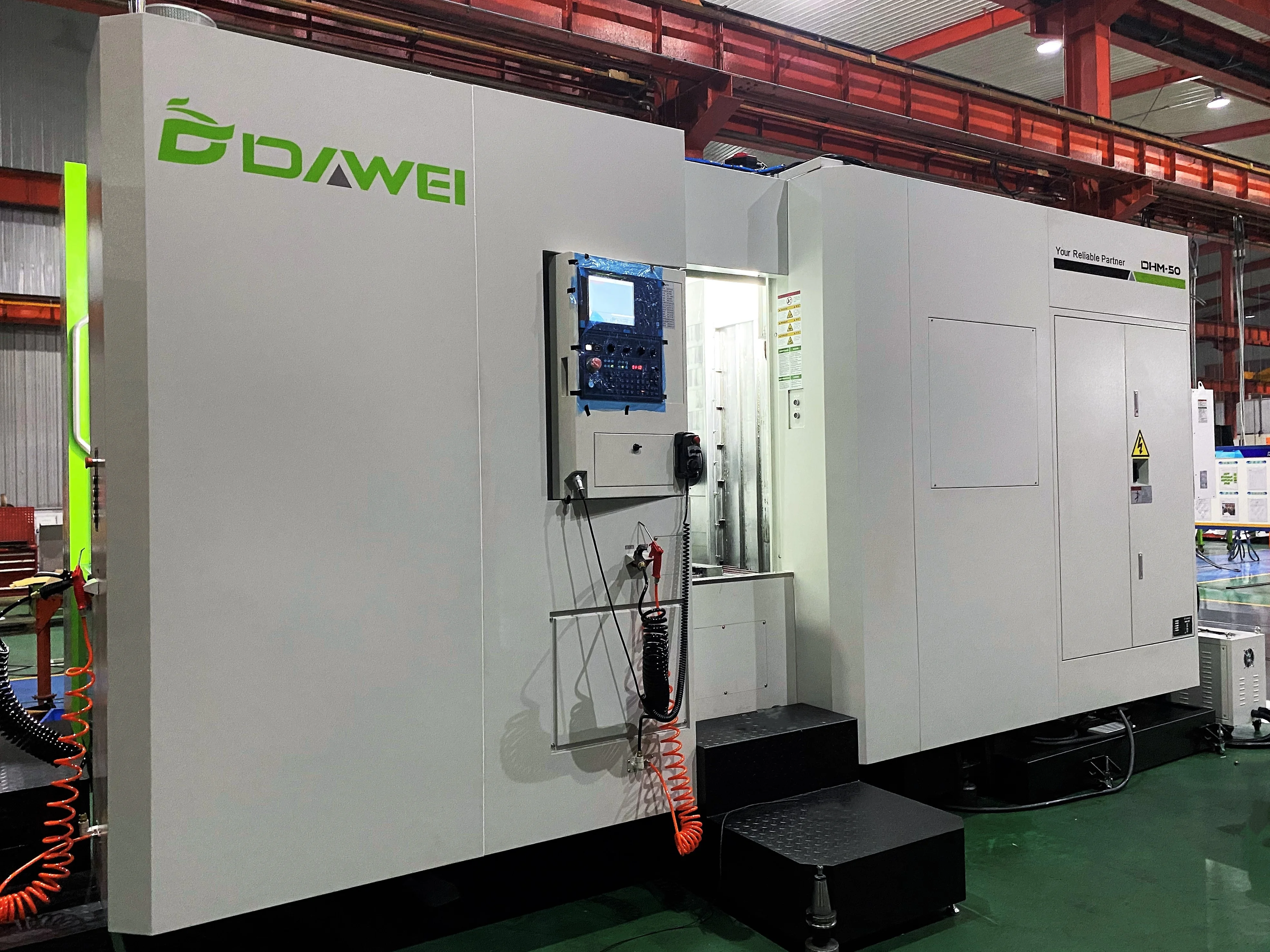

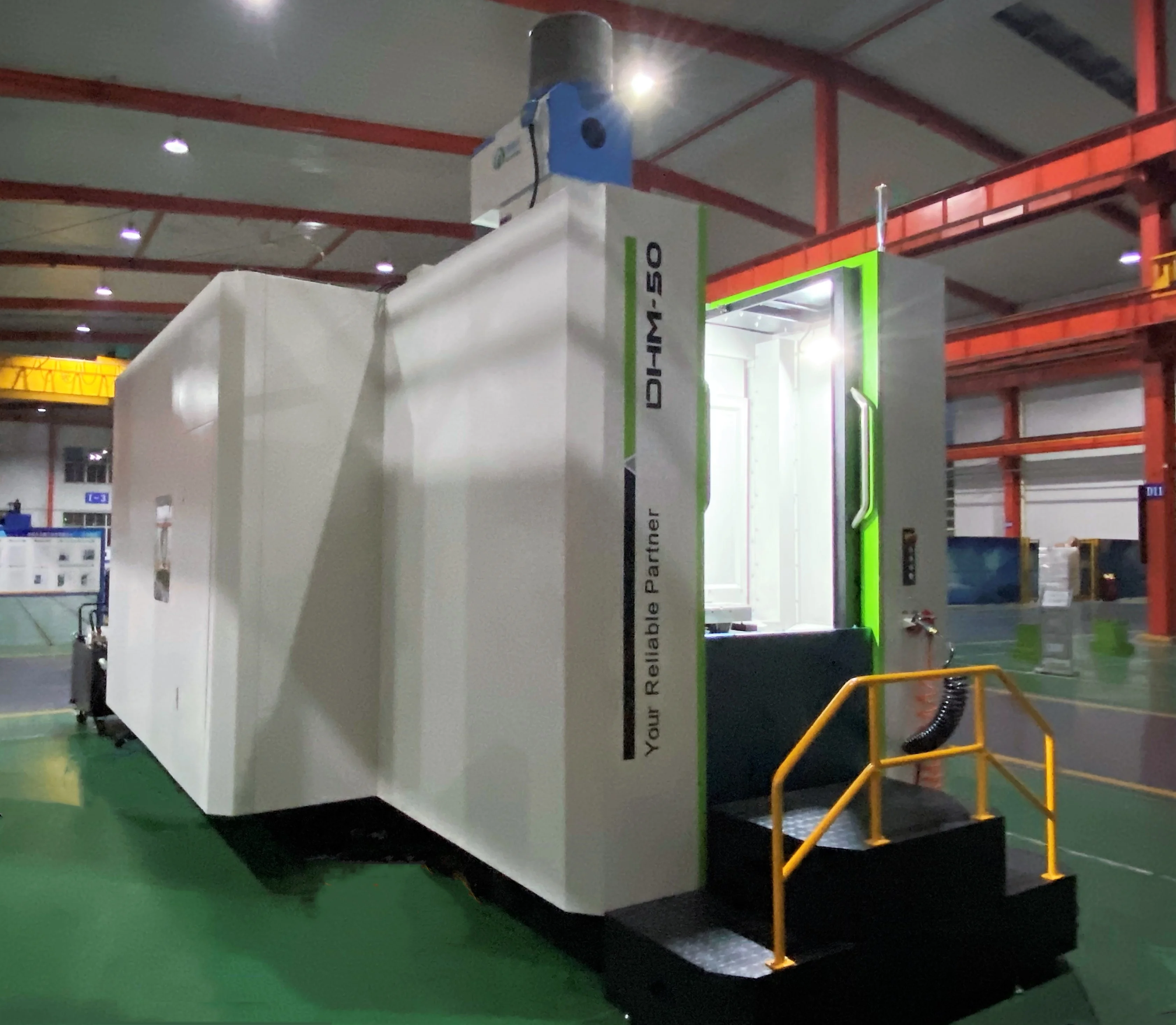

DHM50 обновления внешний вид 4 оси горизонтальный многоцелевой станок с ЧПУ фрезерный станок с ЧПУ обрабатывающий центр с ЧПУ
- Category: Machine Centre >>>
- Supplier: Nantong Guosheng Intelligence Technology Group Co. Ltd.
Share on (60477805102):
Product Overview
Description
Product Description
Details Images

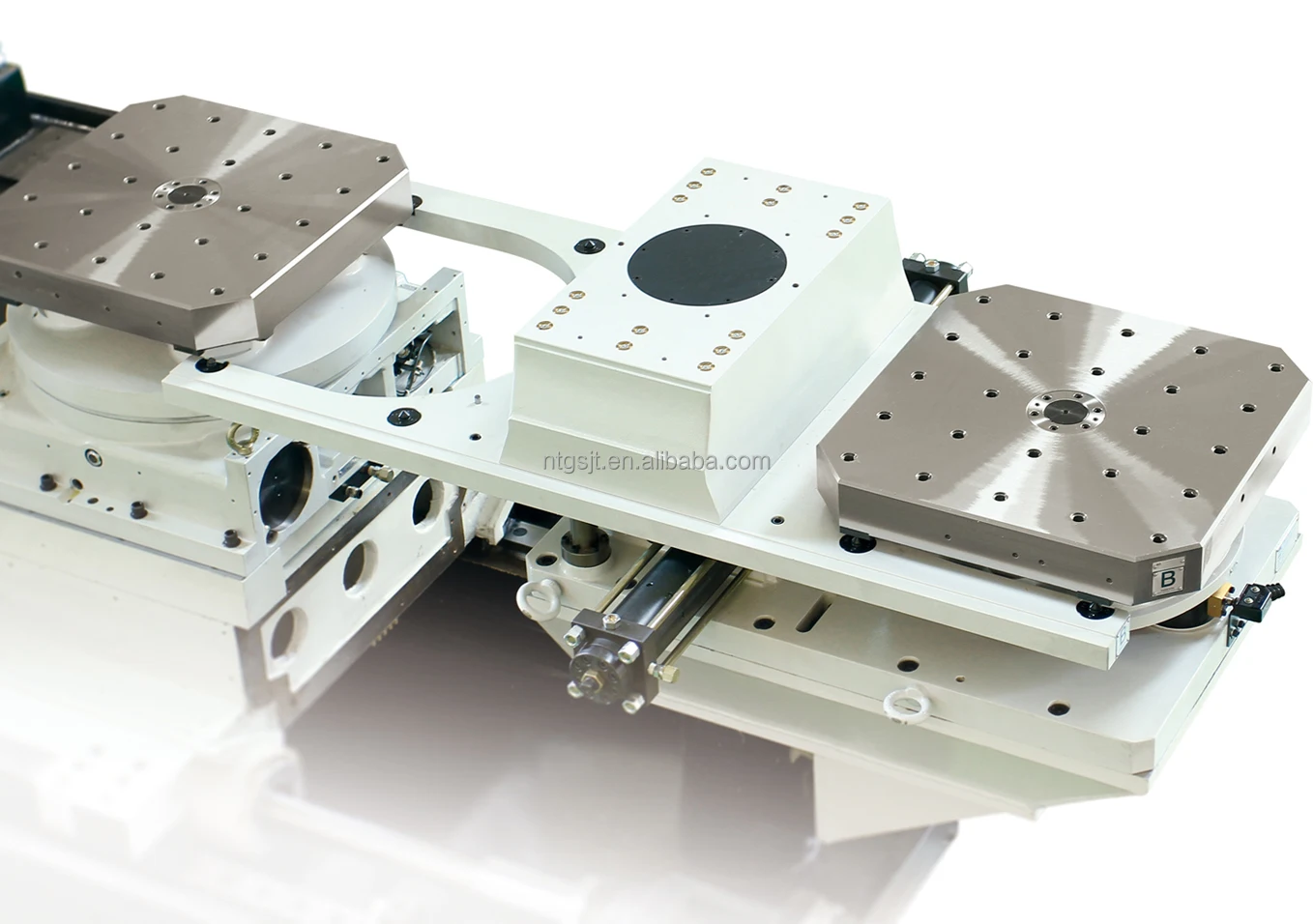

1. The disk of B-axis rotating worktable is driven by FANUC AC servo motor imported from Japan. The hydraulic clamping system is adopted to ensure high precision and high rigidity.

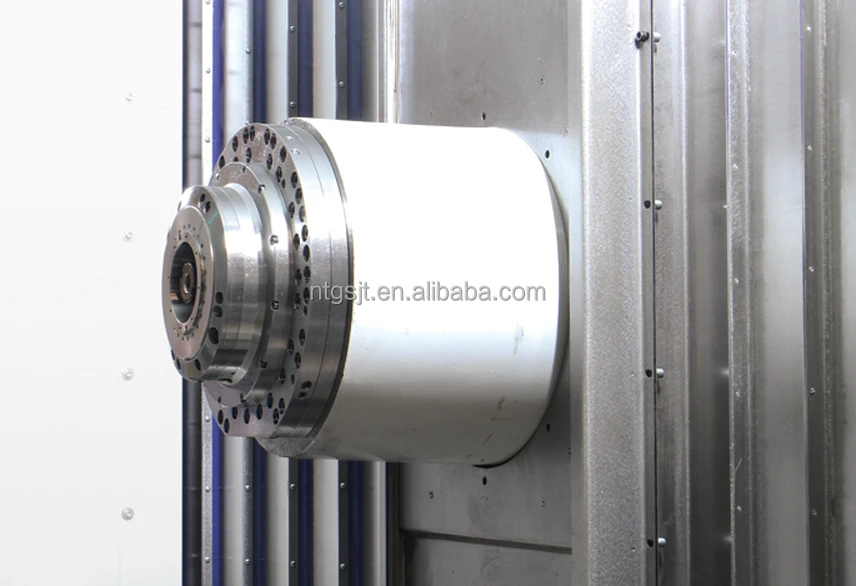

2. The gear spindle head is cast in one piece, the structure has higher rigidity, stronger cutting ability and higher precision.

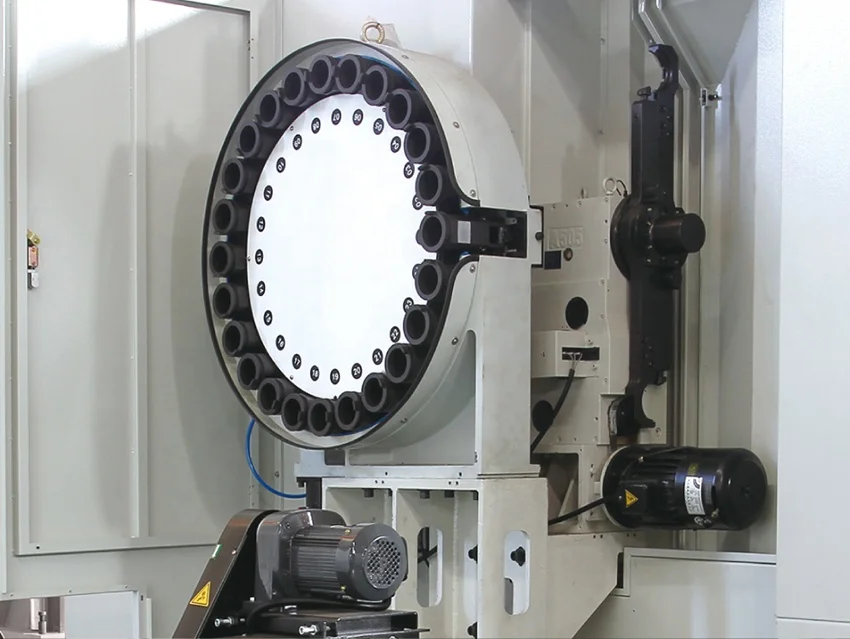

3. Reliable automatic tool library, using the shortest path fixed address way.

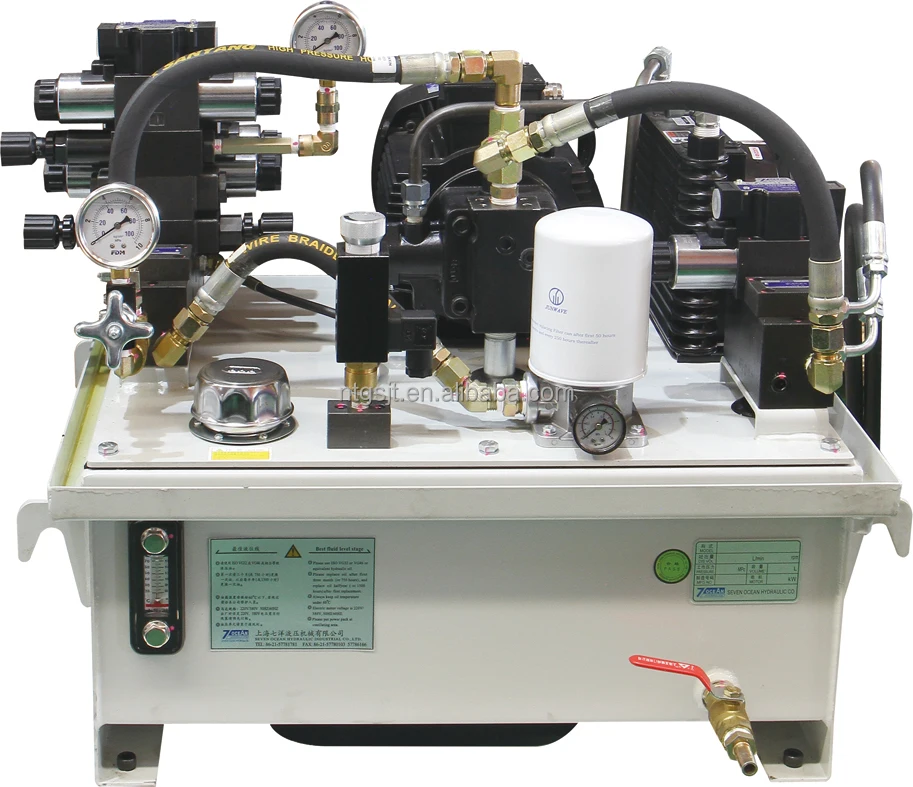

4. Hydraulic station adopts high quality hydraulic components, reliable action, high stability.
Specification
Model | Unit | DHM-50Ⅱ | ||
Travel | ||||
X-axis | mm | 750 | ||
Y-axis | mm | 750 | ||
Z-axis | mm | 750 | ||
Spindle | ||||
Spindle center to worktable surface | mm | 50~800 | ||
Spindle nose to worktable center | mm | 150~900 | ||
Spindle taper | BT50 | |||
Rotating spindle speed (standard) | rpm/min | 10~6000 | ||
Spindle drive mode | Direct | |||
Spindle motor | kw | Fanuc 11/18.5 | ||
Max.torque of spindle | Nm | 263/442 | ||
Worktable | ||||
Table size | mm | 500*500 | ||
Division angle | deg | 0.001 | ||
Reference aperture | mm | Φ55H7 | ||
Max. load on worktable | kg | 600 | ||
Number of worktable | pcs | 2 | ||
Precision | ||||
Positioning accuracy of rotary table | arc-sec | 10″ | ||
Repeated Positioning accuracy of rotary table | arc-sec | 6″ | ||
Positioning accuracy | mm | 0.012 | ||
Repeated Positioning accuracy | mm | 0.008 | ||
Feed speed | ||||
Cutting speed X/Y/Z/W | m/min | 1-10 | ||
Rapid traverse speed X/Y/Z/W | m/min | 30/30/30 | ||
Tool magazine | ||||
Capacity of tool magazine | 24 | |||
Tool selection method | Random | |||
Tool exchange mode | Arm type | |||
Max. tool weight | kg | 15 | ||
Max. tool length | mm | 350 | ||
Tool change time | sec | 2 | ||
Max. tool diameter (no adjacent tool) | mm | Φ105/200 | ||
Others | ||||
Air pressure | kgf/cm² | 6 | ||
Voltage | kva | 45 | ||
Tank Capacity | L | 700 | ||
Floor area (length*width*height) | mm | 6505*3625*3055 | ||
Weight | kg | 15000 | ||
Application area
Intelligent automated production line
Company Profile

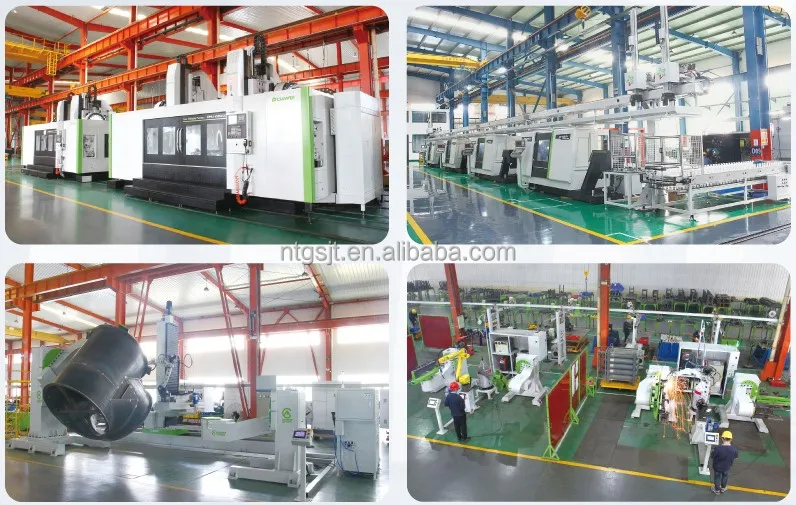

Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
