Stainless Steel Cartridge Filter Housings For Spirits, Vodka, Whisky critical filtration

Product Overview

Description

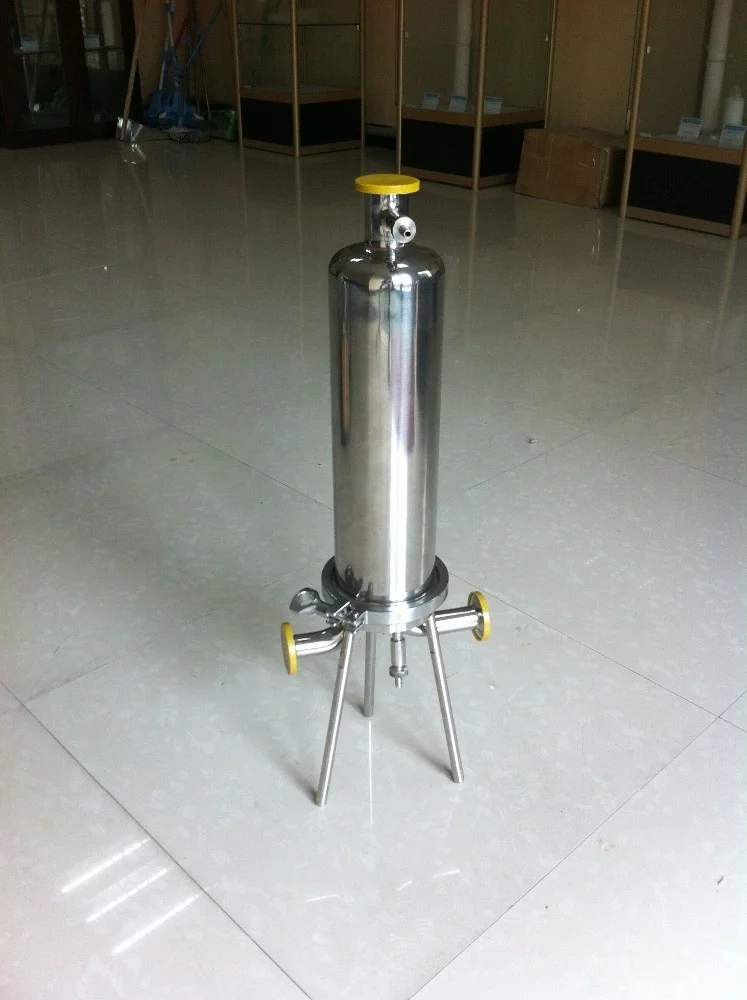

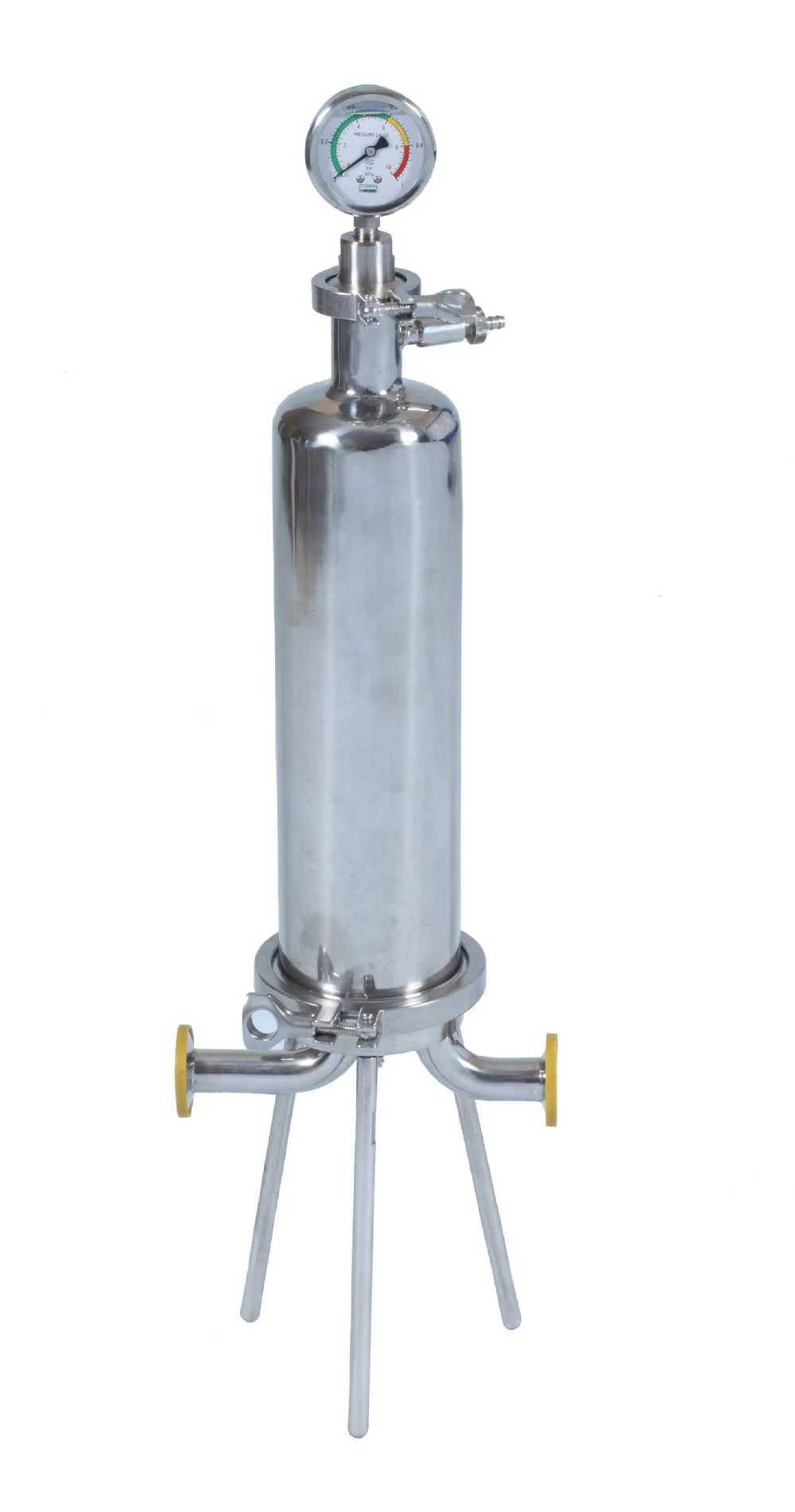

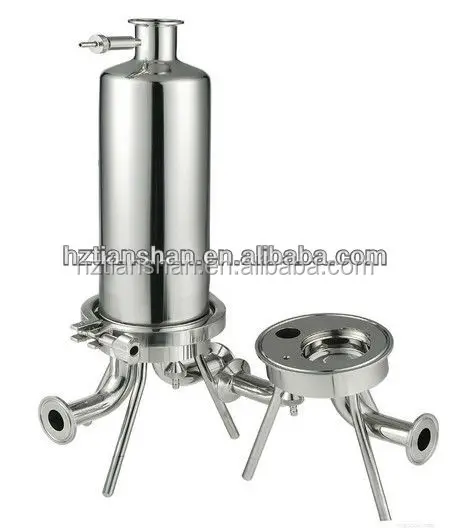

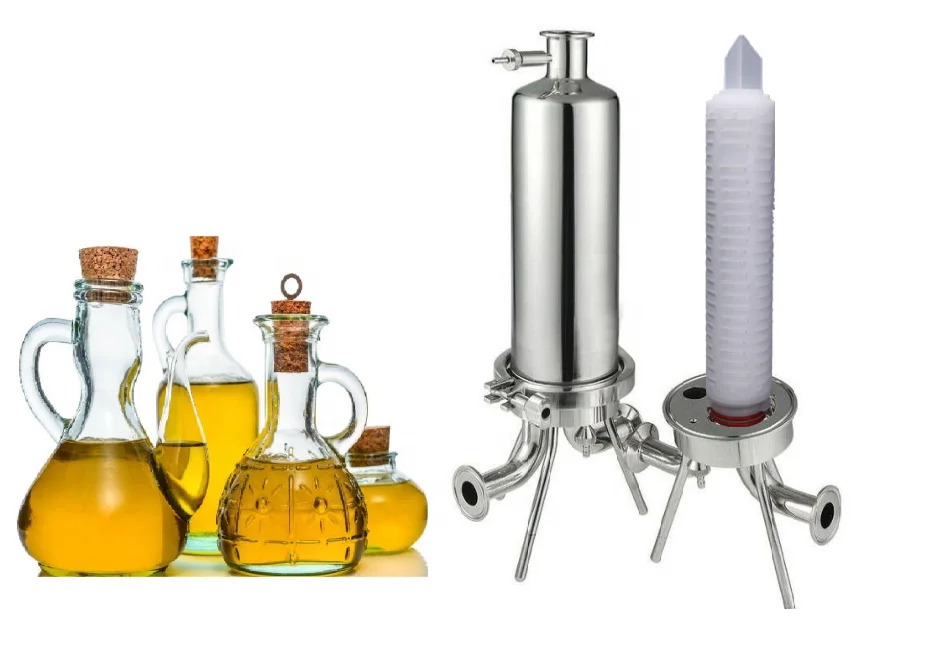

Stainless Steel Cartridge Filter Housings For Spirits, Vodka, Whisky critical  filtration



These filter housings are manufactured from 304 or 316L stainless steel of the highest quality, available in 1,3,5,8.....45 round configurations and in 10 inch, 20 inch, 30 inch and 40 inch length cartridge.

Stainless steel cartridge filter housings are suitable for a variety of liquid filtration applications(high purity beverage, chemicals and pharmaceuticals, water treatment, alcohol beverage industry, etc).





1. Mirror Surface Finish Complete Stainless Steel Construction;



2. Easy To Install Design With Sanitary Connections, Easy to Clean;



3. Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges;



4. Clean-in-Place (CIP) /Steam-in-Place (SIP) Design;







Material:		Housing	Stainless Steel 304 and 316L for Choice
		O-Ring	Silicone, Viton, EPDM, etc
Surface Finish:		Interior/Exterior	Electro polished, Ra≤0.2um
Connections:		Inlet/Outlet	Tri Clamp	1” to 10” Or as your request
			Flange
			Thread
		Vent	¼" female
		Drain	1" male or as your request
Lid/Cover Type:		Swing Bolts or Tri Clamp(only for single round)
Operating Pressure:		Max. 6 bar(87 psi)
Temperature:		Max. 95 ℃ (sterilization 150 ℃)
Cartridge Adapter:		220(DOE), 222, 226, etc
Cartridge Capacity:		1, 3, 5, 8..... 30, 36, 45 round







·Water Treatment, RO system

·Pharmaceuticals, API, Biologics

·Food and Beverage, Wine, Beer, Dairy, Mineral Water

·Paints, Inks Plating Solutions

·Process Chemicals and Electronics Industry
