box machines corrugated carton automatic paper and cardboard die cutting cardboard machine
- Category: Packaging Line >>>
- Supplier: Cangzhou Kingsun Imp.& Exp. Co. Ltd.
Share on (60498392115):
Product Overview
Description
Product Description
Company Profile
Specification
Model | Max feeding paper(mm) | Max feeding paper(mm) | Thickness of feeding paper | Machine weight |
MQJ17A | 1700×1200 | 350×500 | 11mm | 4500kg |
MQJ17A | 2000×1200 | 350×500 | 11mm | 5000kg |
MQJ20B | 2100×1400 | 400×600 | 11mm | 5500kg |
MQJ25C | 2400×1400 | 400×600 | 11mm | 6000kg |
MQJ25C | 2500×1400 | 500×600 | 11mm | 6500kg |
Product description

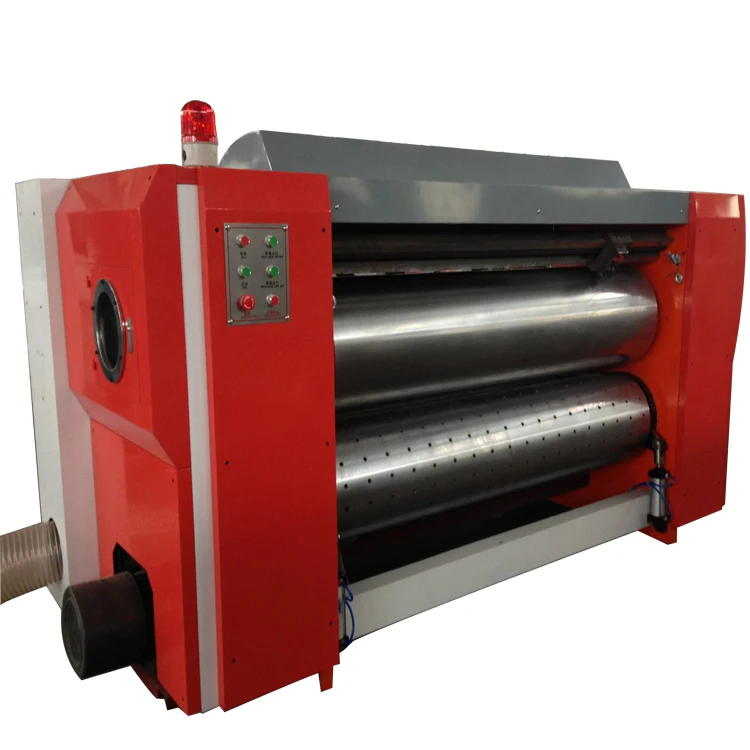

1.Die Cutting Department
a)Die-cutting roller for the high quality steel materials.30mm thickness,balance correction,hard-chrome plating.
b)Wallboard for high-quality cast iron material.50mm thickness,and large processing center production
c)Soft-roll automatic grinding institutions to pouches repeat usage,grinding 3-4times.
Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line
d)Juan Zhi cut imports of soft pouches,ease of installation,the die-12000000.
d)Mechanical soft roll about 40 mm lateral movement,the pads wear uniform.
e)40cr material the use of grinding gears for 6,low noise,long life.
f)Die-cutting roller cylinder automatic separation devices to reduce wear pouches.
b)Wallboard for high-quality cast iron material.50mm thickness,and large processing center production
c)Soft-roll automatic grinding institutions to pouches repeat usage,grinding 3-4times.
Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line
d)Juan Zhi cut imports of soft pouches,ease of installation,the die-12000000.
d)Mechanical soft roll about 40 mm lateral movement,the pads wear uniform.
e)40cr material the use of grinding gears for 6,low noise,long life.
f)Die-cutting roller cylinder automatic separation devices to reduce wear pouches.
2.Feeding Department
a)Adopt the world′s most advanced leading-edge feed system,feeding precision is high,speed and long life round feed,feedingthe achievement of 10,000pcs/hour,accuracy±0.5mm;
b)Blower air volume can be adjusted to meet the feed air flow rquirements;
c)The use of microcompute control phase can be adjusted 360°phase,faster and more accurate;
d)Manual adjustments before the tailgate,side baffle to adjust the computer;
e)Paper roll guide groove plastic surface of cardboard toprevent damage and increase the accuracy of feeding.
f)Pusting paper.and the slider for rigid aluminum alloy.lightweight wear-resistant.
g)After the block box,push the cardboard electric adjustment,digital equipment can be achieved,the adjustment is
accurate,convenient.
b)Blower air volume can be adjusted to meet the feed air flow rquirements;
c)The use of microcompute control phase can be adjusted 360°phase,faster and more accurate;
d)Manual adjustments before the tailgate,side baffle to adjust the computer;
e)Paper roll guide groove plastic surface of cardboard toprevent damage and increase the accuracy of feeding.
f)Pusting paper.and the slider for rigid aluminum alloy.lightweight wear-resistant.
g)After the block box,push the cardboard electric adjustment,digital equipment can be achieved,the adjustment is
accurate,convenient.

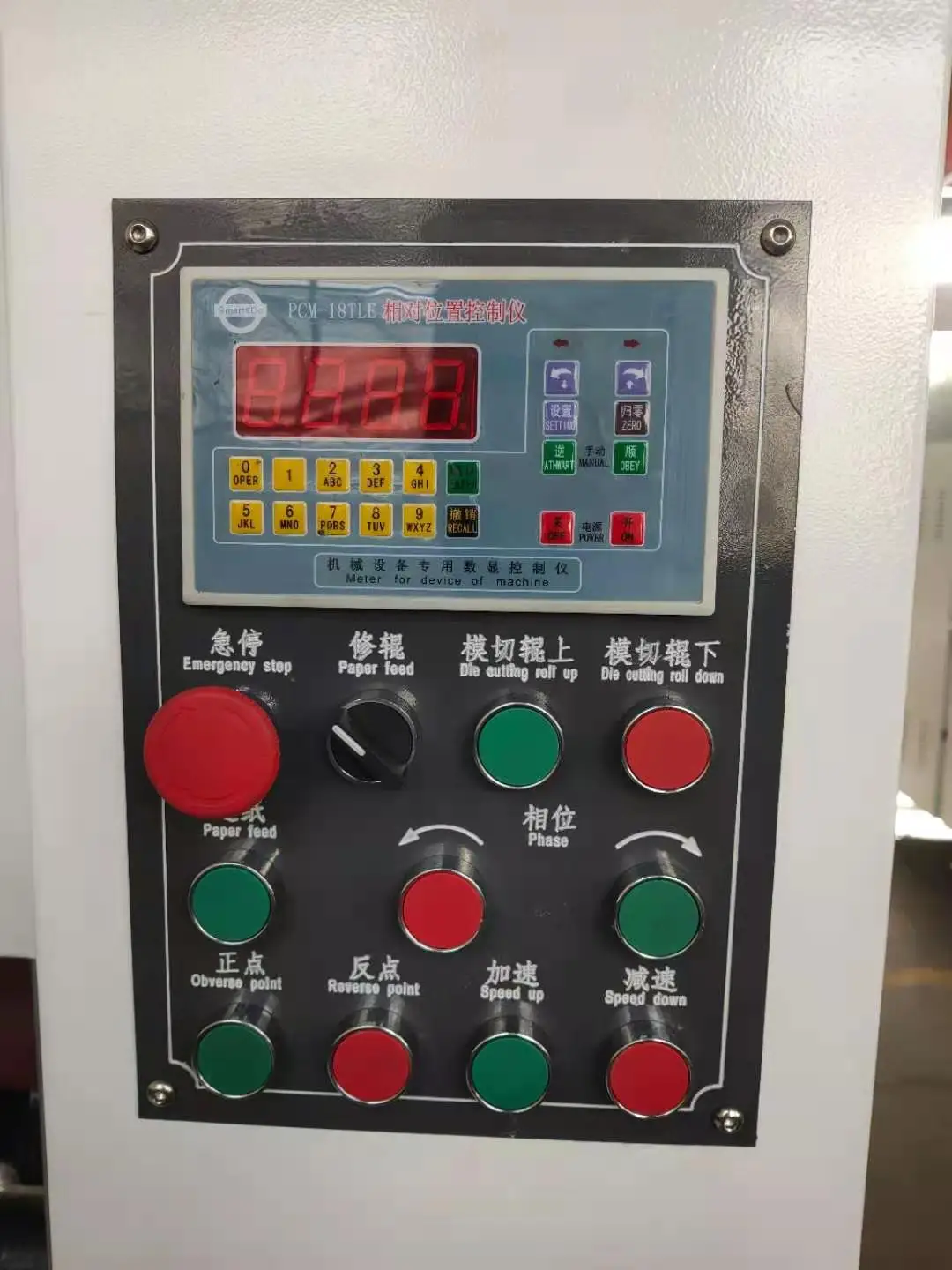

3.Computer Department
a)Adopt of PLC control, improve the protection,control and high reliability;
b)LCD touch screen is easy to operate to achieve an intuitive man-machine dialogue:
c)Frequency host used to save power,smooth acceleration;
d)Machine by light,electricity,gas joint control system
b)LCD touch screen is easy to operate to achieve an intuitive man-machine dialogue:
c)Frequency host used to save power,smooth acceleration;
d)Machine by light,electricity,gas joint control system
