2023 New High Speed Automatic Paper Cup Making Machine
US $5500-$7800
Most popular cheap paper cup machine
- Category: Paper Product Making Machinery >>>
- Supplier: Ruian Mingguo Machinery Co. Ltd.
Share on (60501055104):
Product Overview
Description
Product Description
Running Video on Yotube:
https://youtu.be/e_U26_icSPM

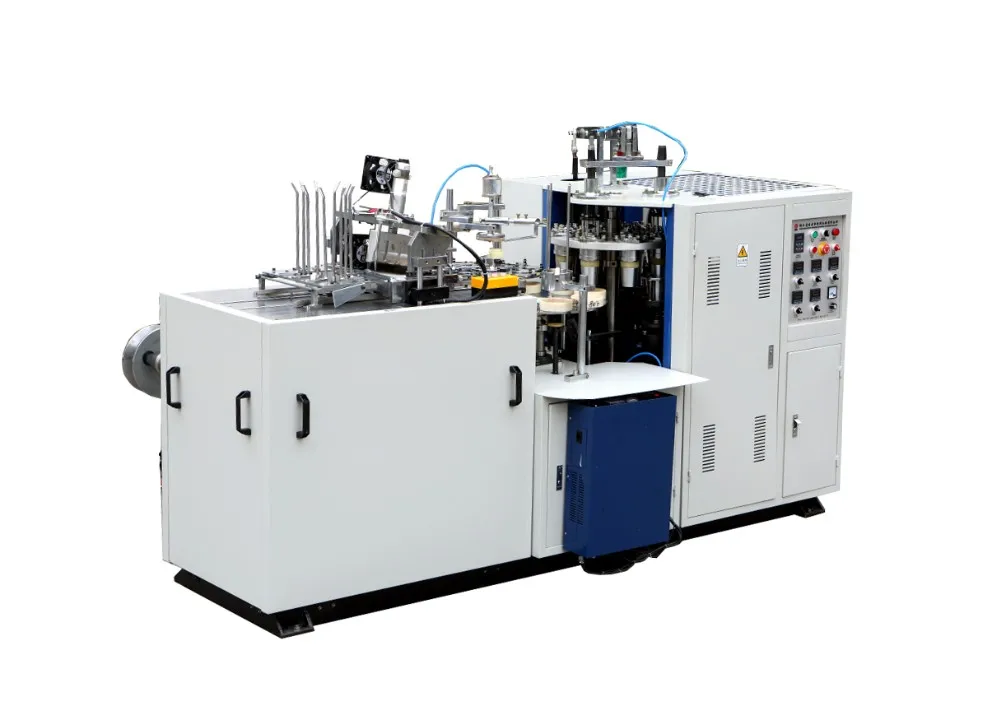

MG-X12 Model automatic paper cup making machine prices
BEIEF DESCRIPTION
Model MG-X12 Ultrasonic Two-PE Paper Cup Forming Machine is an automatic machine with counter and the advantage of humanism design, safer operation and easier maintenance. It produces both one-side and two-side PE-film-coated paper cups after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, cup-side-body sealing (ultrasonic wave), silicone-oil lubricating(for top curling), bottom punching, bottom pre-heating and pre-folding, main heating, bottom knurling(water cool device), top curling and cup discharging.
It is an ideal equipment of making paper cups for all kinds of drinks(hot and cold) disposable paper cups: paper tea cup, coffee cup, cold-beverage cup, beer cup, ice-cream cup etc
TECHNICAL SPECIFICATION
|
Paper Cup Size |
2-12oz (mold exchangeable) |
|
Speed of Production |
40-50 piece/minute |
|
Paper Matrerial |
140-320g/m2 One-side PE filmcoated/laminated paper |
|
Total Power |
5KW |
|
Total Weight |
1500KW |
|
Total Source |
220V380V50Hz |
|
Package Size |
2600x1200x1700mm |
| Note | Available to make any special size paper cup machine and cup mould |

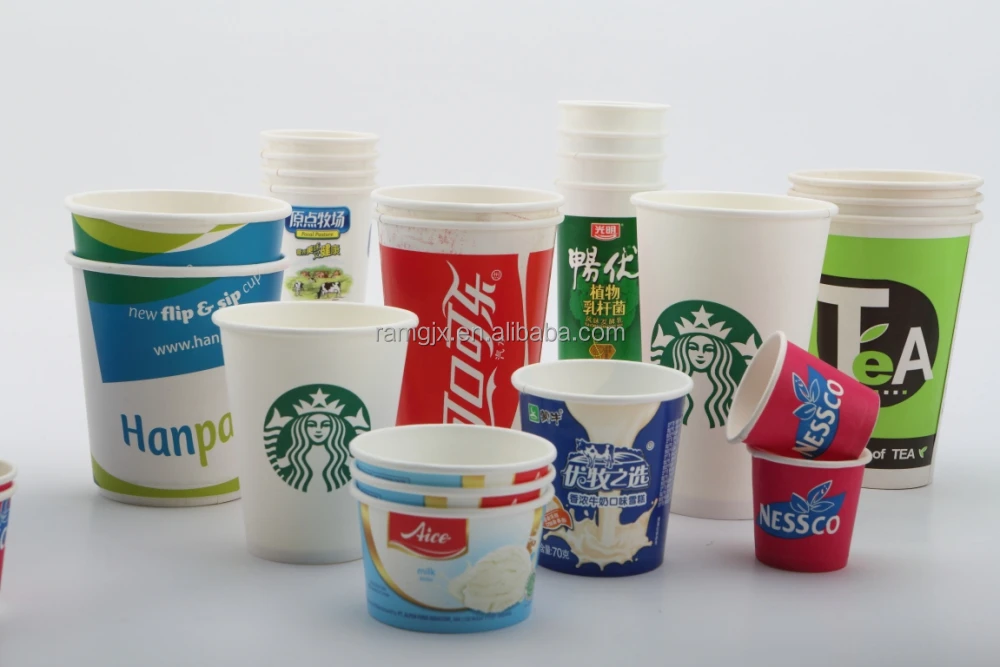

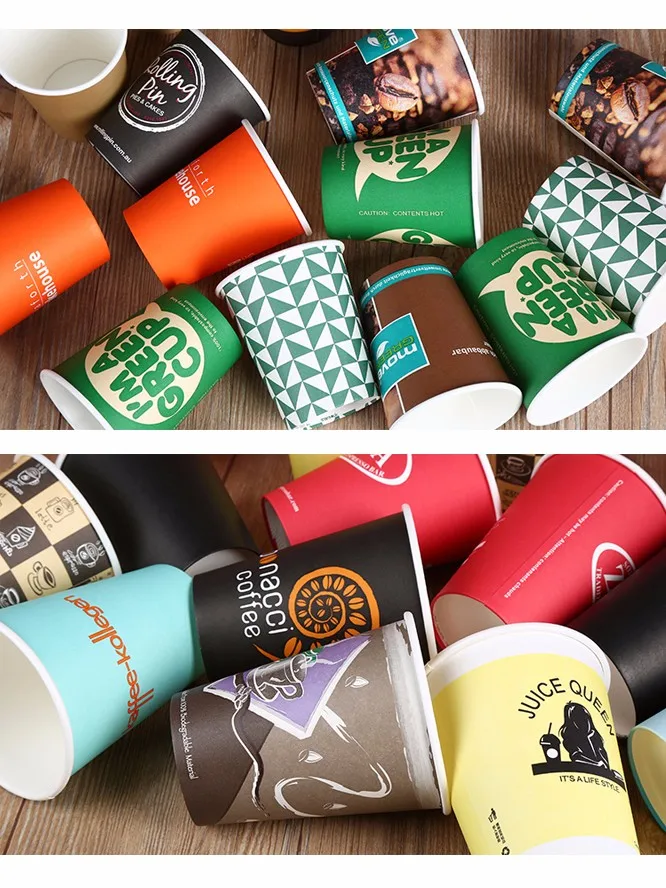

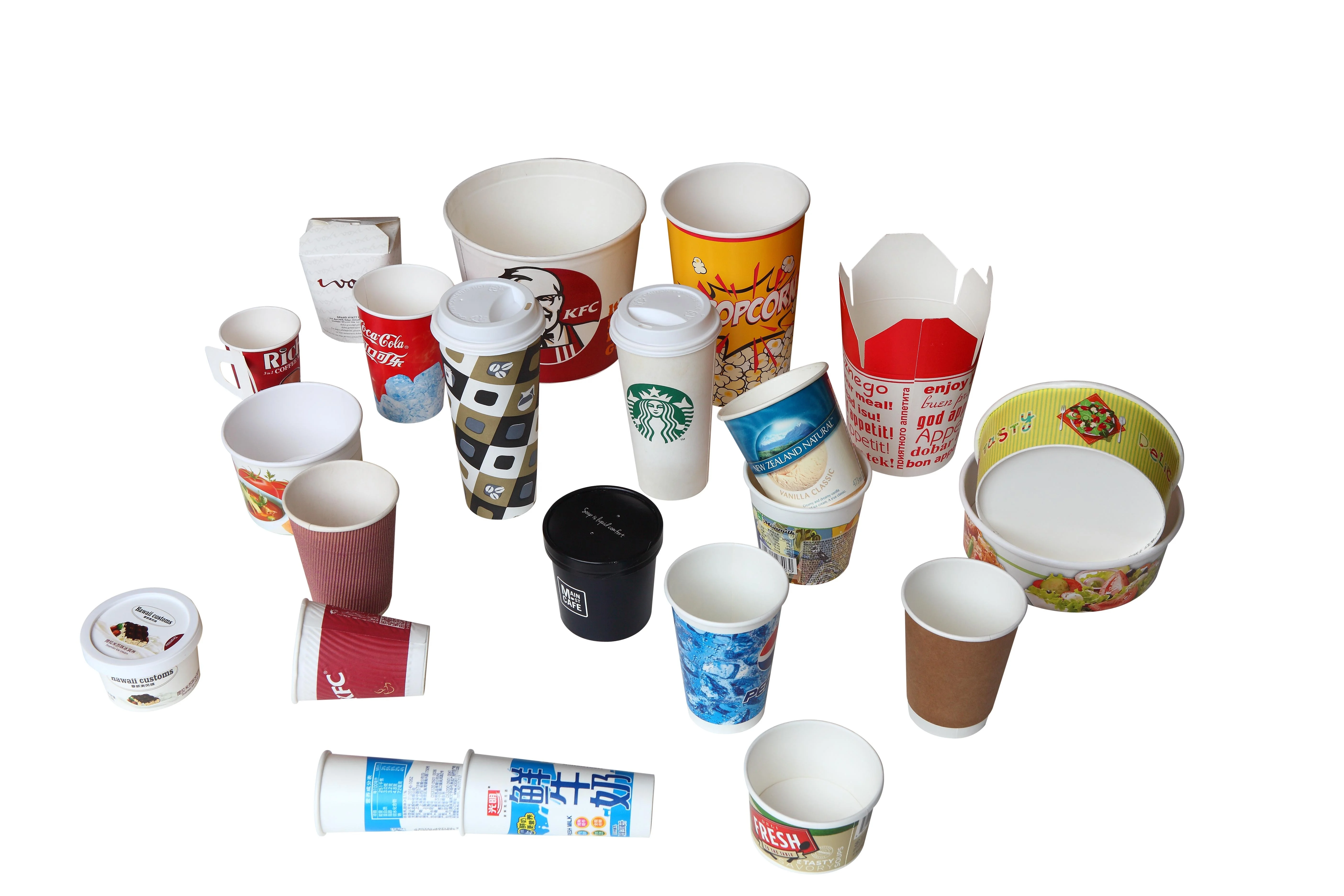

CUP SAMPLE

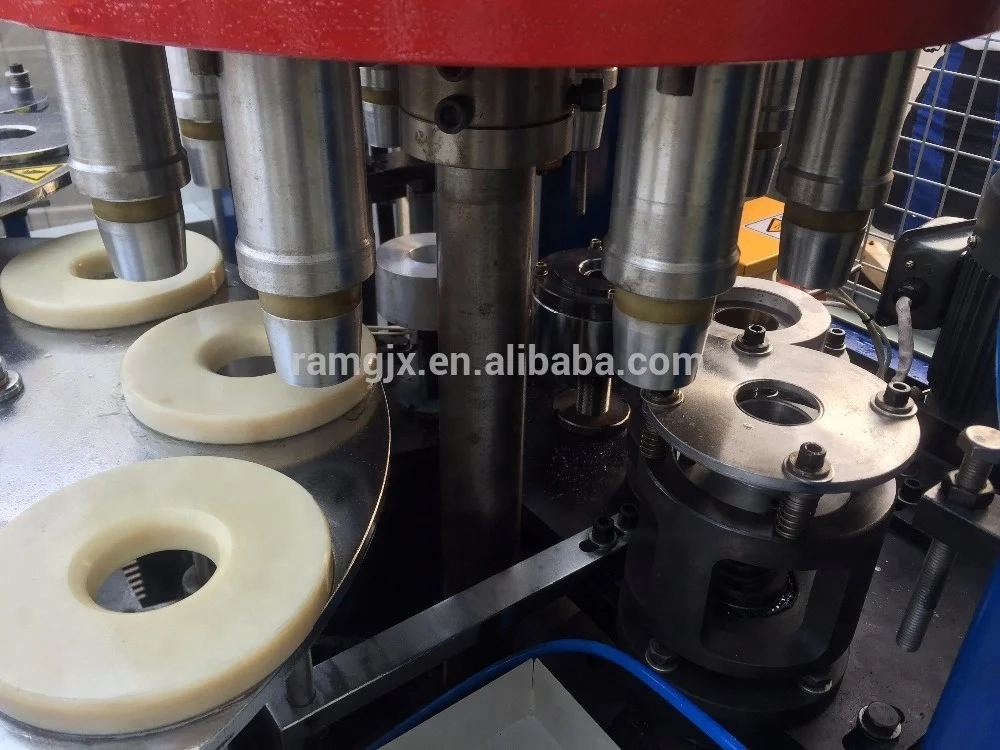

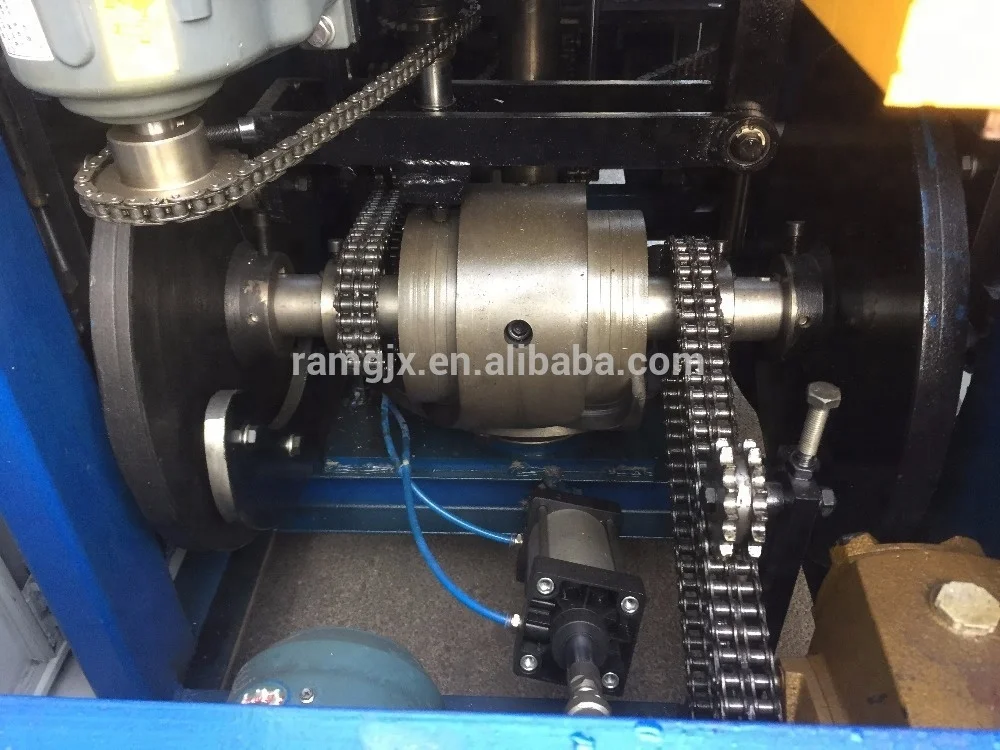

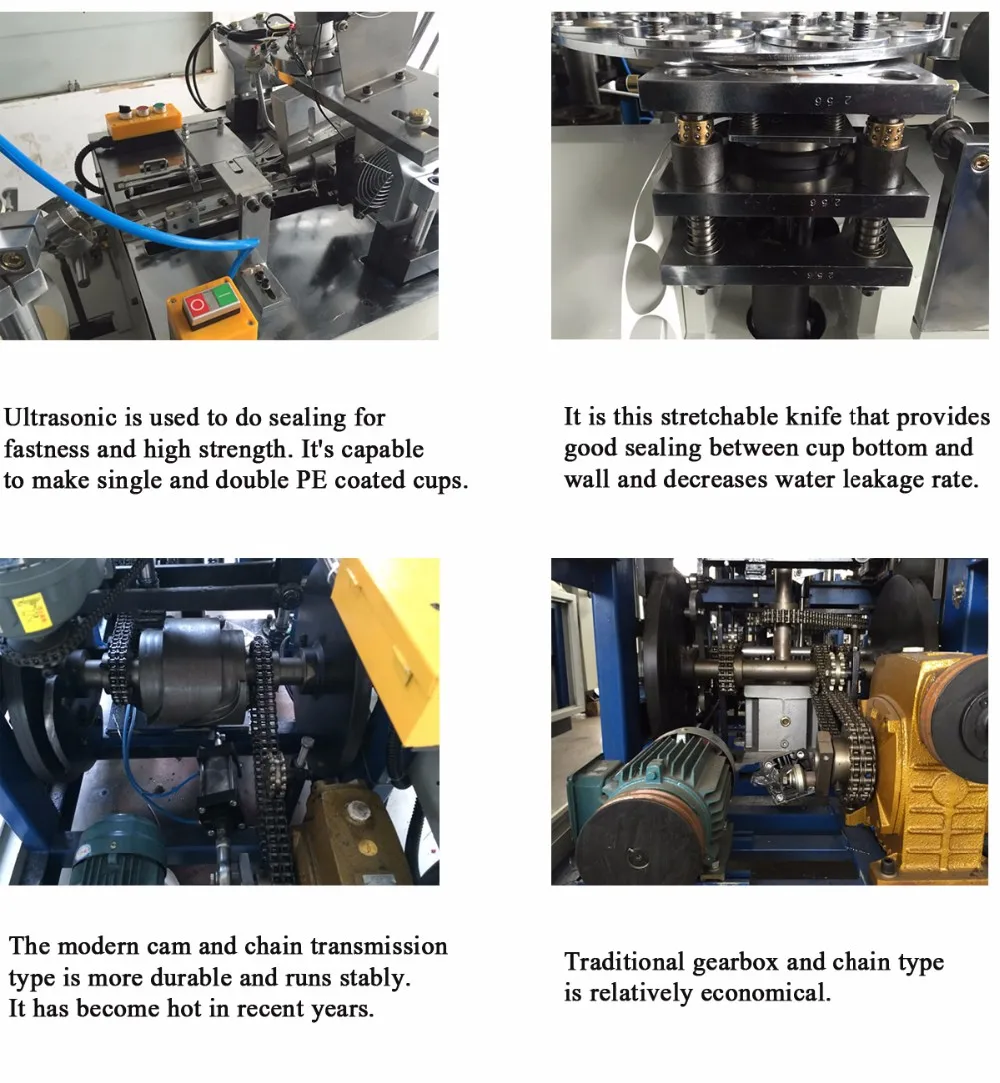

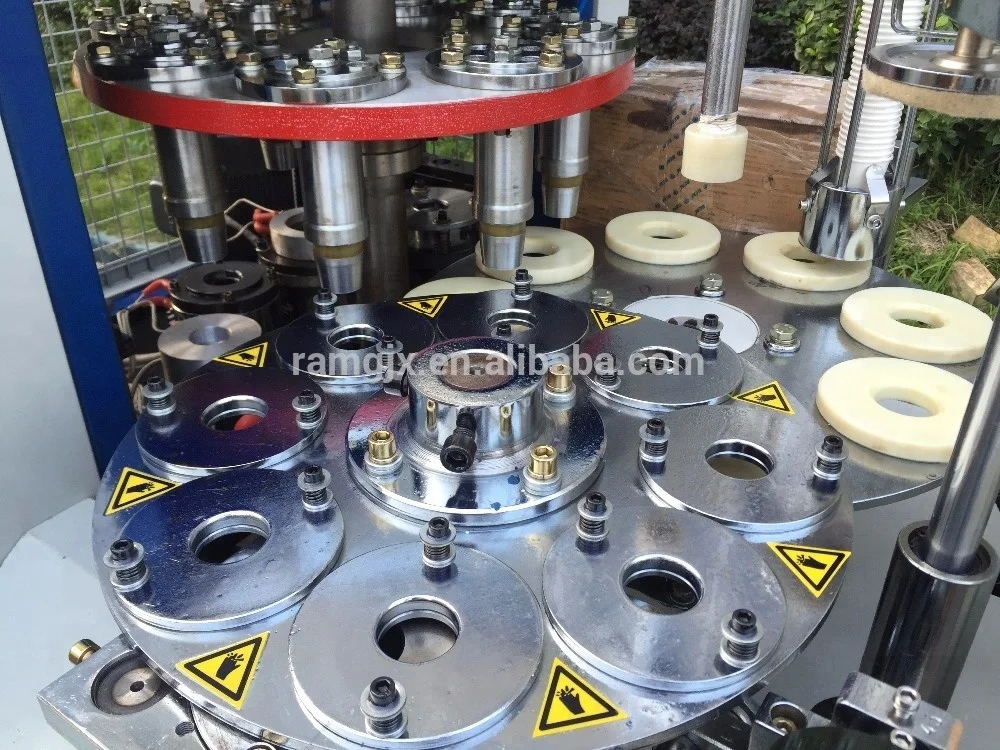

MACHINE DETAILS

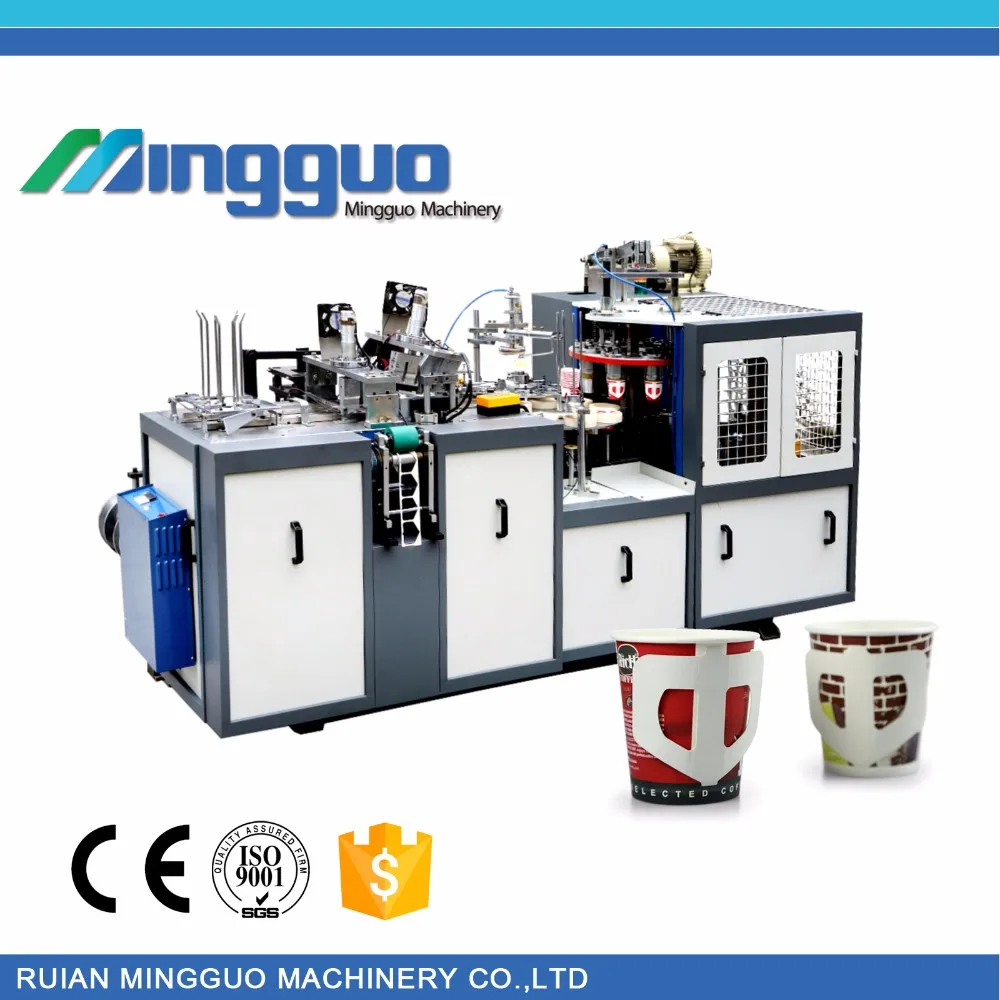

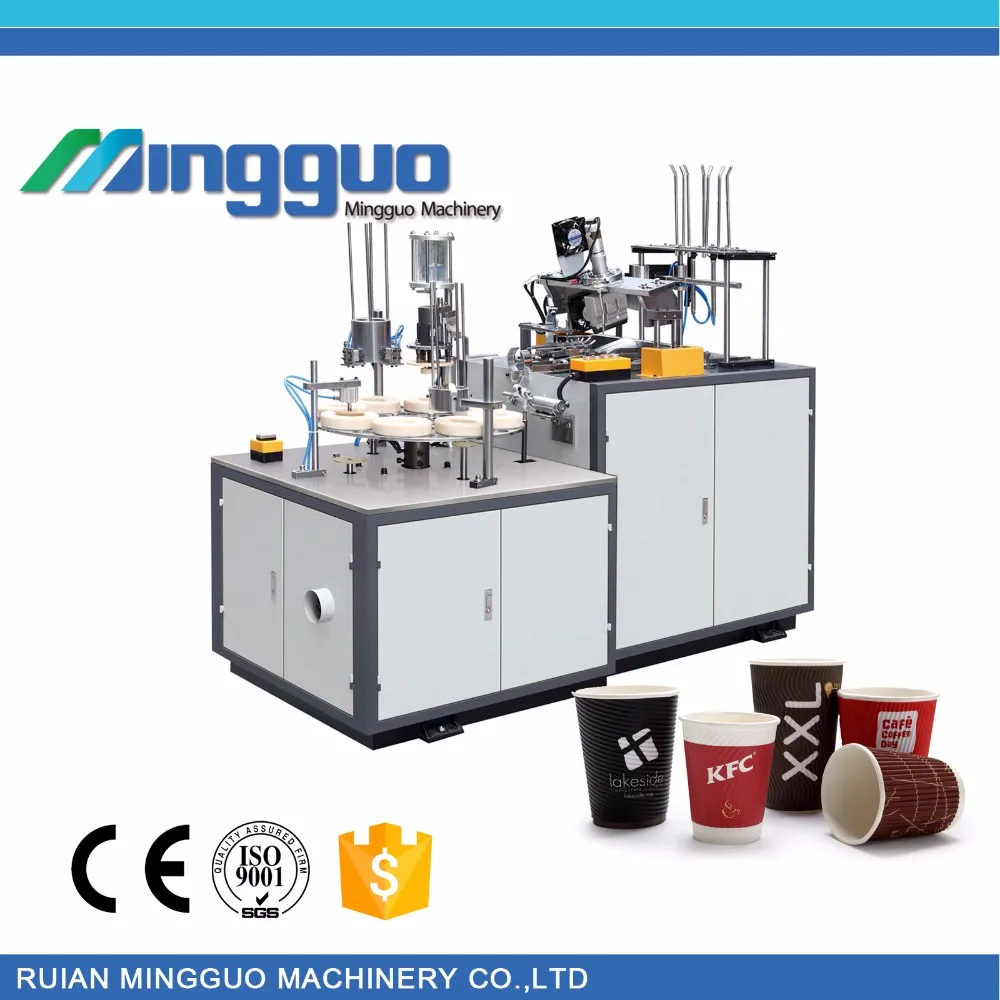

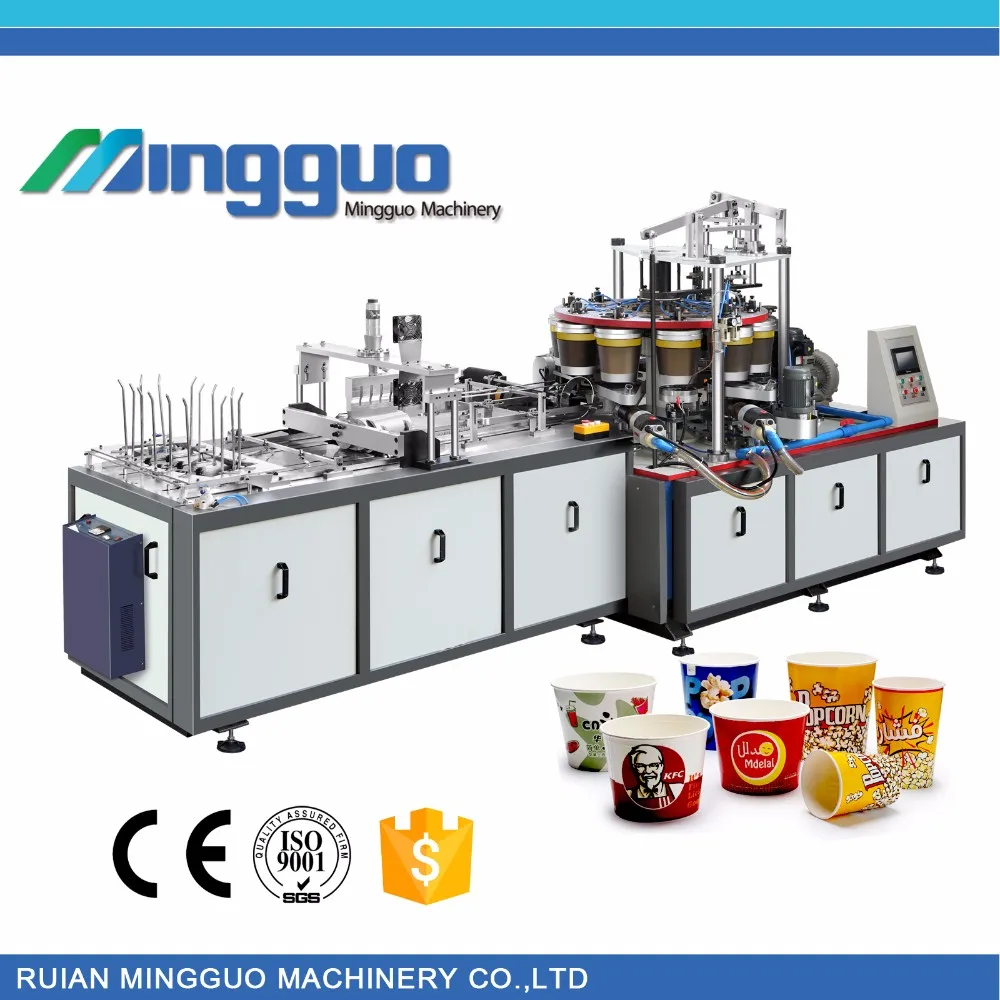

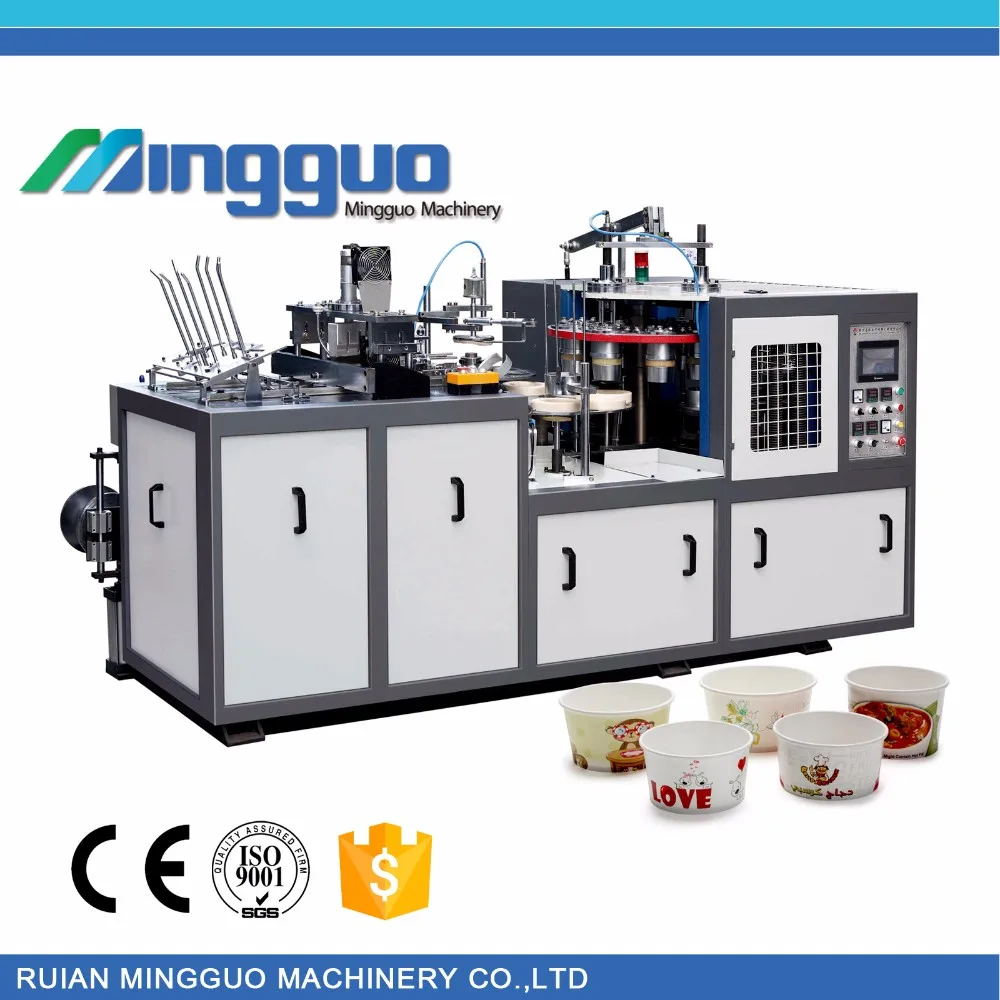

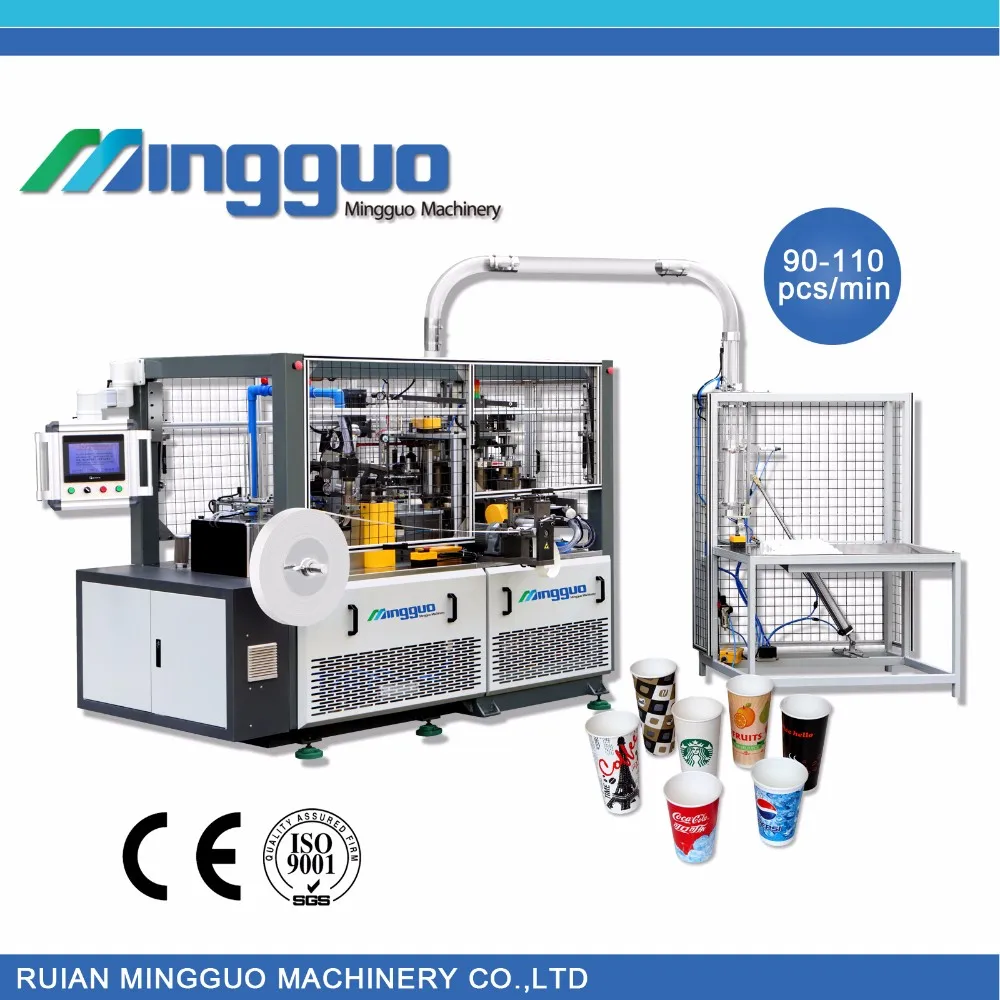

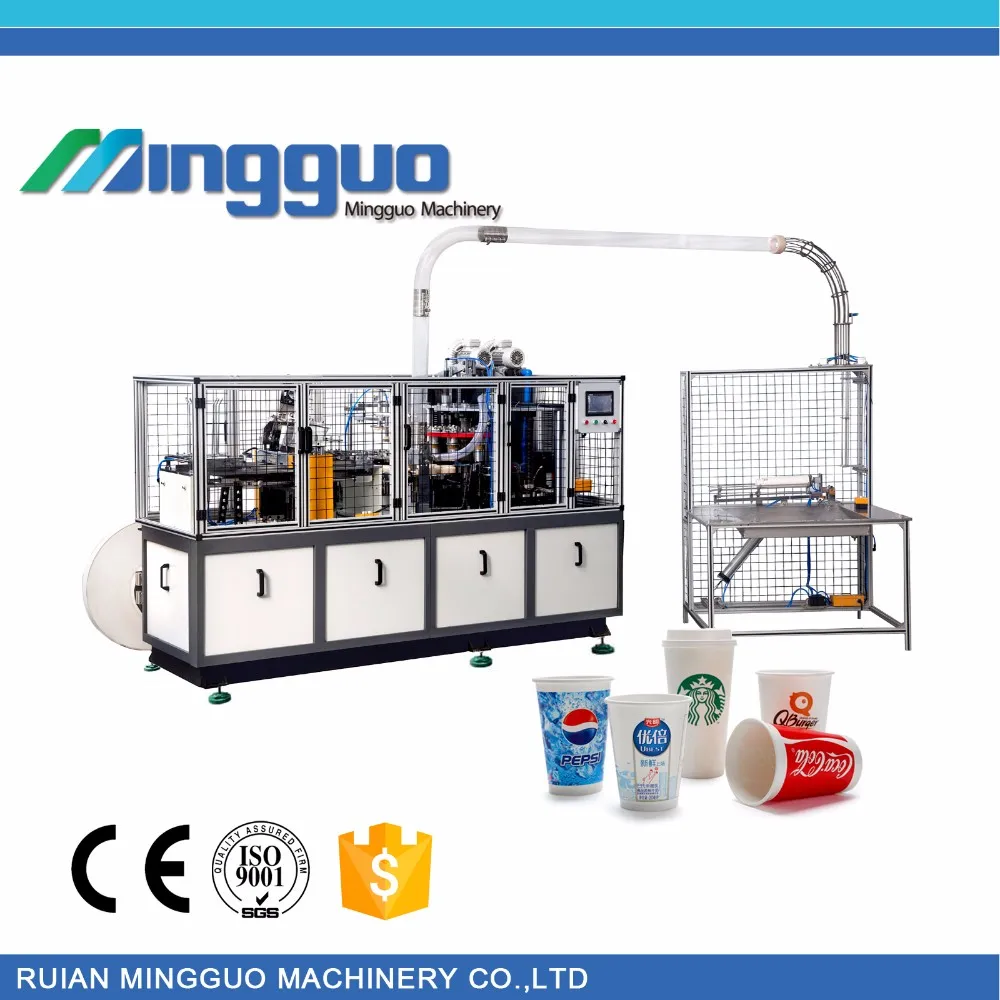

HOT PRODUCT
MACHINE FEATURES
1.With unique appearance, easy disassemble cover, convenient user daily cleaning and maintenance
2.Cup forming adopts stretch knife comes out even wrinkle cup bottom paper, improve the adhesive effect between cup bottom and body, greatly reduce the leakage rate.
3.Bottom rolling device is with the introduction of foreign advanced technology and independent research and development. Embossing strength at the bottom is five times larger than old one, with uniform effect bottom rolling and clear decorative pattern, greatly reduce the leakage rate (we have the product design patent certificate).
4.All molds use the most advanced CNC processing center production, ensure the quality.
5.The alarm system adopts multi-point detective protection, multiple functions such as bottomless alarm stop, over cup stop etc.

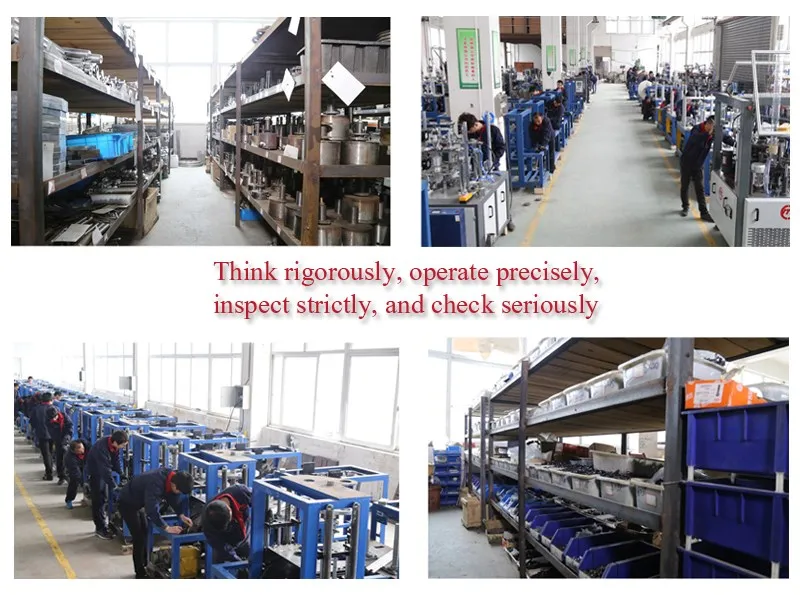

WORK SHOP
OUR COMPANY
Ruian Mingguo Machinery Co., Ltd. is located in Feiyun District, Ruian City , Zhejiang Province , employs about 60 people . The factory covers an area of about 6,000 square meters, warehouse area of about 800 square meters, the workshop covers an area of about 5,000 square meters. We are specialized in paper cup machine, paper bowl machine as well as a series of paper container equipment. It is a professional paper containers equipment enterprise with research, design, production, sales and service. And the annual production of about 30 million RMB .
We have a strong technical force, sophisticated equipment and the ability to own research and development to develop new products, the products have passed ISO9001-2000 Quality Management System and European CE certification and get a number of new patents. Our products sold throughout the country
CERTIFICATE
Our products have passed ISO9001-2000 Quality Management System and European CE certification and get a number of new patents.
MORE INFO. ABOUT OUR PAPER CUP MACHINE
PLEASE FEEL FREE TO CONTACT WITH ME
