Multi Functional Semi Automatic Cartoning Machine for bottle soft tube blister, Carton Box Packing Machine

Suitable Usage

Packing Round bottles into square box for medicine, food-stuff, cosmetic and other industries’

Brief Introduction

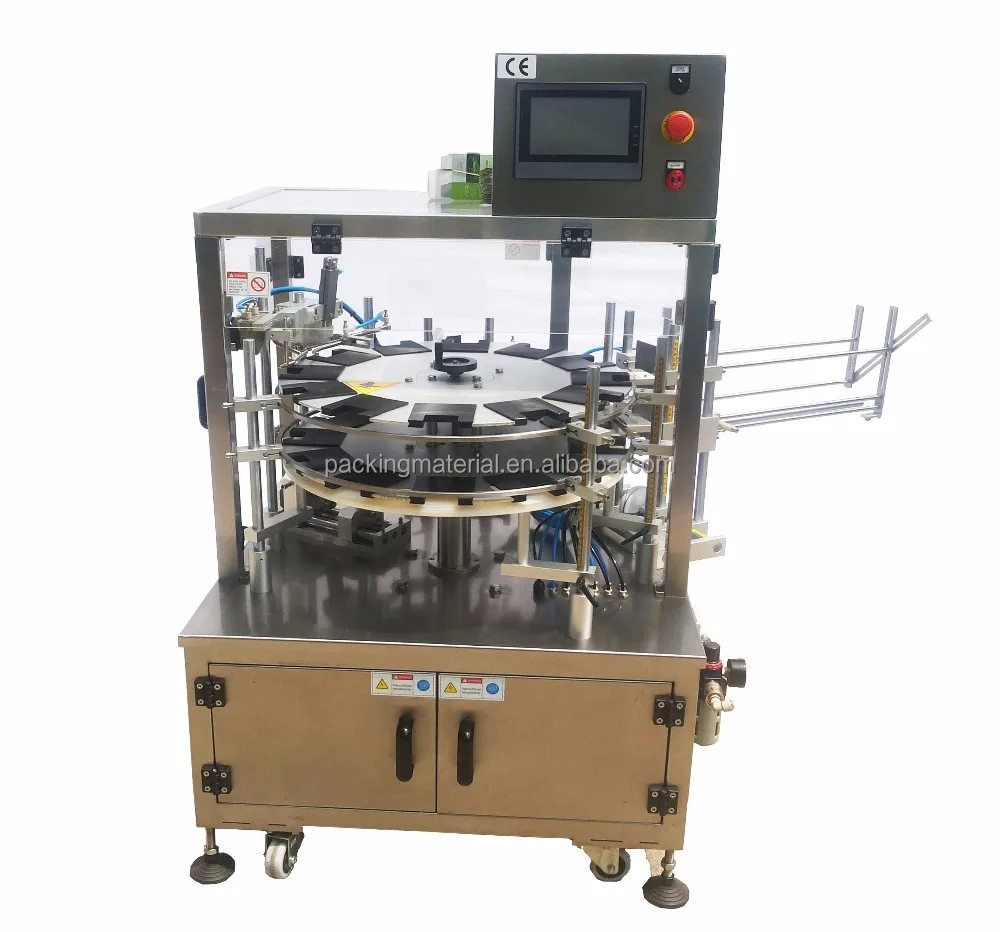

1.     Model CSC-50 semi-automatic cartoning machine (carton-folding-filling-packing) is specialy design to pack small quantities multi-size box.

2.     With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple functions, and is required a short time to change mould.

3. The machine is made of aluminum alloy with anode treatment. Rust proof long service life cycle and easily clean.

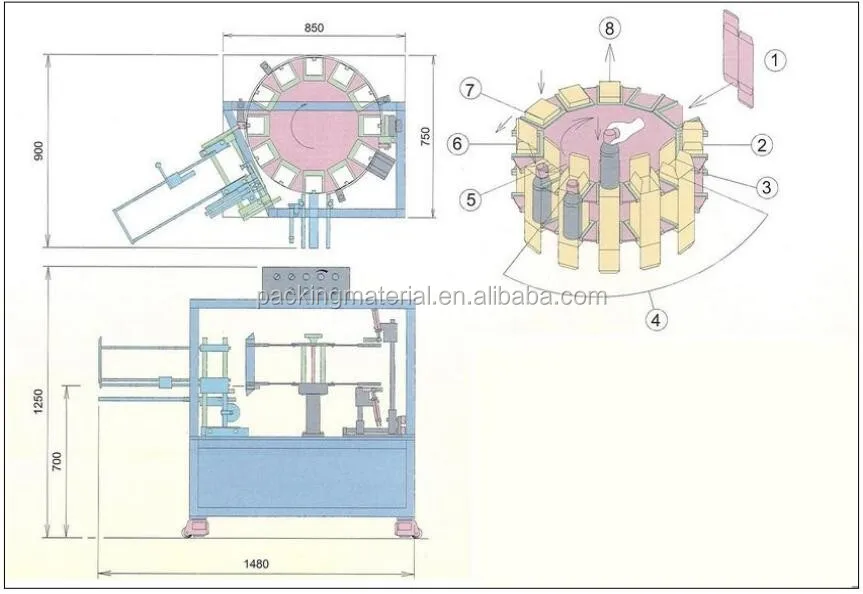

Process

1.     Push box into star wheel

2.     Fold box lower small flap

3.     Stamping code on box

4.     Product fall into box

5.     Fold box upper small flap

6.     Press both upper and lower big flaps

7.     Flatten both big flaps

8.     Product push out

 Suitable Folded Carton Box
