Product Overview
Description
Product Description
Main Features
The press is suitable for punching, blanking, bending, drawing and cold stamping. It’s not applicable to the work of embossing and hot plate.
The press is suitable for punching, blanking, bending, drawing and cold stamping. It’s not applicable to the work of embossing and hot plate.
Detailed Images

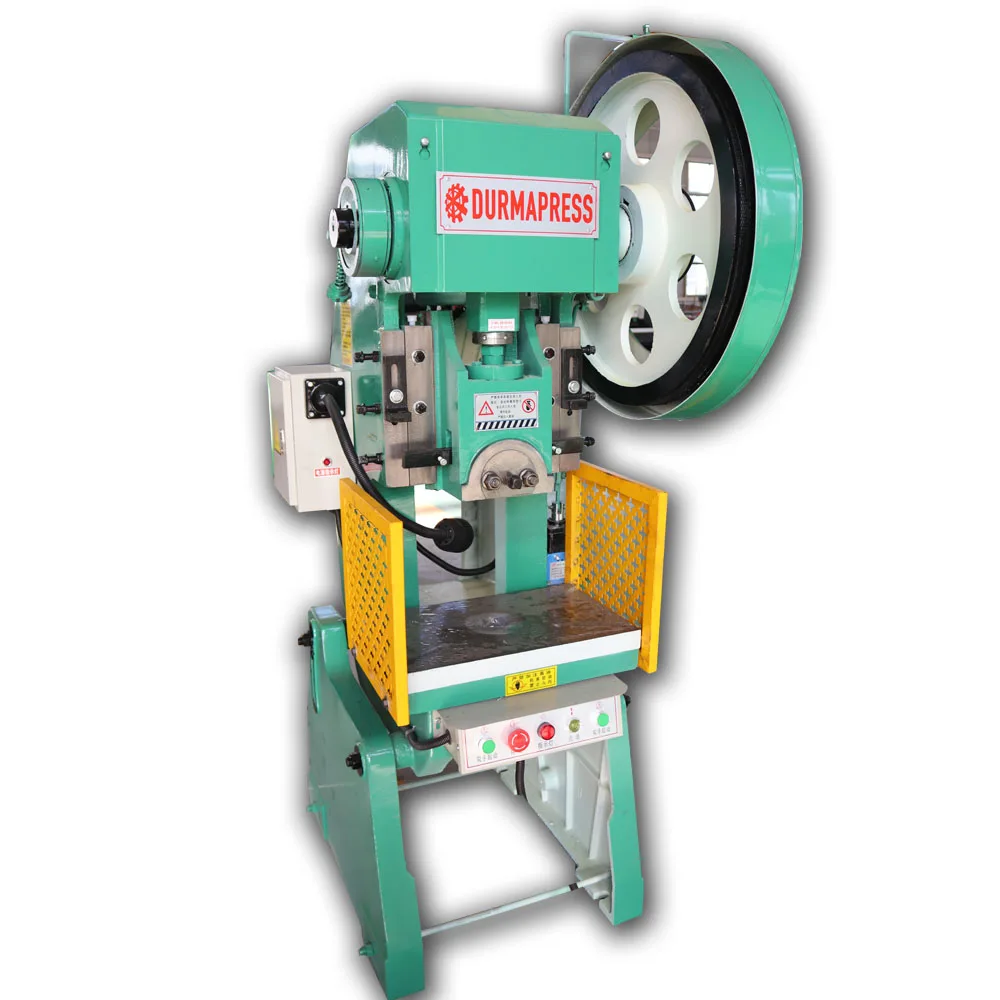

Inclinable casting body
The body is inclinable and it is easy to adjust the incline angle the body, slide and table are all casting steel.
Helical gear
Helical gear transmission low down the noise and improve the stability.
Manual slide adjustment
The press is equipped with a simple and reliable manual slide adjuster with 0.1mm increment indicator.

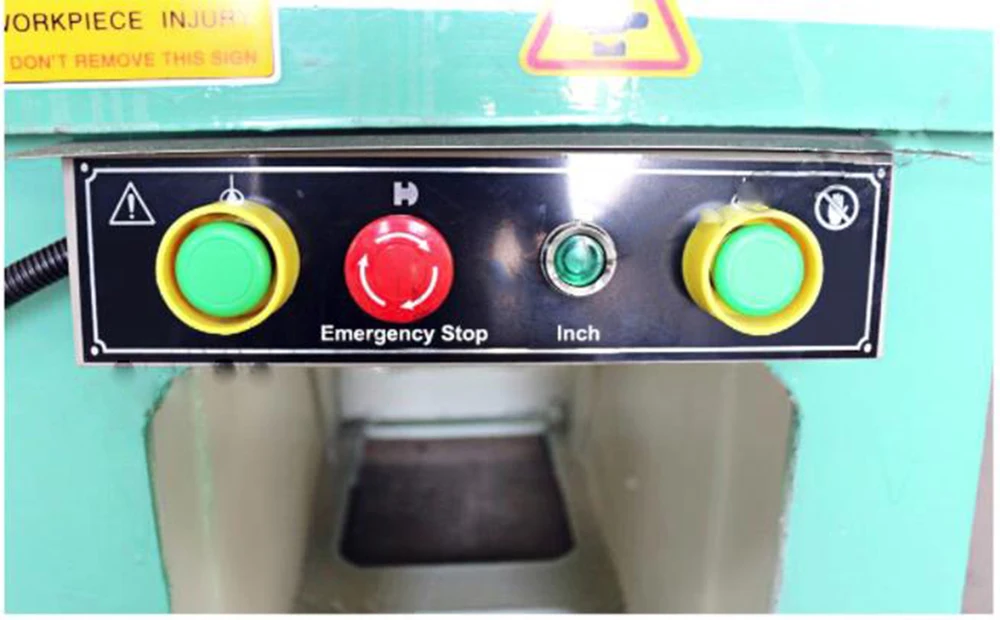

Easy and safe control
The control panel includes double hand buttons and emergency button and foot pedal control switch is optional.
Mechanical overload protected
A safety block is add inside the slide to protect and the die if overload, It is easy to change the safety block by opening the window in the side.
Size Information
Main Technial Parameters For J23-16T Punching Machine | ||||
Parameters | Unit | Data | ||
Nominal Force | Kn | 160 | ||
Slider stroke | mm | 60 | ||
Slip an piece of itinerary time | Time/min | 115 | ||
Maximum closed height | mm | 250 | ||
Closed height adjustment | mm | 40 | ||
Worktable Dimension(Front/back*Left/right*Thickness) | mm | 310*455*40 | ||
The size of the hole in the worktable | mm | Φ130 | ||
Die dimension(diameter * depth) | mm | Φ35*60 | ||
Distance between two columns of the fuselage | mm | 200 | ||
Worktable to guide distance | mm | 250 | ||
Max tilting angle of boby | 200 | |||
Motor | V | 380V | ||
Power | kw | 1.5 | ||
Weight | kg | 750 | ||
Overall Dimension(Length*Widht*Height) | mm | 900*780*1720 | ||
Company Introduction
Certifications
Product packaging
Our service
FAQ
Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .
Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
A:Prvide us the details of material , such as metal thickness and width .
Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
