China manufacture multi function sheet metal combined hydraulic iron worker
- Category: Hydraulic Ironworker >>>
- Supplier: Anhui,Runbang,Heavy,Industry,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
China manufacture multi-function sheet metal combined hydraulic iron worker
1. Robust and accurate steel frame
2. Large punch table with scales
3. Removable bolster for punching flanges and channel and beam
4. 2 independent hydraulic cylinders
5. 2 shielded foot controls
6. 2 Separate Die Openings for over sized punching
7. 5 working stations for wide applications
8. power inching on all 5 work stations
9. plate shear support table and notching table
10. adjustable stroke controls with indicators on both cylinders
11. punching machine: Movable work light
12. overload protection on hydraulic system
13. electric back gauge
14. optional bending attachment
Model | Punching Pressure | Max cutting thickness(mm) | Max.punching diameter(mm) | Angle of shear（°） | Slider trip (mm) | Trips frequency (times/min) | Throat depth (mm) | Punch depth (mm) |
Q35Y-12 | 35 | 12 | 25 | 7 | 35 | 10-18 | 115 | 12 |
Q35Y-16 | 60 | 16 | 25 | 7 | 80 | 9-25 | 300 | 16 |
Q35Y-20 | 90 | 20 | 30 | 8 | 80 | 10-28 | 355 | 20 |
Q35Y-25 | 120 | 25 | 35 | 8 | 80 | 9-18 | 400 | 25 |
Q35Y-30 | 160 | 30 | 38 | 8 | 80 | 7-16 | 600 | 26 |
Q35Y-40 | 200 | 40 | 40 | 8 | 100 | 6-16 | 530 | 35 |
Detailed Images

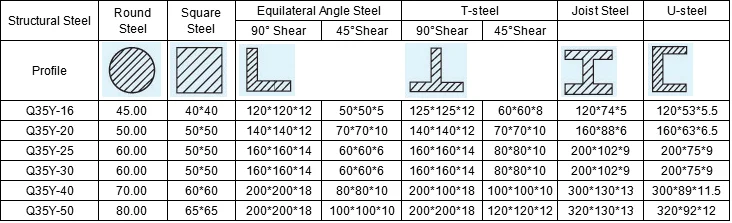

combined hydraulic iron worker main parts Shape shearing parts
Round and square bar shear has multiple holes for a variety of sizes. Adjustment hold down device for round/square bar,channel/beam cutting. Large strong guarding or max safety.
The angle shear has the ability to cut angle at 45 degree both top and bottom leg. This give the operator to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.

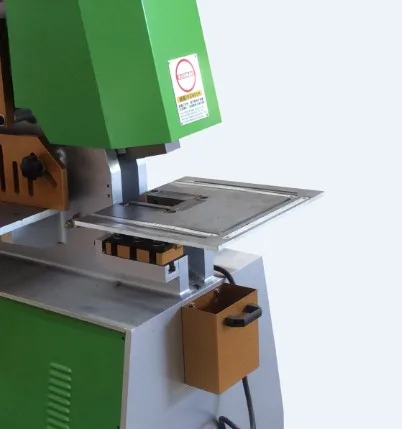

combined hydraulic iron worker main parts
Name: Notching parts
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and 3 gauging stops for precise positioning.
Notching is a metal-cutting process used on sheet metal or thin bar stock, sometimes on angle sections or tube.
combined hydraulic iron worker main Parts

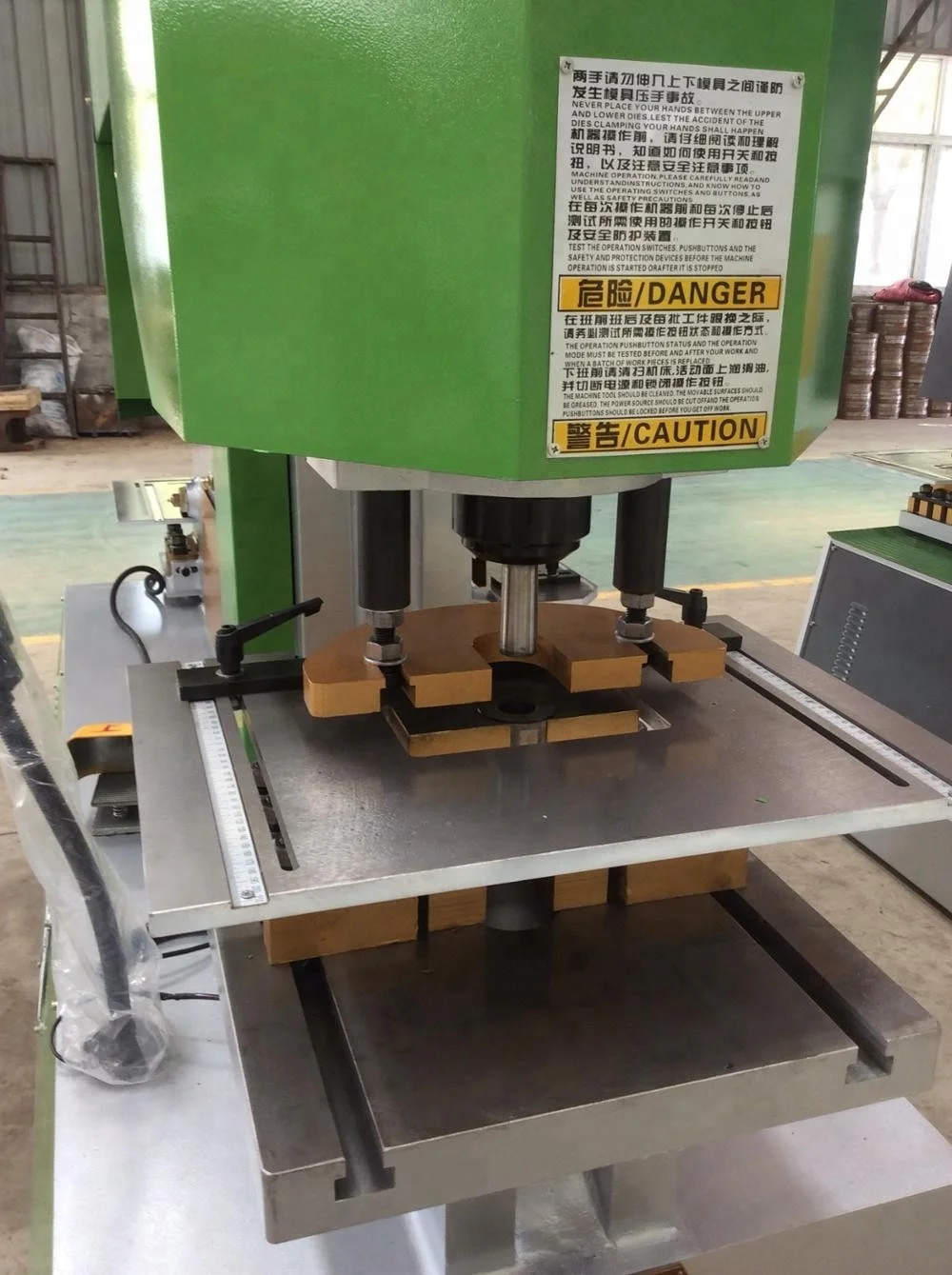

Name: Punching parts
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large 2 piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
combined hydraulic iron worker control parts
Very easy to operate, hand operating,
safe and easy
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
\t\t\t\t\t\t\t\t\tCompany info \t\t\t\t\t\t\t
About Runbang Heavy Industry Machinery Co.,Ltd
*Expert in kinds of sheet metal processing machines, like bending machine, shearing machine, iron worker, hydraulic press, punching machine, duct manufacturing auto line, cutting machine and so on
*With an expert team in R&D for more than 20 years, occupied the work shop of over 30,000 square meters, Runbang is able to support you with best quality machines
*With CE/ISO/SGS certification
Payment&Lead time
Payment terms | T/T | FOB | 30% T/T in advance, paid the balance before shipment | ||
C&F(CRF) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C at sight or L/C 30 days is also accepted | ||||
D/P | D/P is available for long-term cooperated customer | ||||
Lead time | Normally 7-15 days after deposit or L/C received | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Packing & Delivery
Packaging | ||
Size | 2800 (L) * 1050(W) * 2450 (D) | |
Weight | 15T | |
Packaging Details | The normal package is by plaistic film, or we can pack it according to customers special request. | |
\t\t\t\t\t\t\t\t\tFAQ & Contact \t\t\t\t\t\t\t
FAQ
1.Q:Are you a manufacturer or a trading company?
A:We are a manufacturer; We specialize in metal sheet metal steel processing equipment.
2.Q:How to choose a bending machine?
A:Please tell us the following information in detail:
- Material of plate:
-Max thickness:
-Max plate width:
-If possible: you can specify the model;
3.Q:Where is your factory? How can I get there?
A:You can fly to NanJing LuKou airport directly, we will pick you up in the airport. All our customers, both inland and abroad, warmly welcome to visit us!
4.Q:How do you ensure quality in the factory?
A:Quality culture.:We always attach great importance to quality control from the beginning to the end. Our factory has obtained ISO, CE certification.
5. Q:How can I pay?
A:You can pay by T/T, Western Union, MoneyGram, Paypal; 30% deposit; pay off the 70% balance before shipment.
6. Q:How long to produce ?
A:Delivery time:20 days.
7. Q:Minimum order quantity?
A:1 set
