Q35Y 12 35 тонн Бесплатная прессформа универсальная маленькая гидравлическая железобетонная машина

Q35Y 12 35 тонн Бесплатная прессформа универсальная маленькая гидравлическая железобетонная машина

Category: Hydraulic Ironworker >>>
Supplier: Anhui,Runbang,Heavy,Industry,Machinery,Co.,Ltd.

Price:4 250,00 $ - 4 750,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

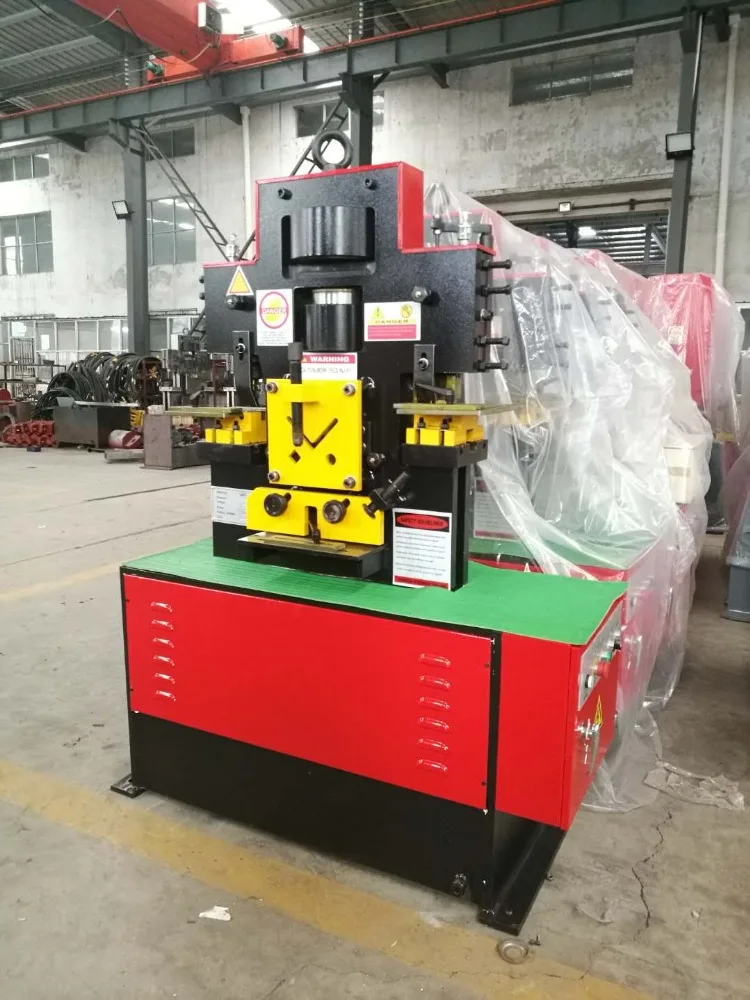

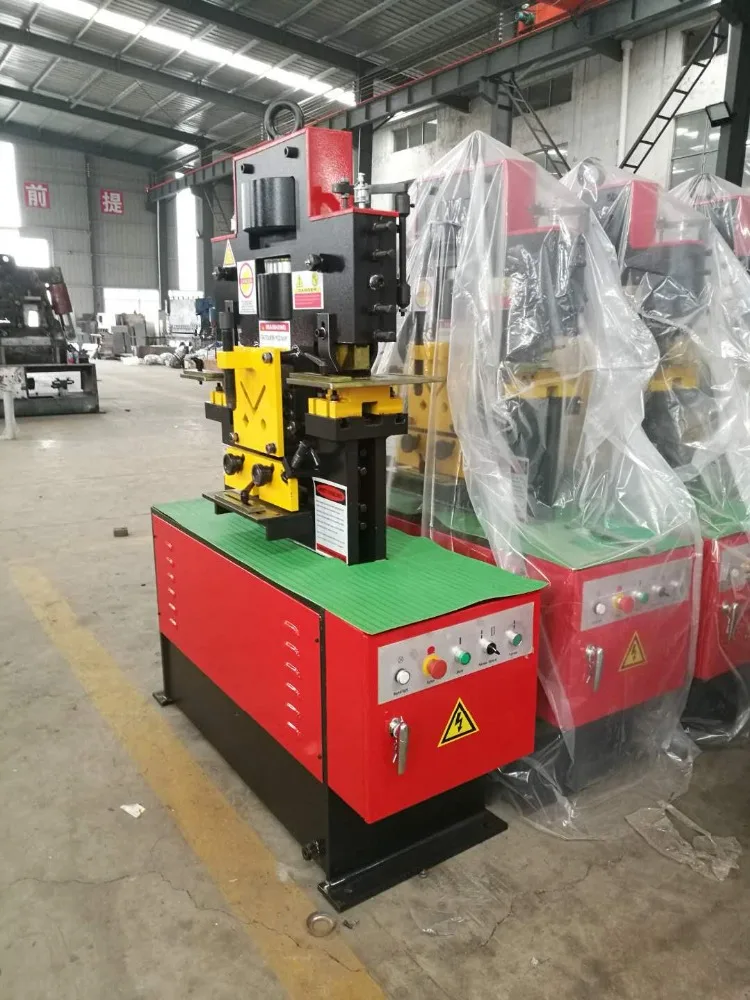

Q35Y- 12 35 ton free mold universal small hydraulic ironworker machine

Main Function

hydraulic Iron Worker featuring multiple functions, including: Punch, Angle Shear, Flat Shear, Round/Square Bar Shear, Rec. Notch, V-Notch, Channel Shear, I beam shear, shearing T-bar, Press Brake, Angle Bending and Pipe Notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more

Standard Tools

(Five sets of punch and die, blades will be installed on the machine)

1 set of Round Punch and Die

1 set of Angle Steel Cutting Blade

1 set of Round & Square bar Cutting Blade

1 set of Flat Bar Cutting Blade

1 set of Notching Blade

Technical data

Model(unit)	Q35Y-12
Punching Pressure(T)	35
Max.cutting thickness of steel plates(mm)	12
Material strength(N/mm²)	≤450
Angle of Shear(°)	7°
Flat bar shearing(T×W)(mm)	12×160 6×300
Round bar shearing(Dia.)(mm)	35
Square bar shearing(mm)	30×30
Angle steel shearing(W×W×T)(mm)	86×86×8
Max.length of cylinder stroke(mm)	35
Trips frequency(times/min)	10-18
Depth of throat(mm)	115
Punch depth(mm)	12
Max.punching diameter(mm)	25
Motor Power(KW)	4
Overall dimensions(L×W×H)(mm)	950×550×1800

Features
1. Robust and accurate steel frame

2. Large punch table with scales

3. Removable bolster for punching flanges and channel and beam

4. 2 independent hydraulic cylinders

5. 2 shielded foot controls

6. 2 Separate Die Openings for over sized punching

7. 5 working stations for wide applications

8. power inching on all 5 work stations

9. plate shear support table and notching table

10. adjustable stroke controls with indicators on both cylinders

11. punching machine: Movable work light

12. overload protection on hydraulic system

13. electric back gauge

14. optional bending attachment

Fast delivery metal hole punching and shearing with Oversea Support

Punching

Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large 2 piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.

Notching

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and 3 gauging stops for precise positioning.
Notching is a metal-cutting process used on sheet metal or thin bar stock, sometimes on angle sections or tube.

Shearing

Round and square bar shear has multiple holes for a variety of sizes. Adjustment hold down device for round/square bar,channel/beam cutting. Large strong guarding or max safety.
The angle shear has the ability to cut angle at 45 degree both top and bottom leg. This give the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.
