automatic condom cartoning machine
- Category: Packaging Line >>>
- Supplier: Wenzhou Kaixiang Packing Machinery Co. Ltd. [Zhejiang China]Wenzhou
Share on (60550710369):
Product Overview
Description
automatic condom cartoning machine
Machine Video Link:
Machine Description:
KXZ-100B automatic condom cartoning machine suitable for packing all kinds of product into carton box. Can connect to other machines to be automatic whole line.
Specification
Model: KXZ-100B
Place of origin: China
Technical specifications
| Encasing Speed | 30-80box/min |
| Box Quality Requirement | 250-450g/m2 (according to customer request) |
| Box Dimension Range | (55-200)mmX(14-90)mmX(13-65)mm can make special design as customer request |
Compressed Air Working Pressure | >=0.6mpa |
| Air Consumption | 20m3/h |
| Power Supply | 380V 50Hz |
| Motor Power | 1.5KW |
| Machine Dimension | 3800X1100X1900mm |
| Machine Weight | 1500KGS |
Standard features
Touch Screen HMI controls
PLC programme
Japan Omron electric parts (inverter, PLC,touch screen)
Germany sick photocell
Vacuum assisted pre-break
various size are avaliable in machine within machine size range
without product, carton will be not sucked down
Auto display trouble, alarm and count finished product
Overload protection
Optional features
auto conveyor
(connect our machine with your present machine to be whole automatic line)
hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)
other brand like simens (inverter, PLC, touch screen)
Print batch number or date on carton box

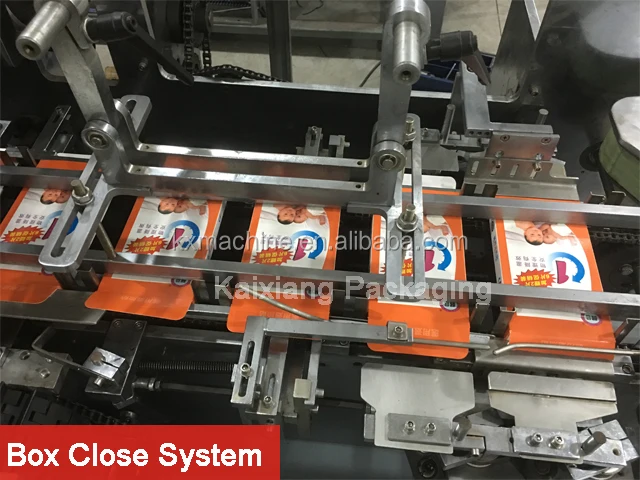

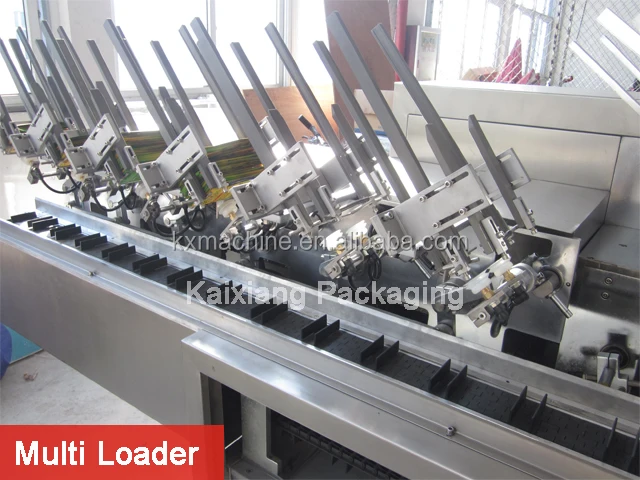

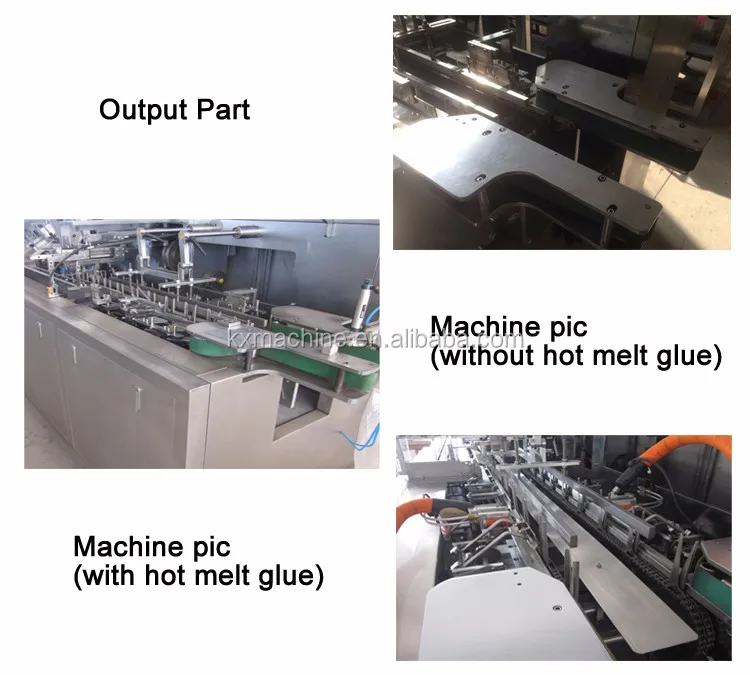

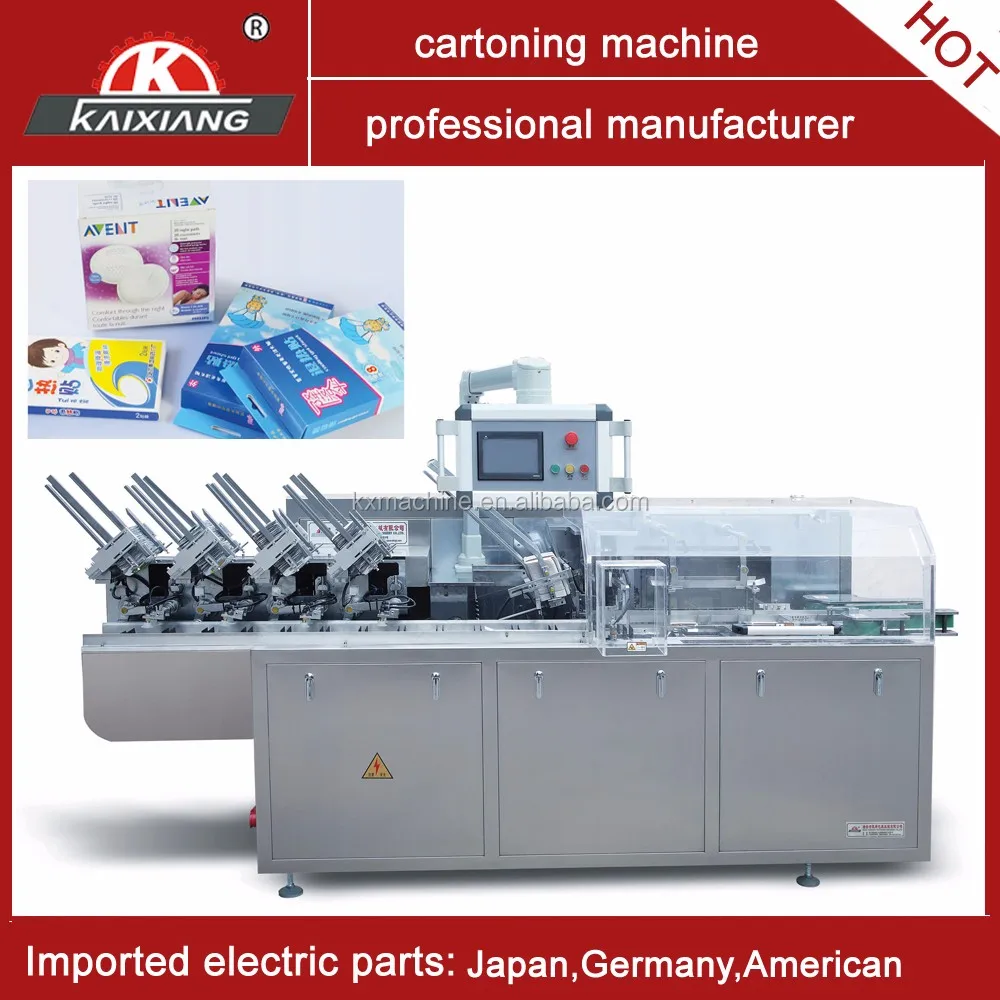

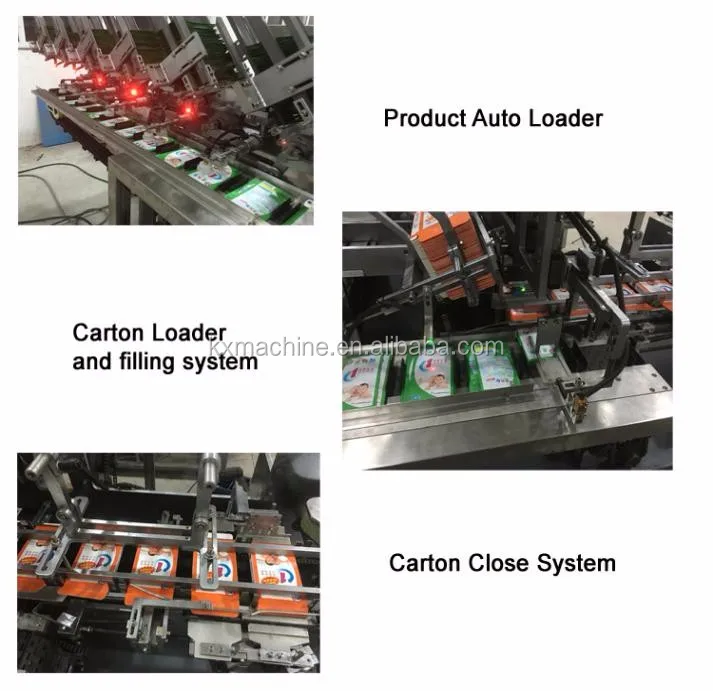

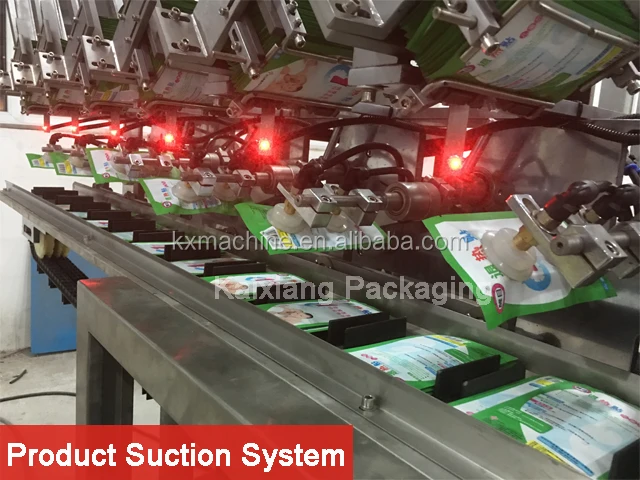

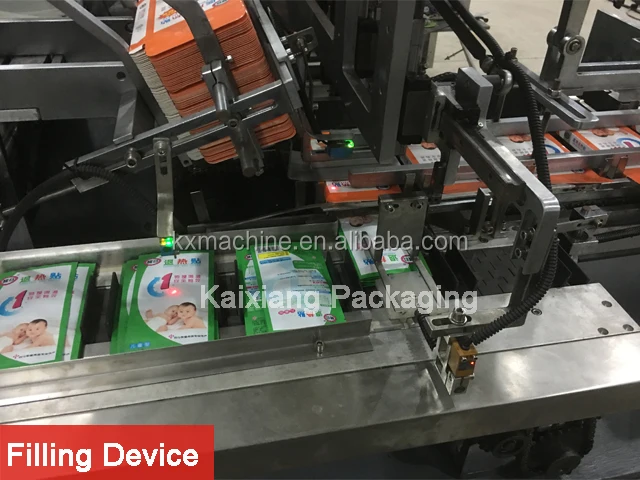

Machine picture:
Our workshop:
