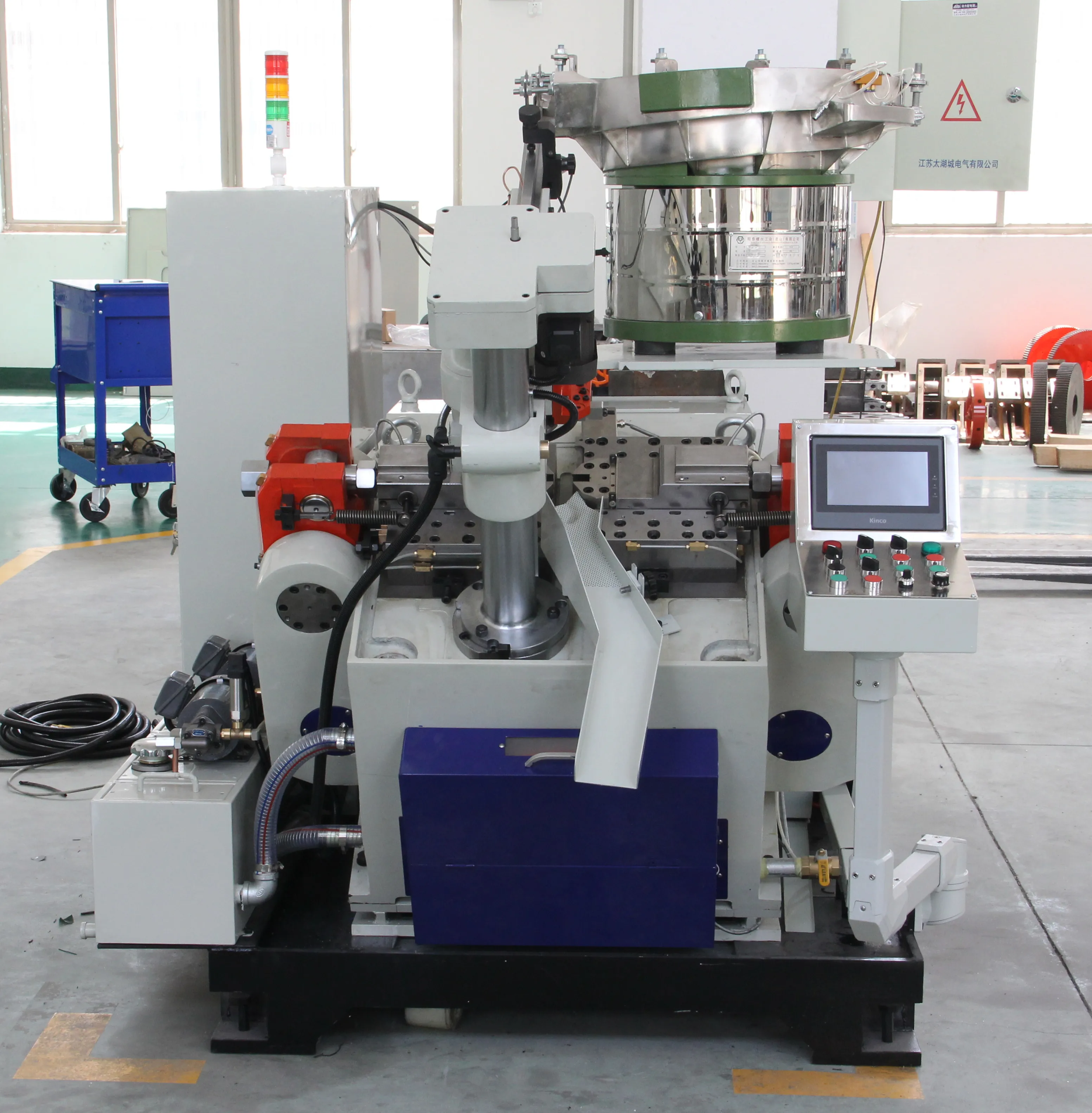

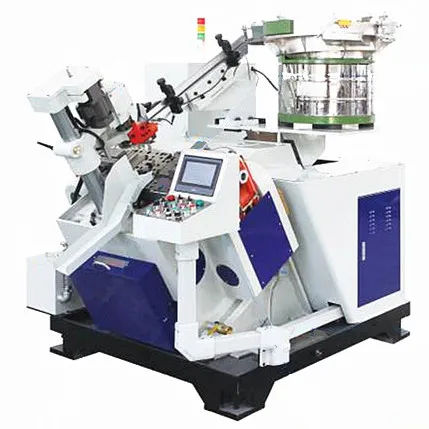

Drill point, self drilling screw tip forming machine
Drill point, self-drilling screw tip forming machine
Drill point, self-drilling screw tip forming machine
Drill point, self-drilling screw tip forming machine
Drill point, self-drilling screw tip forming machine
Drill point, self-drilling screw tip forming machine

Drill point, self drilling screw tip forming machine

Share on (60558510160):


Price:RUB 2,043,397.24

Quantity:


Product Overview

Description



- high-speed & high-precision cutting, low noise

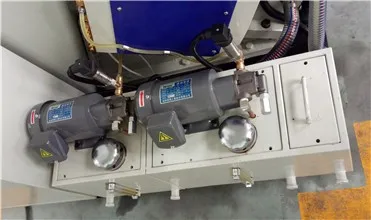

- separate lubricating, oil-saving - square sliding seat, stable & wear-resistant - screen indicate displacement to 0.001mm - suspended line slots, avoiding oil corrosion - computer-controlling whole machine, simple
  operation
Model
Unit
SDS-5(S)
SDS-6(S)
SDS-8(S)
Blank dia.
mm
2.8-5.0
2.8-6.0
3.9-8.0
Screw length
mm
10-150
10-200
10-200
Designed capacity
pcs/min
100-500
100-500
100-400
Main motor
kw
5.5
7.5
11
Inverter
kw
7.5
11
15
Auto-action & detect controller

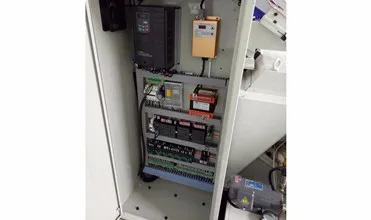

PLC & Touch Screen Man-machine Interface Fault Indication
Overall dimensions (L * W * H)
mm
1900*1400*1800
1900*1500*1900
2200*1600*1700
Weight(Approx.)
kg
2300
2800
2850
Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
