automatic LED pick and place machine led lights making machine LEAD 2208
automatic LED pick and place machine led lights making machine LEAD-2208

automatic LED pick and place machine led lights making machine LEAD 2208

Share on (60560054908):


Price:$25,000.00 - $30,000.00

Quantity:


Product Overview

Description


Product Description

       automatic LED pick and place machine led lights making machine LEAD-2208

1.This automatic led chips mounter , PCB by conveyor enter pick and place machine .

2.it can save labor , no need worker put on and take off PCB board .

quick contact : Alice / skype : jiangting97 / MOB.whatsapp : 0086 139 2458 9253 /wechat : smt9171


\t
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
\t


\t
model  :                          LEAD -2208
\t
dimensions
\t
1930*1180*1450mm
\t
No. of  feeder :               16  pcs
\t
power supply
\t
single phase  220v .50HZ
\t
working type :                 online ,fully automatic
\t
Negative   pressure
\t
vacuum  pump system
\t


\t
heads :                                        8 pcs
\t
operation  system
\t
windows  XP
\t
real  speed :                          32000CPH
\t
feeder   size
\t
8mm ,12mm ,16mm ,24mm,32mm
\t
max speed :                           40000 CPH
\t
mounting components  type
\t
0603-7070 , leds , resistors , capacitors
\t


\t
position accuracy :             +_  0.005 mm
\t
position method
\t
vision  mark position
\t
weight :                                 about  1000KG
\t
programming method
\t
computer graphical + visual camera  position
\t
position  method :       vision  mark  position
\t
\t

Main Features

1)  JUKI  nozzles

2) YAMAHA  feeders

3)  original panasonic  servo motor  from Japan

4) Origianl  THK  Screw  rod

5) vision mark  position

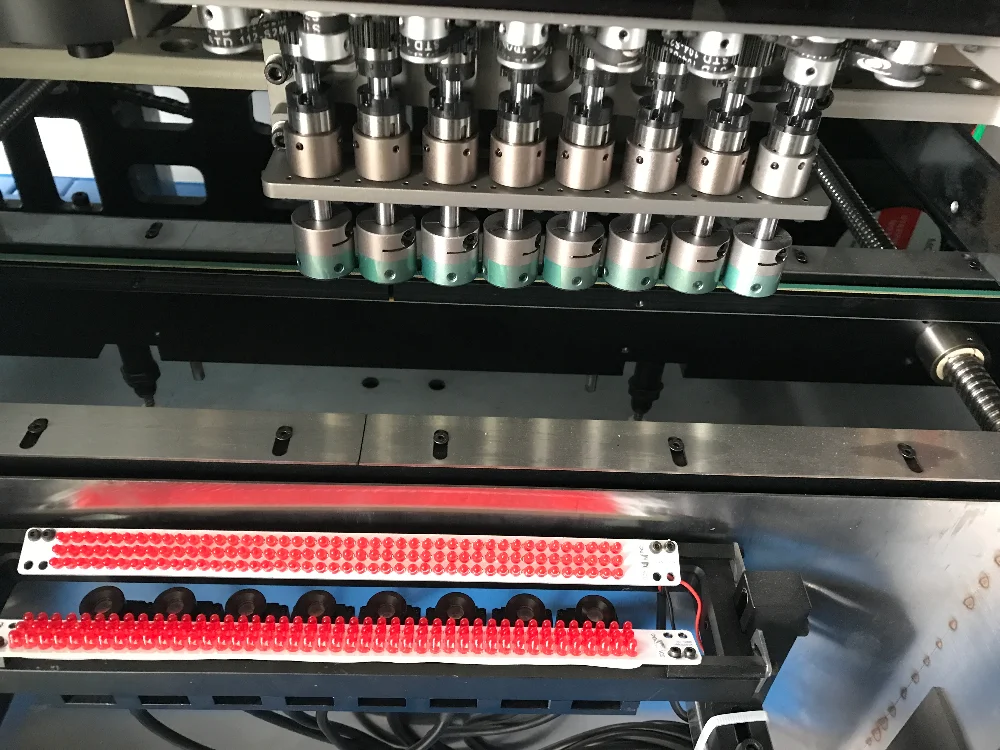

mount products show

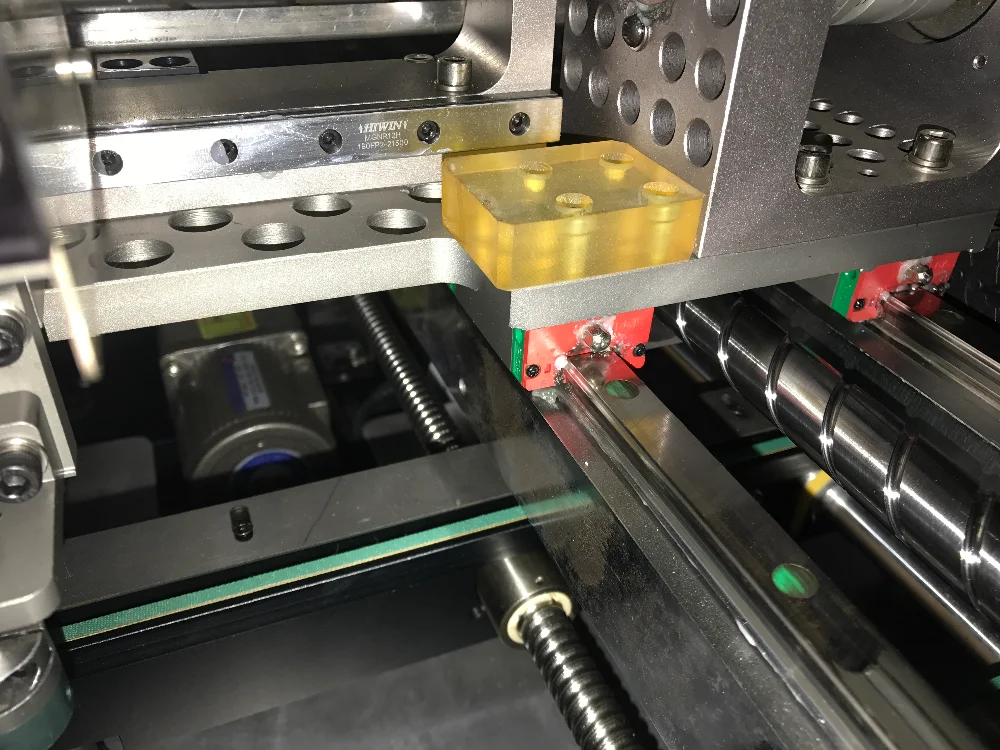

Detailed parts

Machine Parts

Name: nozzle

Brand : JUKI

Original: JAPAN

when you order machine , we will prepare nozzles for you .

Main Features

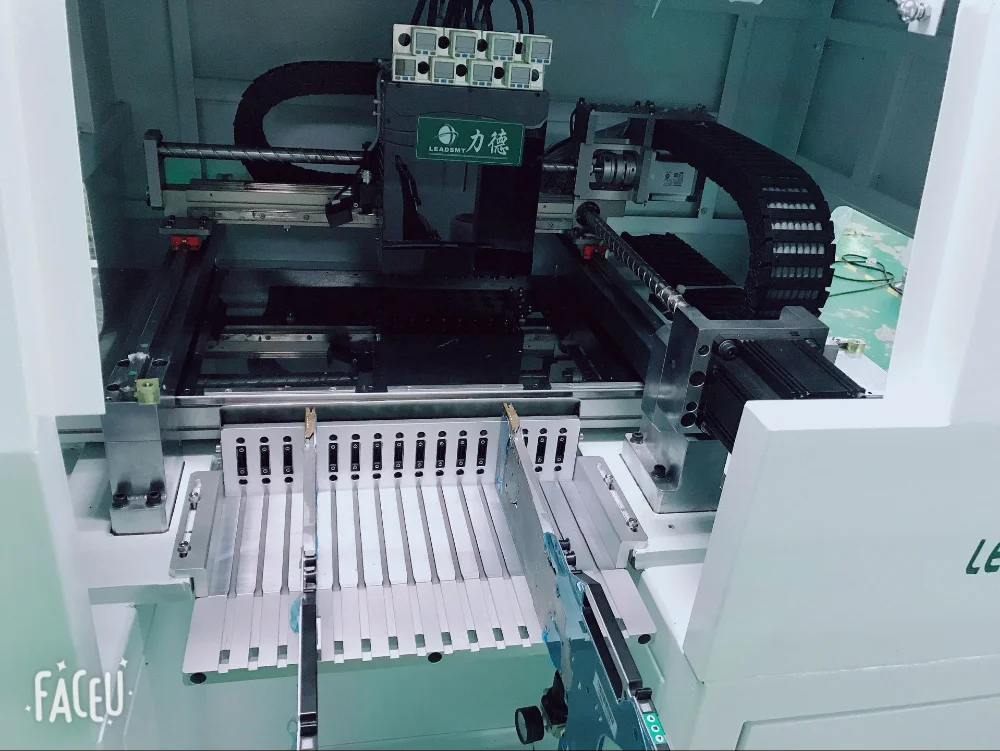

Name: feeder
Brand:YAMAHA
Original: JAPAN
feeder need extra pay  if you need we prepare for you

Machine Parts

Name: camera
Brand: SONY
Original: JAPAN
with 6 camera  on the bottom , with correction function and  more precision .

Main Features

Name: servo  motor
Brand: Panasonic
Original: Japan
use oringinal panasonic servo motor  driven , more stable

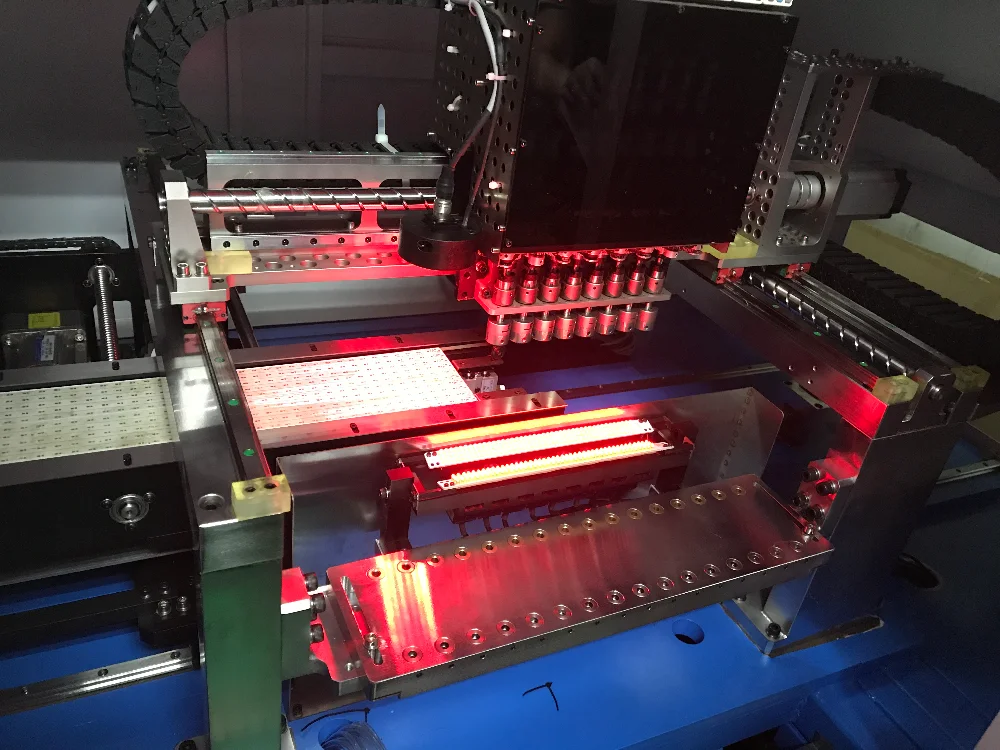

machine working

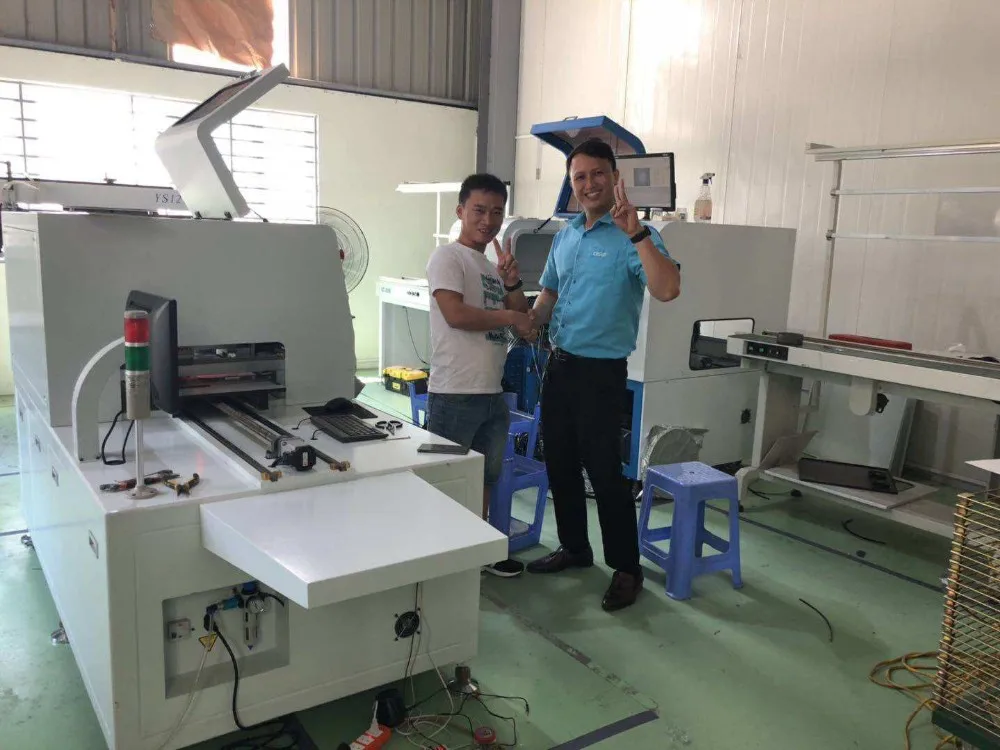

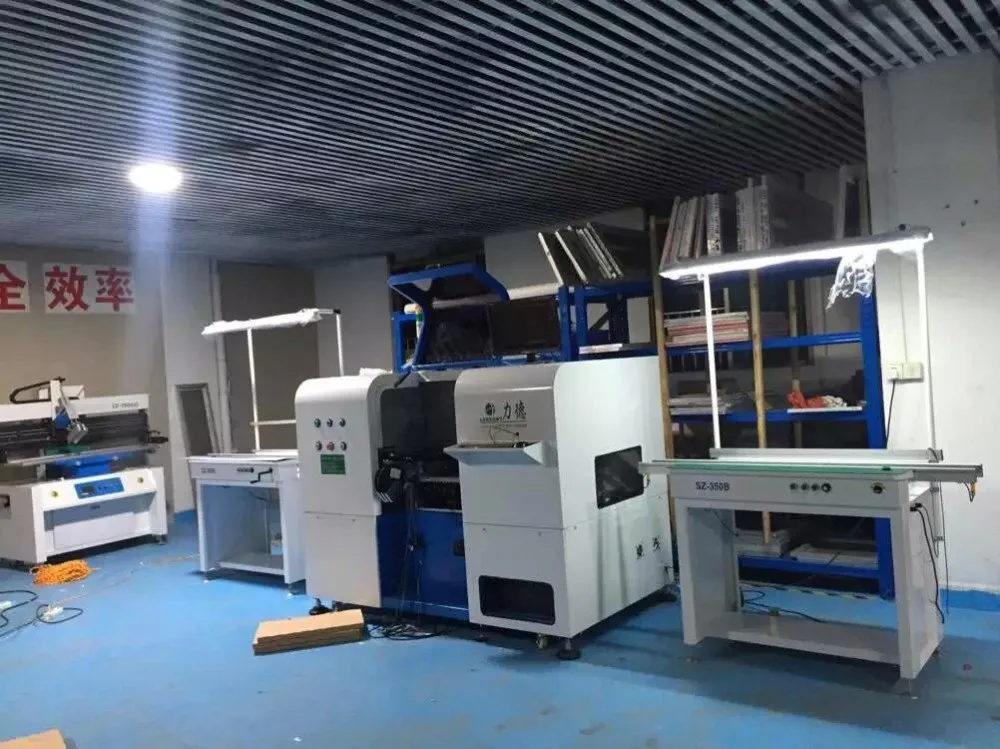

 machine  working in customer factory




Packing & Delivery
\t
Packaging
\t
Size
\t
1930 (L) * 1180 (W) * 1450 (H) mm
\t
Weight
\t
1400KG
\t



Packaging Details
\t
standard  export packing
vacuum packing + wooden cases

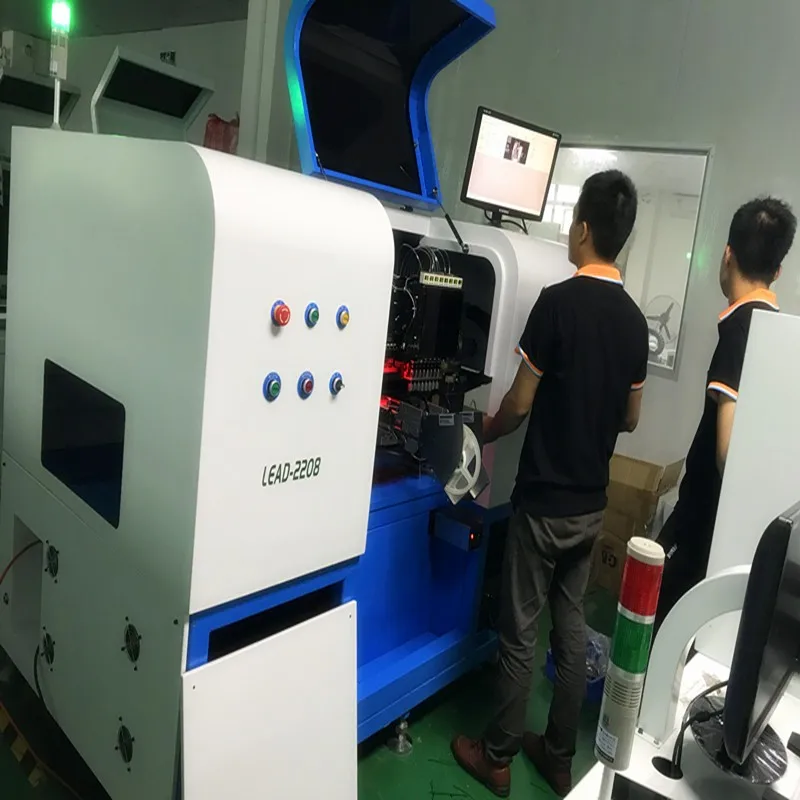

exhibition
