Лучший китайский производитель цена Q35Y 16 электро гидравлический гибочный пресс машина, гидравлическая комбинированная машина для перфорации и ножницы для резки листового металла

Product Overview

Description

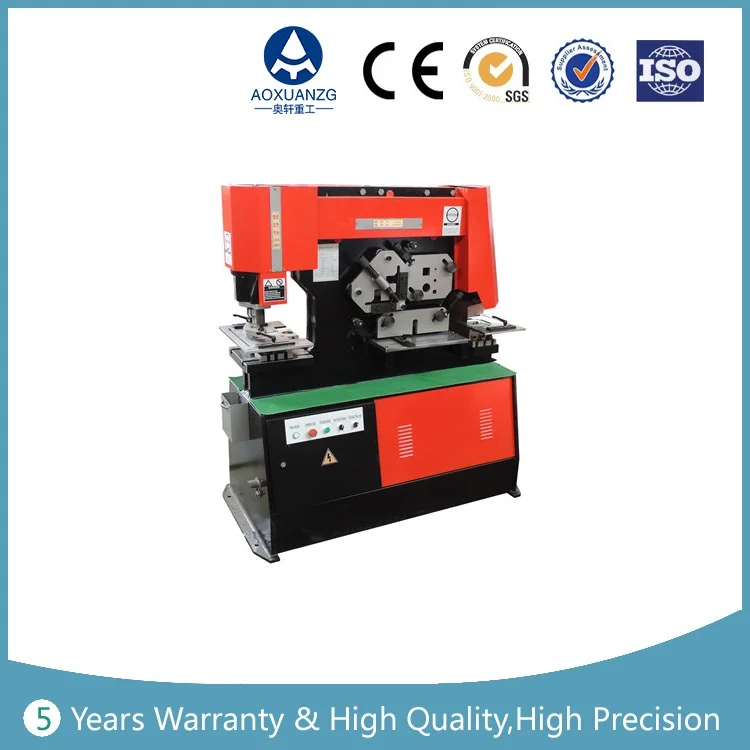

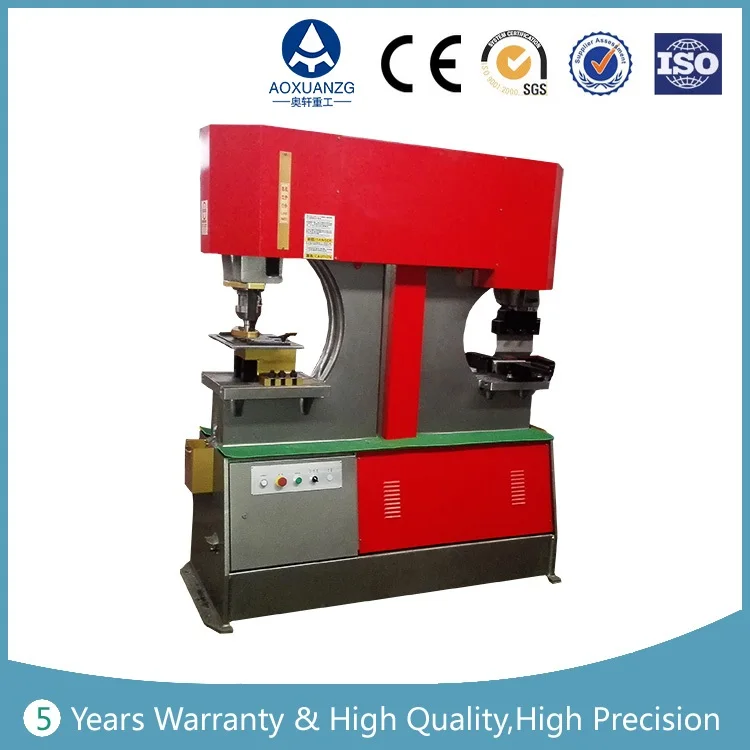

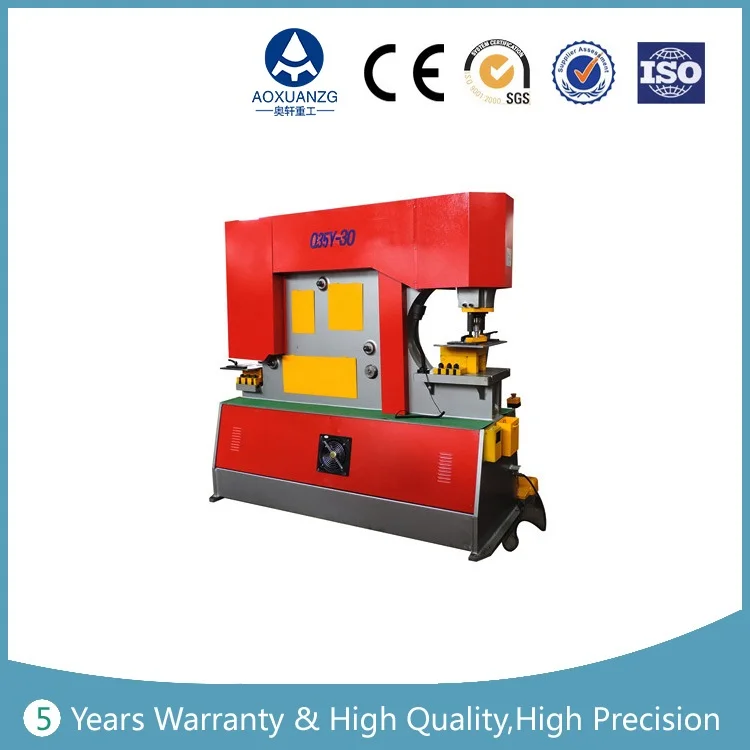

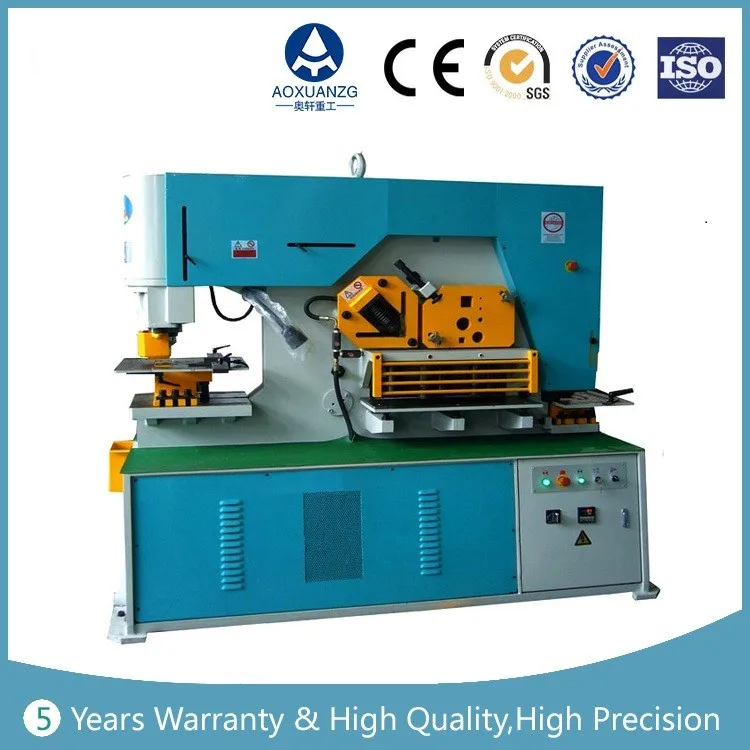

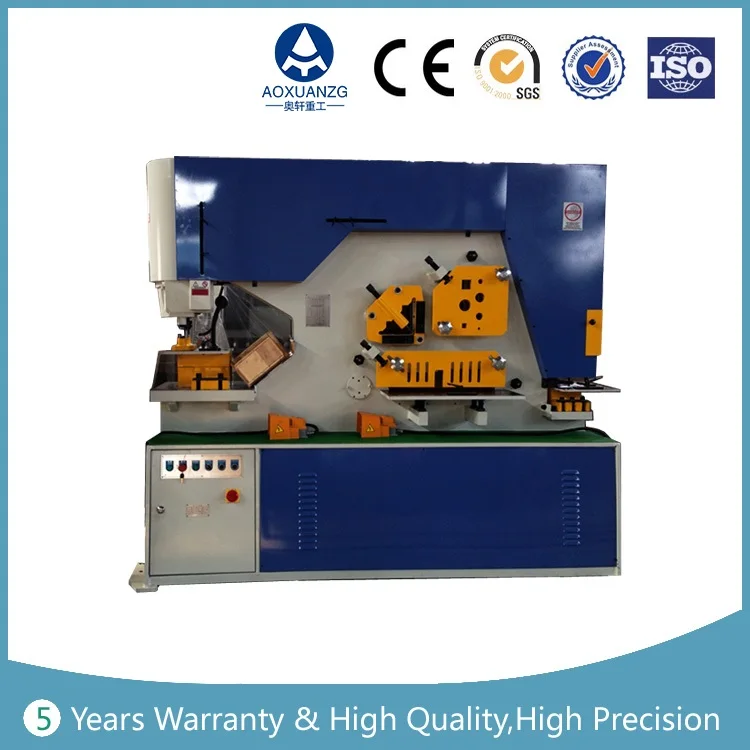

Best China Manufacturer price Q35Y-16 hydraulic ironworker machine,hydraulic combined punching & shearing machine

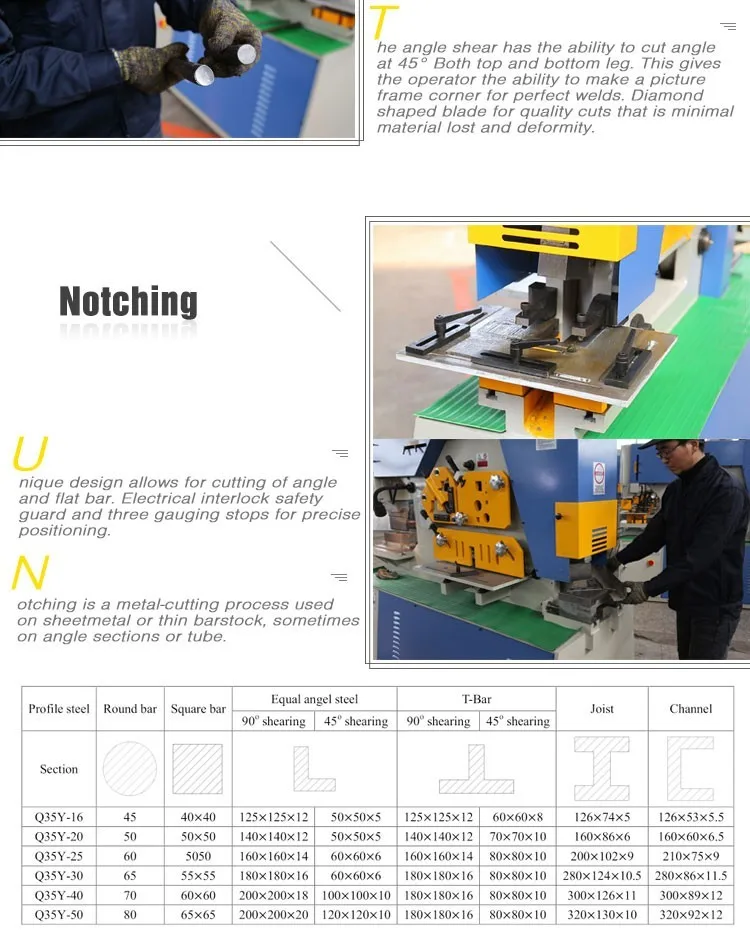

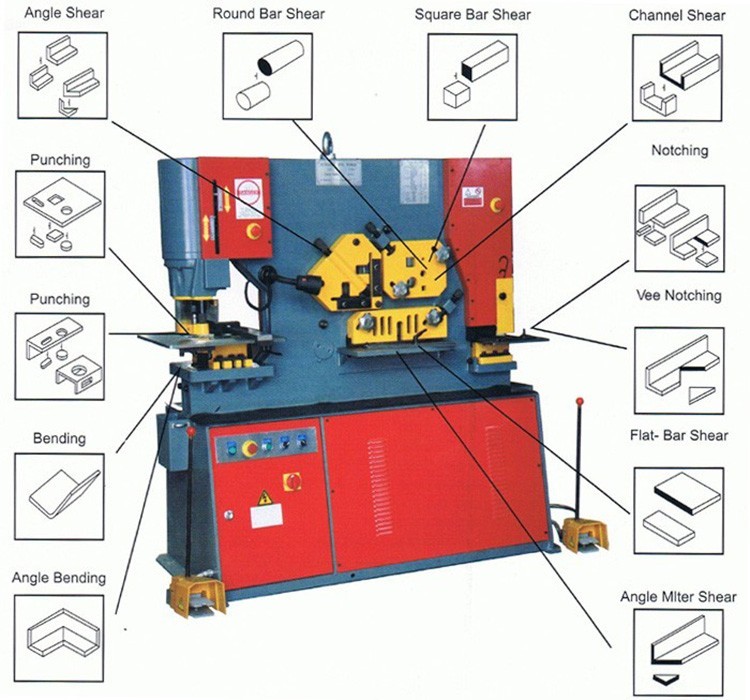

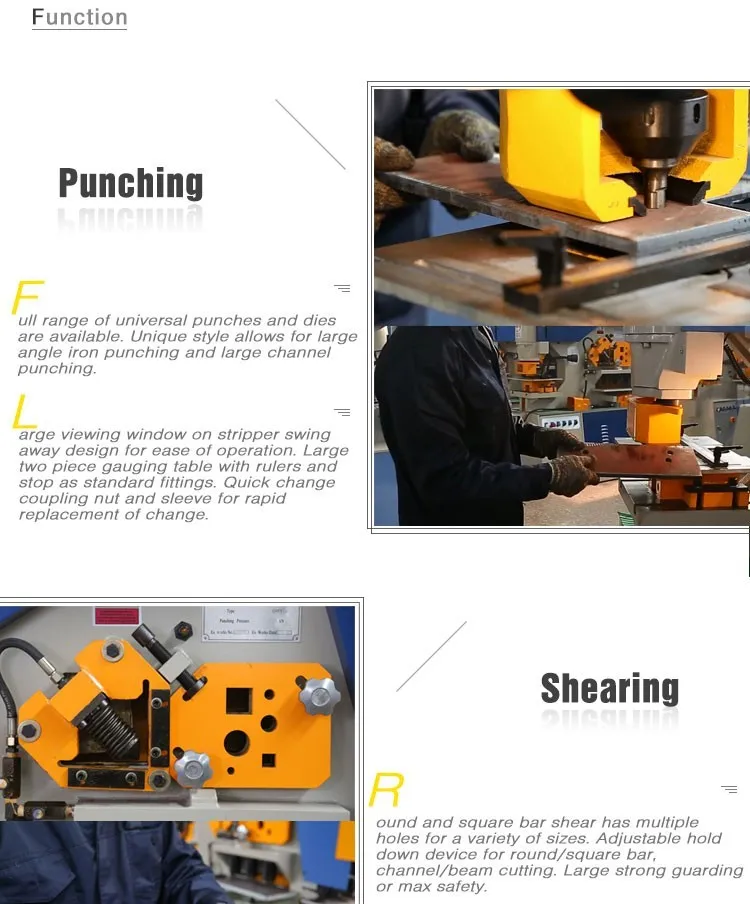

Aoxuan’s Q35Y series industrial-grade hydraulic ironworker machine featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.



The hydraulic ironworker machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.

Our hydraulic ironworker machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.



Optional tooling of hydraulic ironworker machine



Automatic Holding System: The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and improve working efficiency.



Temperature cooling system: When the hydraulic ironworker machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.



II. Main standard properties components of hydraulic ironworker machine:



  1. All the electrical parts are IMPORT with CE certificate.

  2. Professionally engineered design frame structures.

  3. Steel welds with high precision strength and rigidity to eliminate vibrations.

  4. Ironworker steel frame Q235 = American standard steel A306 GR55.

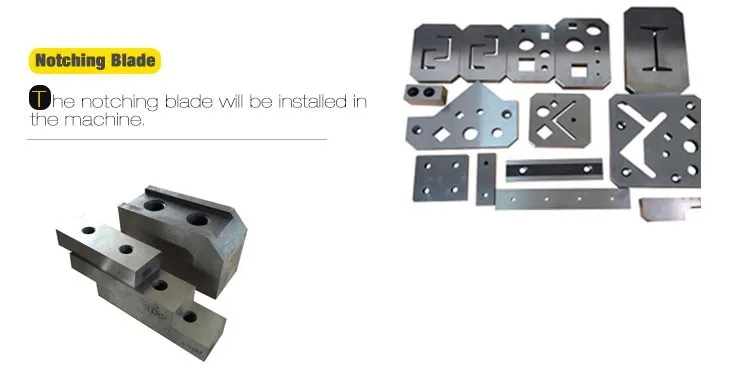

  5. Five sets of punch and blades were installed on the machine.

  6. Timer relay by Japanese OMRON.

  7. All wiring terminal block by WEIDMULLER.

  8. Main Electrical component by Germany Schneider.

  9. Oil seals by Japanese, NOK.

 10. O-Ring and Valve by Taiwan for piston pump more durable.

 11. Hydraulic System by Japanese Yuken.

 12. Motor by Chinese Jiangsu Dazhong

 13. Hydraulic fuel tanks and ironworker frame built by our Factory.

 14. Dual independent hydraulic cylinder

 15. Dual Footswitch controlled work separately

 16. Easy Adjustable stroke control with ruler

 17. Indicator on both hydraulic cylinders

 18. Electric back gauge auto stop

 19. Moveable working light that can be placed at any desired position

 20. Hydraulic system with overload protection system

 21. Emergency safety stop switch

 22. Large punching table with ruler guide

 23. Larger notching table with Ruler guide

 24. Large flat shearing table with Ruler guide

 25. Most important easy maintenance

Iron worker Profile \\ Model		Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40
Punching Pressure(T)		60	90	115	145	200
Max cutting thickness(mm)		16	20	25	30	40
Plate strength(N/mm²)		≤450	≤450	≤450	≤450	≤450
Angle of shear(°)		7	8	8	8	8
Shearing size of one stroke(mm)		16x250 8x400	20x330 10x480	25x330 16x600	30x335 20x600	40x335 30x600
Ram stroke(mm)		80	80	80	80	100
Stroke times(per  min)		12--28	18--30	9--18	8--16	8--16
Throat depth(mm)		300	355	400	600	600
Punch depth(mm)		16	20	25	28	30
Max punching diameter(mm)		25	30	35	38	40
Main power(kw)		7.5	7.5	7.5	11	18.5
Overall dimensions(L*W*H)(mm)		1700x750x1800	1950x900x1950	2355x960x2090	2800x1100x2500	2800x1100x2500
Weight(kg)		1800	2200	4800	6200	9200
Round bar		45	50	60	65	70
Square bar		40x40	50x50	50x50	55x55	60x60
Equal angle	90°shearing	125x125x12	140x140x12	160x160x14	180x180x16	200x200x18
	45°shearing	70x70x8	70x70x10	80x80x7	80x80x10	80x80x10
T-Bar	90°shearing	120x120x12	140x70x12	160x160x14	180x180x16	200x200x18
	45°shearing	60x60x8	70x70x10	80x80x10	80x80x10	80x80x10
I-Bar		126x74x5	200x102x9	200x102x9	280x124x10.5	280x124x10.5
Channel		126x53x5.5	160x60x6.5	200x75x9	280x86x11.5	300x89x11.5
