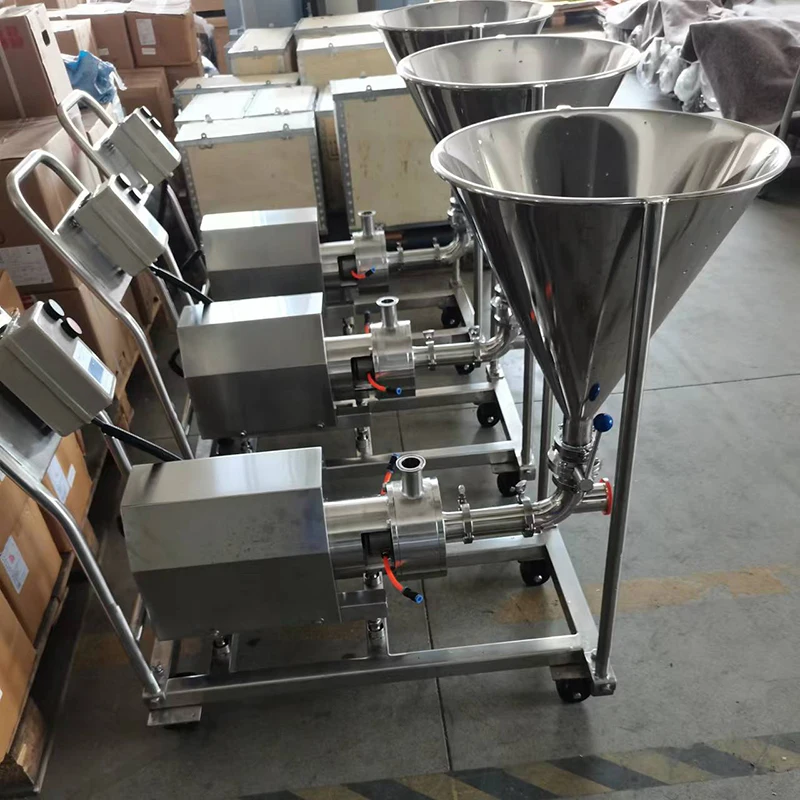

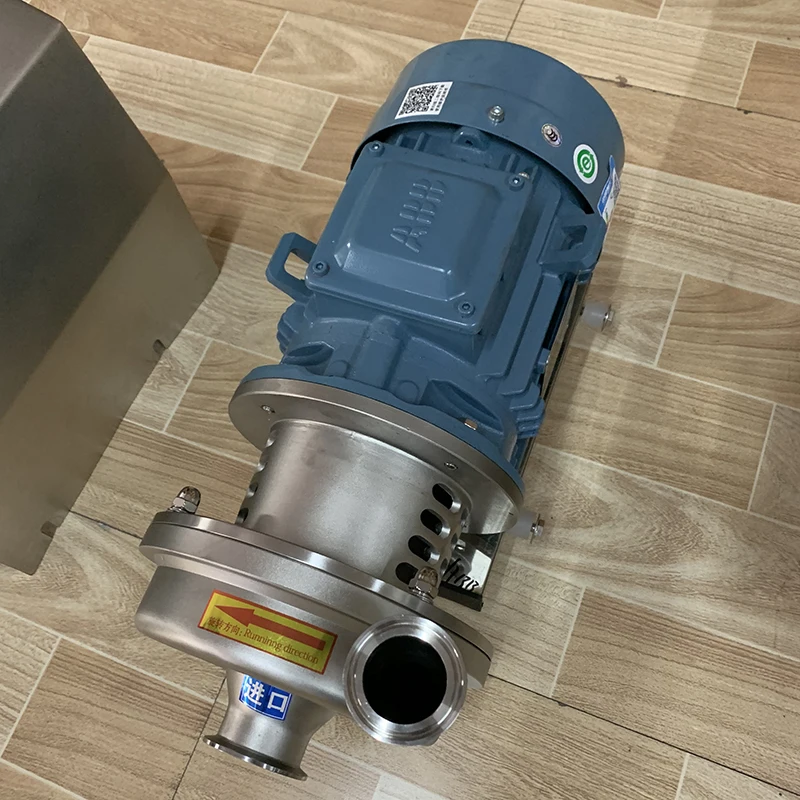

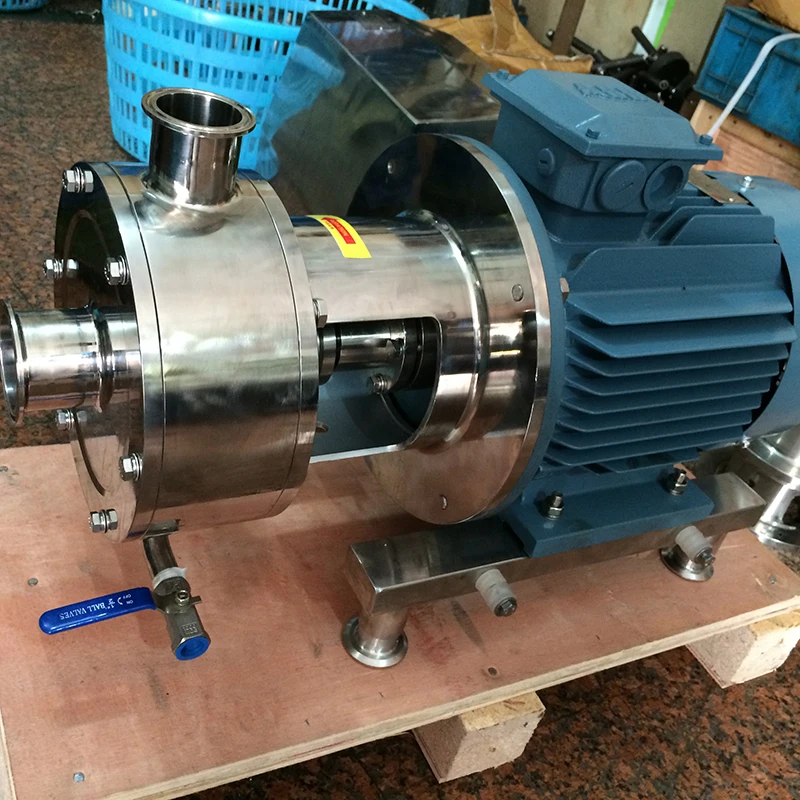

One stage In line high shear emulsifier/mixer/homogenizer/blender/pump for food grade
- Category: Chemical Machinery & Equipment >>>
- Supplier: Wenzhou,Kinding,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Working Method

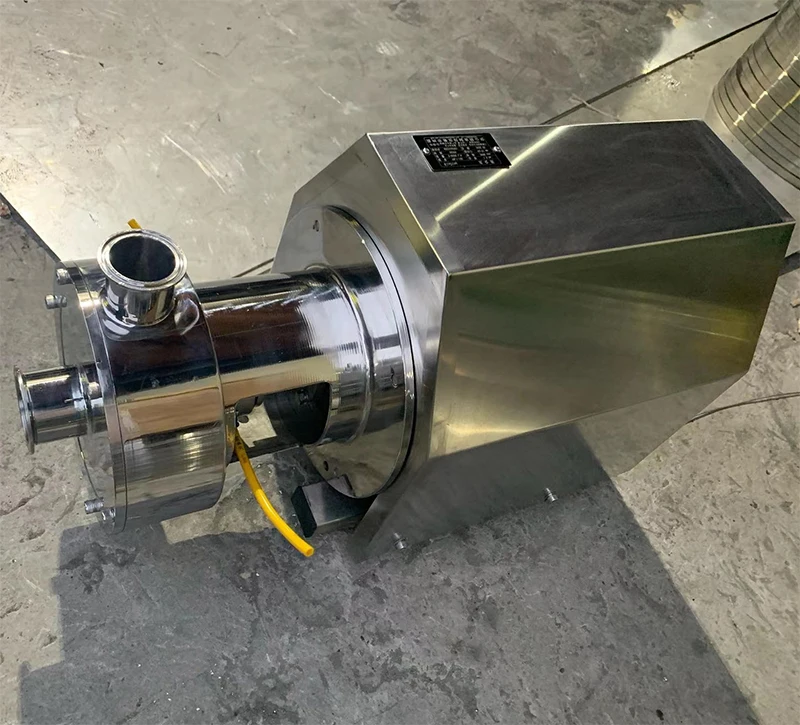

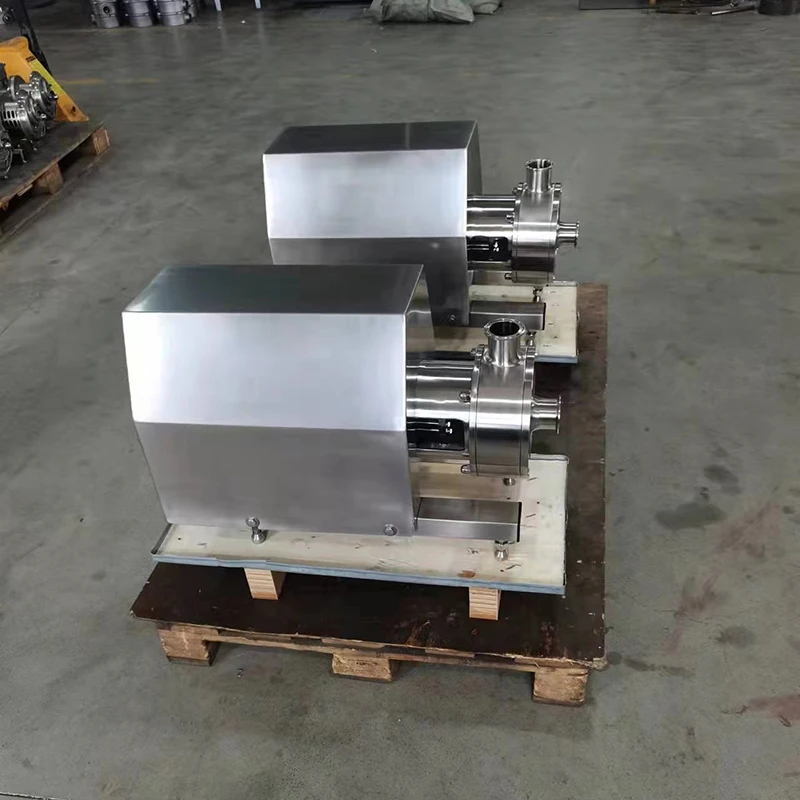

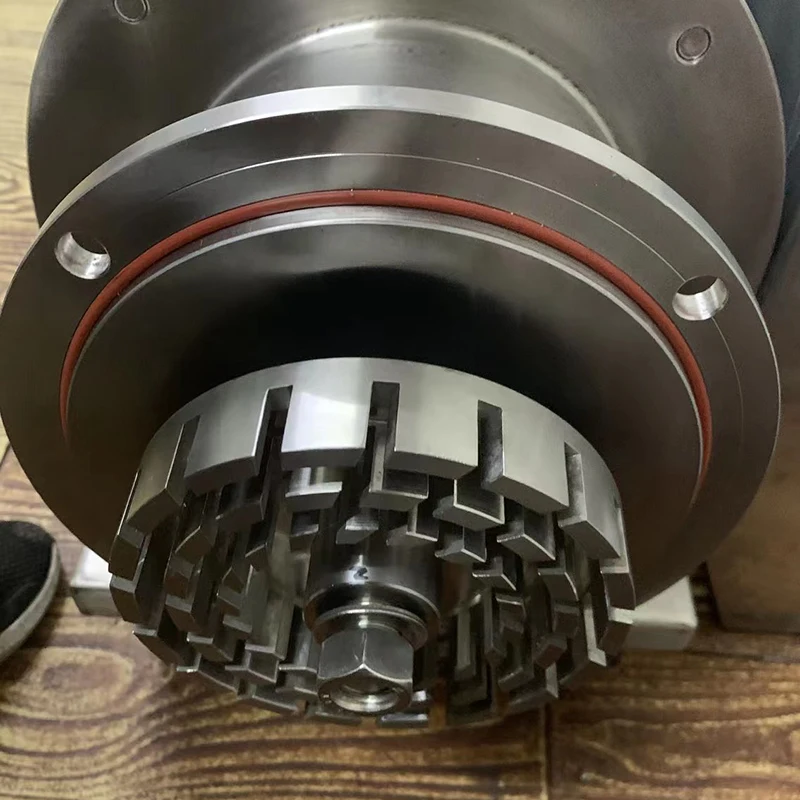

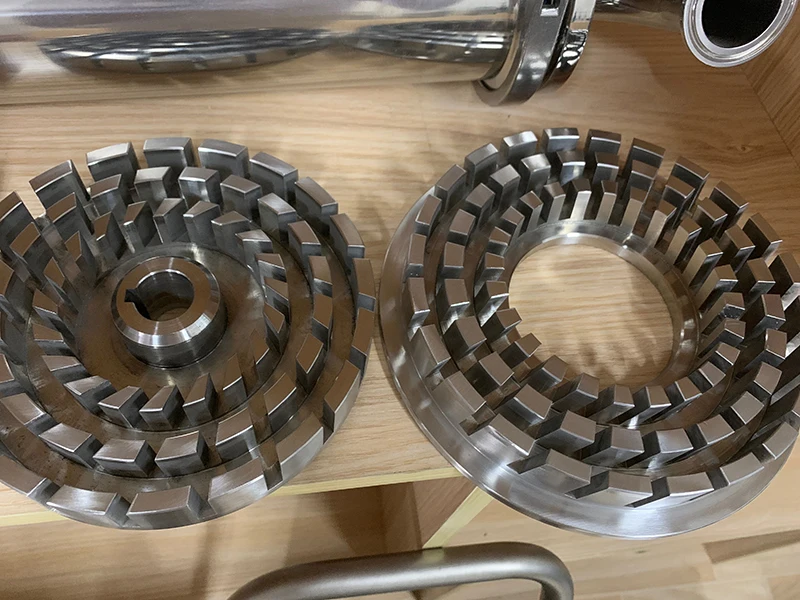

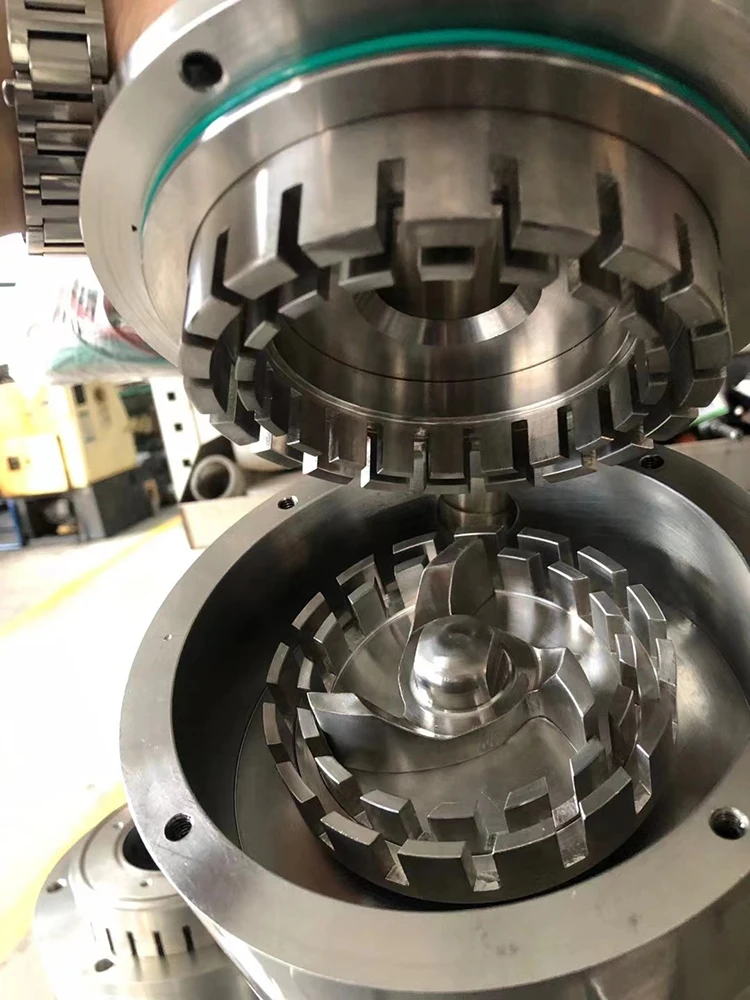

On-line high shear dispersing emulsifier is a high performance equipment used for continuous prod-uction or circulated treatment of fine material, In the small chamber, there are 1-3 sets of paired and clutched stators and rotor, Driven by motor, the rotor revolve quickly and produces a strong axial suctionforce which intakes the material to the chamber, The machine disperses, shears and emulsifiesthe material in shortest time, and the diameter range of the particles gets smaller so that fine and stable products are produced
Feeding Medium
This product is applicable for feeding medium which has the following properties
High solid content (diameter of the biggest particle is 500mm) or no solid content
Medium with all viscosities (1mPas-3,000,000mPas)
Medium that is easy to be generated and swelled
Shearing sensitive medium
Medium with erosion
Medium with/without self lubrication
Erosive medium (PH = 0-14)
Adhesive medium
High solid content (diameter of the biggest particle is 500mm) or no solid content
Medium with all viscosities (1mPas-3,000,000mPas)
Medium that is easy to be generated and swelled
Shearing sensitive medium
Medium with erosion
Medium with/without self lubrication
Erosive medium (PH = 0-14)
Adhesive medium
The explosion-proof motor also available
It with excellent electric performance, and with low niose, low vibration, the protection grade is IP55, insulation grade is F.
Operate involtage：
≤3Kw, 220-240V/380-420V, △/Y
>3Kw, 380-420V/660-690V, △/Y
Requency：50Hz/60Hz
Working method: continuous(SI）
Rotate speed: 2900r/min
It with excellent electric performance, and with low niose, low vibration, the protection grade is IP55, insulation grade is F.
Operate involtage：
≤3Kw, 220-240V/380-420V, △/Y
>3Kw, 380-420V/660-690V, △/Y
Requency：50Hz/60Hz
Working method: continuous(SI）
Rotate speed: 2900r/min
Product wetted steel parts: Acidresistant steel AISI 316L(AISI304)
Other steel parts: Stainless ateel AISI 304
Outside surface: Ti
Inside surface: Bright
Product wetted seals: EPDM rubber
Other steel parts: Stainless ateel AISI 304
Outside surface: Ti
Inside surface: Bright
Product wetted seals: EPDM rubber
Model | Power(KW) | Rotation speed(RPM) | Capacity(m3/h) |
TRL1-60 | 1.5 | 2900 | 0-1.5 |
TRL1-100 | 2.2 | 0-3 | |
TRL1-120 | 4 | 0-4 | |
TRL1-140 | 5.5 | 0-5 | |
TRL1-165 | 7.5 | 0-8 | |
TRL1-180 | 11 | 0-12 | |
TRL1-185 | 15 | 0-18 | |
TRL1-200 | 22 | 0-25 | |
TRL1-210 | 30 | 0-35 | |
TRL1-230 | 45 | 0-50 | |
TRL1-245 | 55 | 0-75 | |
TRL1-260 | 75 | 0-90 | |
TRL1-275 | 90 | 0-110 | |
TRL1-280 | 132 | 0-130 |

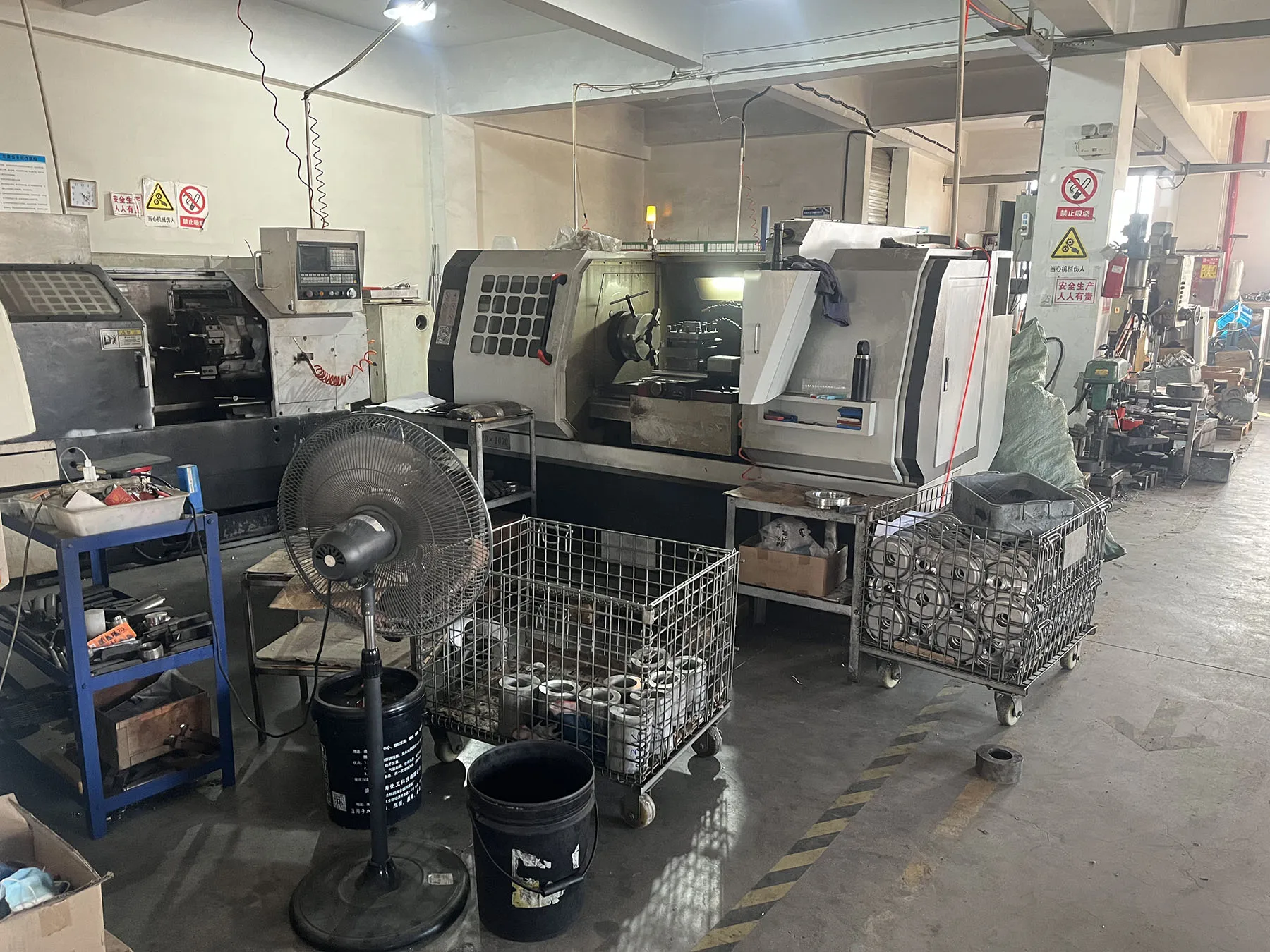

Our Company
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless

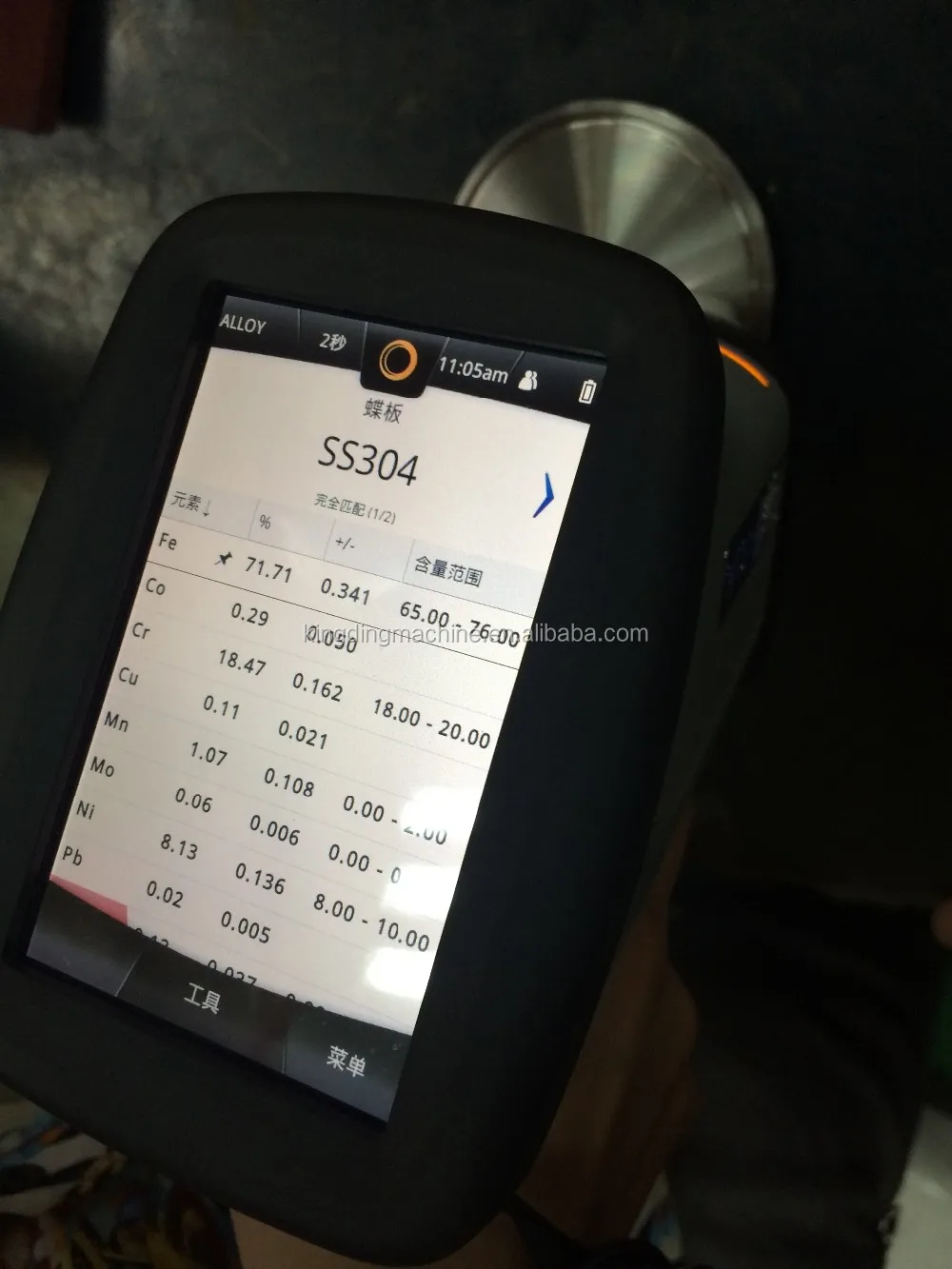

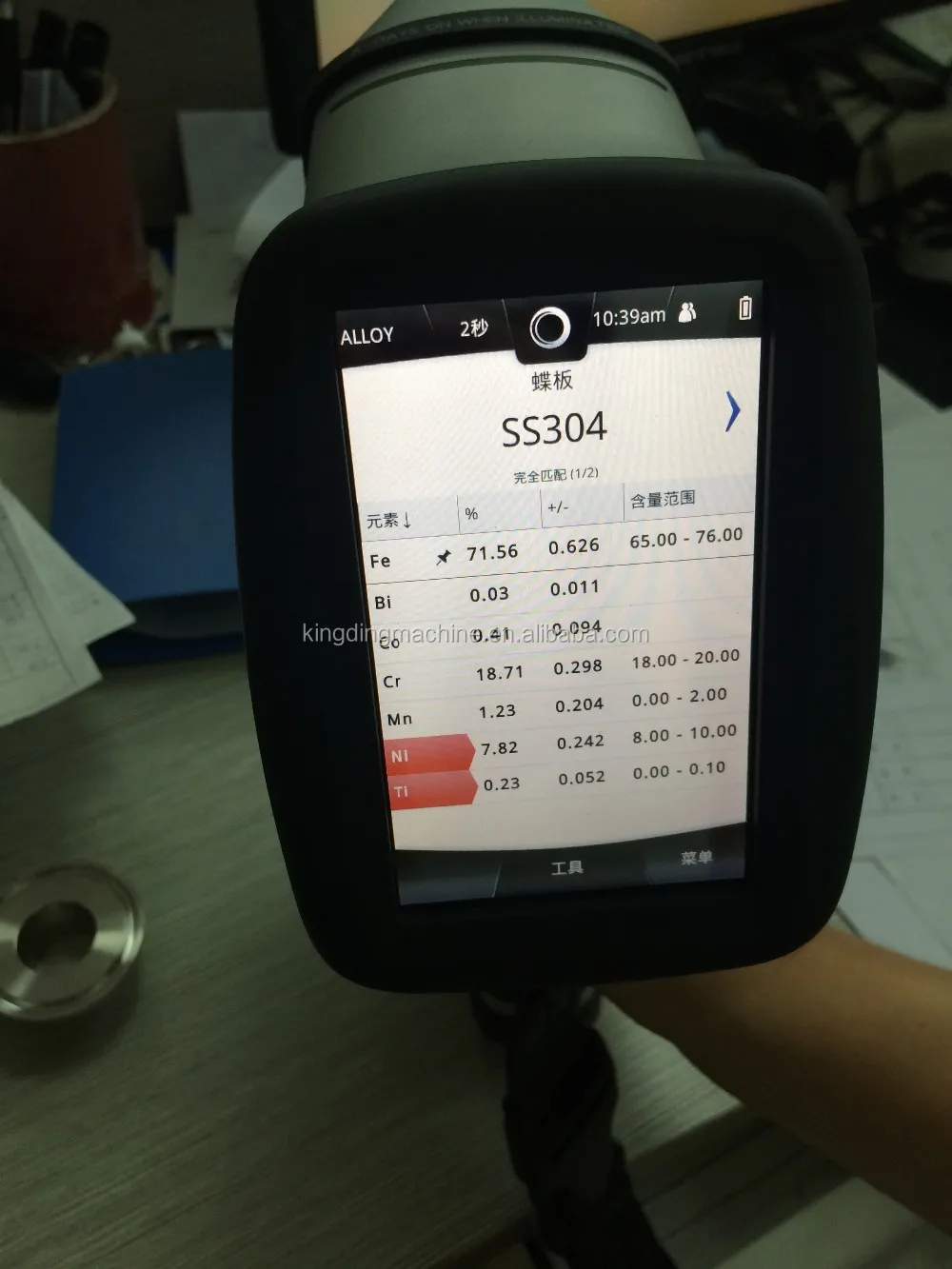

Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.

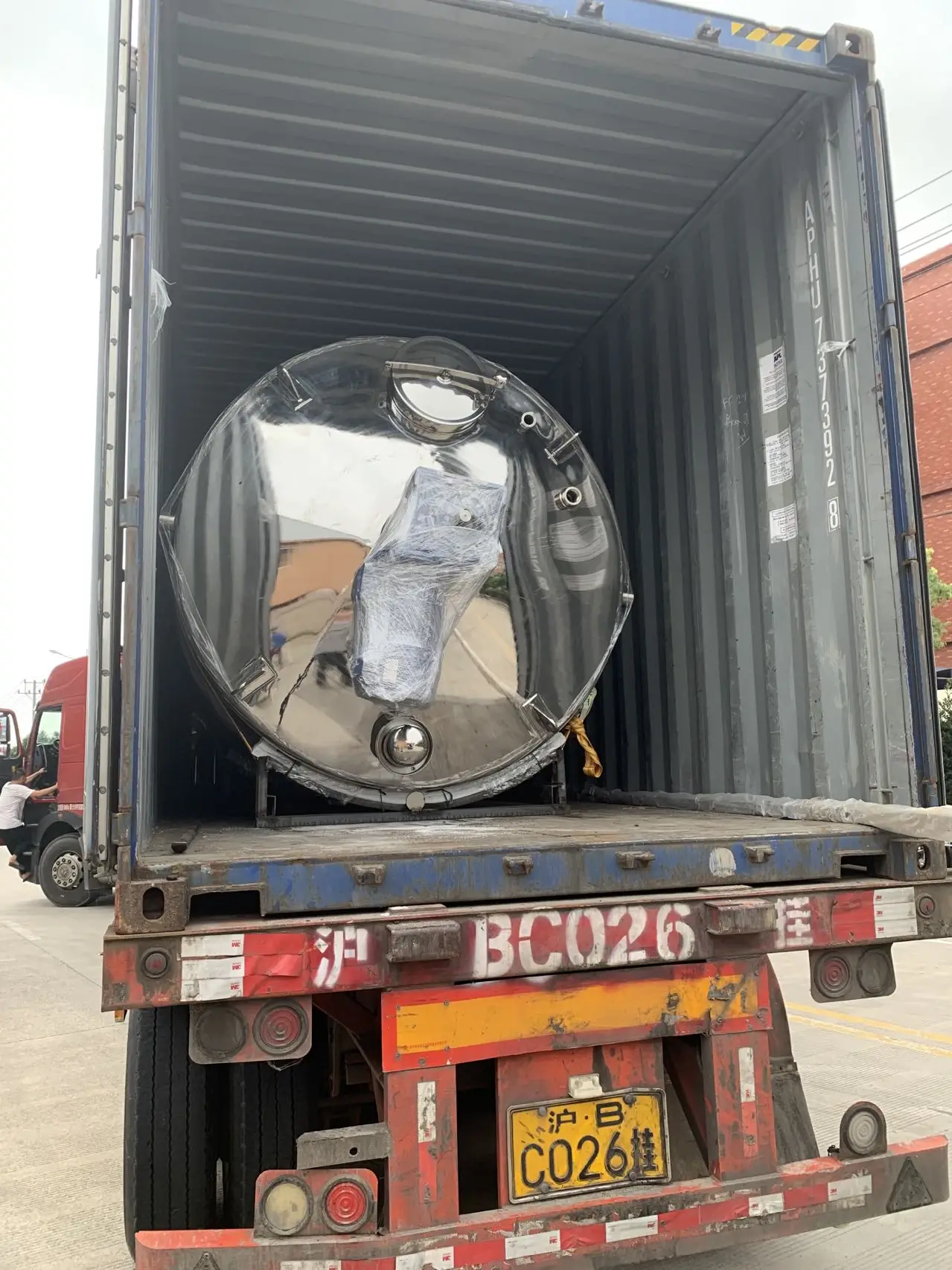

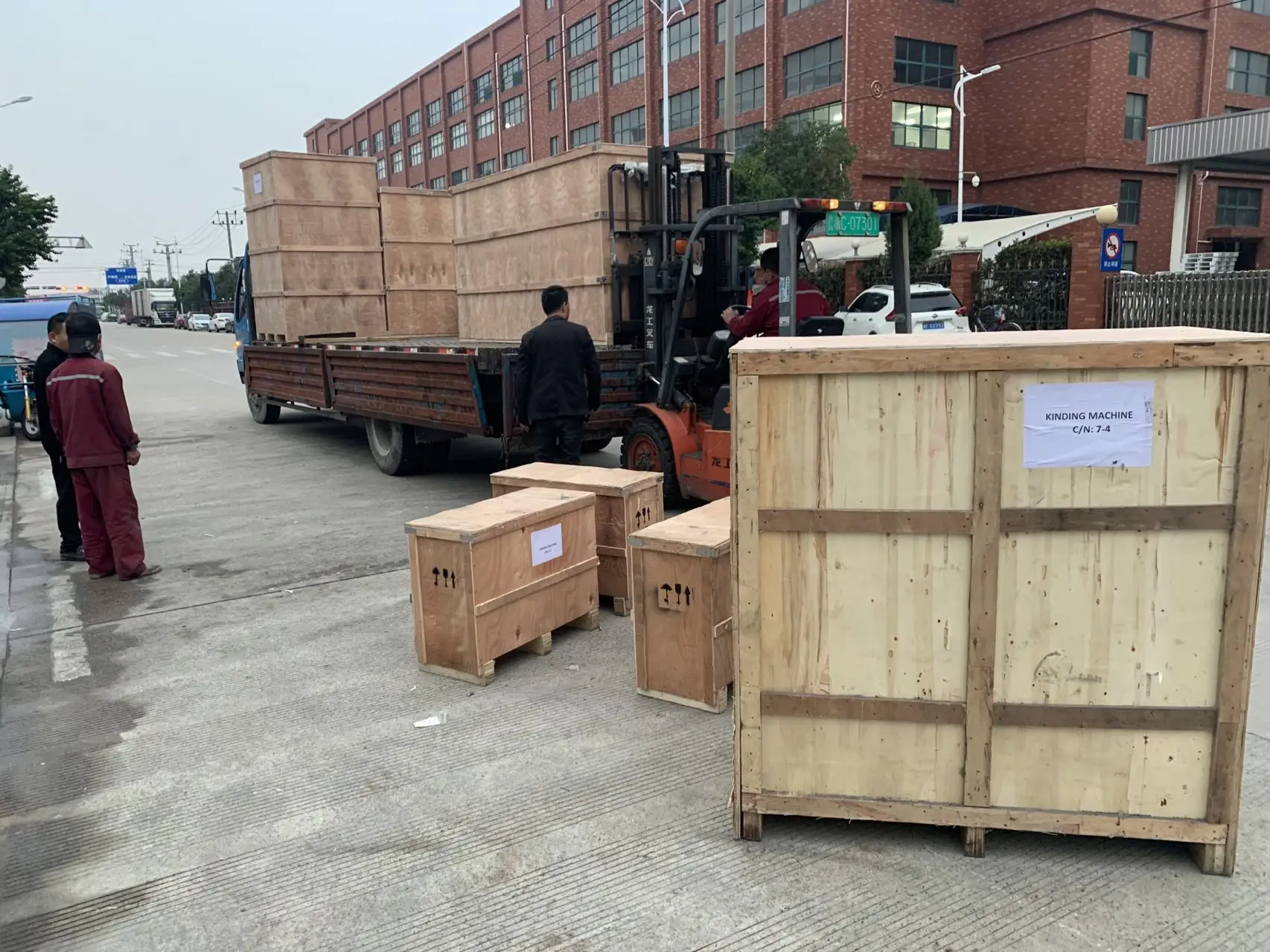

Package and Shipping
FAQ
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the fittings.
Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Mobile/Whatsapp: +86 15058983705 . Skype: hyq5871 . QQ: 1783023369.
