> 380S Design Speed: 200m/min
> 405S Design Speed: 220m/min
> Effective width: 1400mm-2500mm
> Corrugated roller:φ380mm

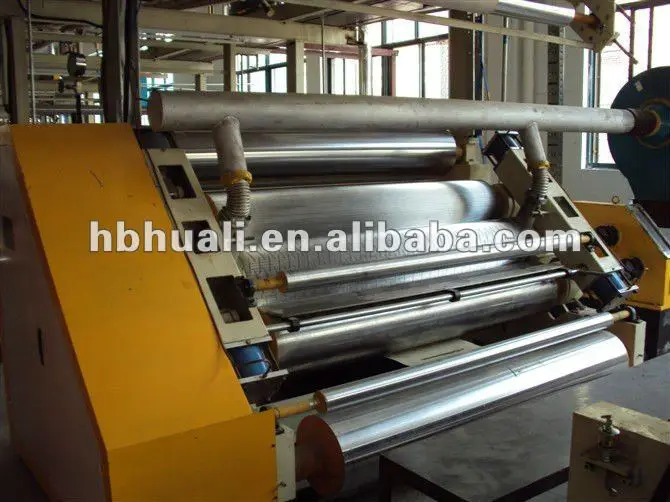

> Fingerless vacuum suction type single facer, the upper and lower corrugated roller made of 52 CrMo alloy steel,with harted treatment,the hardness is above HRC58o-60oThe surface is well treated by grind and plated chrome.
> With preheater for liner paper and steam spray device for medium paper.
> Upper and lower corrugated roller are unit assemblage, the whole corrugated rollers group can be move and quick replacement, to change flute type quickly.
> Glue section are unit assemblage, whole section can be moved by track,save maintenance time.
> Adjustment for corrugated roller,pressure roller,and glue roller by pneumatic system.
> Frequency conversion motor as main drive , independent gear box connect with three gimbal axis, Inverter to make stepless speed regulation for save power, and to keep one communication connector for production management.
> Oil immersed type lubricating to reduce noise keep running stable, prolong the use life of gear.
> Adopt Glue width motorized dividing to match the paper width. Idle running motor for glue applicator roll to avoid glue dry.Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.

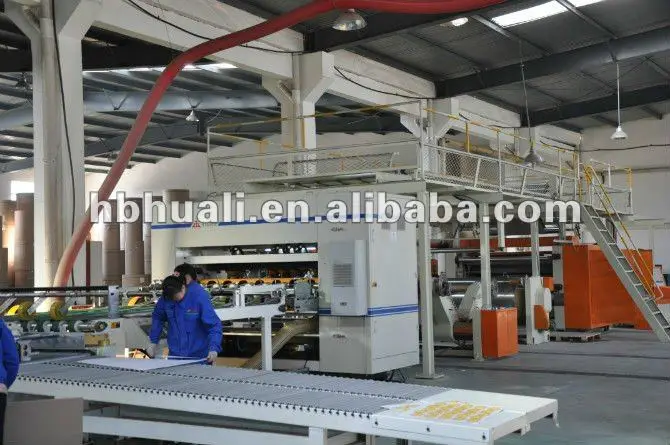

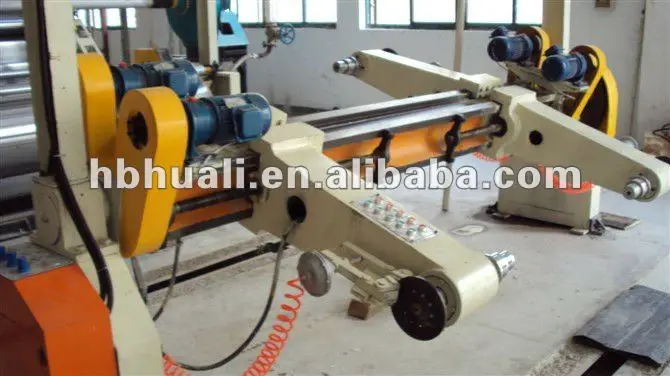

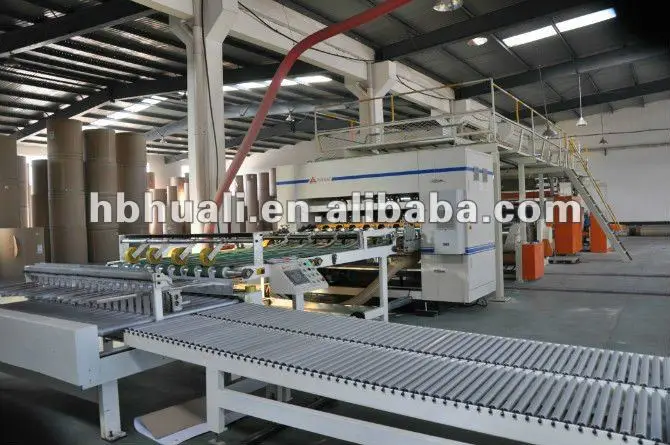

> Bearing for corrugated rollers,and pressure roler adopt high-temperature lubricate grease to keep running smoothly and durably We are specialized in making of corrugated paperboard production line, with experience more than 20 years. The product performance is excellent, quality is stable and reliable. Our corrugated paperboard production line cover 3-layer,5-layer,7-layer.The speed of our production line reaches ranging from 80m/min to 250m/min and the width available is 1.4m,1.6m, 1.8m, 2m, 2.2m, 2.5m respectively. The production line adopts modern technologies to ensure continuous working , such as move detection control technology, vacuum suction technology, frequency conversion control, contactless photocell distance detection, automatic paper joint technology and automatic positioning of cutting knife technology. Special design is available upon customers request. NO.of best sales 3 5 layer corrugated cardboard carton production line | NAME | SET/UNIT | REMARK | | 1 | Hydraulic Reel Stand | 3 | Hydraulic arm, clamping, expansion type chuck, pneumatic control paper tention. Including paper vehicles and orbit. | | 2 | Single facer | 2 | Vacuum adsorbtiong,Φ320mm tungsten carbide corrugated rollers, Main motor 15kw, draught fan 7.5kw, gimble driving, | | 3 | Preheater | 4 | Φ600,0.55kw worm wheel Reducer motor | | 4 | Double glue machine | 1 | Glue roller: φ240, pneumatic pressure roller lifting, 4kw gear wheel with reducer motor driving | | 5 | Triplex preheater | 1 | Φ800, 0.55kw worm wheel Reducer motor | | 6 | Double Conveying bridge | 1 | 4 set 0.37kw Electrical adjusting deflection, adsorptions tension, driving with the single facer at the same time | | 7 | Thin blade Slitter Scorer | 1 | 5blades and 8scores, Electrical adjusting deflection, | | 8 | cutoff | 1 | NC control, straight blade, touch screen display | | 9 | Double facer | 1 | 600mm×14 pcs hot plate upper-lower intensive press roller, could adjust pressure separately, hydraulic lifting and dropping of the pressing rollers, | | 10 | Cooling Shaping Part | 1 | upper-lower intensive press roller, channel length:4.5m | | 11 | Cotton belt | 2 | high quality cotton belt(Shenyang Fuqiang Band) | | 12 | pneumatic system | 1 | 0.75 cubic compressor | | 13 | Main transmission | 1 | 35kw dynamo, | | 14 | Electric control system | 1 | Power cabinet, single facers and double facer operation cabinet | | 15 | Steam System | 1 | Pipe line and valve(without main pipe and heat producer) | | 16 | Glue Making System | 1 | Glue supply by circulation | | 17 | Right angle output machine | 1 | Electric adjust cardboard size, pneumatic control horizontal output the cardboard. | |
|
