Product Name:round paint tin can production line automatic can making machine
We provide a complete range of machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.

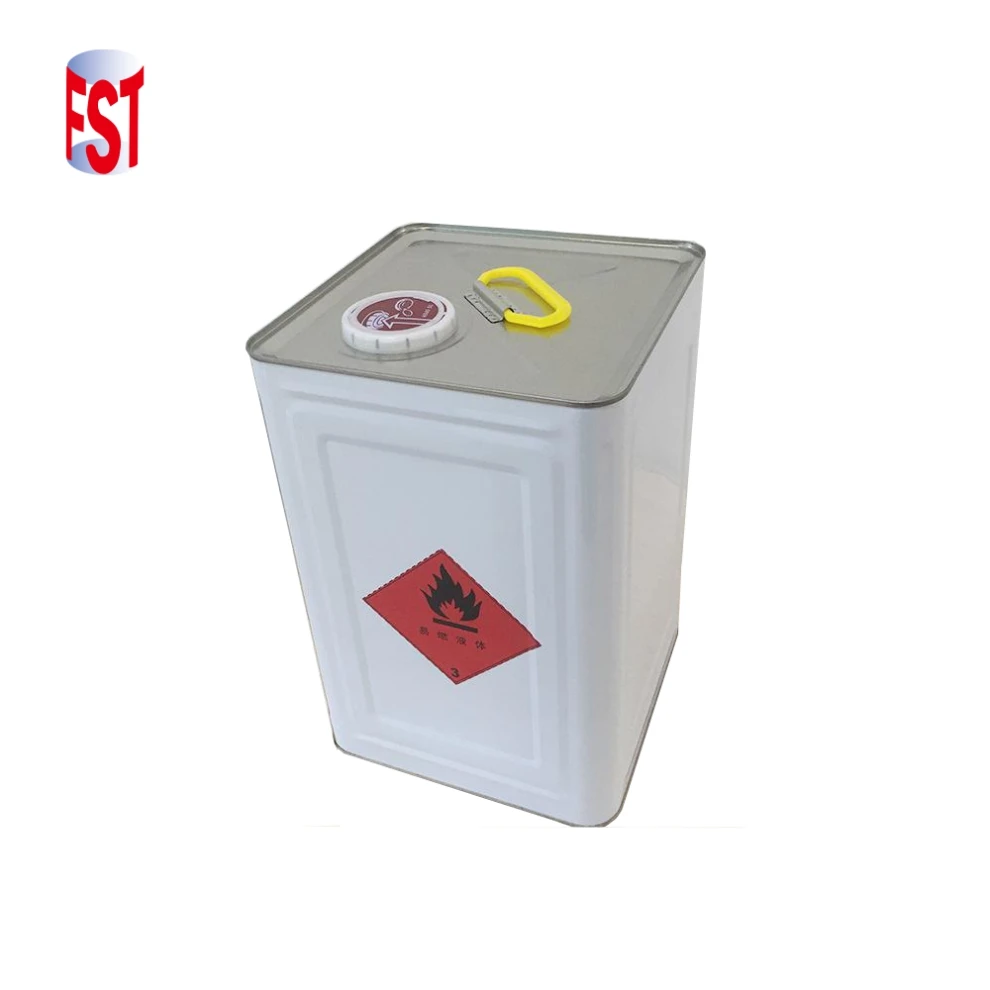

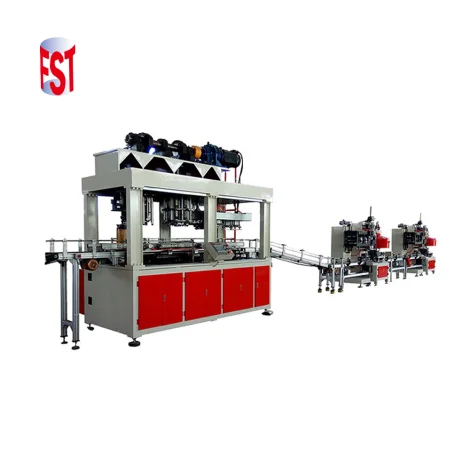

The follow is 18~20liter full automatic square can production line with productivity of 30cans/min
Product Paramenters
Automatic Slitter is use to cut the printed tinplate base material (large square metal sheets) into body blanks of required size,it's the first stage in the production line.
Model | GT-A10 |
Max Thickness | 0.4mm |
Max Width | 1200x1200mm |
Min Width | 600x600mm |
Power | 15kw |
First Strip | 5 pieces |
Second Strip | 15 pieces |
Net Weight | 2000kg |
Dimension | 2500x2000x1200mm |

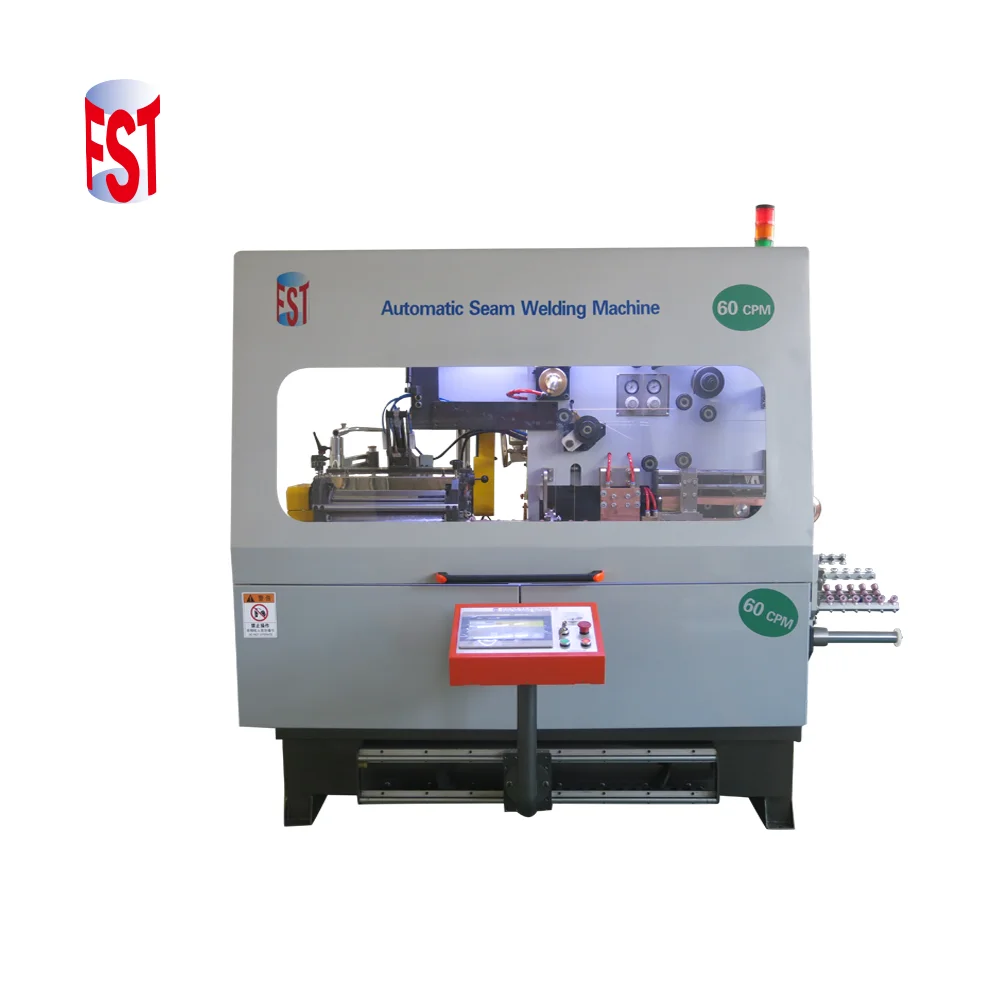

Automatic Canbody Welder is use to make body blanks into cylindrical shape and welding,it's the second stage in the production line.
Model | FBZ-A-30 |
Input Power | 3N380V/50HZ 46KVA |
Welding Speed | 5~15m/min |
Productivity | 30cans/min |
Diameter Range | Φ210~Φ290mm |
Height Range | 420mm |
Welding Thickness | 0.28~0.42mm |
Overlap | 0.6~0.8mm |
Net Weight | 2500kg |
Dimension | 2200x2700x2000mm |

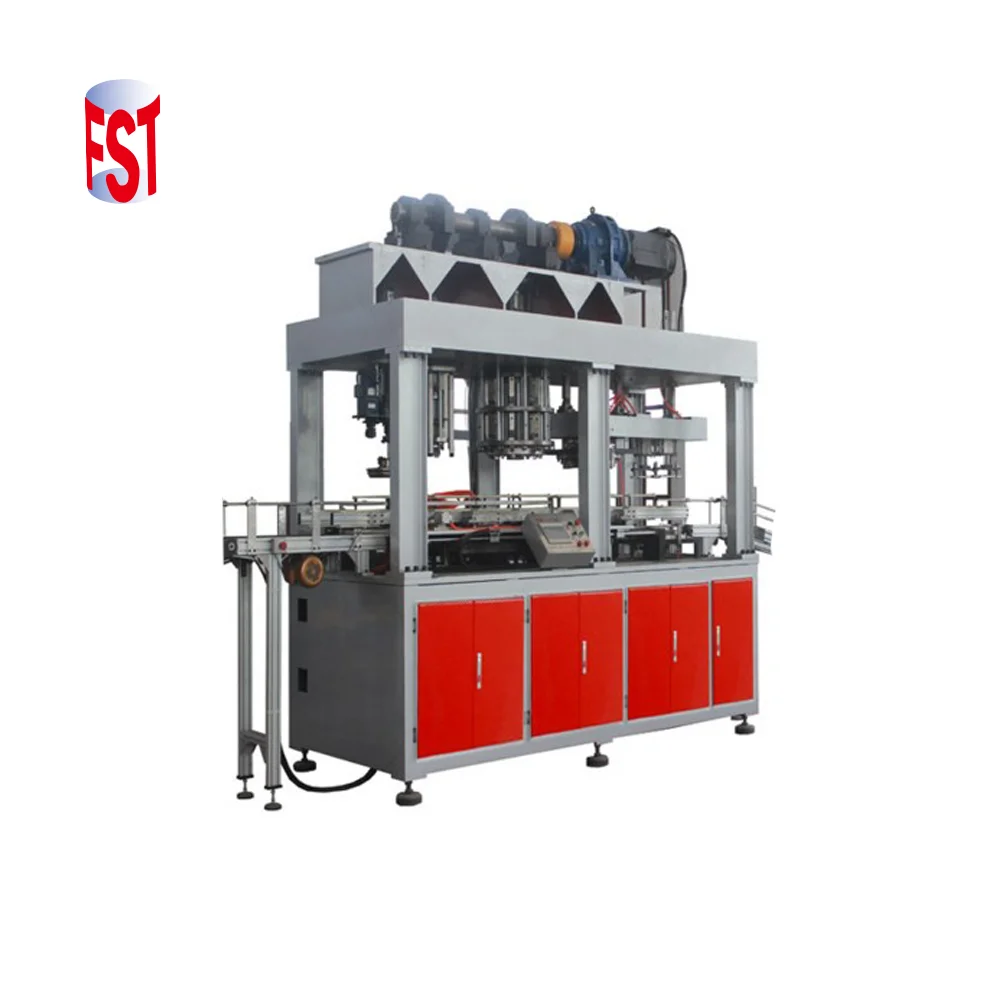

Automatic Bodyformers
Automatic Bodyformers is use to given the canbody into final shape and prepared for the endseaming process.it's combine all the necessary functions in a single machine:shape,embossing,
flanging,and seaming the bottom or top end.
Model | FST-18 |
Diagonal Range | Φ300~Φ320mm |
Height Range | 420mm |
Capacity | 20cans/min |
Thickness | 0.28~0.32mm |
Air Pressure | 0.3~0.5Mpa |
Power | 30kw |
Net Weight | 5200kg |
Dimension | 6500x1200x2300mm |

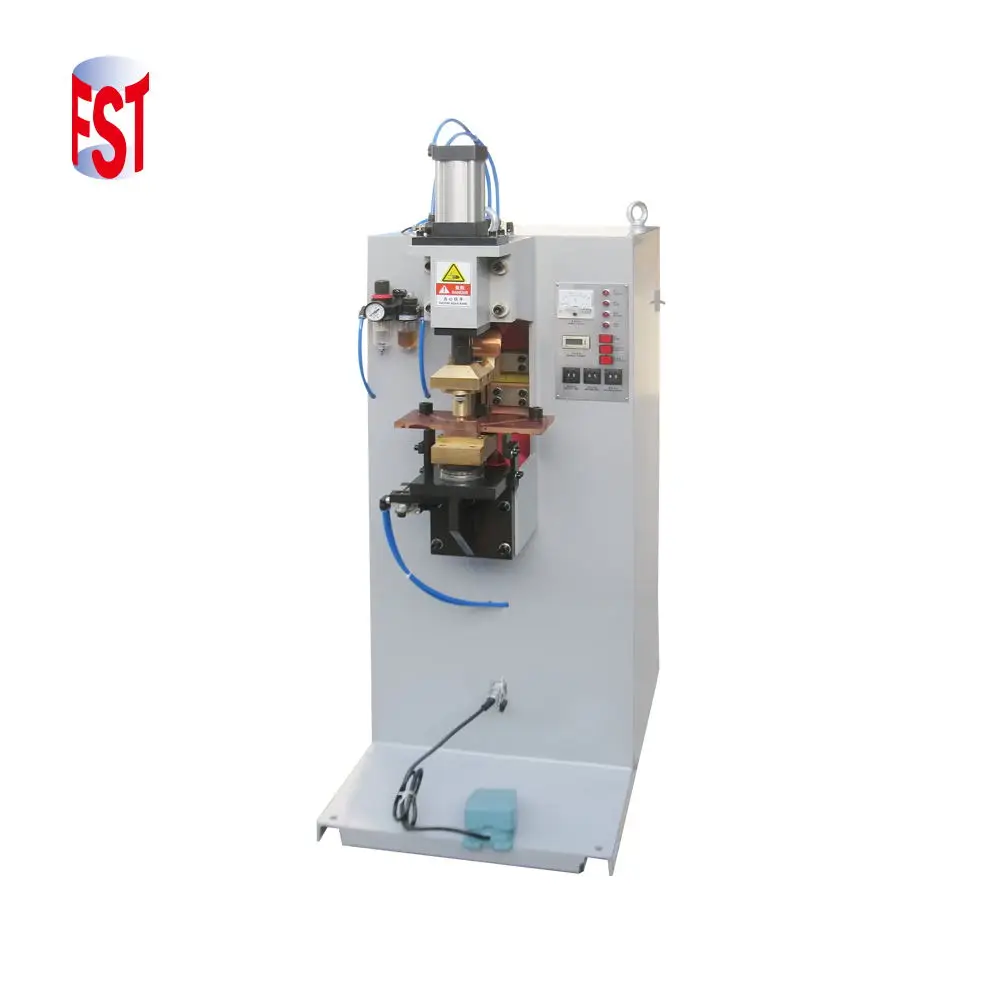

Handle Welding is use to welding the handle on the top lid
Model | DNZD60B |
Input Power | 3N380V/50HZ 60KVA |
Productivity | 20~25cans/min |
Diameter Range | Φ220~Φ300mm |
Air Compressor | 900L/min 0.6MPa |
Net Weight | 600kg |
Dimension | 3300x1500x1600mm |
Our Advantages
♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & SKF bearings from Sweden.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.
Exhibition
2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou
Company Profile
Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
