Product Overview
Description
More details ,welcome to contact us.
Angela Luo
whatsapp/Tel/Wechat : 0086 150 135 11044
skype:bgajuan
Email:luoxiaojuan(@)zhuomao.com.cn

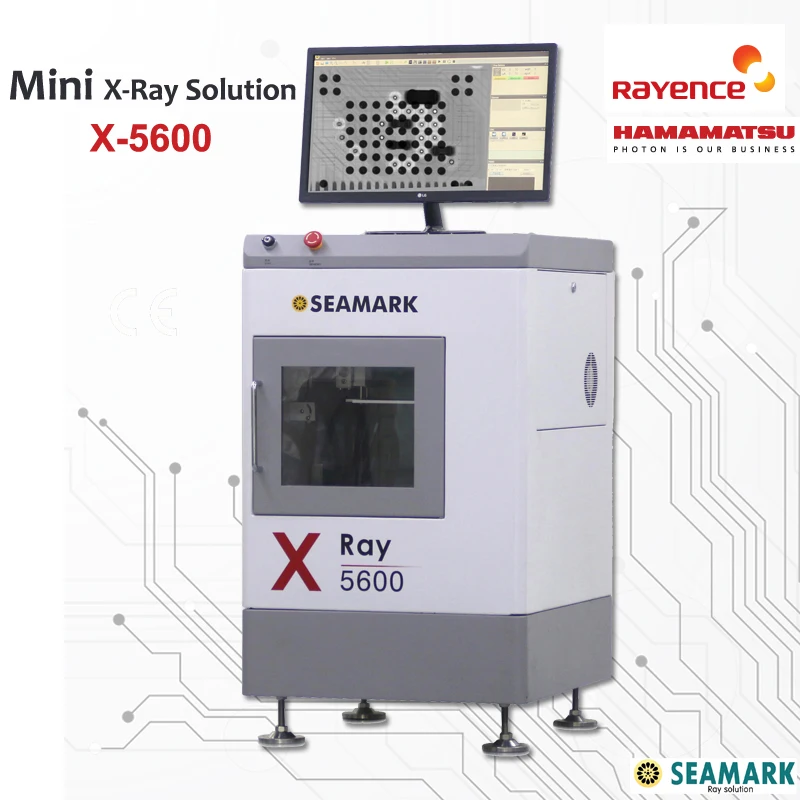

x-ray connector inspection PCB PCBA electronic component machine x5600
1, Main Features:
- Fully integrated, 130 kV high power closed X-ray tube
- Micro-focus
- Spot size down to 5µ
- 5″ x 5″ or 4″ x 3″ high resolution and ultra resolution CMOS digital flat pane imagel detectors
- 60° camera tilt for oblique angle viewing
- 22″ x 18″ Inspection Stage with 350° Rotation
- Color mapping camera with zoom window provides easy location and identification of faults
- Z axis movement of the x-ray tube and detector
- Computer controlled kV and mA settings
- Computer controlled variable speed X-Y stage (and rotate)
- Simple point and click, intuitive GUI provides access to create advanced inspection routines
- All s/w tools standard including (but not limited to)
- BGA Void detection and automatic calculations
- Mobile Flex Cable FPC x-ray inspection
- SMT Mounting and PCB X-ray inspection
- Easy macro recording for intuitive step and repeat programming
- Various measuring tools for TH, radius, area, perimeter, etc
- Industrial PC with Windows 7 PRO, 23″ LCD flat panel display
2, Specification:
| X-Ray Tube |
| Tube Stylex-ray PCB equipment | Closed Type | |
| Tube Voltagex-ray PCB equipment | 90-130kV | |
| Tube Currentx-ray PCB equipment | 0.32mA | |
| Focal Spot Sizex-ray PCB equipment | 5 Micron | |
| Tube Coolingx-ray PCB equipment | Forced Air | |
| Geometric Magnificationx-ray PCB equipment | 250X | |
| System Magnificationx-ray PCB equipment | 1000X | |
| Digital Flat Panel Detector |
| Detector Size | 5″ x 5″ high resolution | 4″ x 3″ ultra resolution |
| Grayscale | 14-bit (16,384 shades of grayscale) | 14-bit (16,384 shades of grayscale) |
| Speed | 30 FPS | 10 FPS |
| Resolution | 100 µm | 50 µm |
| X-Ray Cabinet |
| Dimension | 1450mm (L) x 1600mm (W) x 1670mm (H) / 59″(L) x 62.9″ (W) x 62.9″(H) | |
| Sample Table Size | 560mm x 457mm / 22″ x 18″ | |
| Inspection area | 360mm x 290mm / 14.2” x 11.6” | |
| Weight | 1600 kg / 3527 lbs. - Steel – Lead – Welded construction | |
| Power |
| Automatic switching power supply | AC 110-230VAC, 50/60Hz (Universal) | |
3, Principle Diagram
4, Detail Presetation

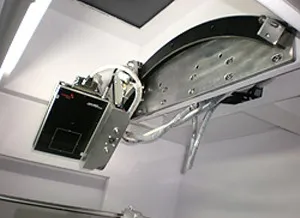

Digital Panel Detector Mapping Guide System+PC Control Interface
5, Application

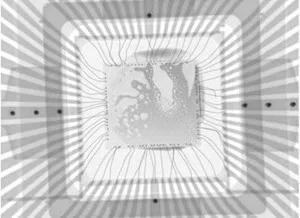

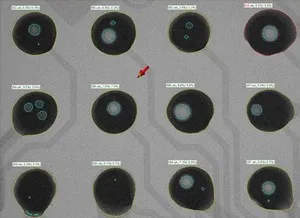

BGA Solder Ball Bubble Caculation after Mounting IC Chips Inside Connector Wire Inspection

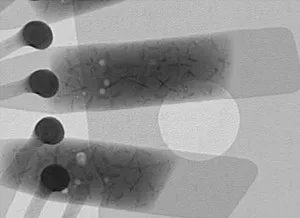

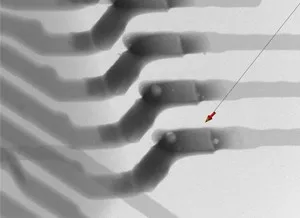

Inspect the Voids under Joint PCB FPC Mobile Flex Cable Soldering Inspection

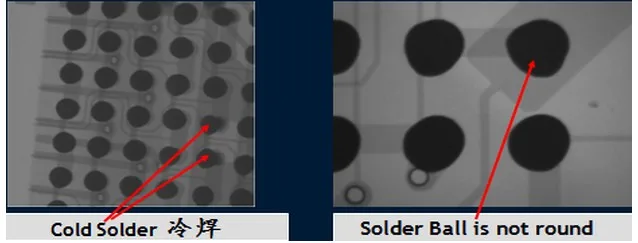

6,Confirm the problem picture

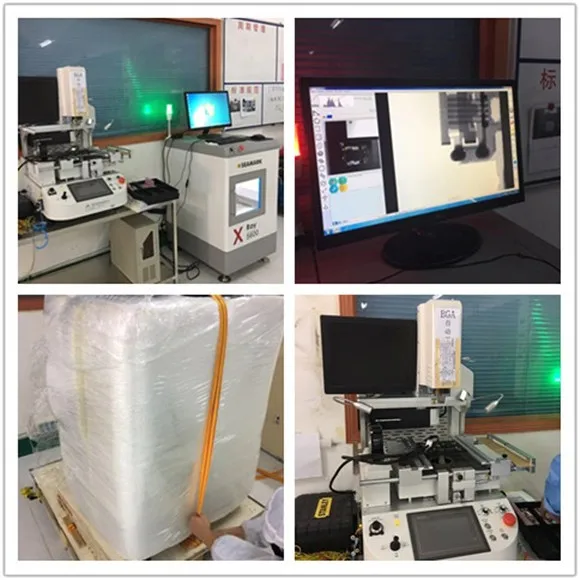

Customer Visiting
Nearly every day some customers from home and abroad come to visit our factory, we arrange the technician to show the PCB X-ray machine operation. Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
FAQ
1. How about the package ? Is it safe during the delivery ?
All PCB X-ray machine is packed by standard strong wooden carton.
It is safe when shipping.
x-ray connector inspection PCB PCBA electronic component machine x5600
2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
x-ray connector inspection PCB PCBA electronic component machine x5600
3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
x-ray connector inspection PCB PCBA electronic component machine x5600
4, If we come to your factory, if you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
x-ray connector inspection PCB PCBA electronic component machine x5600
5. What is the payment way ?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.
x-ray connector inspection PCB PCBA electronic component machine x5600
If any question, you can send INQUIRY , or CHAT with us, we will be glad to service you !
