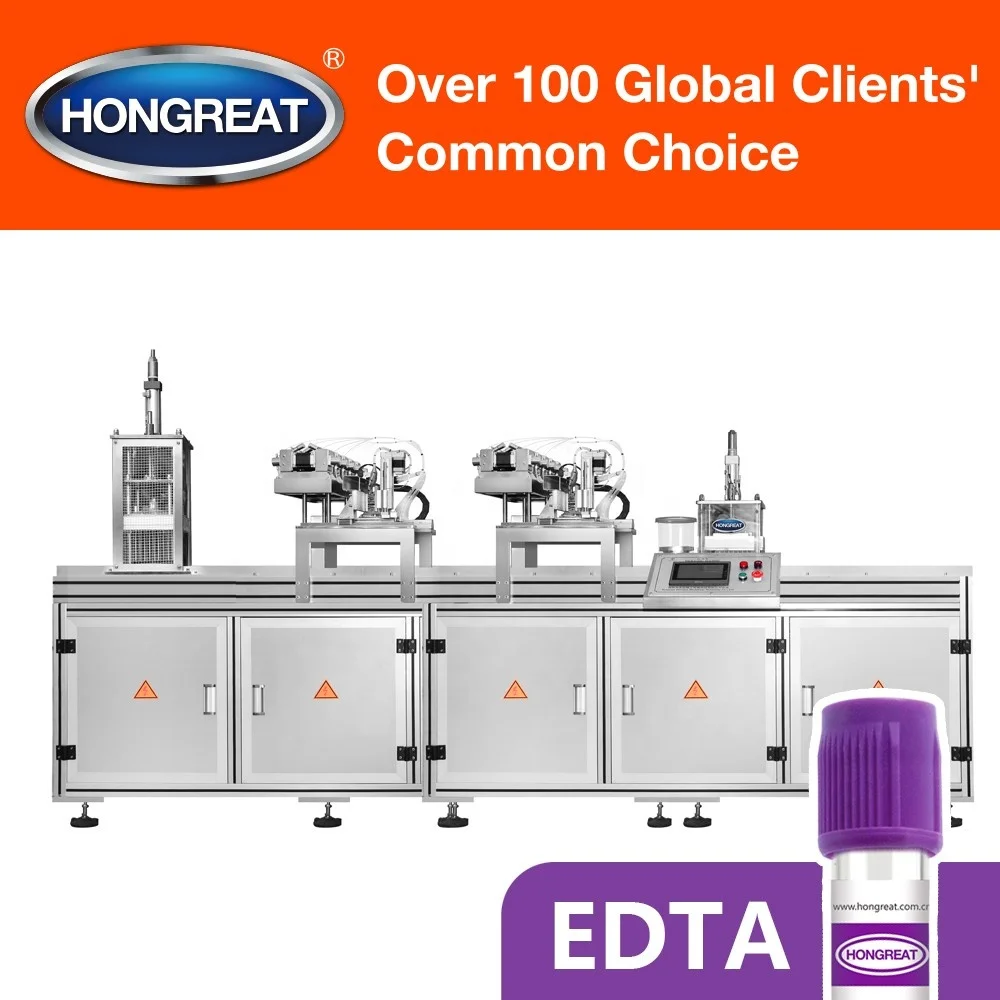

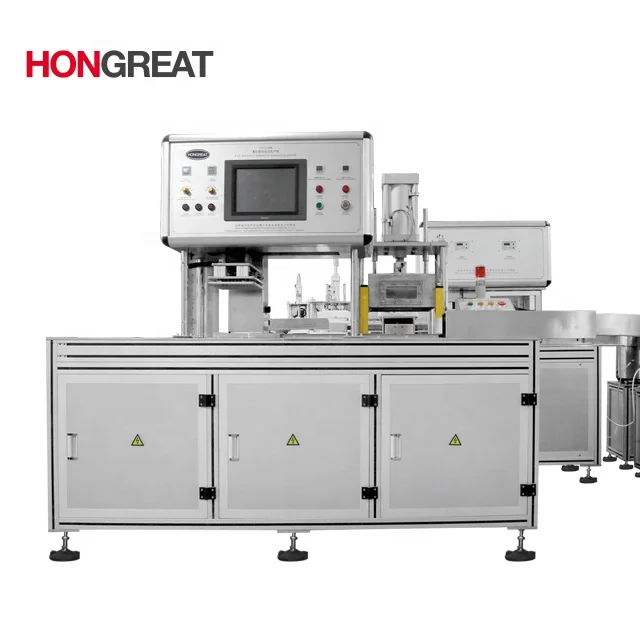

PET/PP/Glass EDTA Tube Production Line for Blood Test

• Application: Full automatic production line for blood collection tube (vacuum & non-vacuum).

• Process flow: Reverse tube detection→EDTA / BCA dosing-spraying→Drying→Cap adding→Vacuuming→Unloading into tray→Sealing & shrinking packaging→Finished product.

Production capacity	12,000-15,000 pcs/h

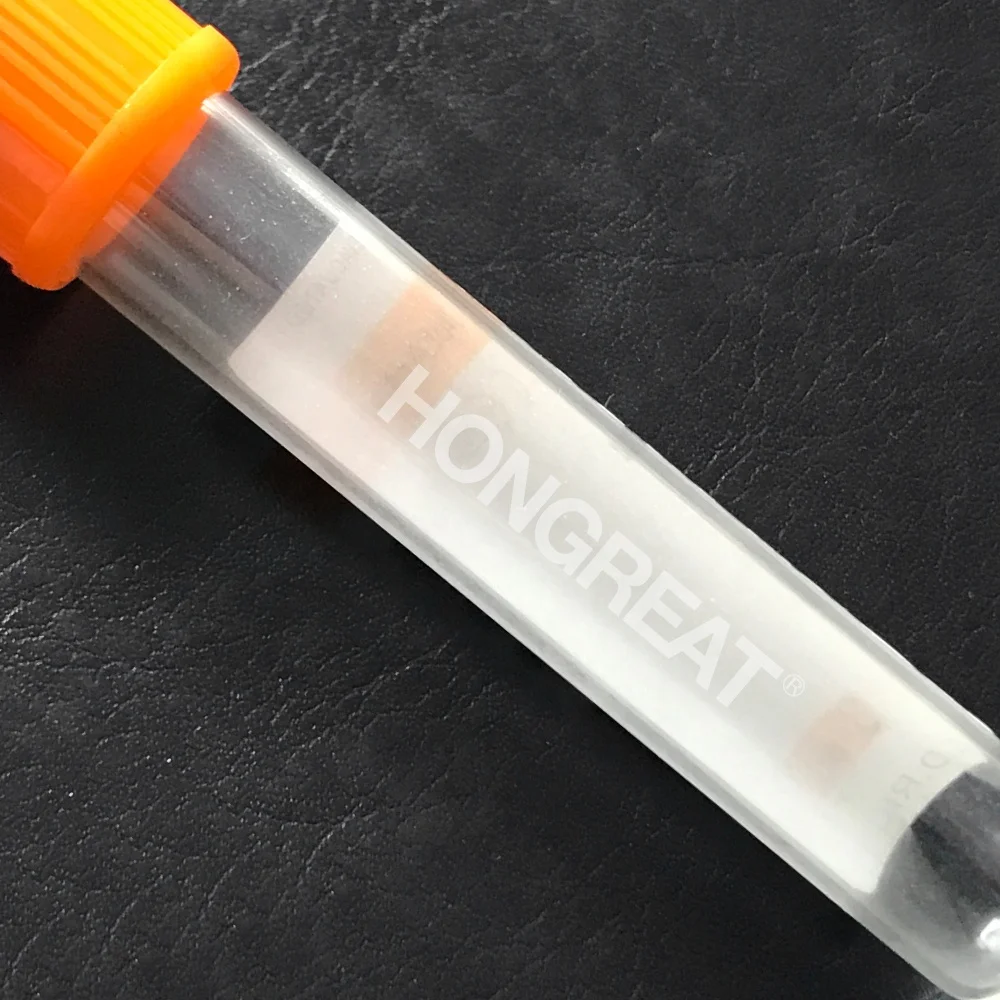

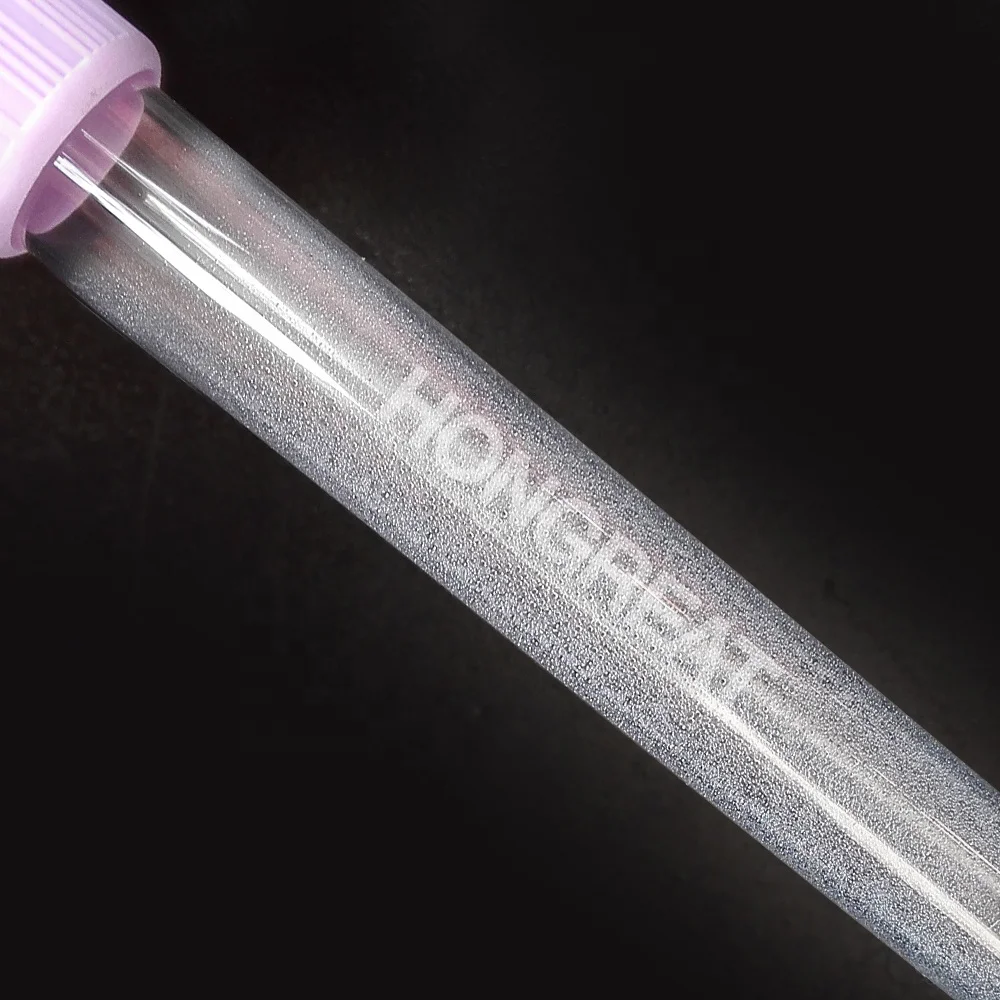

Tube size	Ø13*75mm, Ø13*100mm (available for PET, PP, Glass)
Cap size	Outer Ø16±0.05*19mm+0.1
Control way	Touch screen operation, PLC Control
Dosing system	10 sets of precision ceramic metering pump for EDTA K2/K3; 10 sets of metering valve for BCA
Drying system	3 sets of “PTC” dust-free drying system
Detecting system	Reverse tube detection before additive dosing-spraying Alarm function in case of lack of foam tray storage.
Vacuum degree	Numerical control for vacuum pressure, Frequency conversion control for vacuum pump
Configurations	1) Reverse tube detection 2) EDTA Precision Dosing 3) BCA Precision Dosing 4) PTC Dust-free Drying 5) Capping 6) NC Vacuuming and Cap-pressing 7) Foam Tray Loading 8) Sealing & shrinking packaging Remarks: 1) Sodium citrate/Heparin dosing spray optional;                   2) Customized spec available;
Air consumption	Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa
Power	30KW/AC380V
