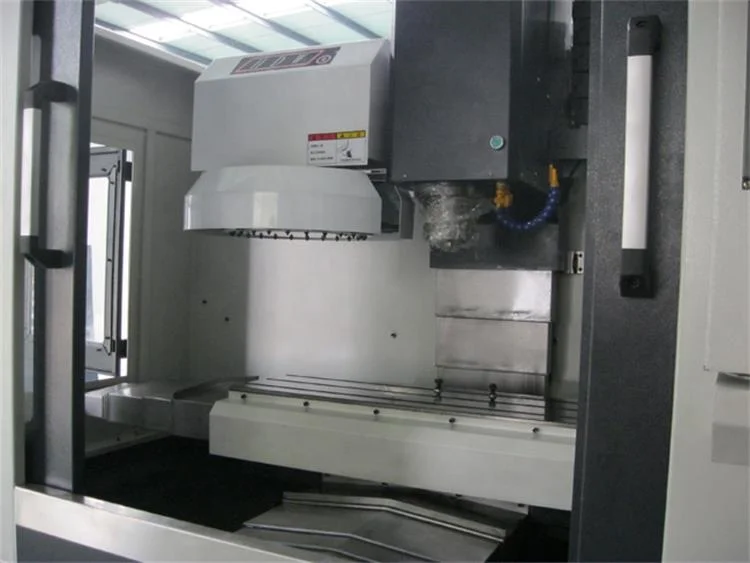

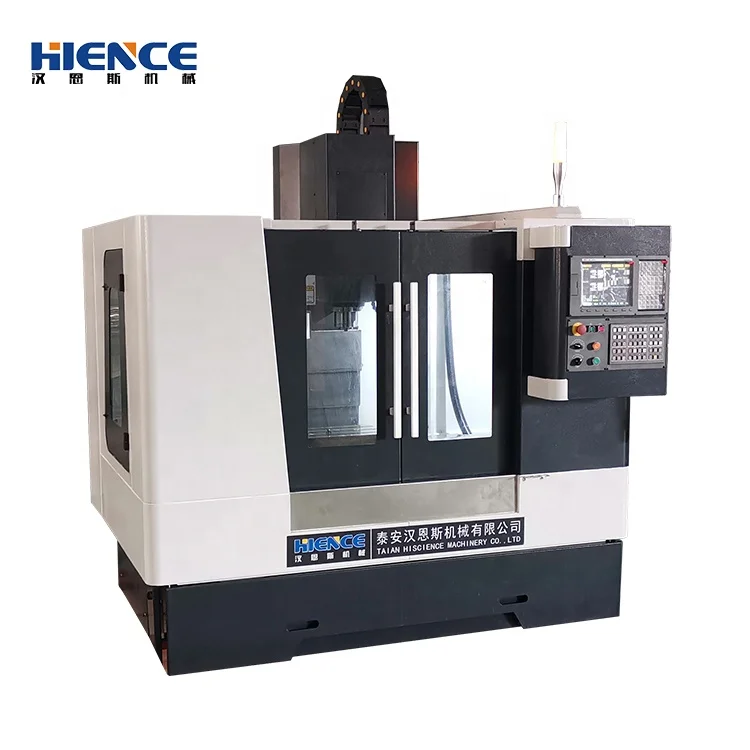

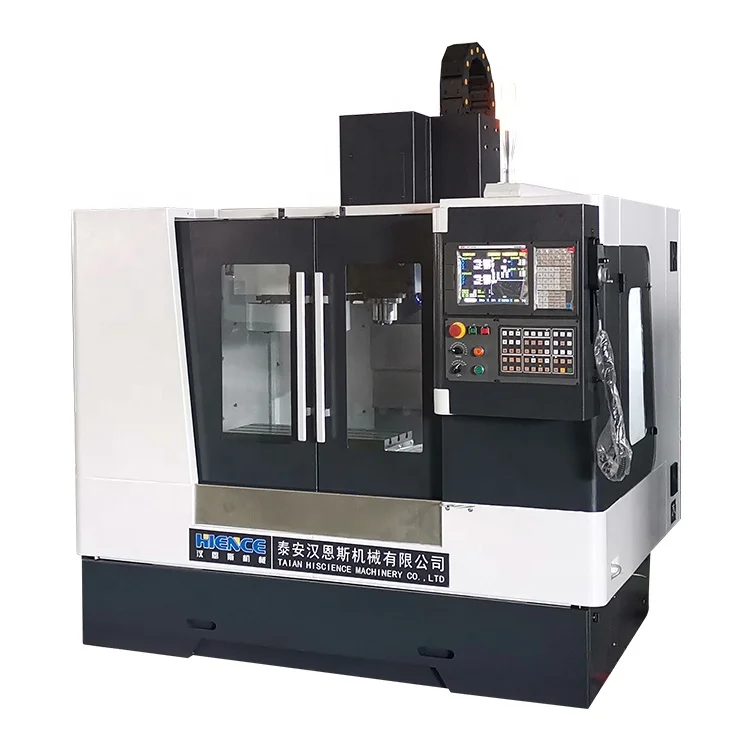

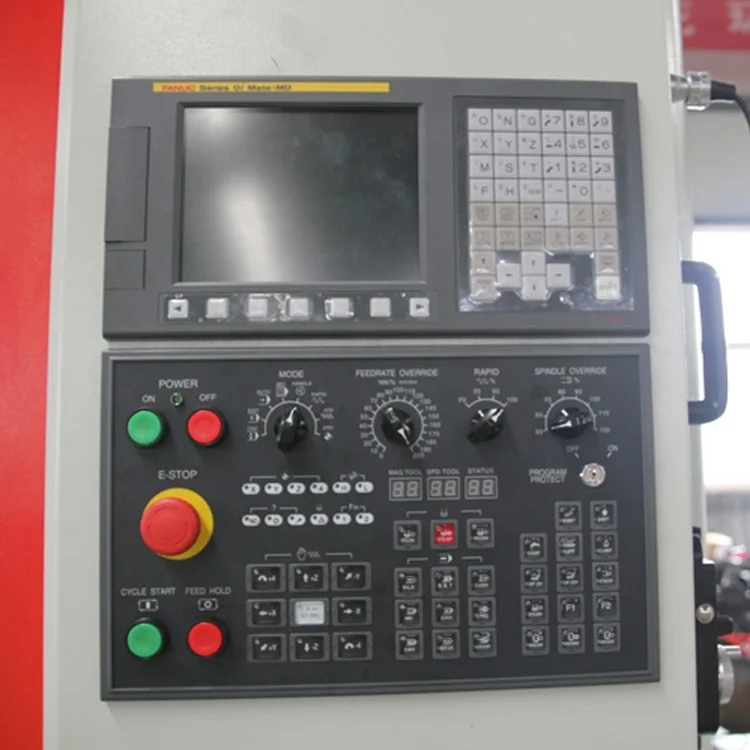

3 axis 4 axis small Fanuc vertical cnc milling machine for sale
- Category: Machine Centre >>>
- Supplier: Taian Hiscience Machinery Co. Ltd.
Share on (60641906496):
Product Overview
Description
Items | Specification |
Table size(mm) | 700×300 |
The workbench maximum load (kg) | 300 |
T type groove (Number-width(mm)–gap(mm)) | 3-14-90 |
Travel of X/Y/Z axis (mm) | 500x300x400 |
The spindle end to the work surface (mm) | 100-500 |
The center of spindle to guide rail face (mm) | 400 |
Taper hole of spindle | BT30 |
Highest speed of spindle (Rpm) | 8000 |
Power (kW) | 3.7 |
Rapid feed speed (m/min.) | 36 |
Fast cutting speed (m/min.) | 0-8 |
Position accuracy (mm) | 0.01 |
Repeated positioning accuracy (mm) | 0.005 |

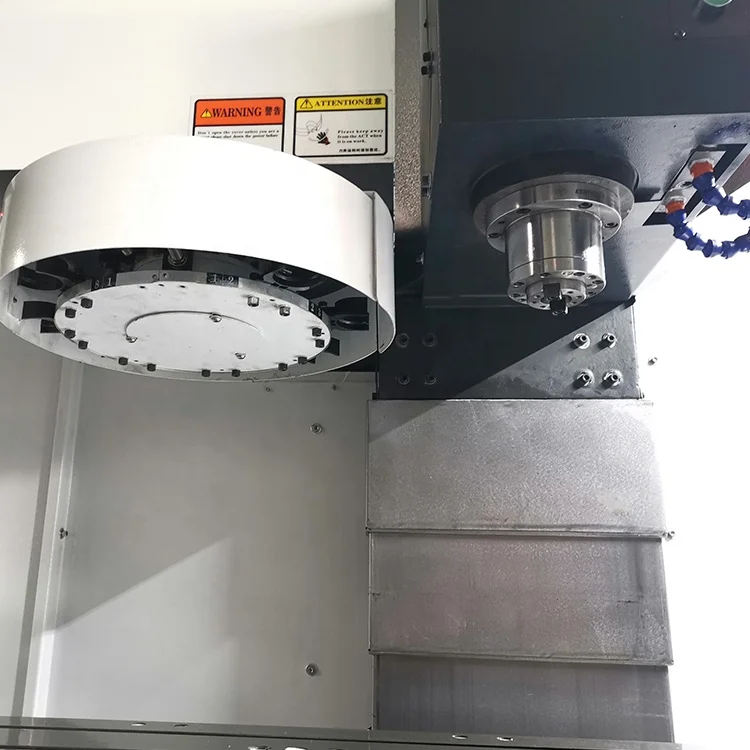

Tool storage capacity | 8 |
Tool changing time | 5 |
Max.tool diameter (mm) | 80 |
Max.tool length (mm) | 200 |
Weight (kg) | 2100 |
Dimension (mm) | 1900×1800×1900 |
Voltage | 3 phase 380V |
