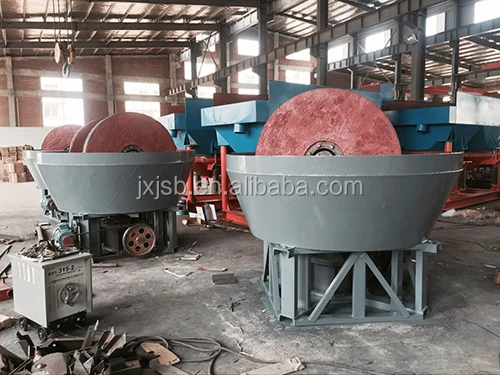

Doulbe Wheel Dressing Wet Pan Gold Grinding Mill
Product Description
The wet pan mill, which is named by the diameter of grinding roller, is mainly applied for grinding of gold, silver, lead, zinc, iron, molybdenum, copper, antimony, and so on. Among the models, model 1200 is the most popular one.
As an excellent equipment to work replacing the ball mill, the Wet Pan Grinder (wet pan mill) has been very popular and widely applied by Small and Medium Enterprises because of its small investment, high yield, low production cost, low power, and good benefits.

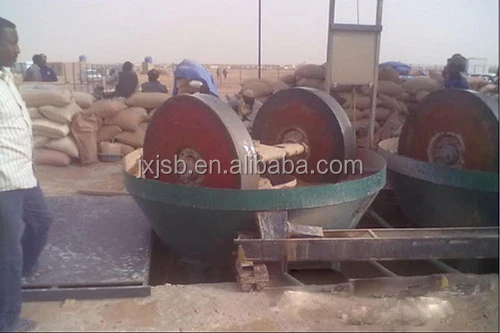

In Sudan, at least 85% gold miners are using the pan mill in there gold processing system.

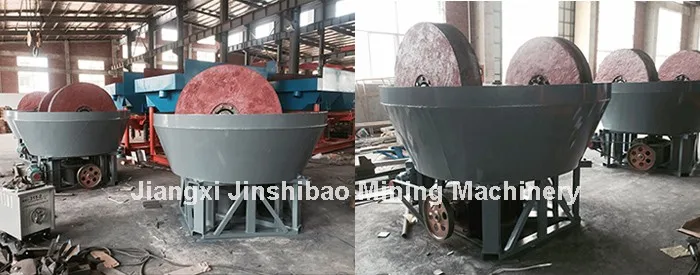

Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill

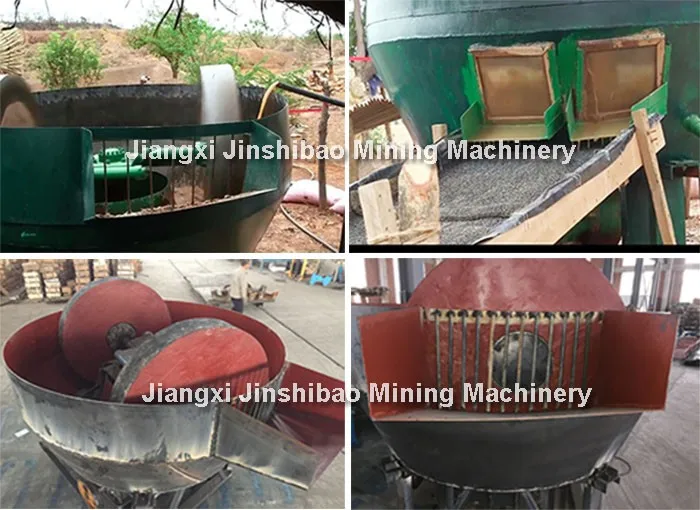

If you require, the feeding port and discharge port can be cut for the wet pan mill.
Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill
Technical Parameter
Model | Roller dia. (mm) | Roller thick (mm) | Pan dia. (mm) | Speed (r/min) | Power (kw) | Capacity (t/h) | Weight (t) |
1600 | 1600±20 | 400±20 | 2100±20 | 20-22 | 30 | 9-10 | 16 |
1500 | 1500±20 | 300±20 350±20 400±20 | 2100±20 2100±20 | 20-22 | 22 | 7-8 | 12 |
1400 | 1400±20 | 250±20 | 2000±20 | 16-18 | 15 | 5-6 | 9.5 |
1300 | 1300±20 | 220±20 | 2000±20 | 16-18 | 11 | 3-4 | 8 |
1200A | 1200±20 | 220±20 | 1800±20 | 13-18 | 7.5 | 1-2 | 6 |
1200B | 1200±20 | 200±20 | 1800±20 | 13-18 | 7.5 | 0.8-1 | 5 |
1100 | 1100±20 | 200±20 | 1800±20 | 13-18 | 5.5 | 0.5-0.8 | 4.5 |
1000 | 1000±20 | 200±20 | 1800±30 | 13-18 | 5.5 | 0.3-0.5 | 4 |
900 | 900±20 | 160±20 | 1700±30 | 13-18 | 3 | 0.2-0.3 | 3 |
850 | 850±20 | 140±20 | 1700±30 | 13-18 | 3 | 0.1-0.2 | 2.5 |
Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill
Detailed Images

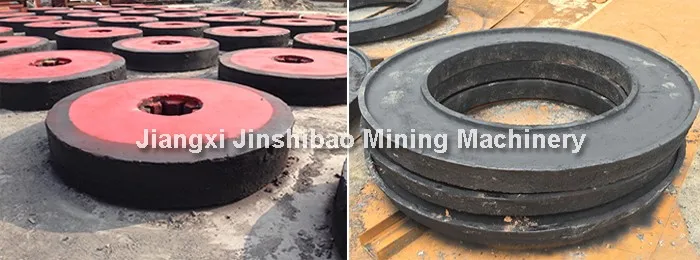

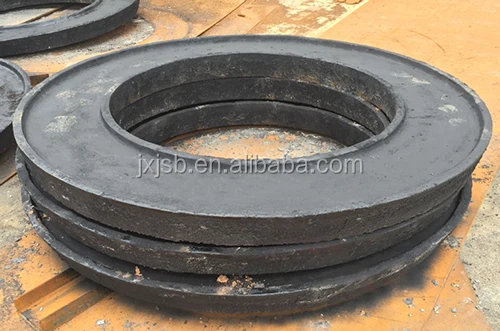

Grinding Roller Grinding Ring
Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill

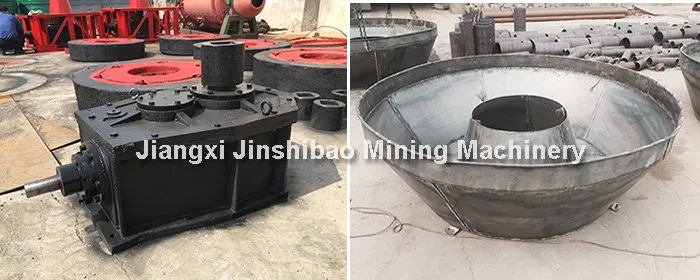

Gear Transmission Grinding Pan

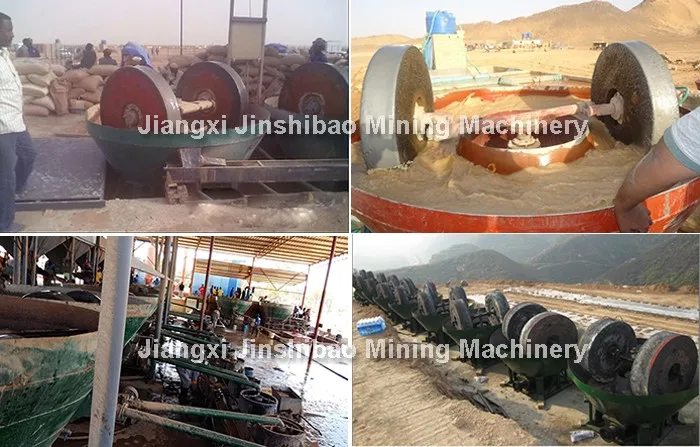

The pan mill is always applied in rock gold grinding to replace the ball mill:
Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill
Packaging & Shipping

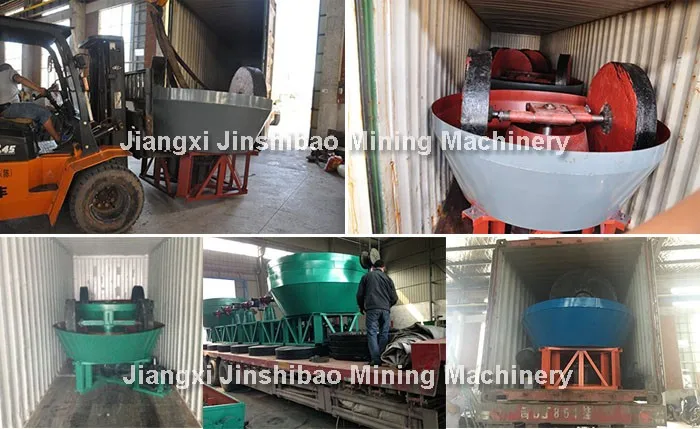

The wet pan mill can be loaded in the container assembled or disassembled as per the actual situation.
Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill Gold Grinding Mill
Company Information
Jiangxi Jinshibao Mining Machinery Manufacturing Co, Ltd was founded in 2001. It is mainly engaged in:
1. Mining machinery manufacturing
2. Experimental analysis on sample ore
3. Flow chart designing
4. Installation and debugging
5. Technical support services
ISO9001:2008 CE TUV
