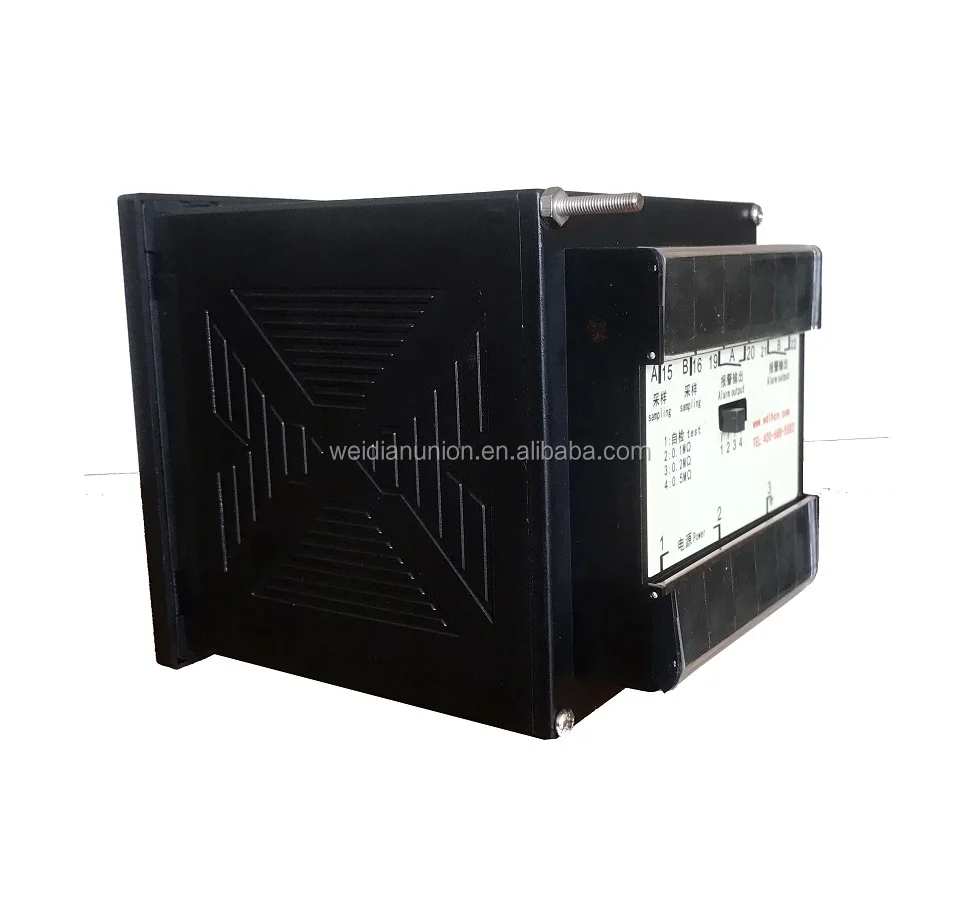

96*96mm Analog Synchroscope Meter(with Relay output)

1. Fluctuation of voltage ±10%, frequency difference  less than 2Hz, meter starts to work.

2. Frequency difference close range: 0.05-0.5Hz;

3. Working voltage: Power system & generator: 100.50Hz;

4. Power consumption: Less than 3VA;

5. Contact output capacity:  AC380V.5A or DC280V.10A;

6. Environment: Temperature: 0-55℃;

                                  Relative humidity: 95%

Packing & Delivery

Setting Instruction:

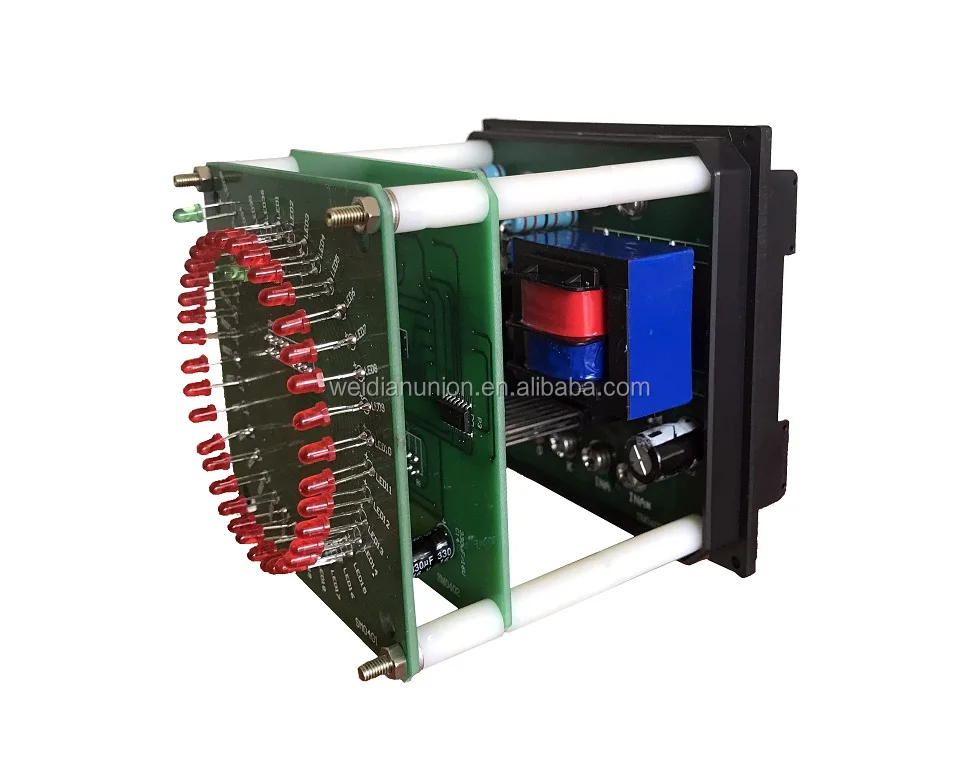

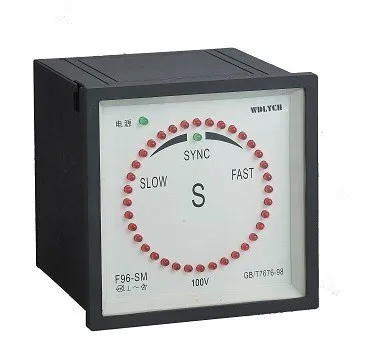

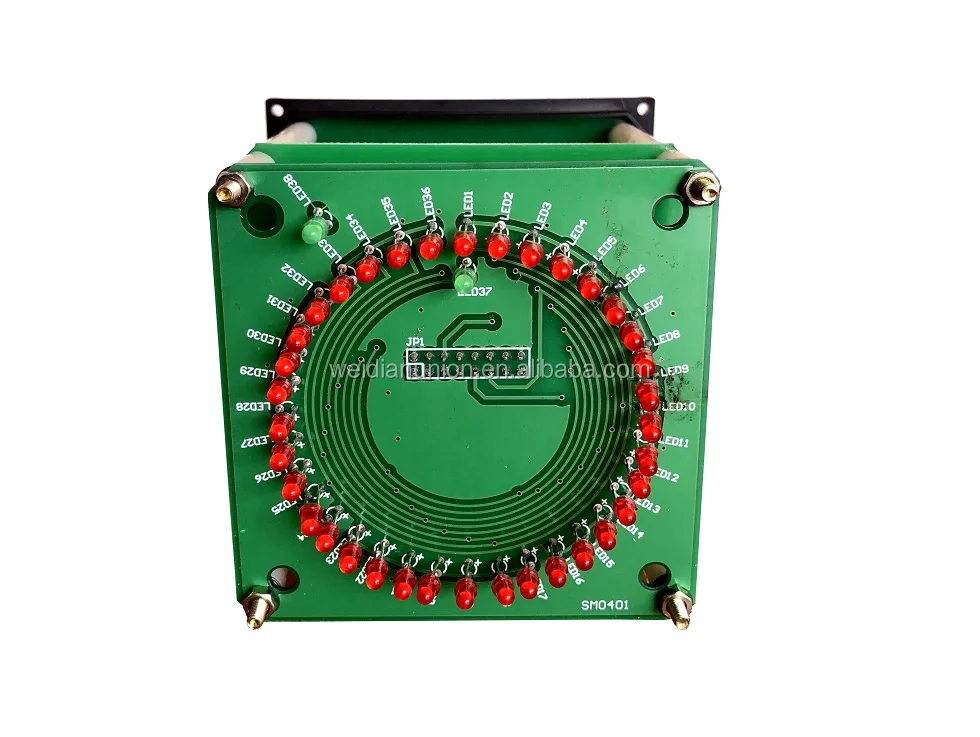

1. 36pcs  phase difference signal LED equally distributed in dial board, middle of 12 "O" clock represent phase difference -5°-5°, interval 10°;

2. "SYNC" green LED in middle of 12 "O" clock, in the range of frequency difference & preset time, LED will be on to send parallel signal before moment of phase difference "0";

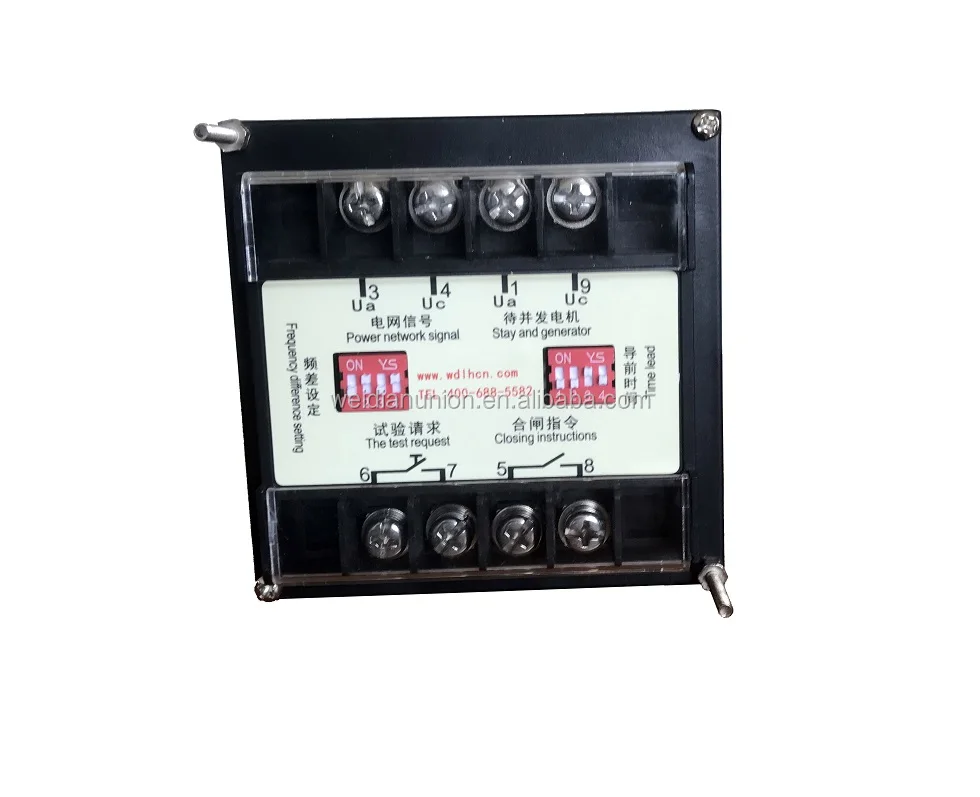

3. Middle back board have lead time switch SW1(16 positions) & SW2(Frequency difference switch) and SA1(Testing button);

4. Meters need re-start after set  lead time & frequency difference close, otherwise, preset value can not be recognized.
