400m deep XYX 3 wheels diesel engine rotary water well drilling rig price
- Category: Mining Machinery >>>
- Supplier: Jining Hengwang Mining Machinery Co. Ltd.
Share on (60659956873):
Product Overview
Description
Product Description

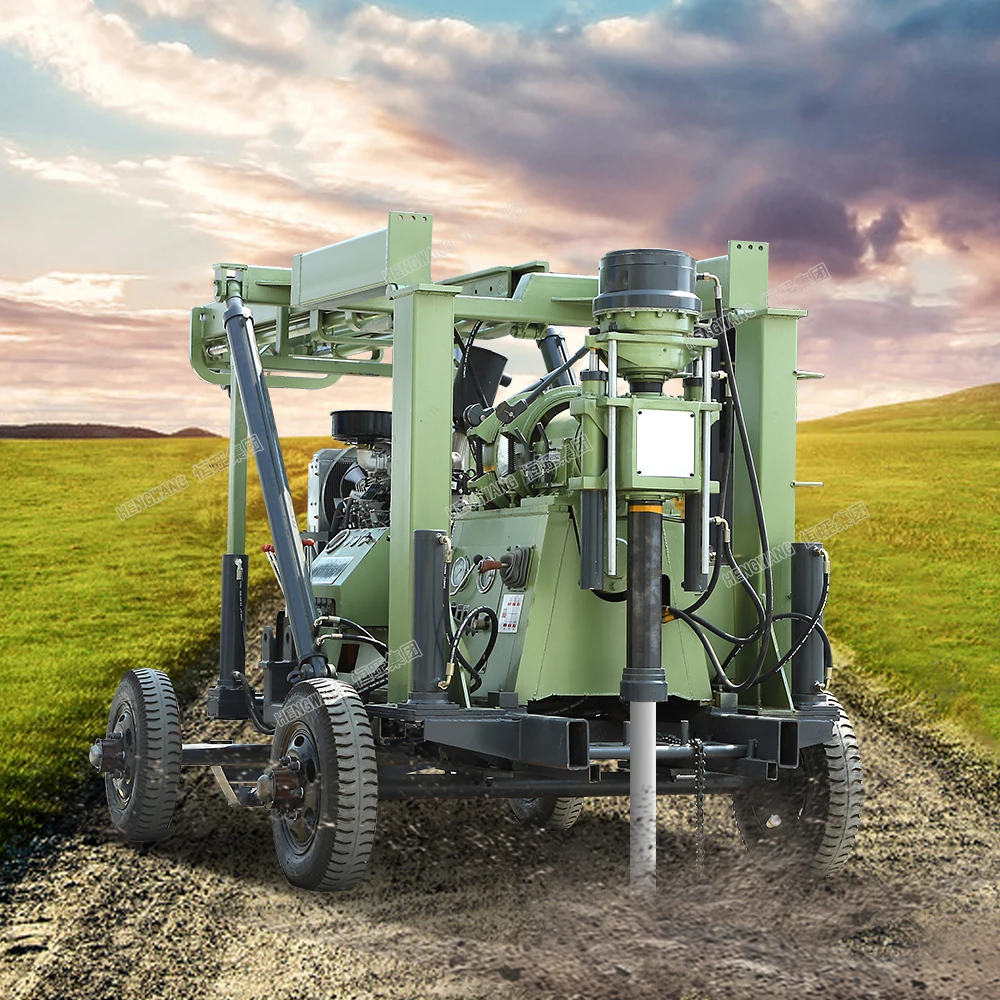

Water well drilling rig
1.400m deep XYX-3 wheels diesel engine rotary water well drilling rig price

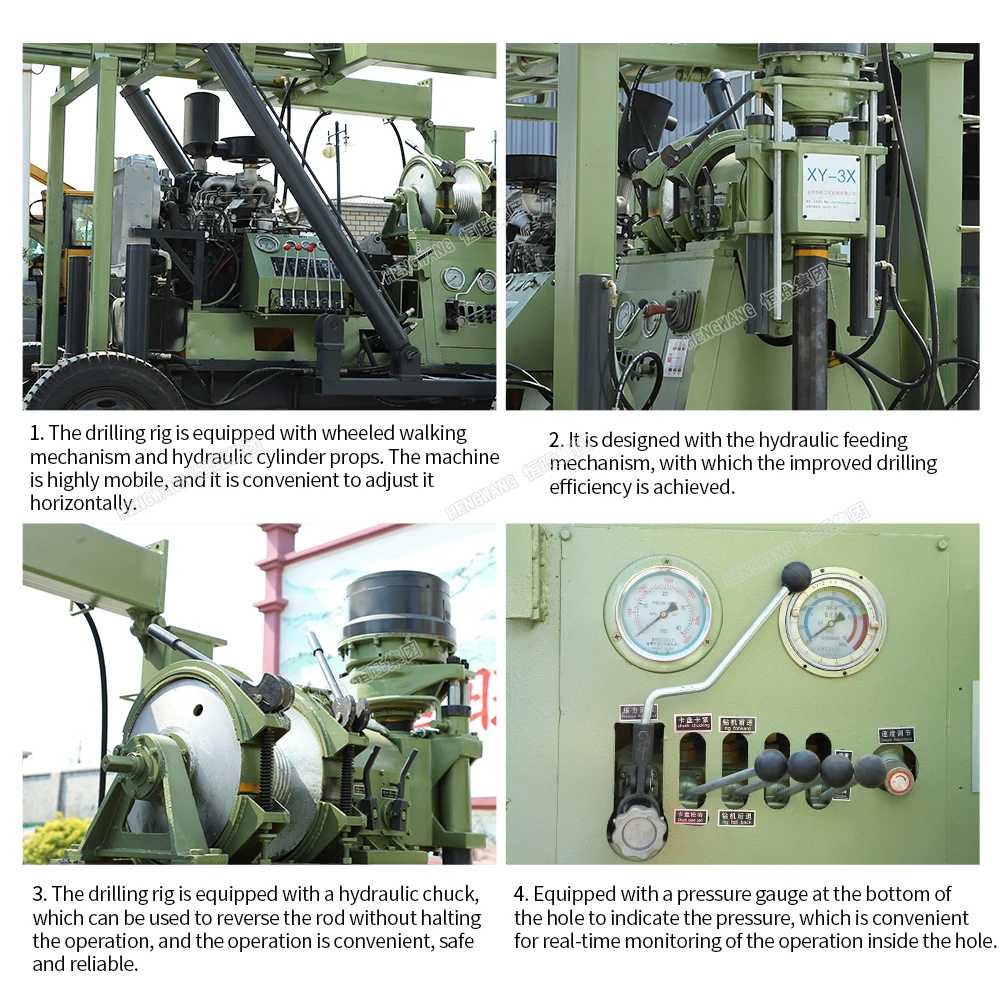

a. the machine is equipped with crawler chassis device,easy to move with fast speed.
b hydraulic oil pressure feed device,improve drilling defficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d drill mast controlled by hydraulic cylinder,improve the efficiency
diesel engine adopt the electric starter,to reduce the labor itensity
2.Applications of 400m deep XYX-3 wheels diesel engine rotary water well drilling rig price
crawler-mounted drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole,drilling and driect grouting,civil wellsand earth temperature central air-conditioner,etc.
Related Model

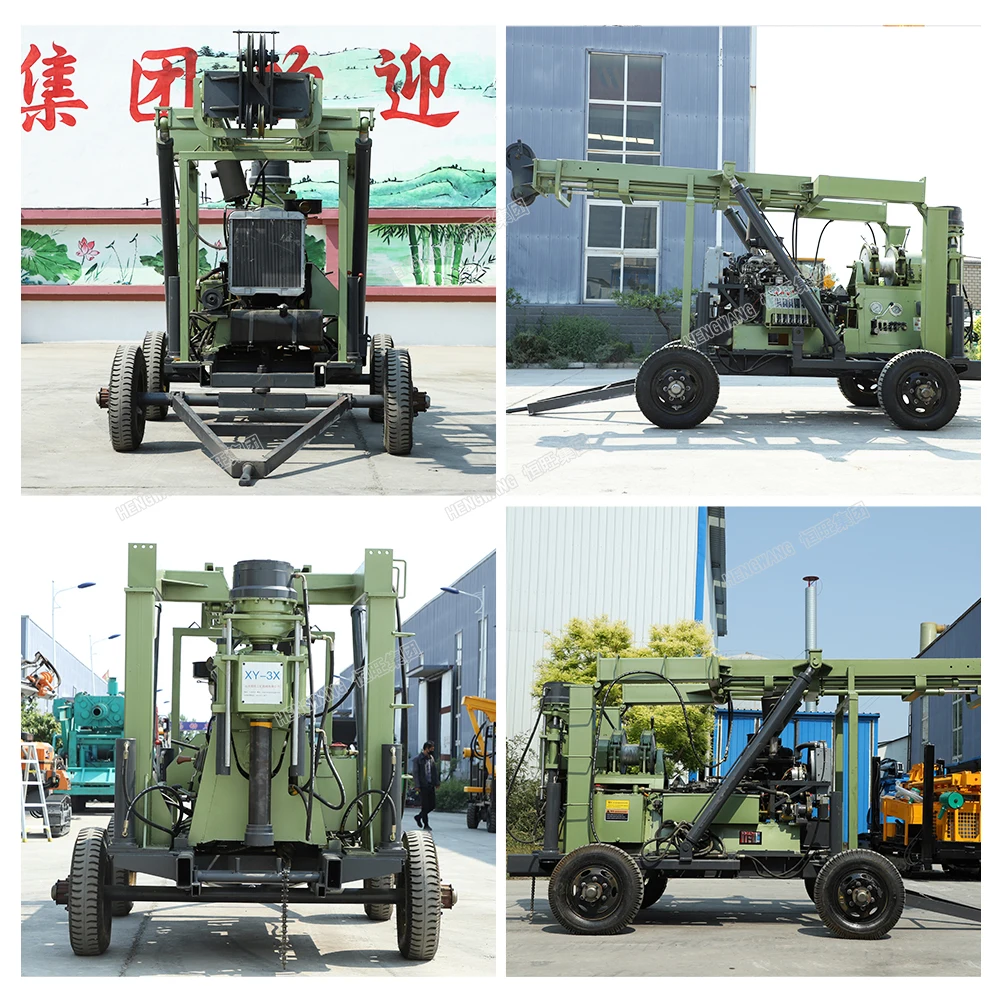

400m deep XYX-3 wheels diesel engine rotary water well drilling rig price
Technical Parameter
400m deep XYX-3 wheels diesel engine rotary water well drilling rig price
(Whole machine parameters) | Model | XY-3T |
Drilling depth(m) | 600 | |
Open hole dia. (mm) | 325 | |
End hole dia. (mm) | 75 | |
Drill angle (°) | 90-75 | |
Matching power (kW) | YUNNEI YN27/ 39 | |
Weight (kg) | 3600 | |
Dimension（L*W*H） (m) | 2. 9*2. 56^3. 3 | |
Spindle) | Speed (r/min) | 32-1057 . |
Stroke (mm) | 600 : | |
(Winch) | Single rope lift force (kg) | 3000 |
Single rope lift speed (m/s) | 0. 3-1. 9 | |
Wire rope dia. (mm) | Φ12.5 | |
Wire rope capacity(m) | 65 | |
(Drill Tower) | Rated load (ton) | 18 |
Effective height (m) | 6.5 |

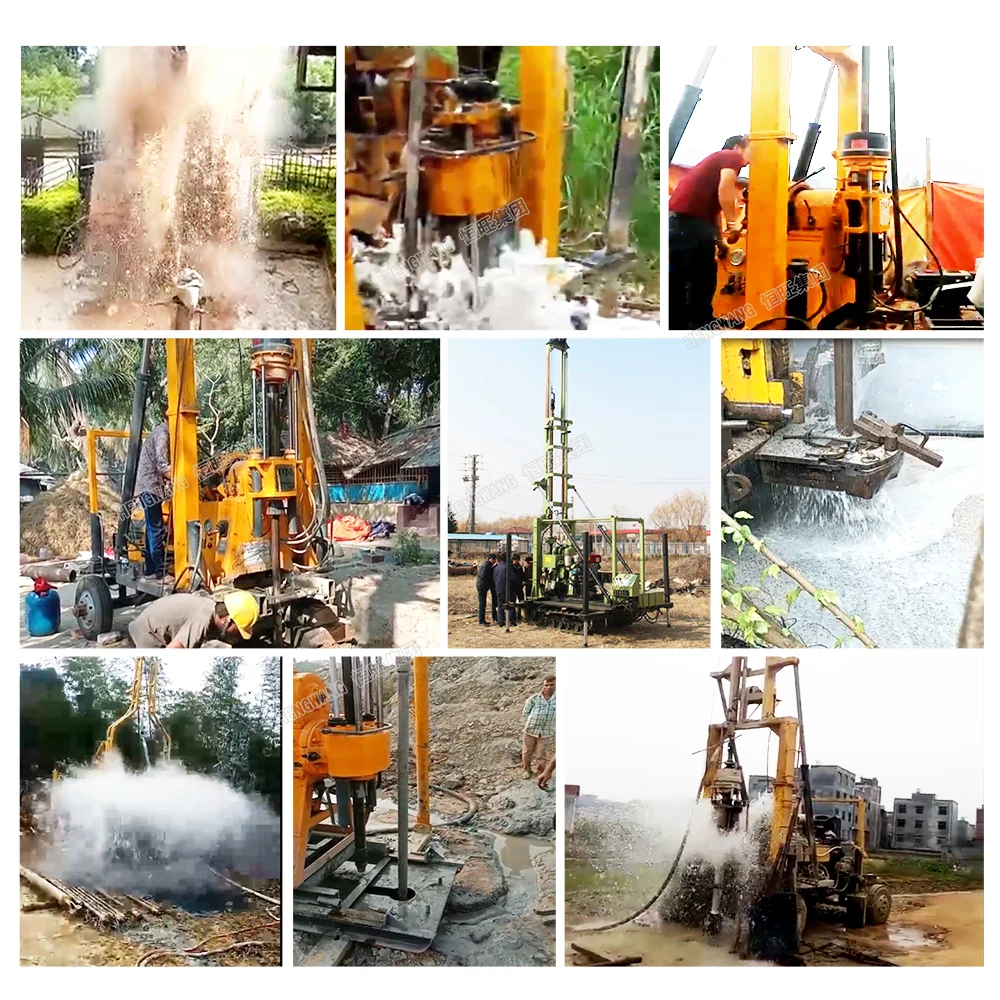

Construction Site
400m deep XYX-3 wheels diesel engine rotary water well drilling rig price
Our Company
400m deep XYX-3 wheels diesel engine rotary water well drilling rig price
