Automatic tool changer 3 axis mini fanuc cnc milling machine
- Category: Machine Centre >>>
- Supplier: Shandong Dongs Cnc Equipment Co. Ltd.
Share on (60660262445):
Product Overview
Description

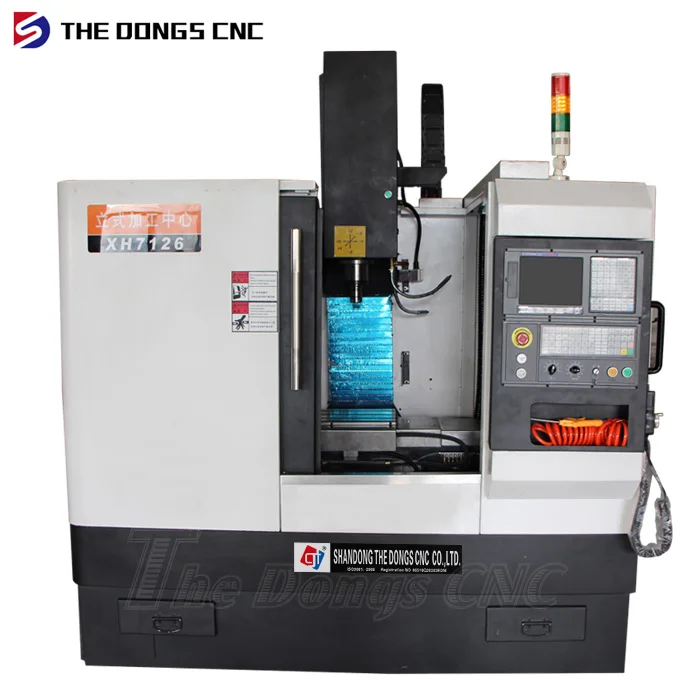

Automatic tool changer 3 axis mini fanuc cnc milling machine
Specifications | Unit | XH7126 |
Table size | mm | 900*260 |
Table Max load | kg | 150 |
X/Y/Z axis travel | mm | 460*300*380 |
Distance between spindle center and column guide surface | mm | 315 |
Distance between spindle end face and worktable surface | mm | 100-450 |
Width of T-slot | 14 | |
Number of of T-slot | 3 | |
X/Y/Z Max.feed speed | m/min | 10000 |
X/Y/Z Max. Rapid traverse | m/min | 24/24/20 |
The spindle Max. speed | r/min | 8000 (optional) |
The spindle taper hole | Type | BT40 |
Spindle motor | kw | 3.7 |
cutting feed rate | mm/min | 1-3000 |
Z axis fast moving speed | mm | 6000 |
X,/Y axis fast moving rate | mm | 8000 |
Positioning accuracy | mm | ±0.01 |
Repeat positioning accuracy | mm | ±0.008/300mm |
Max. tool weight | kg | 6 |
Max. Tool length | mm | 300 |
Max cutter diameter | mm | 80-150 |
Machine size | mm | 1900x1500x2100 |
Packing machine | mm | 2000*1600*2300 |
Weight | T | 1.6 |
