Многошпиндельный фрезерный станок с ЧПУ, 4 шпинделя для резьбы по дереву, станок с ЧПУ
- Category: Machine Centre >>>
- Supplier: Jinan Tianjiao Machinery Manufacture Co. Ltd.
Share on (60663225137):
Product Overview
Description
Packaging & Delivery
Packaging Details:
Plywood case
Delivery Detail:
7-10 working days after payment

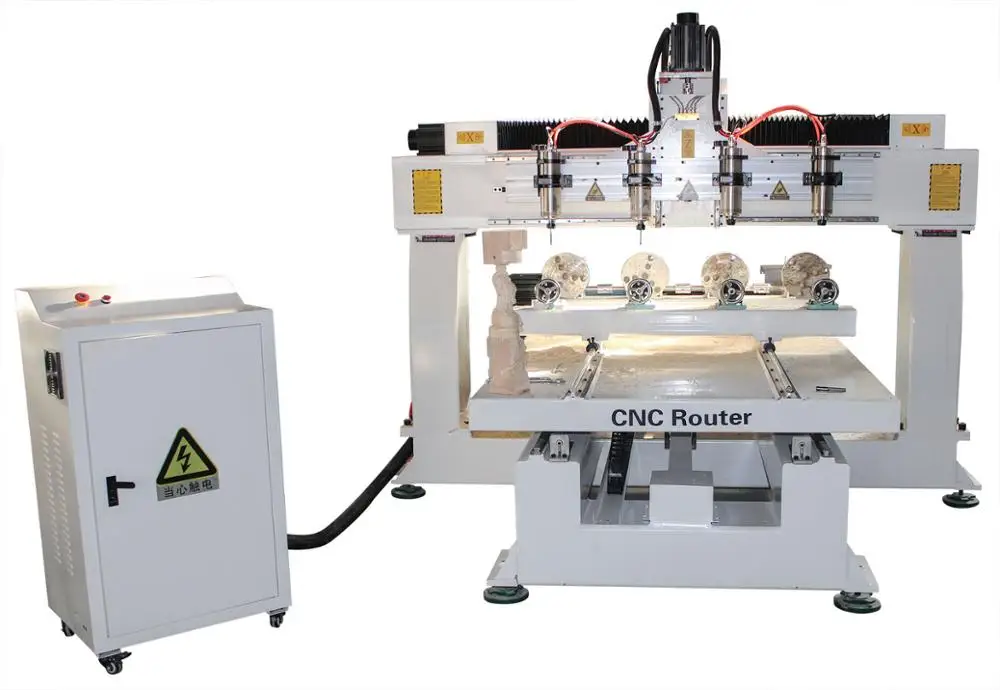

Multi-spindle cnc router machine wood carving 4 spindles cnc machine
Multi-spindle cnc router machine wood carving 4 spindles cnc machine
Applications:
1. Mold industry: various large metalloid mould, especially suitable for
automotive foam mold, wooden ship model, wooden model aviation, rail
wooden mould, wooden mould train.
2. Instrument industry 3-d surface engraving and shape cutting of large-scale instruments.
3. Sign, plastics, wood, molds, etc.
4. Furniture, general woodworking manufacturing.
Multi-spindle cnc router machine wood carving 4 spindles cnc machine
Features:
1.Taiwan SYNTEC controlling system, steady performance, powerful function,easy operation
2. Well-known Italy HSD air cooling spindle, high precision, long life time, steady working
3. Well-designed whole cast steel lathe bed, well welded, no distortion for whole structure.
4. Adopt Taiwan HIwin square guide rail system, working steadily, high precision, long life time.
5. Movable table structure, working more steadily than that with moving gantry, especially while engraving waved plate.
6. Diversified controlling. It can control working speed, air line speed and cutter setting speed separately which improves both processing quality and efficiency.
7.6 pcs Auto tool changers.
Technical Parameters:
Model | TJ- 12025 |
Maximum working size | X Axis:1800mm |
Y Axis : 3100mm | |
Z Axis: 950mm | |
A Axis: ±120° | |
C Axis: ±213° | |
Maximum work-piece | X Axis: 1200mm |
Y Axis: 2400mm | |
Z Axis: 550-600mm (depending on tool length) | |
A Axis: ±120° | |
C Axis: ±213° | |
Table Size | 1250x2500mm |
Table structure | Cast Steel Movable Table |
X,Z Structure | Taiwan Hiwin Square Guide rail: X 30, Z 25 Taiwan TBI ball screw |
Y Structure | TaiWan HIWIN Guide rail:30 Rack and pinion |
Spindle | 7kw, Italy HSD spindle, air-cooled |
Magazine | Disc-type ATC |
Taper hole in the spindle | HS655 |
Auto-Tool changers | 6 pcs Automatic tool changers |
Diameter of Cutter | φ3.175-φ12.7 |
Spindle Speed | 0-18000r/min, variable speed |
Working Voltage | AC220V/60Hz 3-phase or AC380V 60HZ 3-phase |
Motor and driver | servo motor |
Inverter | Fuling inverter |
Command | G code |
Controller | DSP |
Software | Original Alphacam |
Dust-collect function | No |
Working table | T-slot table and aluminium table coated with pvc |
Net weight | 7500kg |
Gross weight | 7600kg |
Machine size | 3600*4000*3500mm |

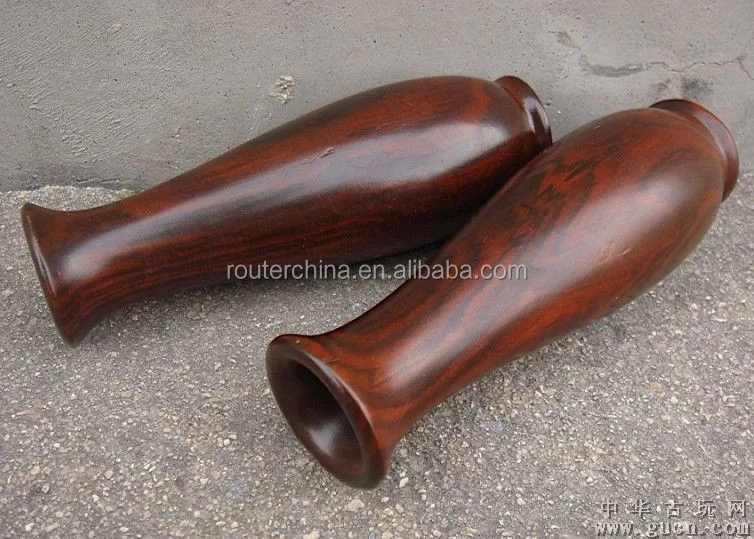

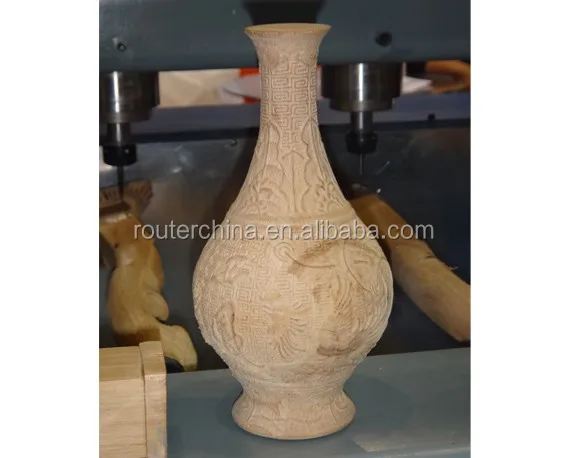

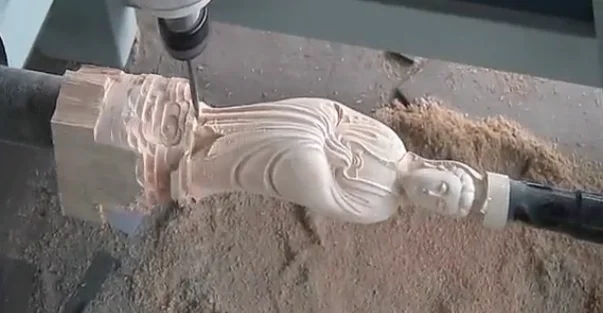

Samples
Company Information
Jinan Tian Jiao Machinery Manufacture Co., Ltd. specializes in developing and manufacturing Mechanical CNC routers, CNC Laser machines, Plasma cutting machines, cutting plotters and other machines. We provide global market with high quality CNC equipment. We are a leading company in this field, being confident in offering the best service and best quality.
With many years' hard work and perfect management system, we have classified our products into several categories: woodworking machines, advertising machines, ATC machines, stone working machines, plasma cutting machines, laser machines and plotters. We can also customize products and offer OEM service. Our products have been exported to many overseas countries, gaining good comments.
We hope to be your good, long-term and honest partner. Wish you can get joy and satisfaction from our products and service.
Our customers
Exhibition content
Packaging & Shipping
1. Outside package: Sandard export wooden cases and pylwood cases
2. Inner package: Stretch film
Our Services
- One year machine warranty ,during the warranty period , if any parts broken,
we change a new part for you freely.
- All machines are debugged before shipment.
- We offer detailed machine manual, software manual, controller manual.
- Our factory make a vivid traing CD.
after sale service
- 24 hours on line or phone or by email technical support.
- Longlife time freely provide technical support .
- One year , freely guarantee
- Free training course at our plant.
- Welcome to visit our factory, learn machine face to face.
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
