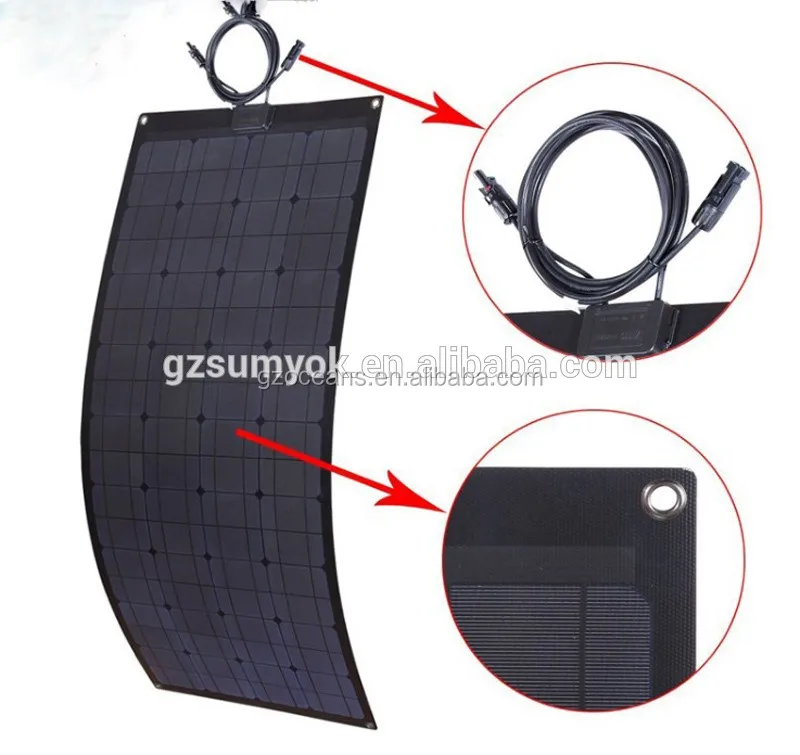

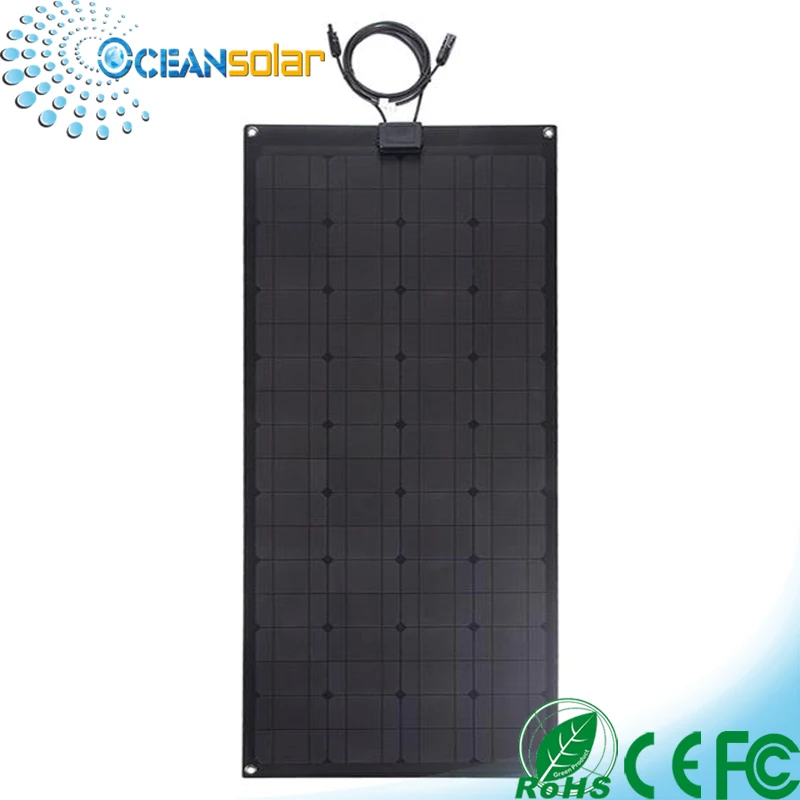

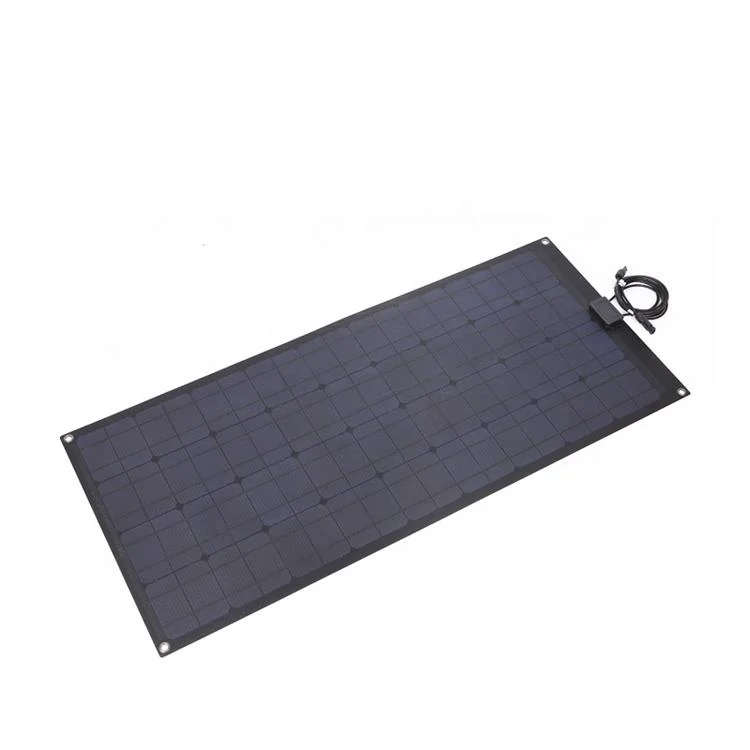

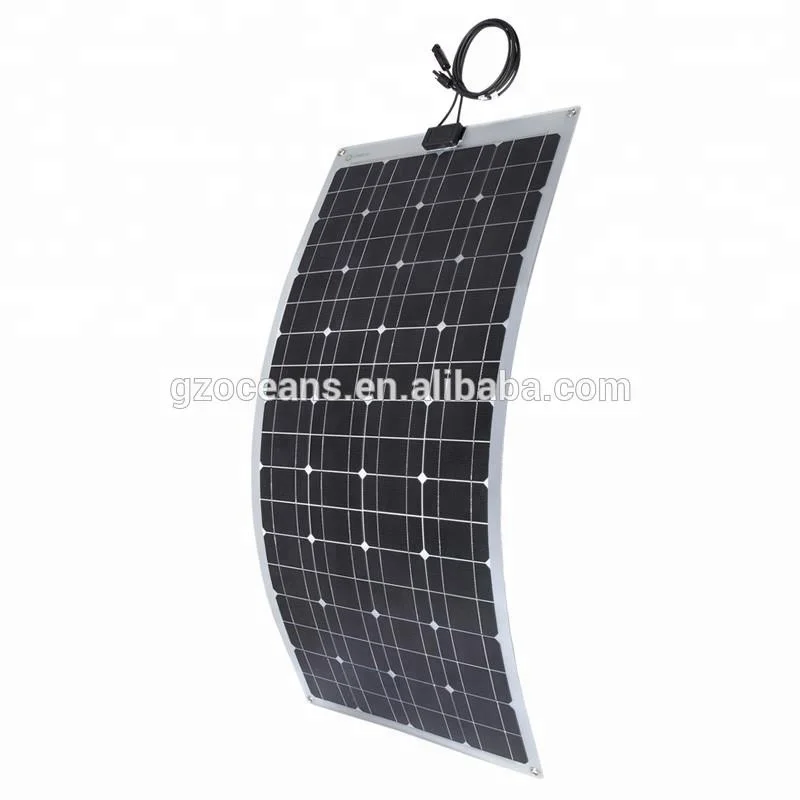

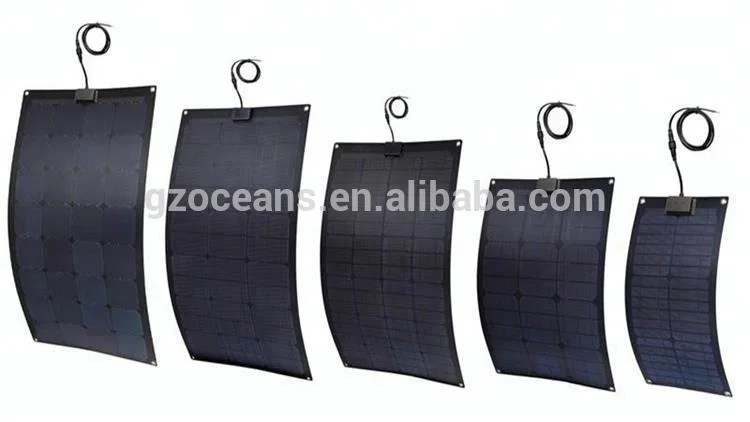

China Supplier cheap solar panel flexible
- Category: Solar Energy Products >>>
- Supplier: Guangzhou Ocean Solar Power Technology Co. Ltd.
Share on (60666243447):
Product Overview
Description
Product Description
Flexible Angle | up to 10 degree |

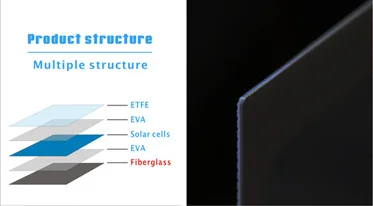

Back Sheet | PET, TPT, Aluminum or Fiberglass |
J-Box | IP67 Rated |
Thickness of ETFE | 0.025mm |
Thickness of solar panel | 2.5mm or 3mm |
Cables/Connector | 1.5meters, 2*2.5mm2 cable with MC4 connectors |
Type of Solar Cells | 125 Monocrystalline silicon cells |
Eyelets | 4pcs in the corners |
By pass diode | 2pcs (10A for each ) |
Cell Efficiency | 18.5%-20% |
Product Paramenters
Pmax | Vmp | Imp | Voc | Isc |
100W | 18V | 5.56A | 21.24V | 6.12A |
Size | Net Weight | Number Of Cells | Front Cover | Max System Voltage |
1245*550*2.5 mm | 2.5kg | 36pcs | ETFE | 500V |
Details Images
Product packaging

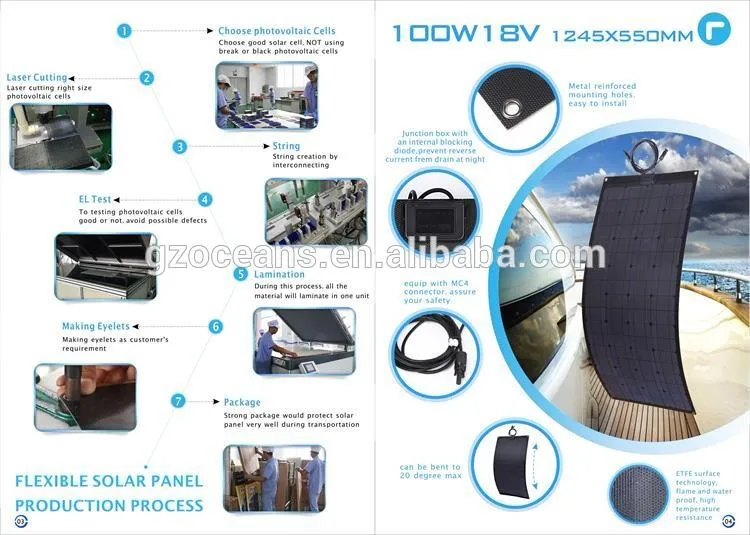

Production Process
