Удобная электрическая маленькая лодка Davit
- Category: Cranes >>>
- Supplier: Shandong Jndo Hoisting Equipment Co. Ltd.
Share on (60668238786):
Product Overview
Description
Product Description

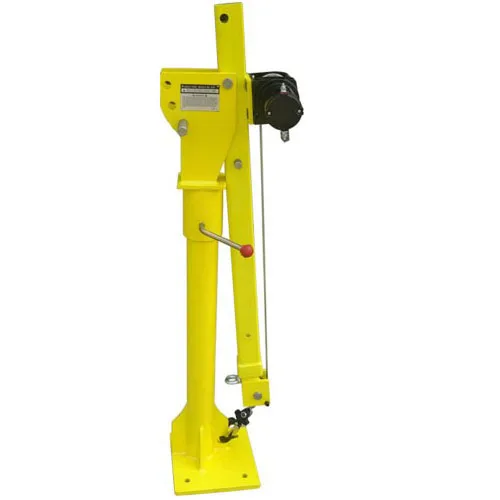

Handy Electric Small Boat Davit
1.Compact design ,folds away when not in use.
2.Easily installed,on site or by a vehicle body builder.
3.Conforms to CE safety standard.
4.Unique technology of quick lifting.
5.Larger capacity than normal shop cranes at 3 position.
6.360ºswivel operating handle.

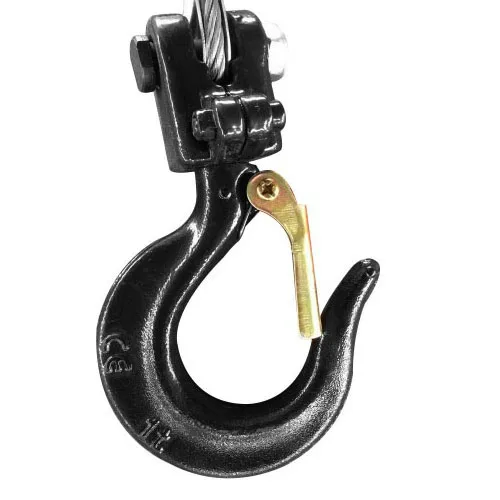

7.Forged heavy duty swivel hook.
8.125% overload testing before delivery.
We are also electric winch manufacturer ,we can assure the quality of
electric winch and the steel structure!!!
Product Parameter
MODEL: | JN-HP1000 |
Single line Lifting Capacity(maximum) | 500kg |
Double-line Lifting Capacity(maximum) | 800kg |
Lifting Height Max.Std.(base to hook) | 1940mm |
Reach Max.(from center of rotation) | 1490mm |
Rotation (continuous) with Brake | 360° Manual |
Lifting Cable | 4.8mm x 4.5m –1pc(for single-line lifting) |
Line speed with No Load | 3.6m/min single line |
Power Requirements | 12V DC 125 amps |

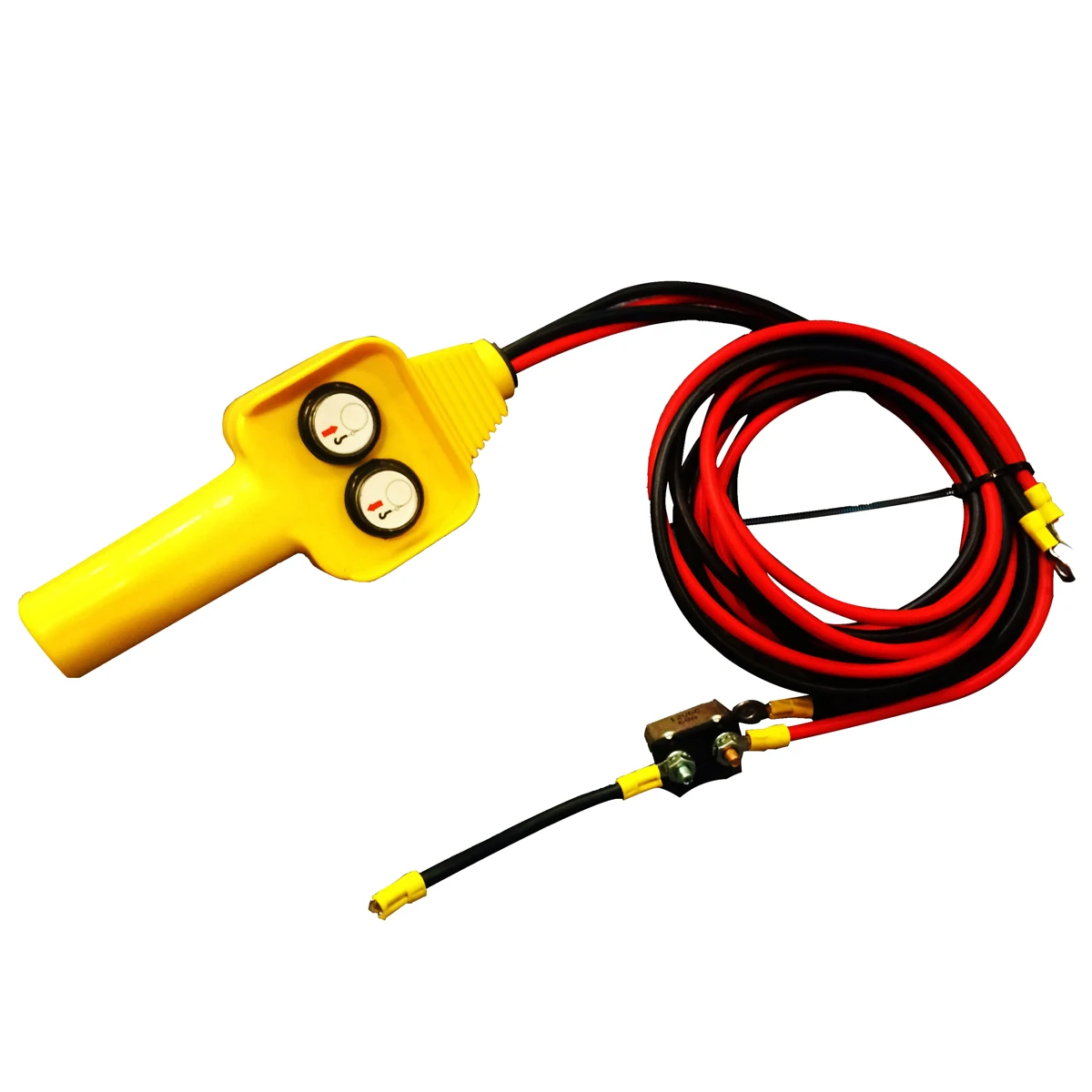

Switch Cable | 4.2m |

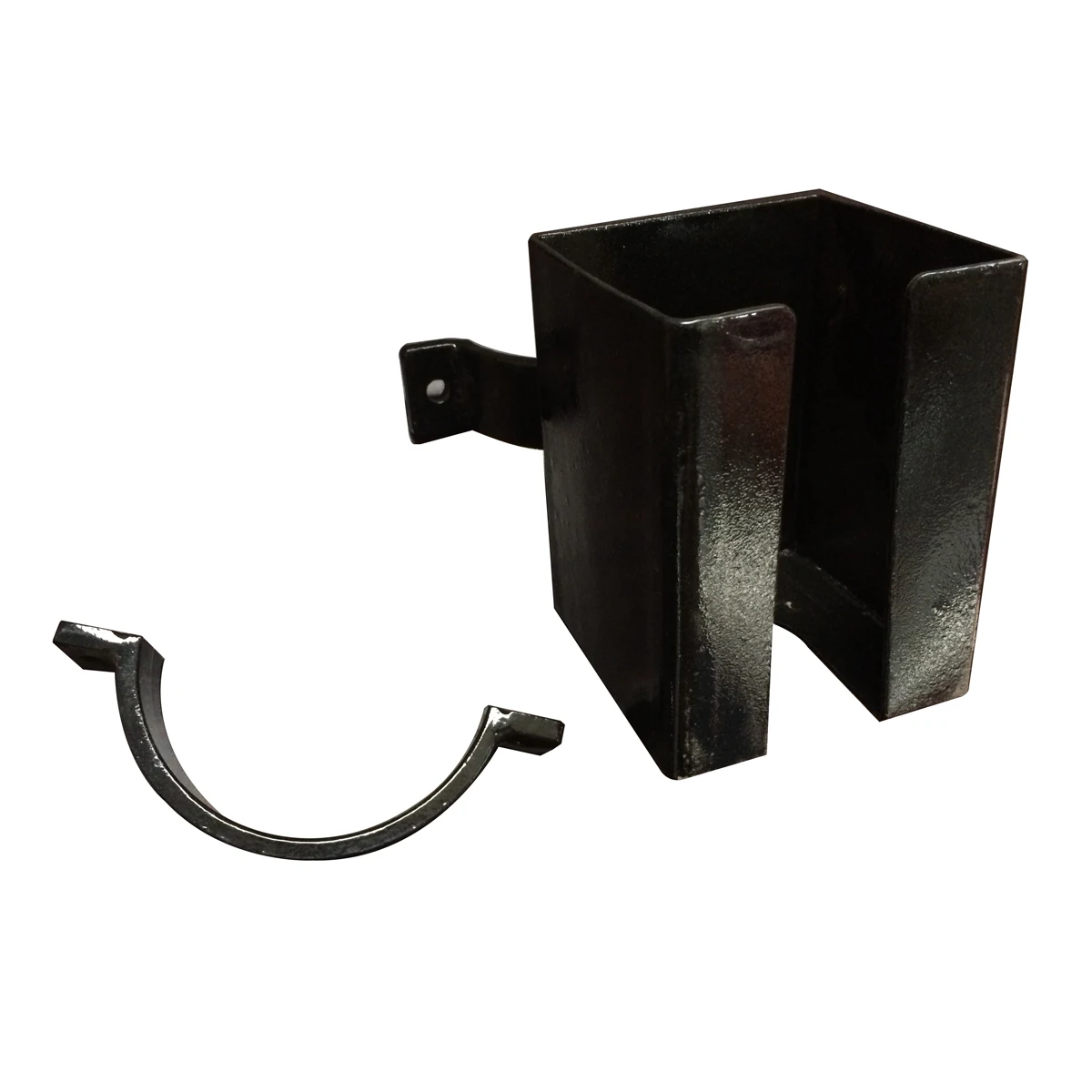

Mounting Base | 250x250x18mms |
Mounting Bolt Hole Pattern | 170x170mms |
Finish | Powder Coated |
Gross Weight of Crane (LBS) | 69KGS |
Color available | As you like |
