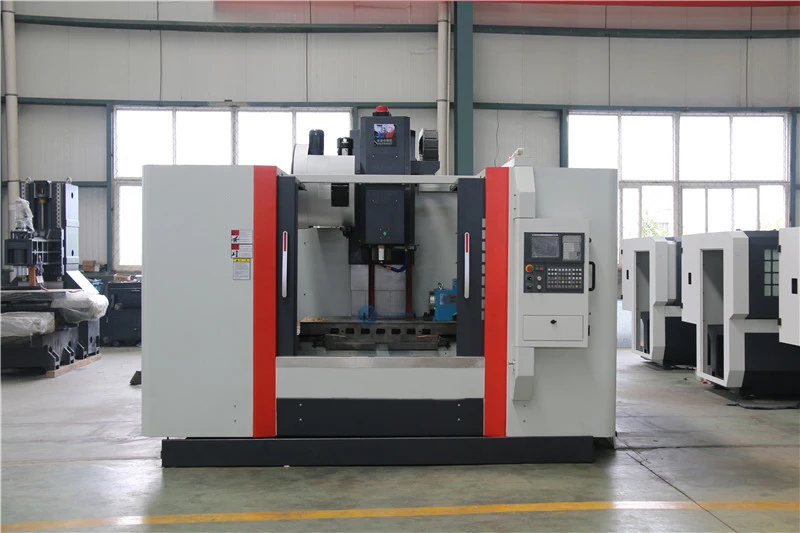

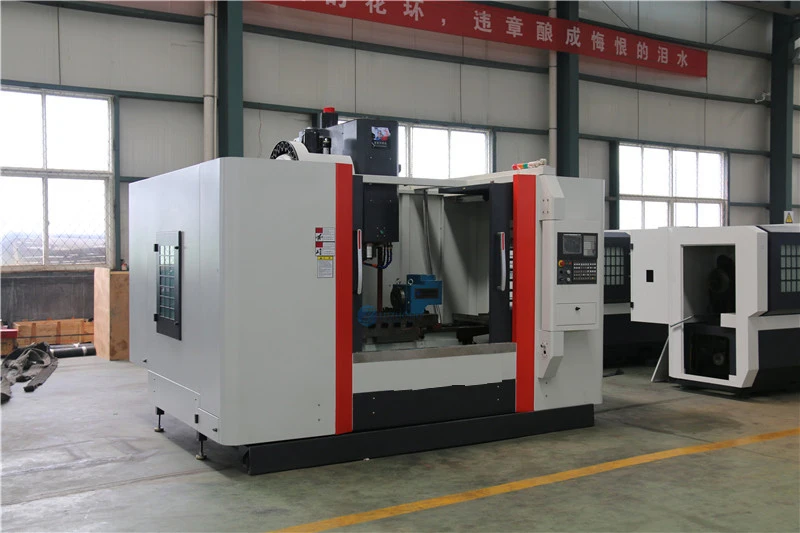

Фрезерный станок с ЧПУ VMC860, линейный направляющий вертикальный обрабатывающий центр
- Category: Machine Centre >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60674409383):
Product Overview
Description
Products Description
The main performance characteristics：
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement
from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Specifications | Units | VMC860 |
Table size | mm | 1000x550 |
X axis travel | mm | 800 |
Y axis travel | mm | 600 |
Z axis travel | mm | 600 |
Max. worktable load | kg | 600 |
T slot(number-width-pitch) | 5-18x100 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 |
Main motor power | kw | 7.5/11 |
X/Y/Z rapid traverse speed | m/min | 48/48/48 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | Linear rail | |
Distance from spindle axis to column surface | mm | 590 |
Distance between spindle nose and worktable surface | mm | 130-660 |
Positioning accuracy | mm | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 |

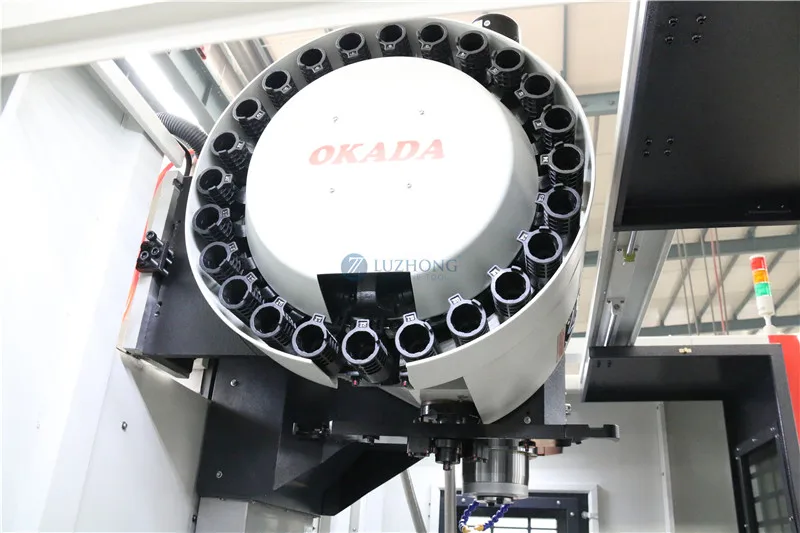

Tool magazine | Arm 24 | |
Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) |
Max.tool weight | kg | 8 |
Machine weight | kg | 6000 |
Overall dimension | mm | 2900x2400x2800 |
Details Display
