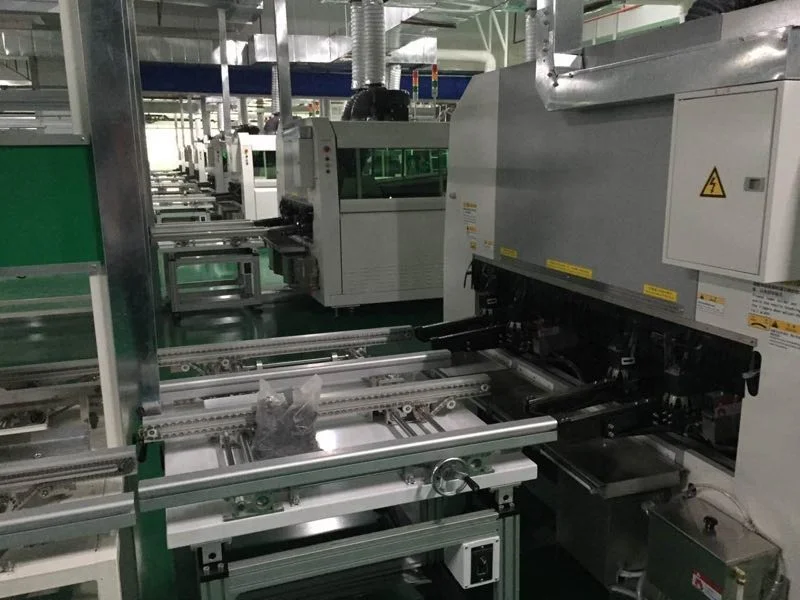

Lead free wave soldering machine

Product Overview

Description

This is a large machine for mass production in factories.



Technical specifications

System Control Method	PC Control with Windows based operating system
Conveyor Width	Max.350mm
PCB Conveyor Direction	Left to right / Right to left
PCB size	50-350mm
PCB Soldering Angle	4-7°
PCB feeding height	750±50mm
Preheating area temperature	room temperature~200° adjustable
Preheating area length	1600mm  /  1800mm  (option)
Preheating area quantity	3 sections
Nozzle flow shifting mode	Air pressure adjust
Solder pot capacity	250-280kg
Solder pot temperature	Max. room temperature~350°C
Wave motor	Variable frequency stepless speed regulation
Power supply	3 Ph 380V 50HZ
Total power	Approx. 19KW
Dimension	3500(L)* 1480(W)* 1780(H)mm (without guide rail)
Flux spraying mode	Cylinder
Weight	Approx.1300kg
Flux flow volume	10-100ml/min
Packing	Exemption wooden box packaging
Packing size	L3650 * W1630 * H1950mm (include track)
