DH DL100C Automatic Cold Rolling Ornamental Iron Tube Embossing Machine

Product Overview

Description

DH-DL100C Automatic Cold Rolling Ornamental Iron Tube Embossing Machine



Cold Rolling Embossing Machine cold prints and shapes iron to emboss different designs in relief, depending on the roller you are working with.

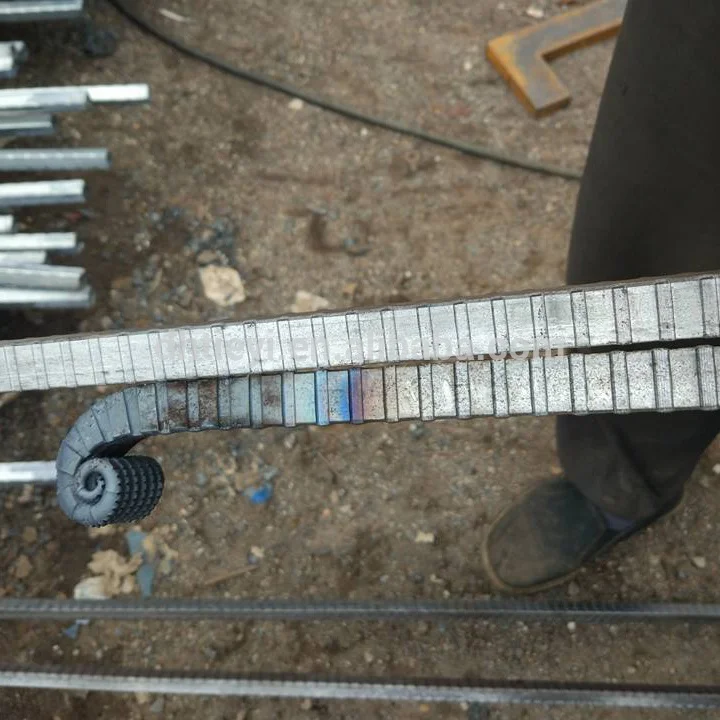

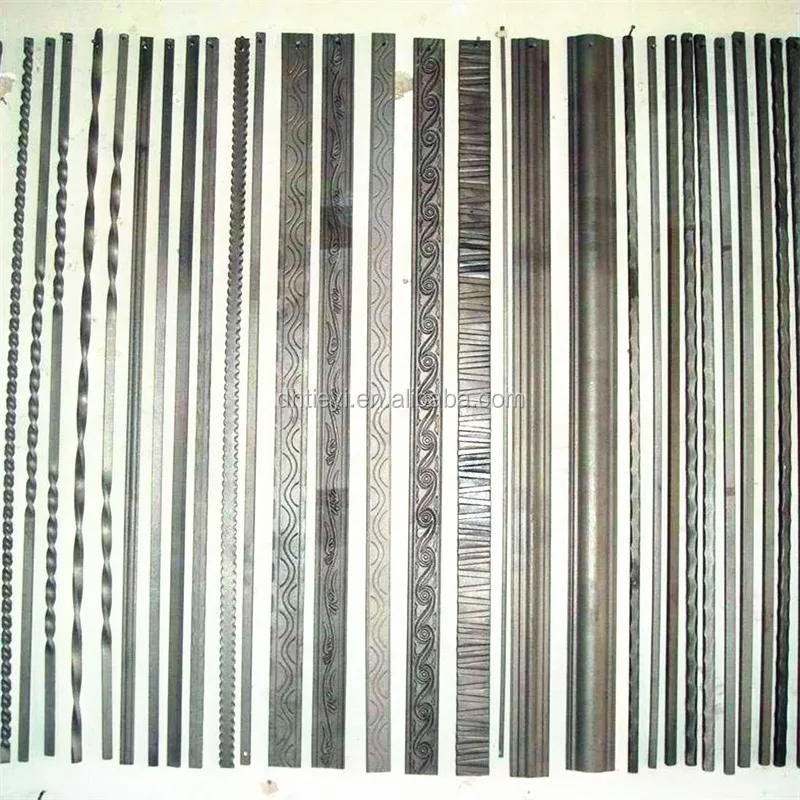

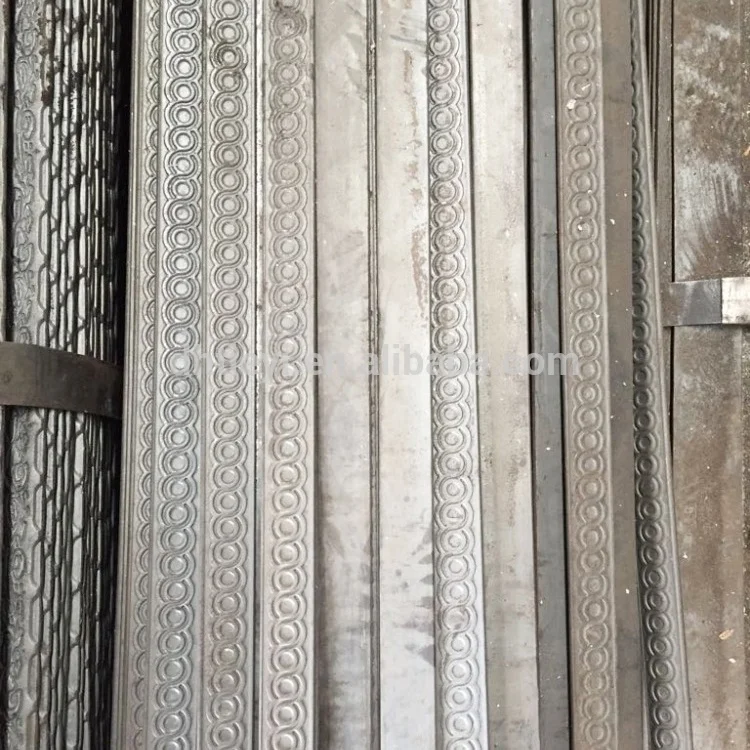

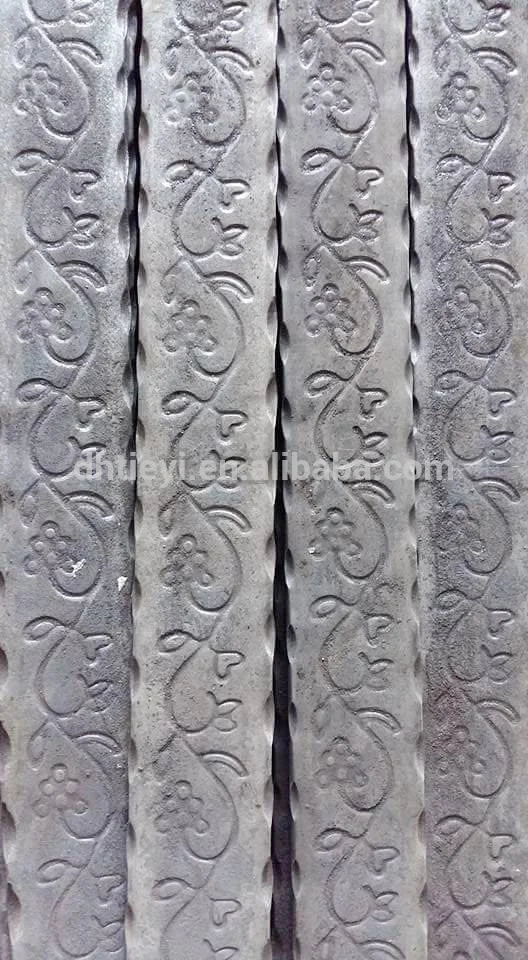

Very popular for ornamental forgings to emboss designs on flat steel, tubes or square bars for railings, baluster, fences, grilles, gates, or hallways, adding economic, decorative and artistic value..



1. Special machine that use for embossing different patterns on metal material.

2. Can embossing flat / square / round bar, square and rectangle pipe.

3. Free 12 embossing rollers with machine.

4. 200+ different art patterns for choosing and accept customized design.

5. Can emboss two sides at once, improve work efficiency.

6. Emboss the metal material without heating..

7. Simple setting and quick change of molds.





Here are DH-DL100C Ornamental Iron Embossing Machine details:

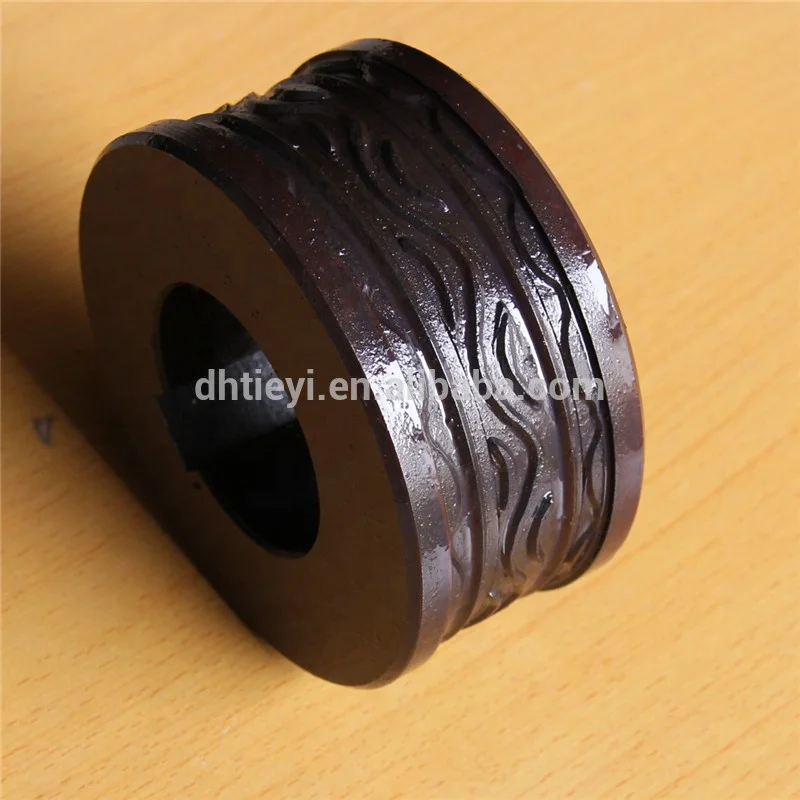

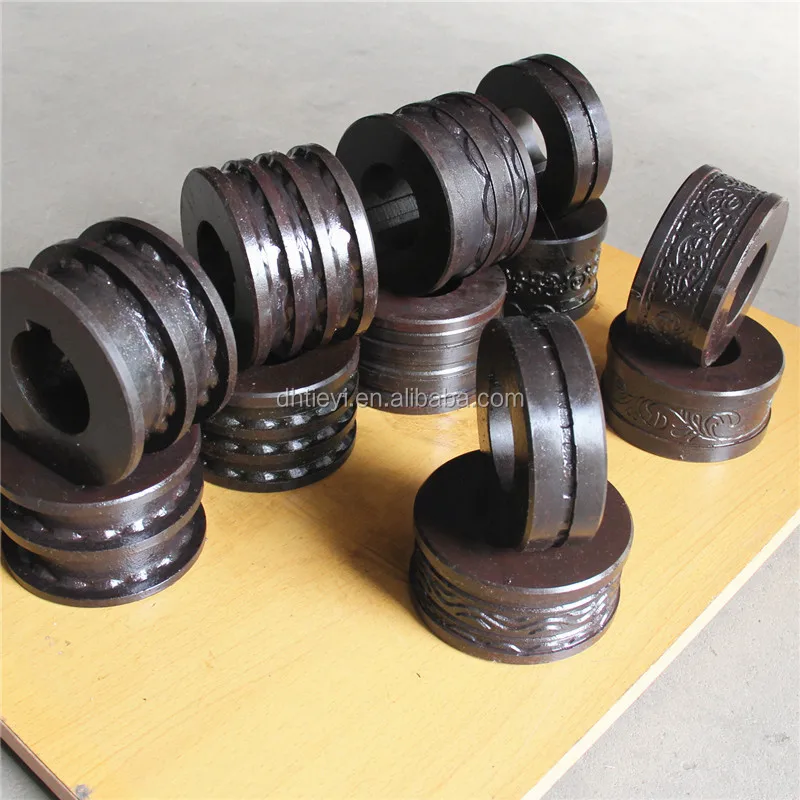

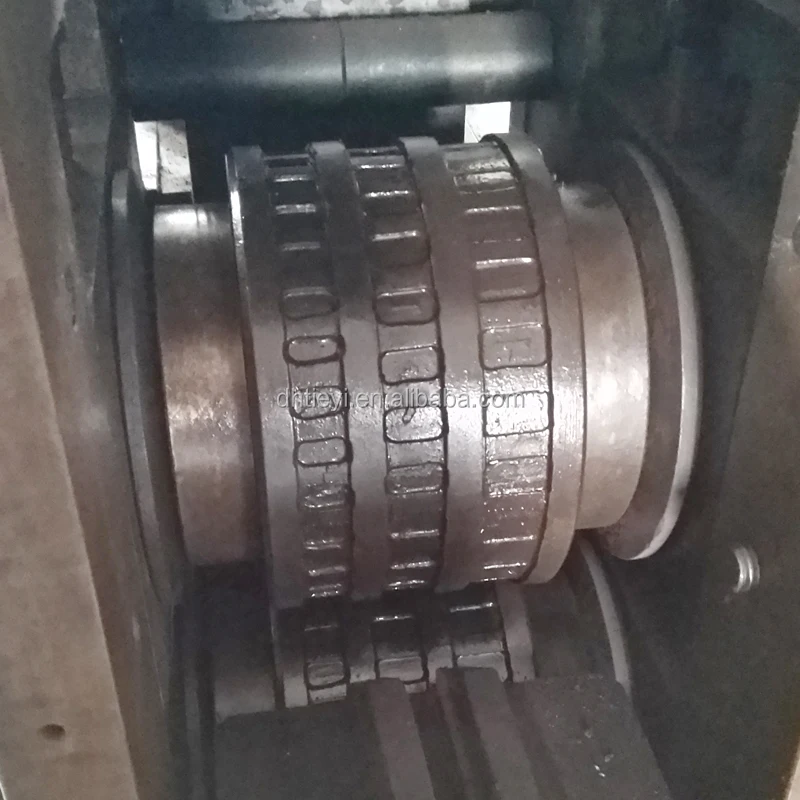

1. Various embossing rollers.

Qualified Cr12Mov / D2 mold steel, longer lifetime; 200+ patterns and accept customized design..

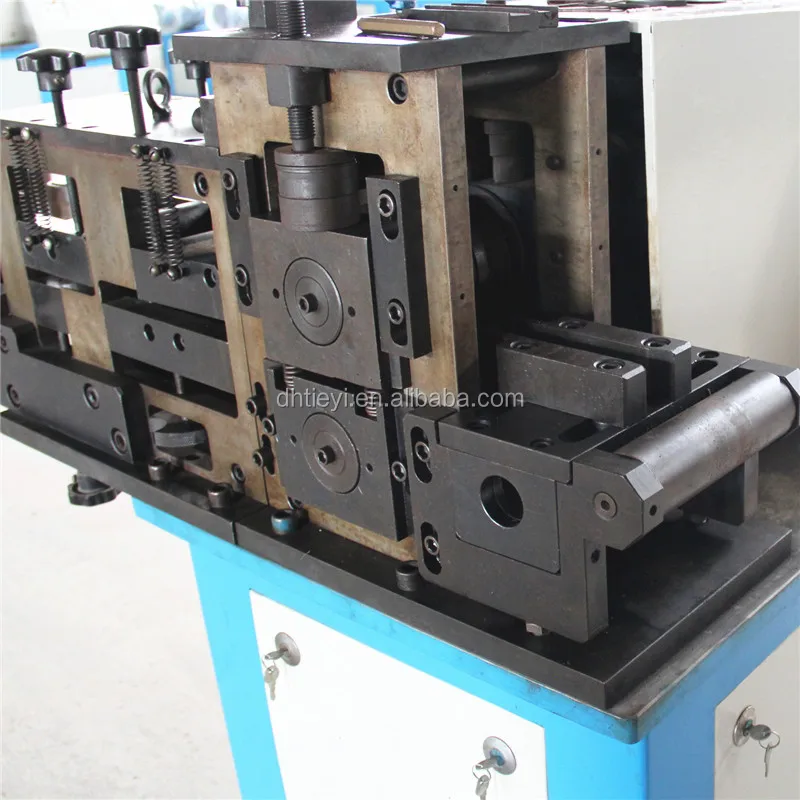

2. Embossing Device.

Can emboss flat / square / round bars and square pipes; quick roller change; double sides embossing one time.

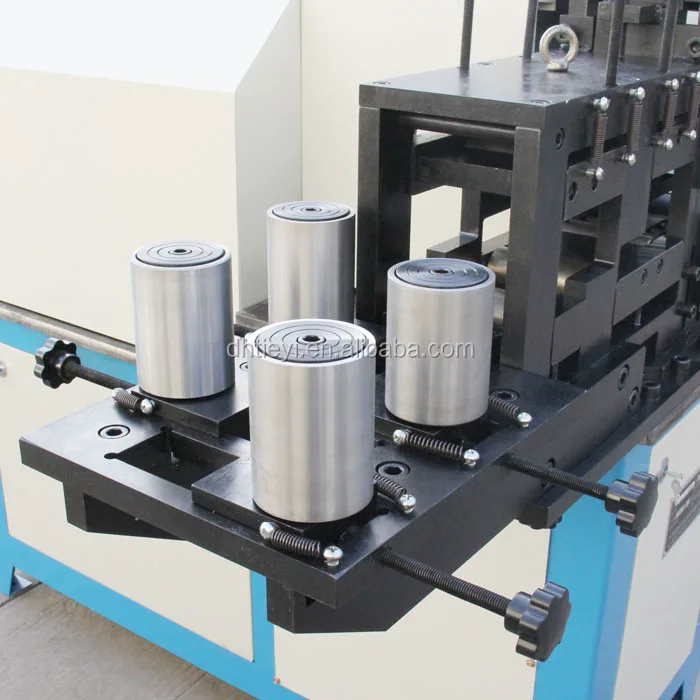

3.  Leveling and straighten device.

Automatical working, save re-process time and better appearance.

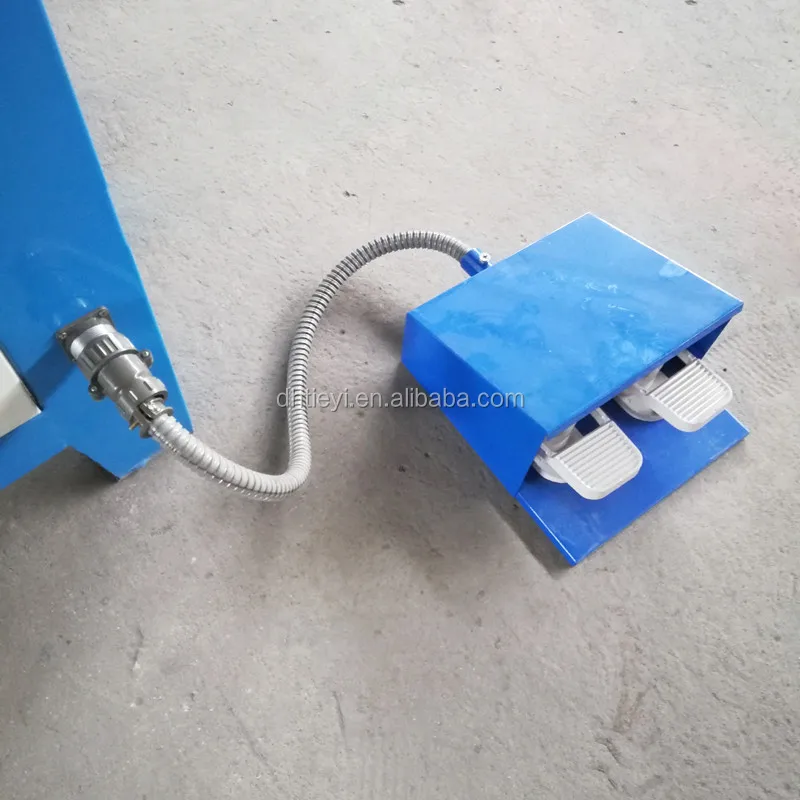

4.  Foot Switch.

Release the hands, improve working efficiency.







Here are DH-DL Series Electric Ornamental Iron Craft Embossing Machine Specification:



Wrought Iron Embossing Mahine
Model		DH-DL-60A	DH-DL-60C	DH-DL100A	DH-DL100C
MAX. Working Ability	Flat Steel	≤60x10MM	≤60x10MM	≤80x10MM	≤80x10MM
	Square Bar	≤40X40MM	≤40X40MM	≤40X40MM	≤40X40MM
	Square Pipe	≤60X60MM	≤60X60MM	≤100X100MM	≤100X100MM
	Round Bar	≤Ø30MM	≤Ø30MM	≤Ø30MM	≤Ø30MM
	Rectangle Pipe	≤60X80MM	≤60X80MM	≤80X100MM	≤80X100MM
Capacity		380 M/H	50-500 M/H	380 M/H	50-500 M/H
Power		5.5KW   6 Class      380V 50HZ 3PHASE
Free Molds		08-02, 08-03, 08-04, 08-05, 08-06A, 08-06B, 08-07, 08-08A/08B, 08-09, 08-42, 08-43, 08-44
Dimension		1800x1260x1350 MM	1600x1260x1450 MM	1600x1260x1450 MM	1600x1260x1530 MM
Weight		1300 KG	1100 KG	1350 KG	1200 KG
Main Features	DH-DL60A	1. Modular composite structure and rational design, easy to maintenance. 2. Equiped cyclonical two-speed reducer, running smooth, stable and reliable. 3. Reasonable mechanical structure and suitable working speed insure the clear and beautiful embossing pattern. 4. Automatic leveling and straighten device. 5. Button or foot switch operation way, convenient and efficient. 6. Quick mold change, saving time and labour.
	DH-DL60C	Equiped electromagnetic speed-adjustable motor, so you can set the working speed from 2-21 R/M (Main Shaft output shaft revolutions) according to material size, shape.
	DH-DL100A	Improve the Max. working ability up to 100x100MM square pipe.
	DH-DL100C	1. Equiped electromagnetic speed-adjustable motor, so you can set the working speed from 2-21 R/M (Main Shaft output shaft revolutions) according to material size, shape. 2. Improve the Max. working ability up to 100x100MM square pipe.









We provide machines & hand tools soluation for blacksmith wrought iron workshop.







Hebei Duanhai Wrought Iron Machinery Co., Ltd was founded in 1996, one of the earliest manufacturer specializing in the production of wrought iron machine in China..



Our machines are qualified with advanced equipments and professional technology team; we have Digital Lathe, Milling Machine, Drilling Machine, Boring Machine and other Precision Processing equipment..; mainly manufacture wrought iron machines and wrought iron components, include cold embossing machine, round pipe embossing machine, scroll bending machine, end forging machine, coil rolling machine, steel twisting machine, hydraulic press machine, pipe bending machine, electric induction heating machine, and manual wrought iron tools ..etc..



With strict standard for our company management and machine production, and a group of intelligent hard-working people, we had export our machines to Eastern Europe, Russian, Mid-Asia, Southeast Asia, Mideast, Latin America and Africa..
