New design 1MW Solar System Solar Panel Carport Aluminum Frame
- Category: Solar Energy Products >>>
- Supplier: Yuens (Xiamen) New Material Co. Ltd.
Share on (60694601028):
Product Overview
Description
Product Details

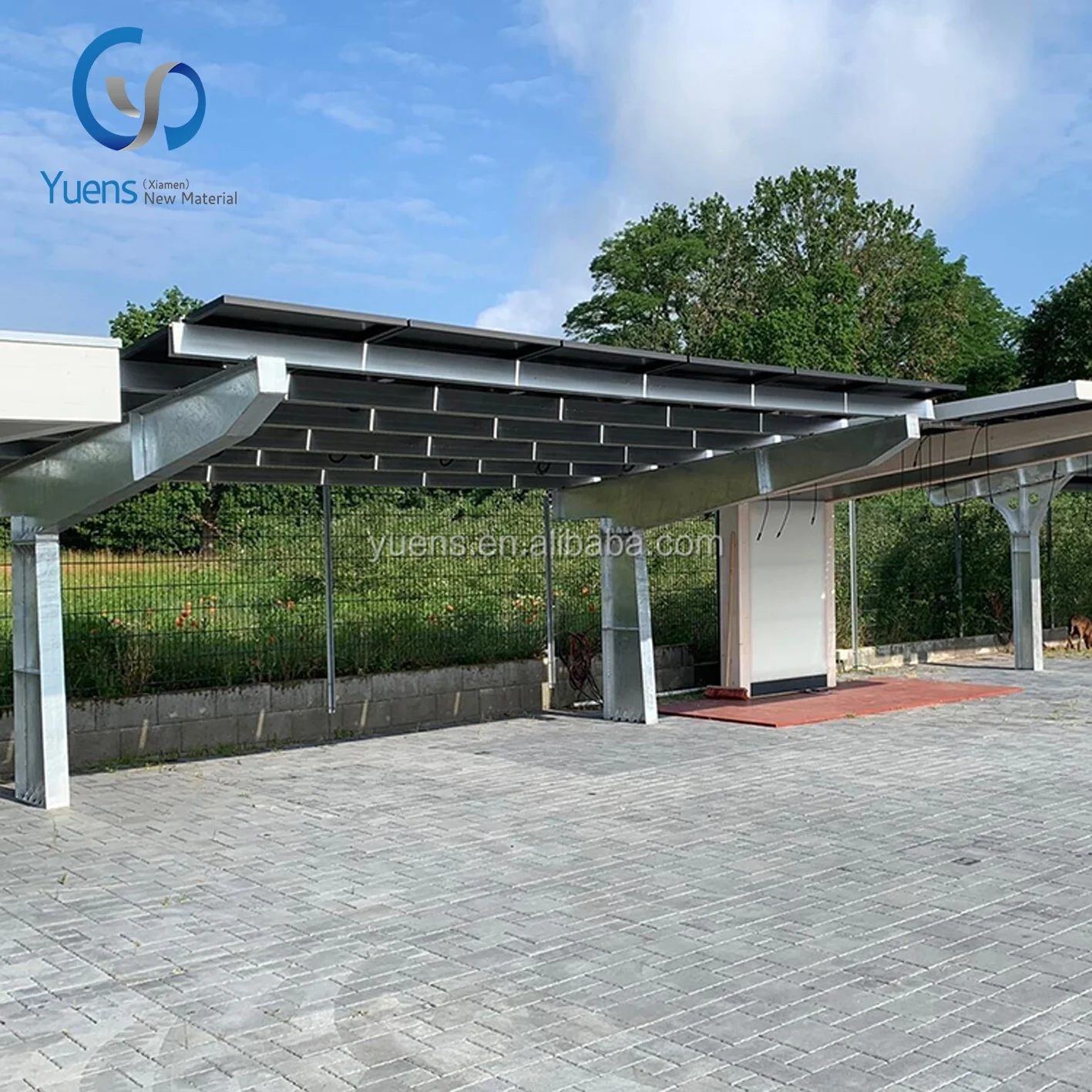

CL-3 New design 1MW Solar System Solar Panel Carport Aluminum Frame
CL-3 Single T-Frame Solar Carport Mounting, standard installations maintain 4000mm maximum clearance. No field welding, drilling or other on-site fabrication needed. Water control with decking.
Application Case
Installation Steps
Contact us to get the detail installation manual :-D
1. Install the support post on precast concrete foundations by M16x300 anchor bolt, nut, flat washer, and spring washer.
2. Connect support post and support rack with M20x25 outer hexagon, nut, flat washer and spring washer.
3. Fix the tube 89 between the adjacent support racks by outer hexagon bolt and tighten up.
4. Put the acrylic cloth on support rack, then fix it by self-tapping screws.
5. Fix the square tube on support rack.
6. Connect the rails with rail splice if the rails are not long enough.
7. Fix the rail on the square tube with fixing clamps.
8. Fix the solar panels with end clamps.
9. Fix the solar panels with mid clamps.
10. Well done! You have installed the single T-frame solar carport successfully.
Technical Parameter
Install Site: | Open Field / Ground |
Max. Wind Speed: | 60m/s |
Snow Load: | 1.4kN/m2 |
Color: | Natural or Customized |
Material: | AL 6005-T5 & Carbon Steel |
Warranty: | 12 years warranty; 25 years service life |
Module Angle: | 0-20° |
Max. Ground Clearance: | ≤4000mm |
BOM List for a project with 15KW:
ITEM | DESC. | QTY. |
Solar Panel | 1640*992*40mm | 60pcs. |
Support Rack | 5pcs. | |
Support Post / Leg | 5pcs. | |
Rail | L=5073mm | 24pcs. |
Rail Splice | L=400mm | 18pcs. |
Mid Clamp | L=40mm | 96pcs. |
End Clamp | L=40mm | 48pcs. |
Fixing Clamp | L=40mm | 60pcs. |
Square Tube | 30pcs. | |
Tube 89 | 3pcs. | |
Acylic Cloth | 1pcs. |
Main Components
Click below pictures to get more details.
Contact us to get sample and catalog :-)
Support the rail and solar panel
Support the support rack
Fix the rails on support racks
Fix the rails on square tube
Support the solar panels
Connect the rails
Fix panel on the rail at the end of panel
Fix panel on the rail in the inner part
Related Products
Click below pictures to get more details ;-)
Ballasted Flat Roof Mount
(Adjustable) Triangle mount solution for concrete flat roof
Ground Mount w/ Screw Anchor
Mounting solution for large-scale area
Single Post Solar Carport
2017 new design T-frame solar carport
Processing & Packing
Yuens
is a professional company, engaged in research, manufacturing, and marketing of aluminum products for the solar mounting system, curtain wall system, and other architectural constructions. We have been committed to providing high-level quality products and related technical support service.
Solar Show
Yuens attended the Solar Show Philippines 2017 in Manila.
