Turkey hot selling high speed paper cup machine

Turkey hot selling high speed paper cup  machine

The MG-C800 type machine is an upgrade product that base on single turnplate paper cup machine. The machine adopts open cam design, interrupted division design, gear drive, longitudinal axis design. So they can reasonably distribute each part function.

The whole machine adopts Spray lubrication , thus reduce the parts abrade,  and it adopts Switzerland leister heater for cup body and bottom paper sealing ;  and silicon oil flow controlled by PLC & electromagnetic valve, in total two course for top curling forming first course rotate top curling ,and second that   heating and forming , thus the cup forming will be more perfectly.

PLC system controls the whole cup forming process. By adopting photoelectric failure-detecting system and servo control feeding, our paper cup machine’s reliable performance is guaranteed, thus offering a rapid and stable operation. The machine can auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and reduce labor force.

Using CCD image detection system (optionally), it will detected the broken, tainted, and molding defects cups. without manual selection,it can reduce secondary pollution.

MG-C800 intelligent paper cup machine simplifies paper cup forming process This machine can finish paper feeding, gluing, cup-bottom feeding heating, knurling, cup-mouth curling, cup-collecting, etc .It is especially suitable for making paper cups with height of 50-135mm.

CUP SAMPLE

ADVANTEGES INTRODUCED

TECHNICAL SPECIFICATION

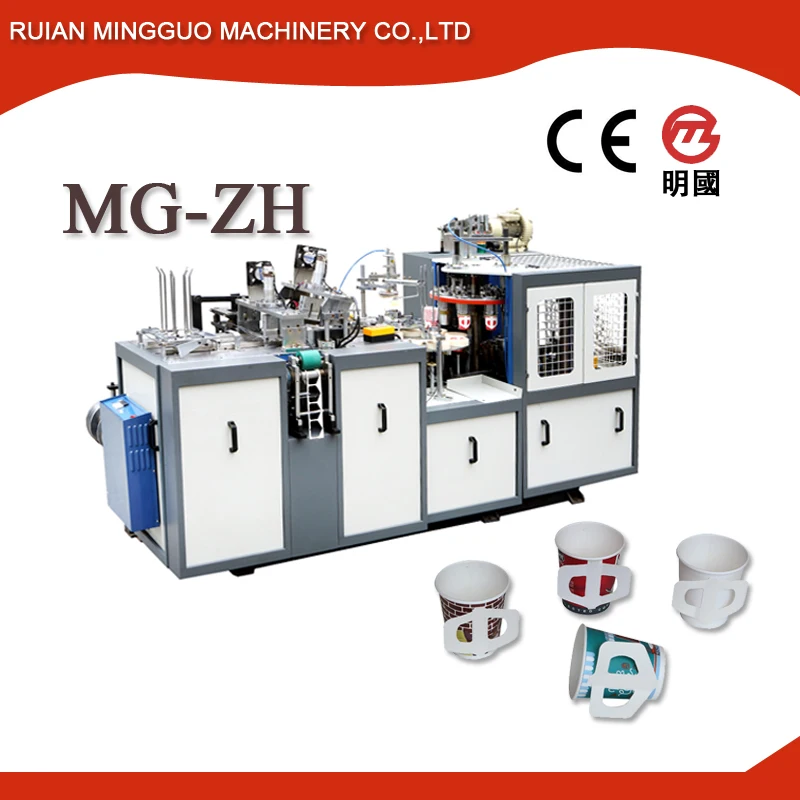

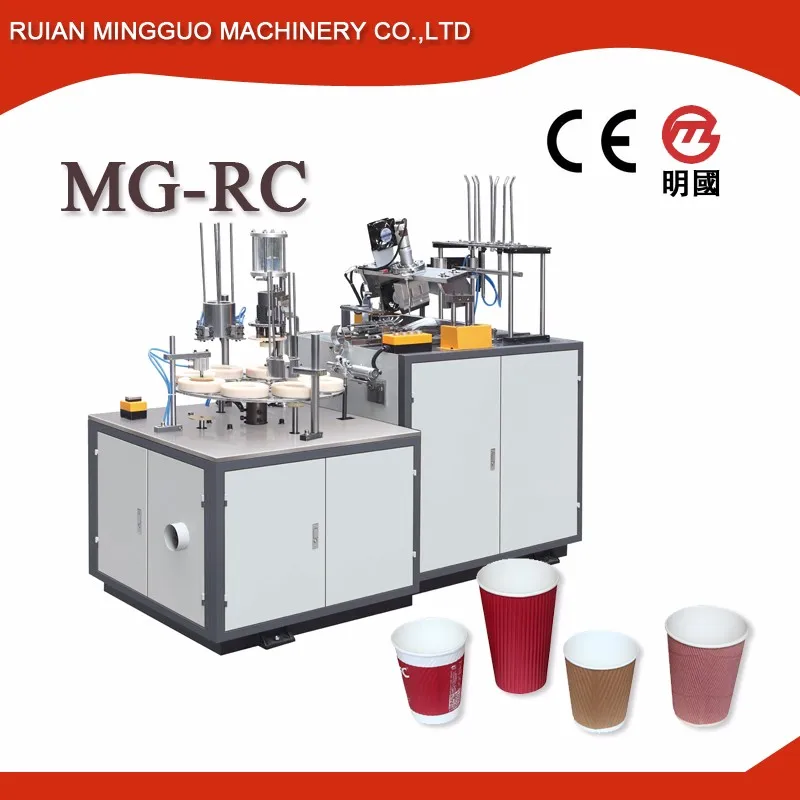

HOT PRODUCT

MAHICNE FEATURES

1.This machine adopts intermittent indexing cam mechanism of open type.

2.Gear transmission and vertical axis structure contribute to a reasonable distribution of various functional components.

3. The whole machine uses automatic spray lubrication system, reducing the wear of machine parts .

4.The body of paper cup and the bottom of cup portion bonded by Swiss (Leister brand) heater, ensuring the stability of adhesion .

5.Two times curling , first one is rotating curling , second one is heating stereotypes , which improves the forming strength of paper cup, cup mouth beauty and paper cup size stability .

6.PLC control is used in cup forming, photoelectric eye is adopted in the entire failure control process.

7.Servo motor paper feeding improves equipment stability, achieves fast steady running, implements automatic fault stop and largely reduces labor cost.

8. The machine adopts simplified process system, combining paper feeding, sealing, bottom paper feeding, up cup, heating, cup bottom rolling,cup bottom knurling, cup top curling, cup discharge, detection, automatic counting, cup collection in one.

9.The most suitable cup height size is from 50 to 135 m

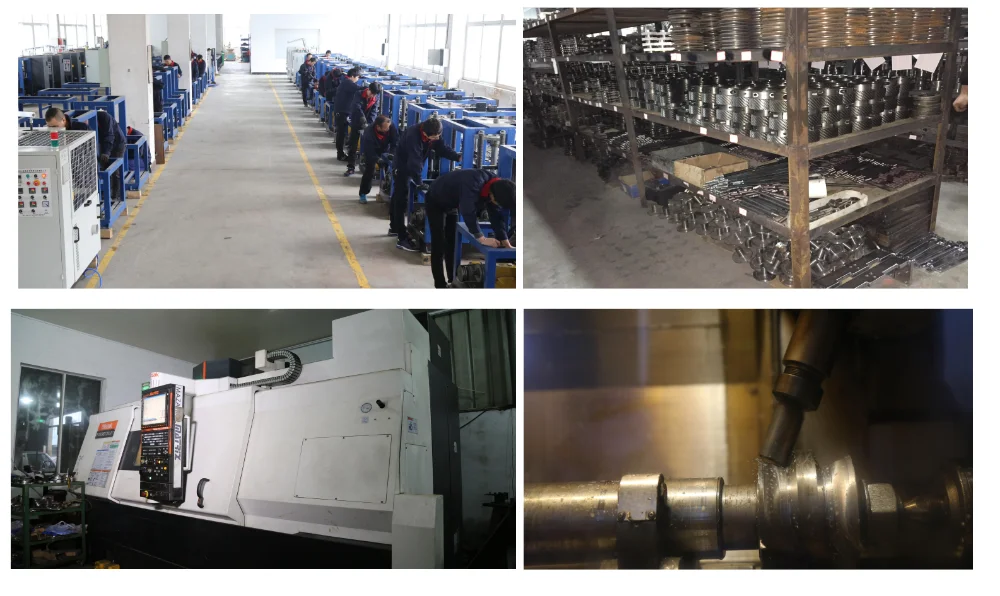

WORKSHOP
