Wenzhou WinRich Machinery co.,ltd has focused on laminating and compound machines since 1996, for the co-extrusion of special polymers - customized and modular layout to meet the demand for special products;
WSFM-B Mode Extrusion and compound units is at the forefront of technology, boasting a high manufacturing quality with components suitable for processing paper, nonwoven fabric ,aluminium and so on. we has focused on high performance extruders with special screw design for a wide range of materials like LDPE, SURLYN, EVA, EAA, PP, with customized solutions including different layers, sizes and die widths.

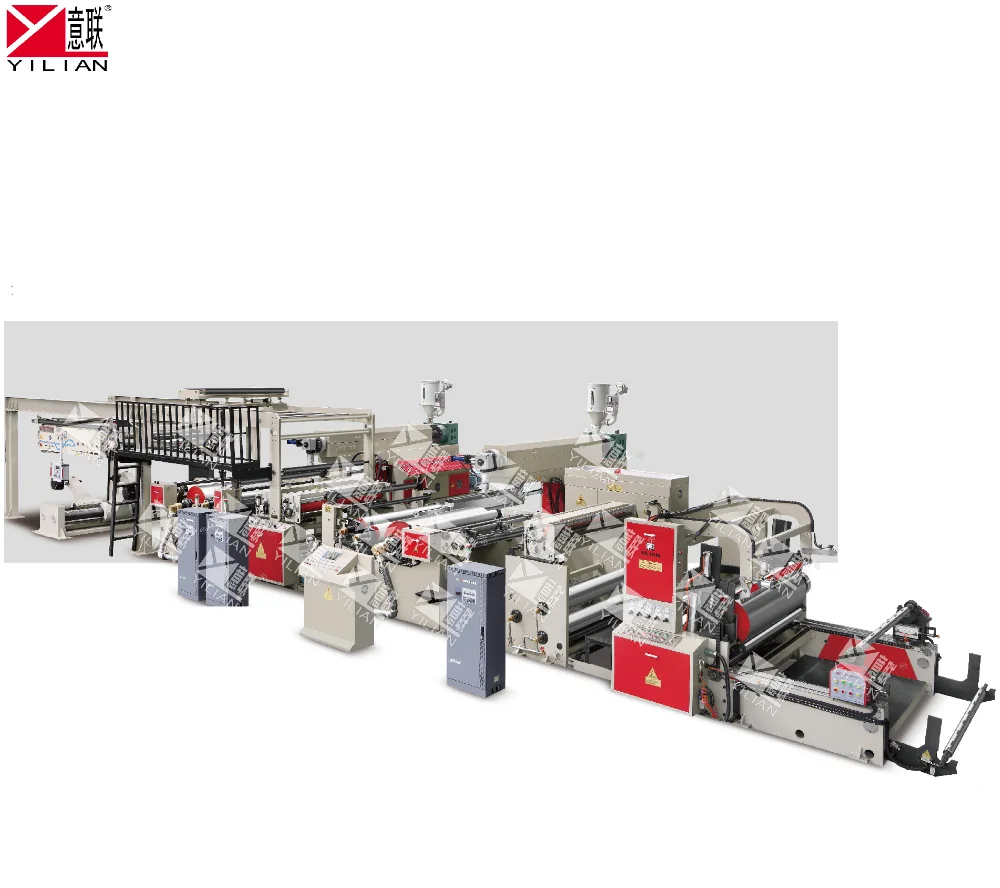

This machine is special for double sizes coating, applied in the field of paper cup, paper bowl and so on.

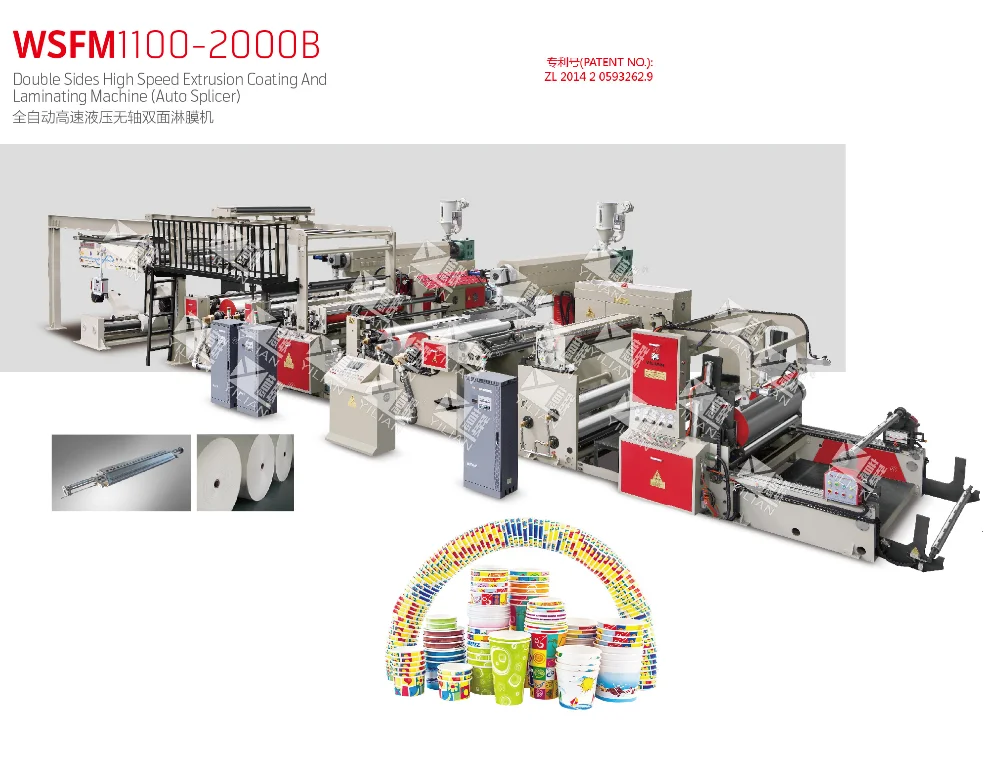

SPECIFICATIONS FOR WSFM1100-2000B COATING MACHINE
machinery specification
1100/90mm、1300/100mm 、1500/105mm、 1800/110mm
MAX.speed of coating film
150m/min、180m/min、200m/min
Suitable coating material
LDPE/ PP/EVA
suitable base material
BOPP、BOPET、BOPA、CPP、CPE、PAPER
width of coating film
1100mm、1300mm、1500mm、1800mm
thickness of coating film
0.012~0.1mm
inaccuracy thickness of coating
≦±5%
complex cooling roller
Φ500mm、Φ600mm、Φ700mm
screw specification
（L/D）Φ90：33、Φ100：33、Φ105:33；Φ110:33
main unwinding diameter
Φ800-1500mm
diameter of auxiliary
Φ600mm
diameter of rewinding
Φ800-1700mm
Main Features

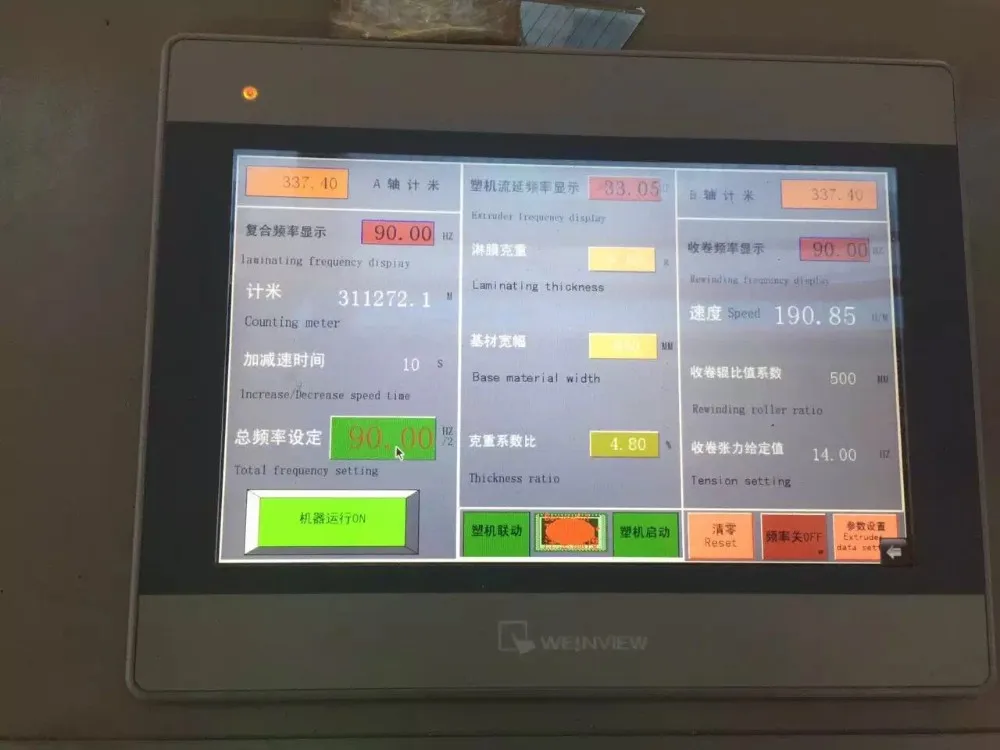

1) PLC man-machine interface centralized control, machine, electricity, gas integrated design. High precision, non edge imported original die head
2) High speed and efficient mixing equipment (US technology)
3) New technology static mixing device (Italy Technology)
4) Quick exchange network.
5) hydraulic shaft-less loading and off loading device, material can change at running speed, no need to lower the machine speed or stop the machine
6) And can be matched with a single extruder, Twin Extruder, extruder, multilayer coextrusion
Certifications
Detailed Images
Machine Parts

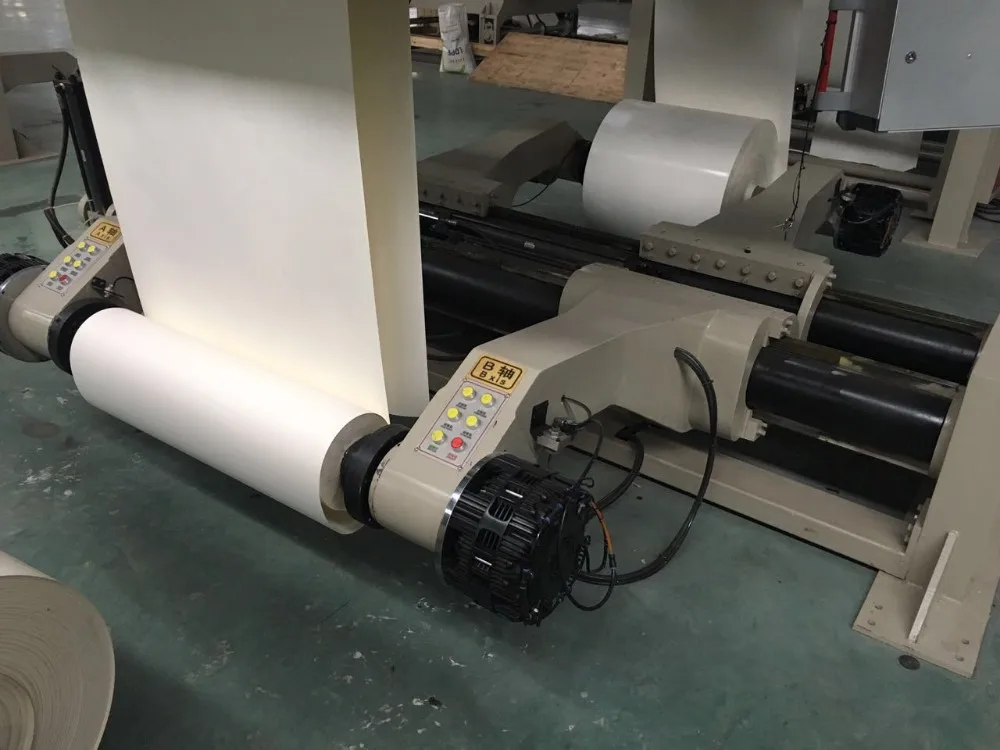

Name: SHAFT-LESS LOADING PART
Brand: YILIAN
Original: China
two rolls of raw material can exchange at the normal machine speed, no need to lower speed or stop machine

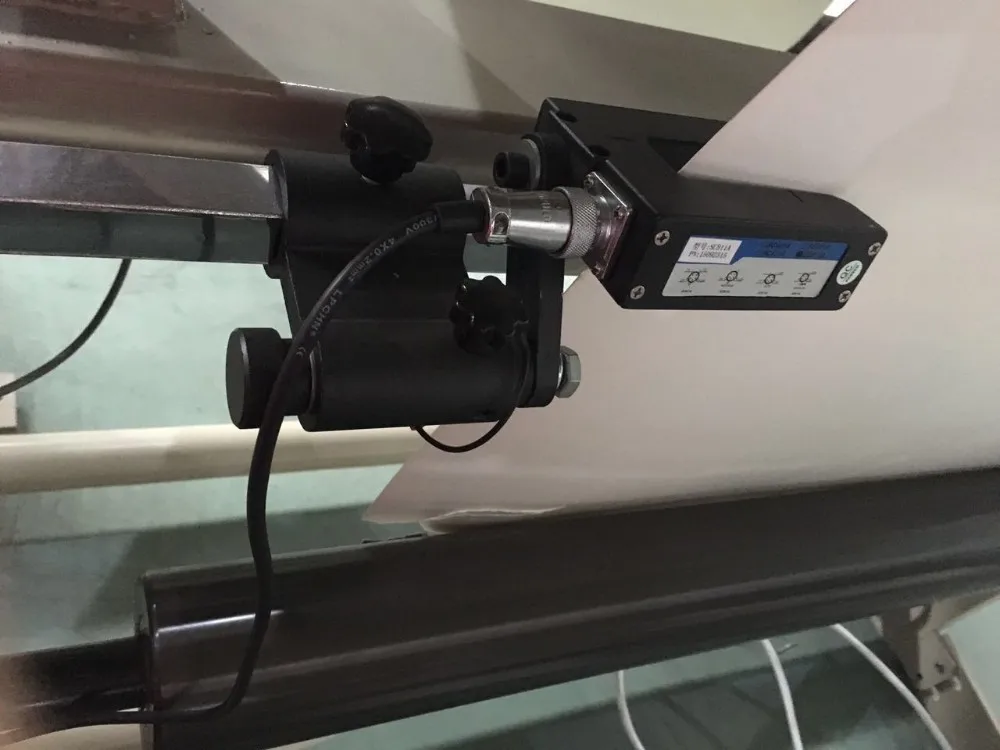

Name: EPC SENSER Brand: HZ Original: China Ultrasonic type EPC system,makes frequent replacement materials operation more simple
Main Features

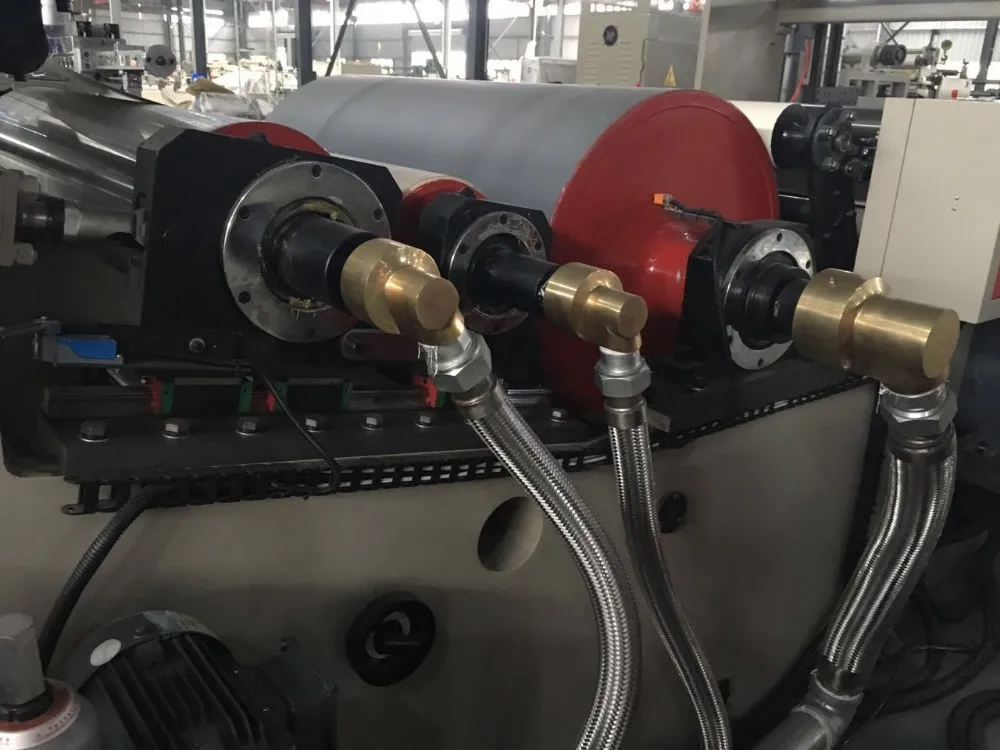

Name: Compound Brand: yilian Original: Germany design Hydraulic lamination structure design (Germany Davis design ) can make coating thinner and firm ,Embossing function is avaliable
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
total 15-25 packages
Weight
40T
Packaging Details
1.Fixed by steel wire.
2. Spray anti-rust oil to prevent rust.
3. 5 layers telescopic wrap film covering.
4. Packed inside of wooden cases.
Packaging
Size
5 *40HQ
Weight
40T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
