5 слойная машина для производства гофрированных картонных коробок/упаковочная линия с CE
5-слойная машина для производства гофрированных картонных коробок/упаковочная линия с CE

5 слойная машина для производства гофрированных картонных коробок/упаковочная линия с CE

Share on (60710227784):


Price:280 000,00 $ - 300 000,00 $

Quantity:


Product Overview

Description


Product Description

Product Application

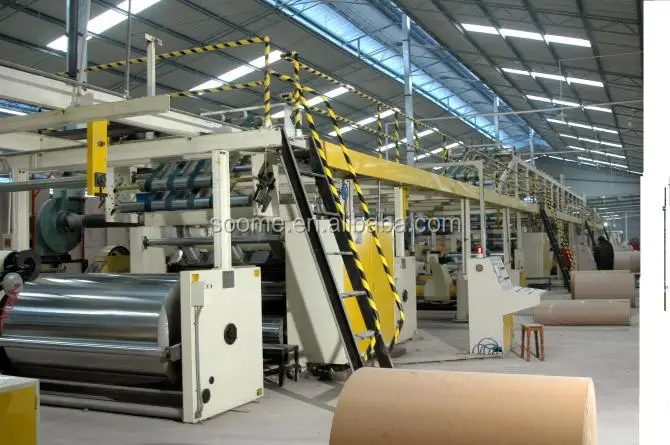

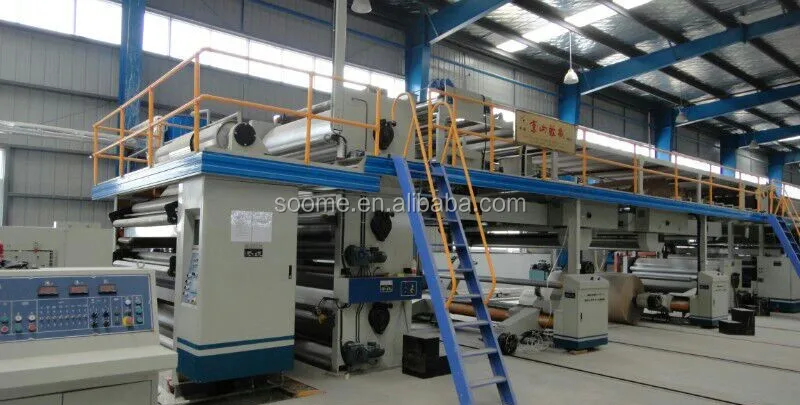

Soome automatic 3/5/7 ply corrugated carton box making machine production line.Suitable for the production of corrugated paper,cardboard boxes and cardboard.Widely used in cartons,packaging and other paper products.

\t
Technical Specifications
\t
Max Efficiency Producing Width of the Corrugated Sheet:1600mm
Design Speed:120m/min
Work Speed :5 Ply 100m/min
Annotation: the kraft paper for testing of the corrugation plant line should keep the requirements as follows. (the temperature of the surface of the heating parts in the corrugation plant line)
Kraft paper's level can not be lower than B level, (Water Content:11%±2%)
Liner paper: 100-250g/m2
Corrugated Flute paper: 100-250g/m2
﹡Face Paper: 100-250g/m2 ﹡Bottom Paper:100--250g/m2
﹡Flute Paper: 100-250g/m2
Corrugated flute groups: A, C, B, E (or choose by the customer)
Steam requirements:
Steam cost: 3500-4000Kg/Hr Max pressure: 1.2Mpa
Practical Pressure: 0.8-1.1Mpa
Power: 380V 50Hz Three phase Four wire system
Total Power: 230kw (About)
Practical power cost: About 160kw (Total producing speed)
Total Length of the Production Line: About 85m×10m×5.5m (Whichever is in the foundation drawing)

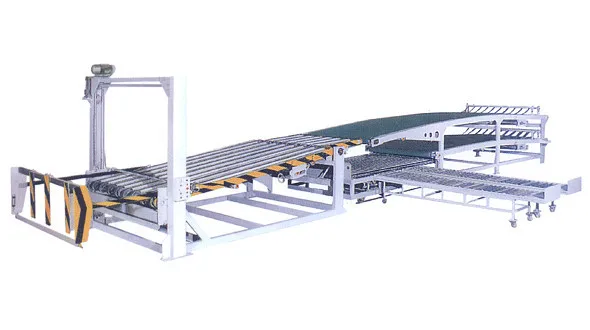

Corrugated sheet stacker direction: left or right according to the workshop to make sure the drive in left direction or right direction
Corrugation Plant line suitable kraft paper: A, B, C Native paper or import kraft paper

Main mechanlcs(5 layers)

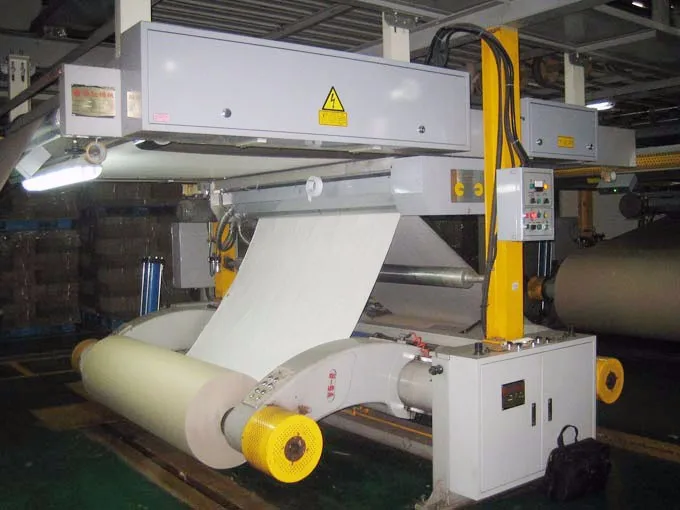

1.  Hydraulic Reel Stand 5 set  Without shaft expanded chuck
2 .Single facer \t2 set  Vacuum adsorb tiong,Φ380mm tungsten carbide corrugated rollers, gamble driving, Touching screen control, Glue speed digital displaying. Electric adjust the glue amount and width
3 .Dual layers Conveying bridge \t1 set  Electrical adjusting deflection, adsorptions tension
4.  Double layers glue machine \t1 set Pneumatic operation,
5 .Triplex preheater \t1 set   Φ1000mm , electromotion to large the craft paper's preheating area

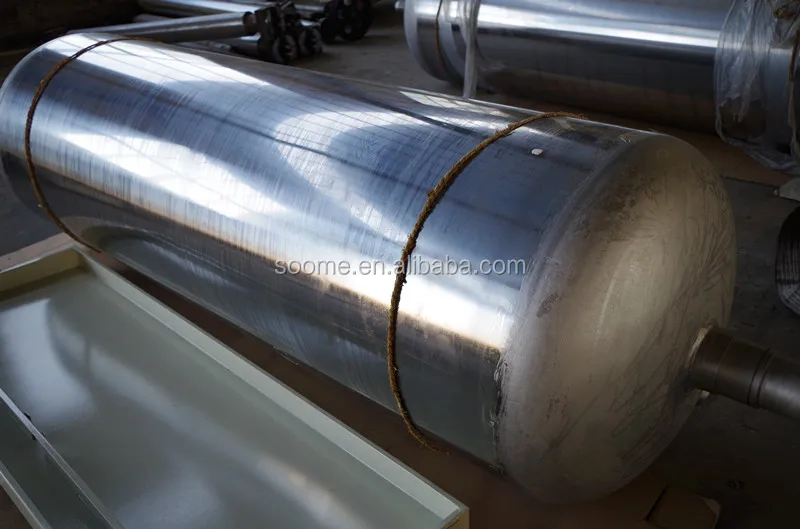

6.  Hot cylinder\t4 set  Φ1000mm, electromotion to large the craft paper's preheating area

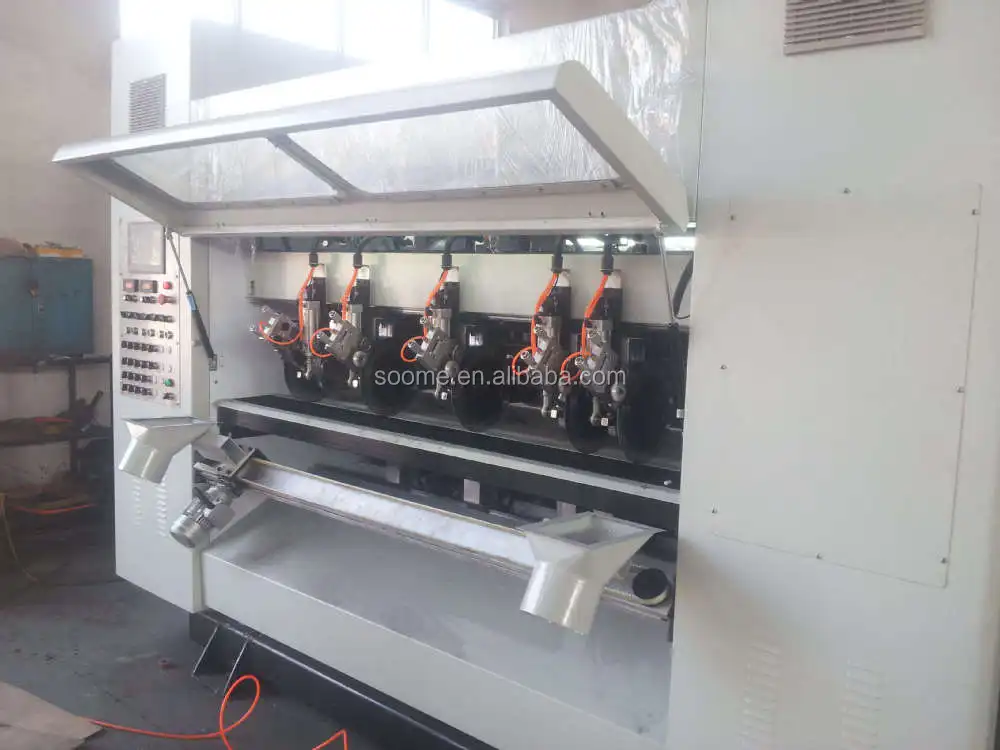

7.  Thin blade Slitter Scorer \t1 set  5 blades and 8 scores, Electrical adjusting deflection
8.  cutoff \t1 set Computer-controlled, Servo-power. rotary blade
9. Double facer  1 set 520mm×16 pcs hot plate  upper-lower intensive press roller, could adjust pressure separately, hydraulic lifting of the pressing rollers, auto correct the big belt's moving
10.  Cooling Shaping Part \t1 set  upper-lower intensive press roller, channel length:6m
11 .Conveying big belt \t2 set high quality cotton belt(Shenyang Fuli Band)
12.  Air pump system \t1 set  Eletric Air Charging and air storage tank
13.  Main transmission \t1 set  55kw, variable-frequency motor. Up Main Driving Roller:800mm
14 .Electric control system \t1set Operation counter, 2 for single facers,1 for main transmission
15 .Steam System \t1 set Without boiler and steam pipes(they are supplied by the buyer him selves)
16 .Glue Making System\t1 set



Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

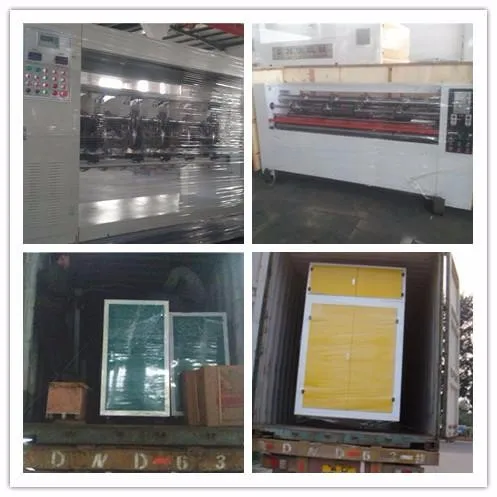

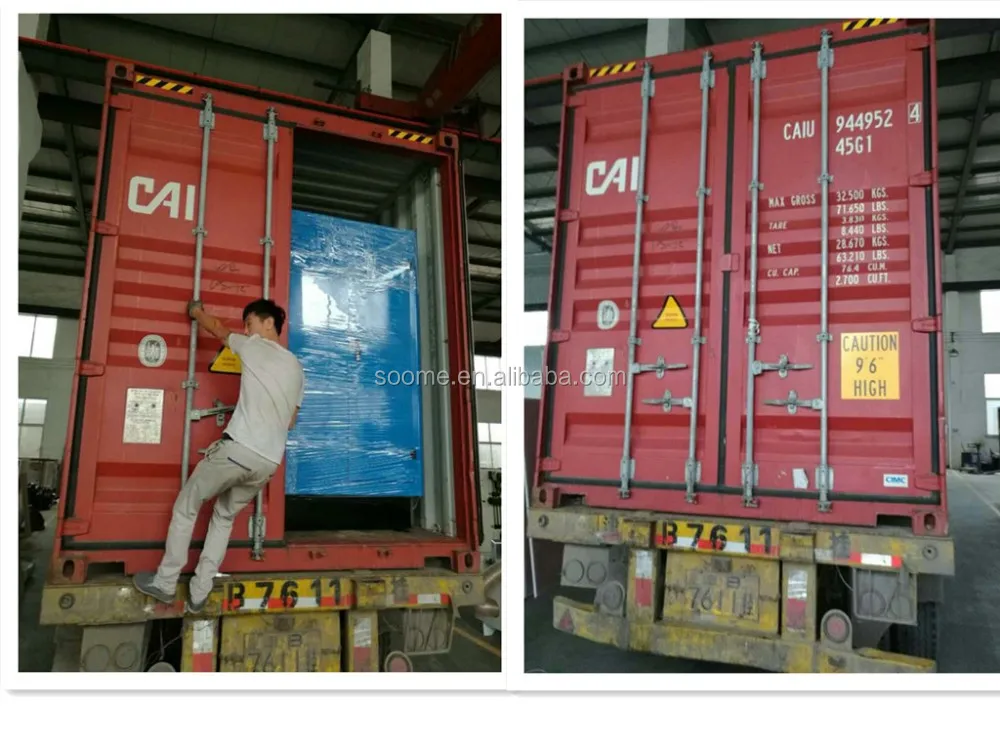

Packing & Delivery
\t
Packaging
\t
Size
\t
Customer request
\t
Weight
\t
machine model
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
Customer request
\t
Weight
\t
machine model
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
