completee line tinplate tin can making machine equipments for retangular
completee line tinplate tin can making machine equipments for retangular
completee line tinplate tin can making machine equipments for retangular
completee line tinplate tin can making machine equipments for retangular
completee line tinplate tin can making machine equipments for retangular
completee line tinplate tin can making machine equipments for retangular
completee line tinplate tin can making machine equipments for retangular

completee line tinplate tin can making machine equipments for retangular

Share on (60716802712):


Price:RUB 1,130,068.50 - RUB 1,506,758.00

Quantity:


Product Overview

Description

Product Description

ZDF-18 Automatic Big Square Can Flanging Machine and ZD-88 Automatic Big Square Can 8 Rollers Sealing Machine

Usage:

The machine is mainly used for square can body flanging automatically and sealing big irregular cans automatically.

Name
ZDF-18 Automatic Big Square Can Flanging Machine
Production capacity
20pcs/min
Suitable thickness
Max≤0.5mm
Using range
10-20L Square can
Power of motor
7KW
Dimensions
2000*1000*1850mm
Net Weight
1200KGS
Name
ZD-88 Automatic Big Square Can 8 Rollers Sealing Machine
Production capacity
20pcs/min
Suitable thickness
Max＜0.5mm
Using range
10-20L Square can
Height range
180-315mm
Power consumption
4KW
Dimensions
2800*945*1860mm
Net Weight
1500KGS

Main Features

1).More than 20 years experience and reputation both at home and abroad;
2).Quality Assurance, excellent after service and reasonable price;
3).Reliable and safe to control, easy to operate and maintain;
4).Equipped with human-computer interface and PLC; adopt digital control technology;
5).Full automatic, semi-automatic, and multi mould, suitable for different cans shape and size.
6). Have convenient transportation with airport, railway and port around .

Can body making line

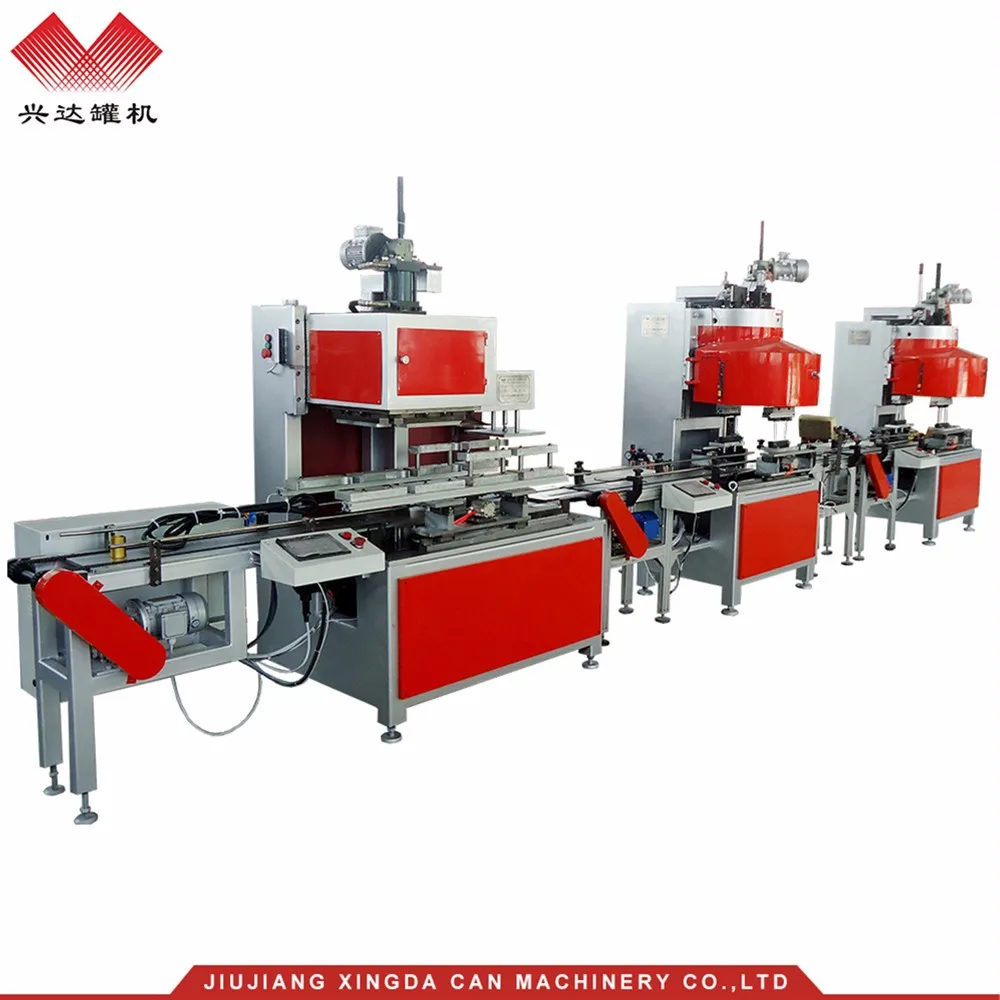

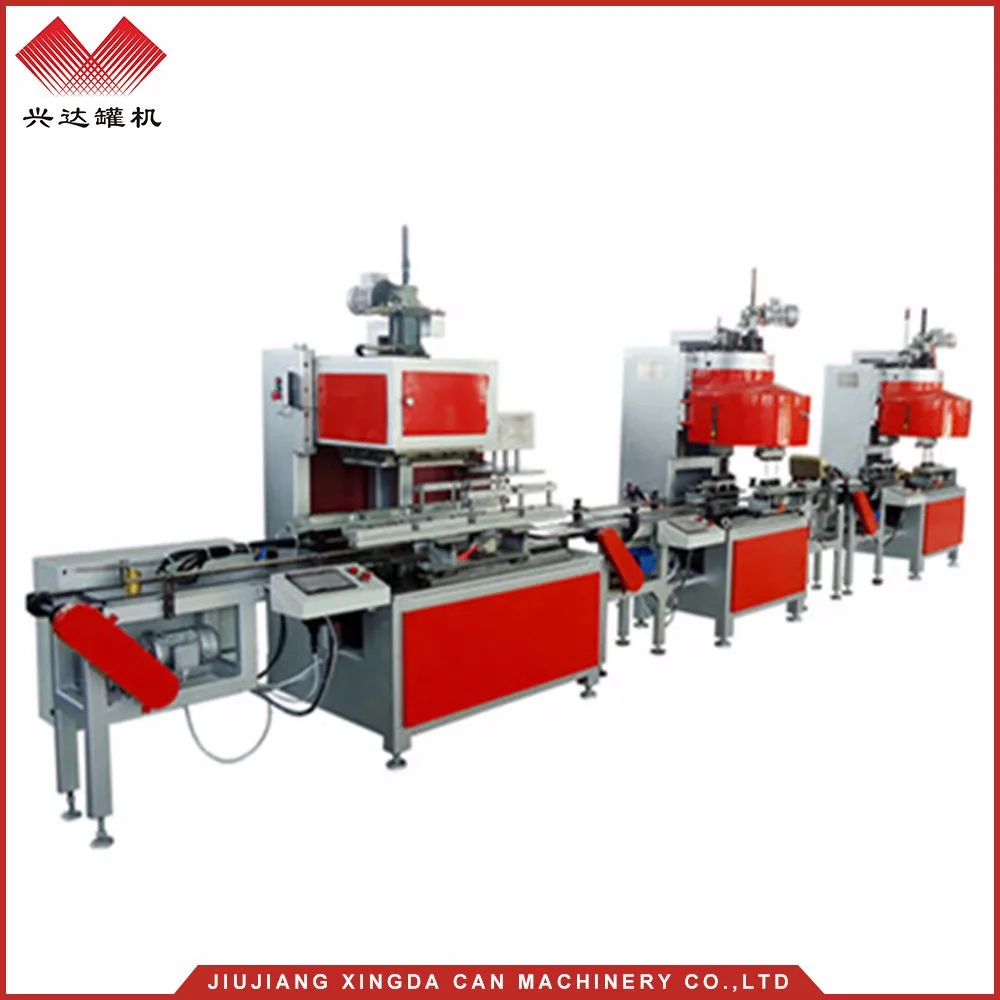

10-20L Big Square Can Production Line

Applicable to the following cans

Certifications
Production line
Product Name

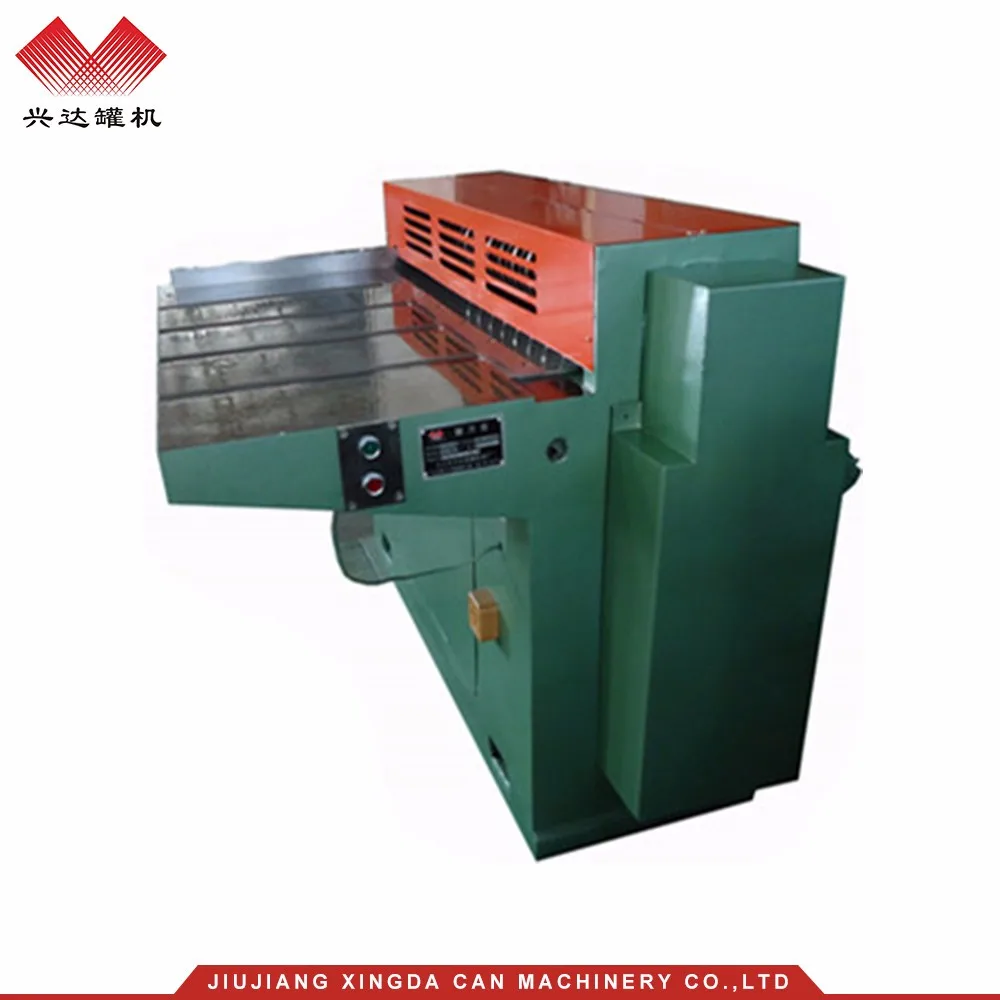

R-40 Guillotine cutting machine
Production capacity
1.6meter/second
Suitable thickness
Max. 0.5mm
Suitable width
40-1050mm
Suitable height
Max. 440mm
Logarithm of round knife
8pair
Diameter of principal axis
90mm
Power consumption
0.75KW
Dimensions
1500*1100*1200mm
Net weight
1000KGS
Product Name
CY400-AT Round Forming Machine
Suitable thickness
Max≤0.5mm
Diameter range
φ100-φ300mm
Height range
Max≤400mm
Production capacity
30pcs/min
Power consumption
3KW
Dimensions
1300*730*1330mm
Net weight
450KGGS
Product  Name

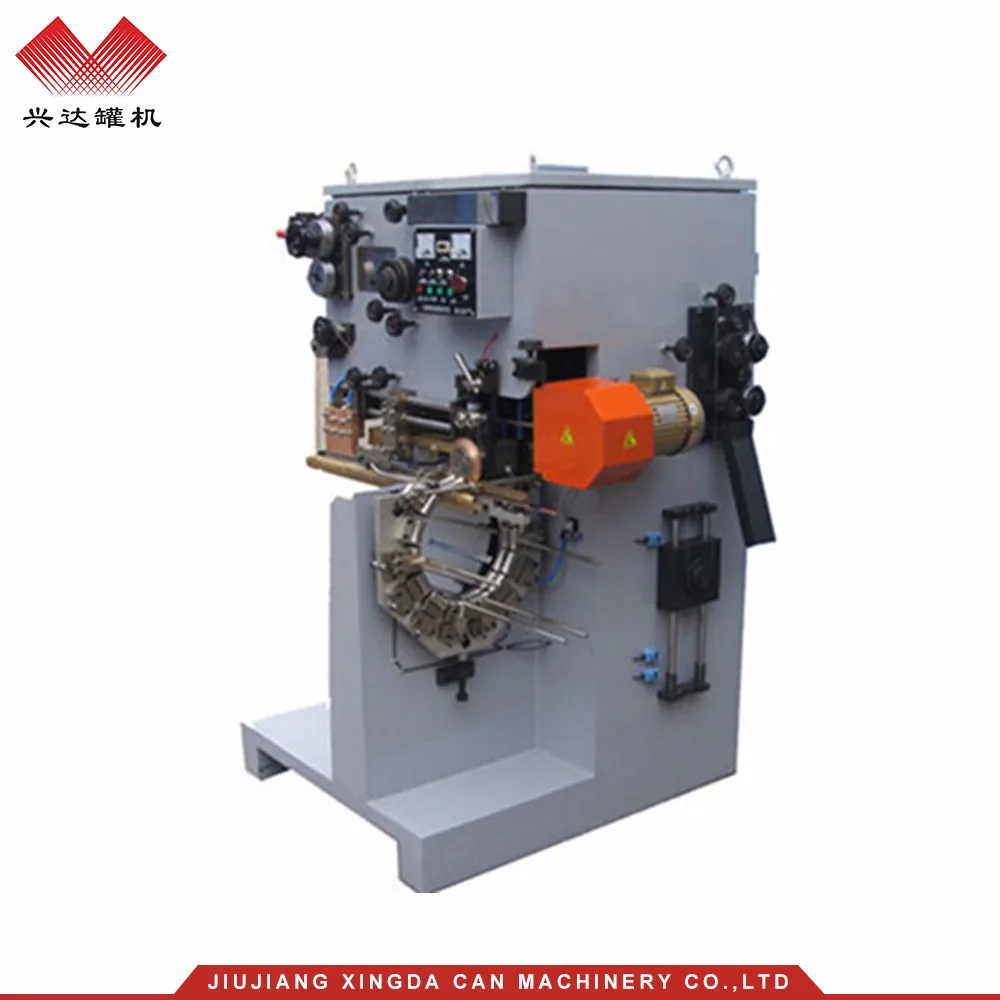

FB2000-A Backward Feed-in Seam Welding Machine
Input power
3N380V/50HZ    15KVA
Welding speed
Max≤12m/min
Production capacity
20-50pcs/min
Diameter range
φ65-φ300mm
Height range
70-400mm
Overlap
0.6-1.2mm
Thickness
0.2-0.4mm
T2 Copper wire
1.5mm
Cooling water
≥0.3Mpa    8-10L/min
Dimensions
1350*1300*1700mm
Net Weight
1300KGS
Product Name

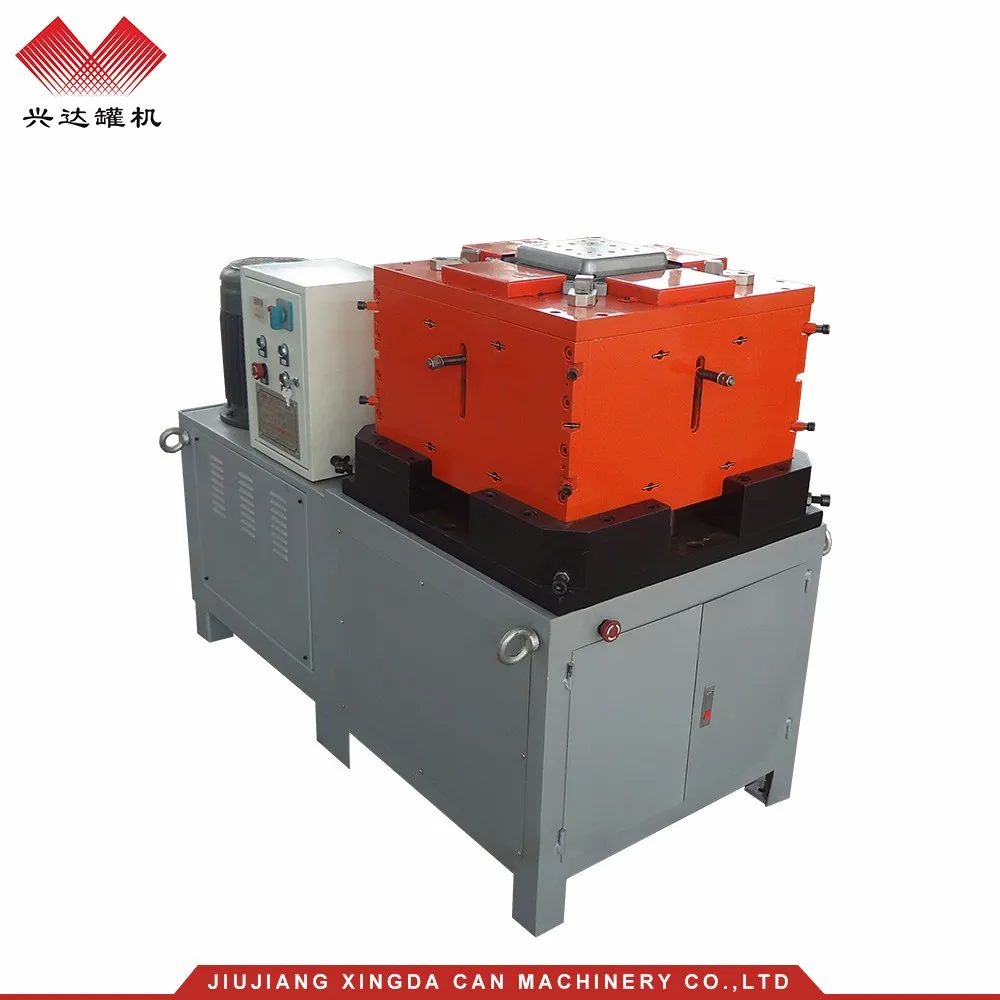

YYT-20 Square Formation and Embossing Combination Machine
Production capacity
16-20pcs/min
Suitable thickness
0.2-0.4mm
Range of diagonal line
330mm
Height range
Max≤400mm
Power of motor
7.5KW
Volume of oil box
160L
Dimensions
1400*760*11600mm
Net Weight
1200KGS
Product Name
ZDF-18 Automatic Big Square Can Flanging Machine
Production capacity
20pcs/min
Suitable thickness
Max≤0.5mm
Using range
10-20L Square can
Power of motor
7 KW
Dimensions
2000*1000*1850mm
Net Weight
1200KGS
Product Name
ZD-88 Automatic Big Square Can 8 rollers Sealing Machine
Production capacity
20pcs/min
Suitable thickness
Max＜0.5mm
Using range
10-20L Square can
Height range
180-315mm
Power consumption
4KW
Dimensions
2800*945*1860mm
Net Weight
1500KGS
