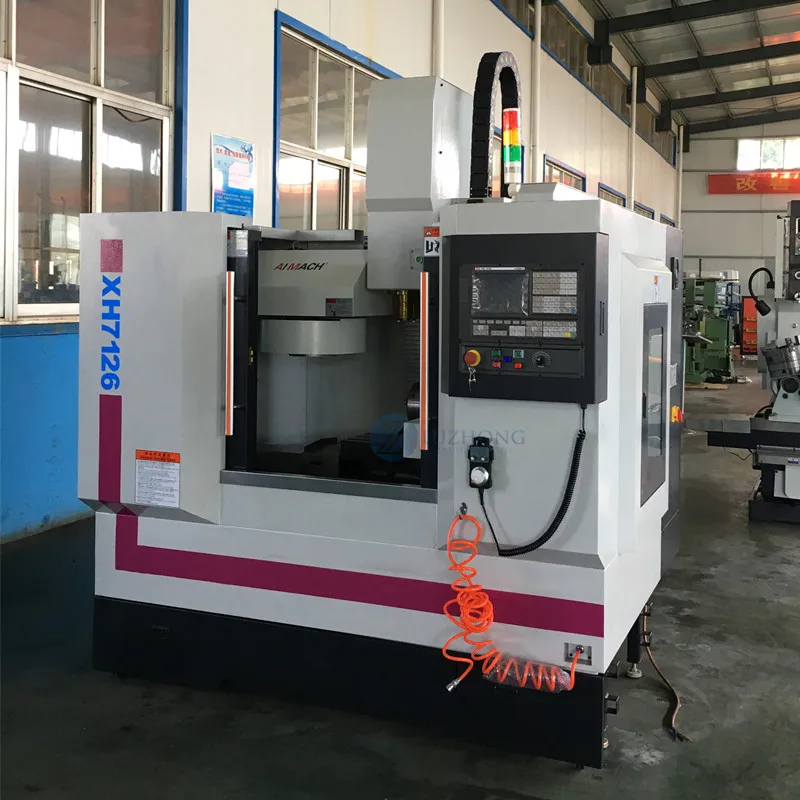

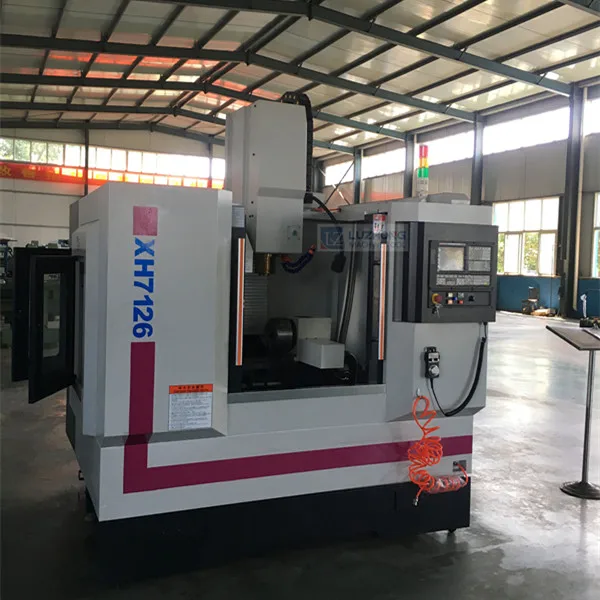

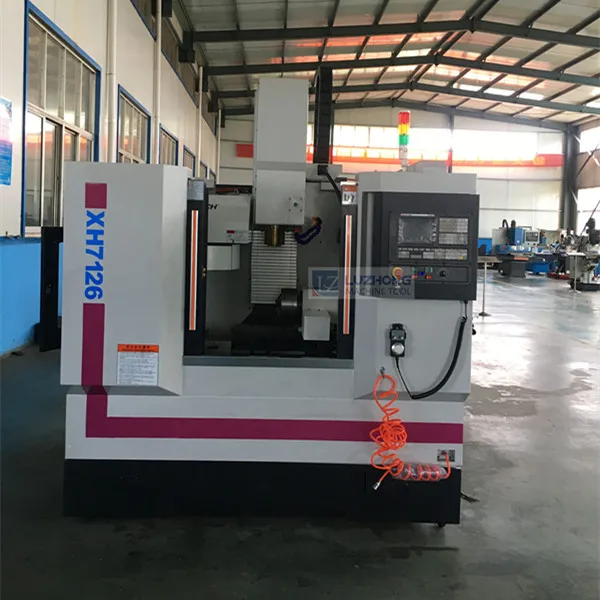

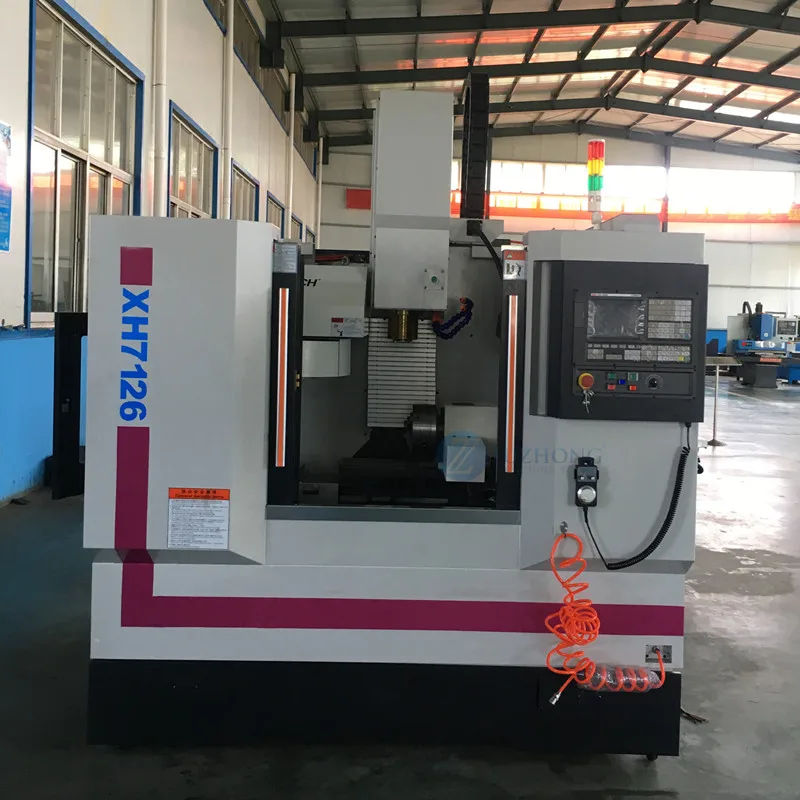

XH7126 Mini Metal Cheap 4 Axis CNC Metal Milling Machine for Metal
- Category: Machine Centre >>>
- Supplier: Shandong Luzhong Machine Tool Co. Ltd.
Share on (60720863446):
Product Overview
Description
Product Description
Specifications | Units | XH7126 |
Table size | mm | 800x260 |
X axis travel | mm | 450 |
Y axis travel | mm | 320 |
Z axis travel | mm | 400 |
Max. worktable load | kg | 200 |
T slot(number-width-pitch) | 3-14x80 | |
Max. spindle speed | rpm | 6000 |
Spindle taper | mm | BT40 |
Main motor power | kw | 3.7 |
X/Y/Z rapid traverse speed | m/min | 15/15/15 |
Cutting feed speed | mm/min | 1-6000 |
Guide rail type | Linear rail | |
Distance from spindle axis to column surface | mm | 360 |
Distance between spindle nose and worktable surface | mm | 90-520 |
Positioning accuracy | mm | ±0.0015 |
Repeat positioning accuracy | mm | ±0.0075 |
Tool magazine | 12 armless | |
Max. tool diameter | mm | Φ90 |
Max.tool weight | kg | 8 |
Machine weight | kg | 2400 |
Overall dimension | mm | 2200×1900×2200 |

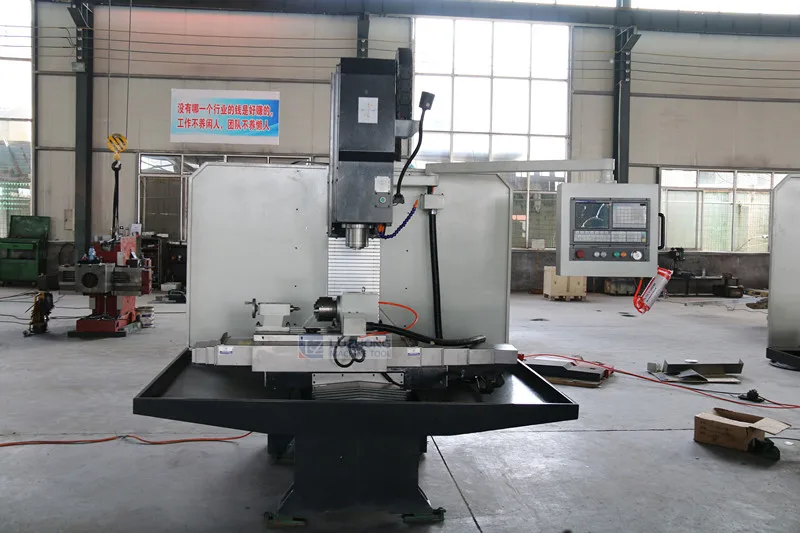

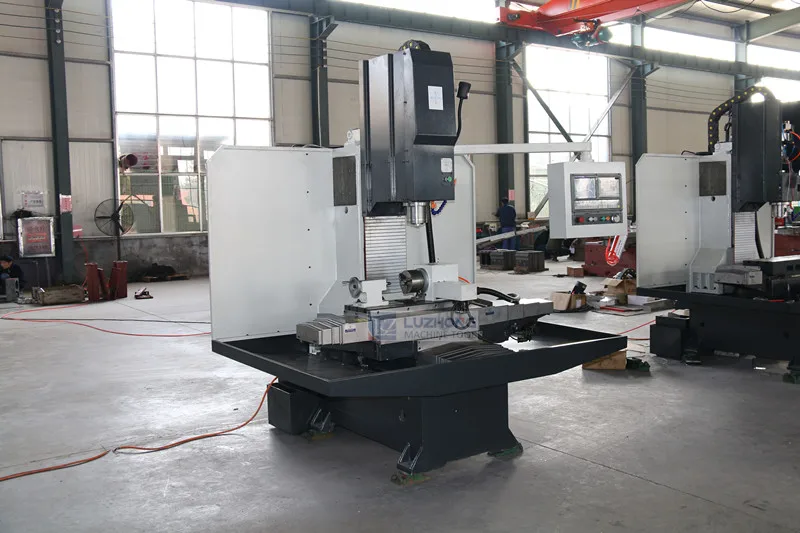

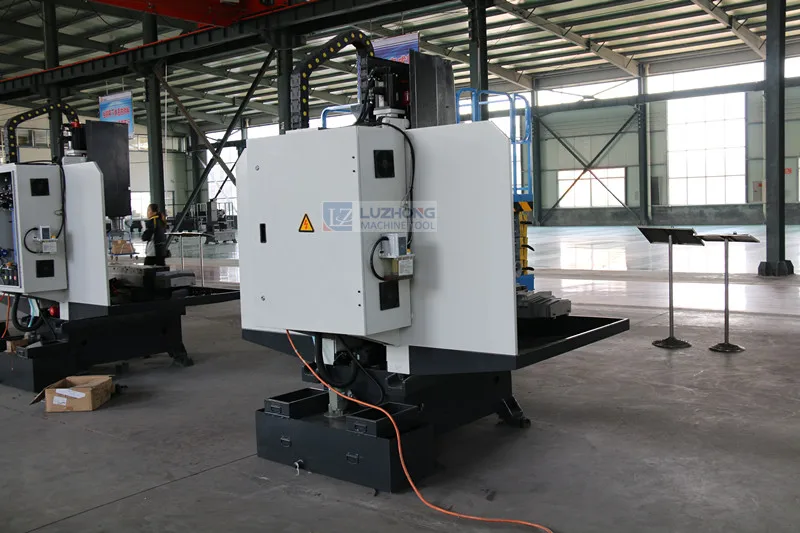

Details Display
Optional Configurations
Recommend Products
Company Profile
VR
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
