Main structure of paper machine:

1.Cylinder section:Φ1800mm×4600mm stainless steel mesh 4 sets; Φ600mm×4600mm couch roll 5sets; reverse roll 1 set; rubber hardness 38°C±2.pneumatic pressure device, pressure forming device for pulp feeding

2.Pre-press section:Φ450mm×4600mm natural marble roll 2 sets,Φ450mm×4600mm rubber roll 2 sets,rubber hardness 92°C±2,pneumatic pressure device.

3.Press section: Φ900×4600mm natural marble roll 2 sets,Φ850mm×4600mm rubber roll 2 sets, rubber hardness 95°C±2. Groove on the surface, pneumatic pressure device.

4. Dryer section: Φ1500mm×4600mm×5100mm alloy dryer can 28 sets, arrangement mode:10+10+sizing machine+8,with scraper 28 sets, contain chromium-plated steel 2 sets.

5.Calendar section: big roller calender 1 set

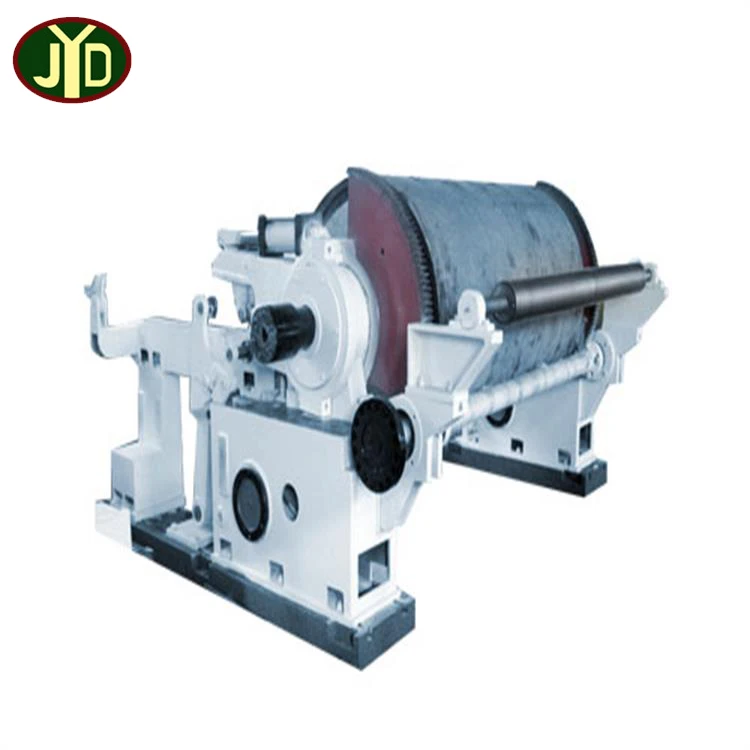

6.Winding section:4200mm horizontal pneumatic winding machine 1 set, winding cylinder Φ1100mm×450mm 1 set.

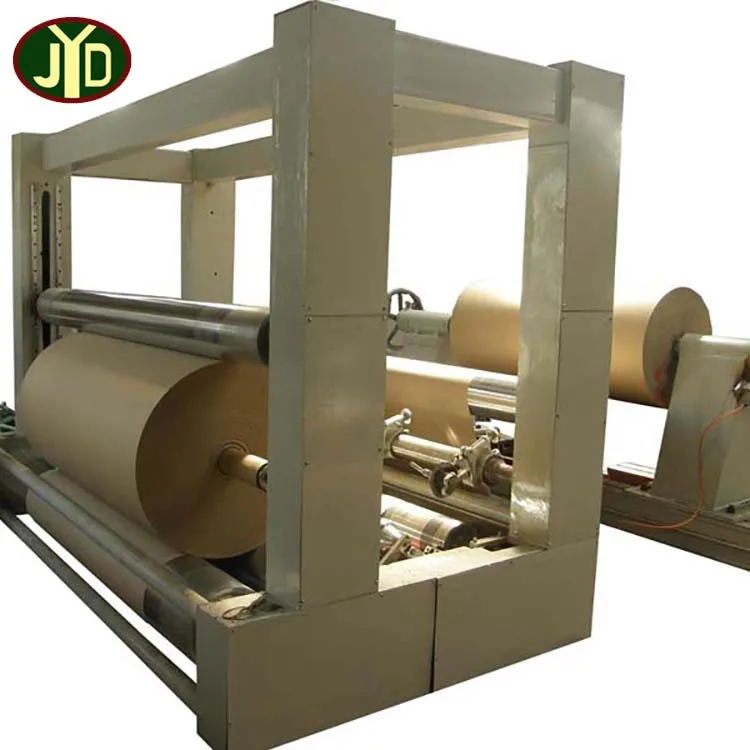

7.Rewinding section: 4200mm frame type rewinding machine 1 set.

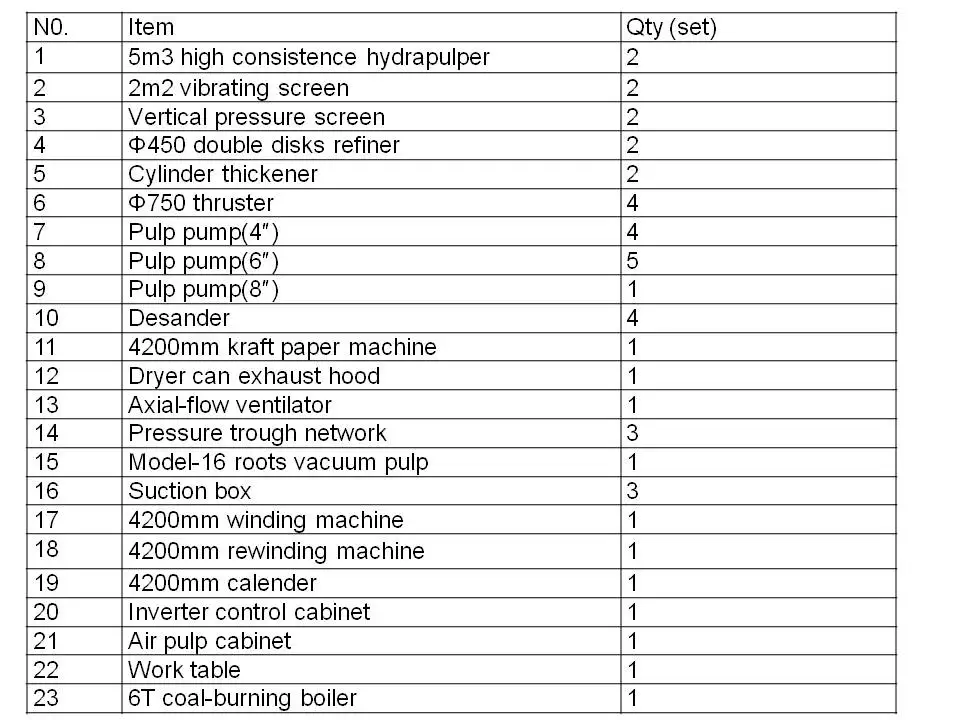

Main equipment:
