110mm Round Type Power Factor Meter With CCS Certificate
110mm Round Type Power Factor Meter With CCS Certificate
110mm Round Type Power Factor Meter With CCS Certificate

110mm Round Type Power Factor Meter With CCS Certificate

Share on (60724556855):


Price:

Quantity:


Product Overview

Description


Summary

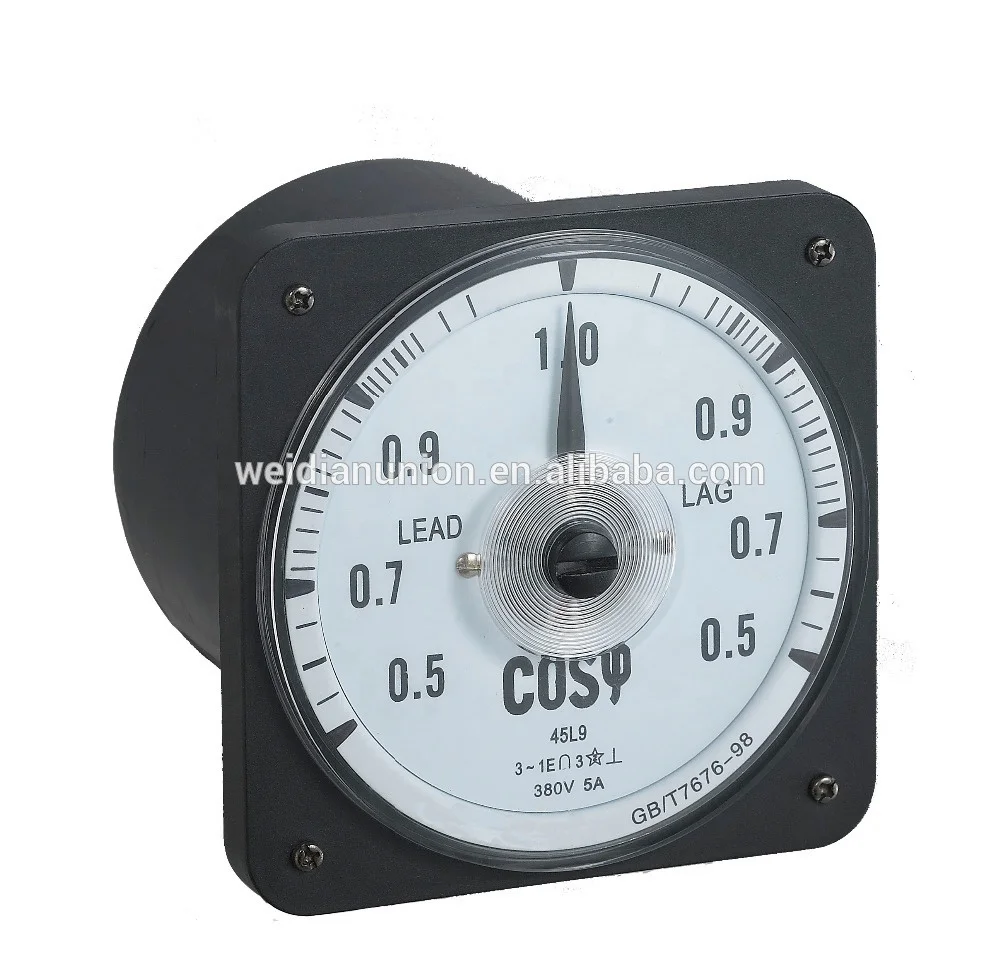

 Using for single-phase or three-phase circuit, measuring the cos∅ in power system, 3P3W balanced load, 3P3W unbalanced load, 3P4W unbalanced load.

Goods Description
\t
Product Name
\t
Analog Power factor meter
\t
Indicating Angle
\t
240-270°
\t
Dimension
\t
110*110-95mm
\t
Hole Size
\t
101mm
\t
Measurement
\t
0.5C-1-0.5L/0C-1-0L
\t
Connection
\t
100V/5A,220V/5A,380V/5A,400V/5A,440V/5A
Technical Parameters
\t
Item
\t
Technical Data
\t
International Standard
\t
Technical Standard
\t
GB/T7676-1998
\t
IEC60092-50
\t
Environment Standard
\t
GB8355-1987
\t
IEC92-504-74
\t
Safety Standard
\t
GB4793-20
\t
IEC61010
\t
Working Temperature
\t
-40℃-65℃
\t
\t
Temperature Influence
\t
-13-33℃, 100% comply with accuracy class
\t
Indicating Angle
\t
240-270° (Synchroscope meter:360°)
\t
Color of Shell
\t
Black/white , board frame , terminal plate : Black
\t
Color of Dial Plate
\t
Black/white, other colors are available on requests
\t
Mounting
\t
Vertical mounting
\t
\t

Dimension
\t
110*110mm,  80*80mm
\t
\t
96*96mm, 72*72mm, 48*48mm
\t
\t
Overshoot
\t
Less than 20% when scale reaches to 2/3
\t
Insulation Withstand
\t
Circuit & shell: AC2600V/1 minute(Water area)
\t
Vibration Resistance
\t
24.5m/s2
\t
\t
Impact Resistance
\t
147m/s2
\t
\t
Material
\t
Shell/terminal board: ABS;  Cover: Transparent Glass
Application


WDLYCH series meter are direct acting indicating and analogue electrical measuring instruments. Measuring AC/DC current, voltage, frequency, power, power factor, phase sequence,synchroscope, position indication, network insulation monitoring, hours run meter and other non-electric measurements.


Mainly used on various AC/DC transmission and distribution system, power control panel and electrical  equipment for various industries such as marine, rail, aviation, chemical and explosive-proof, nuclear power, high-mid voltage equipment, power generator set and control engineering. It is high end meter, and suitbale for complicated environment to measure electric/non-electric energy.


R & D



Wei Dian Union sticks to the core value of "PURSUING FOR PRECISION AND PERFECTION", UNIFYING THINKING AND BEHAVIOR"as always. The WDLYCH technology study changes from mechanical machining mainly to more intensive, compact, electromechanical integration of mechanics & electrics fields. The world class experiment installation and testing facilities give strong R & D platform for Wei Dian Union continual creation and development.




Based on sufficient experience and understanding of industry automation field, the Wei Dian Union technical team continuously gives technology upgradation and renovation on electro-mechanical pneumatic components, focusing study on high frequency, intelligence, and low power technology, ex. multi-function meter, stern shaft tachometer, etc., just to make all products fits more for production, fits better for system, and achieve higher safety and stability performance.

Assemble Line

Alnico Installation

Electrical Welding

Balanced adjustment

Meter adjusting

Remarks



1. Used for measuring cos∅ in power system,  pls specify the detailed value as requirements;


  2. Please specify if need red pointer for preset value.
