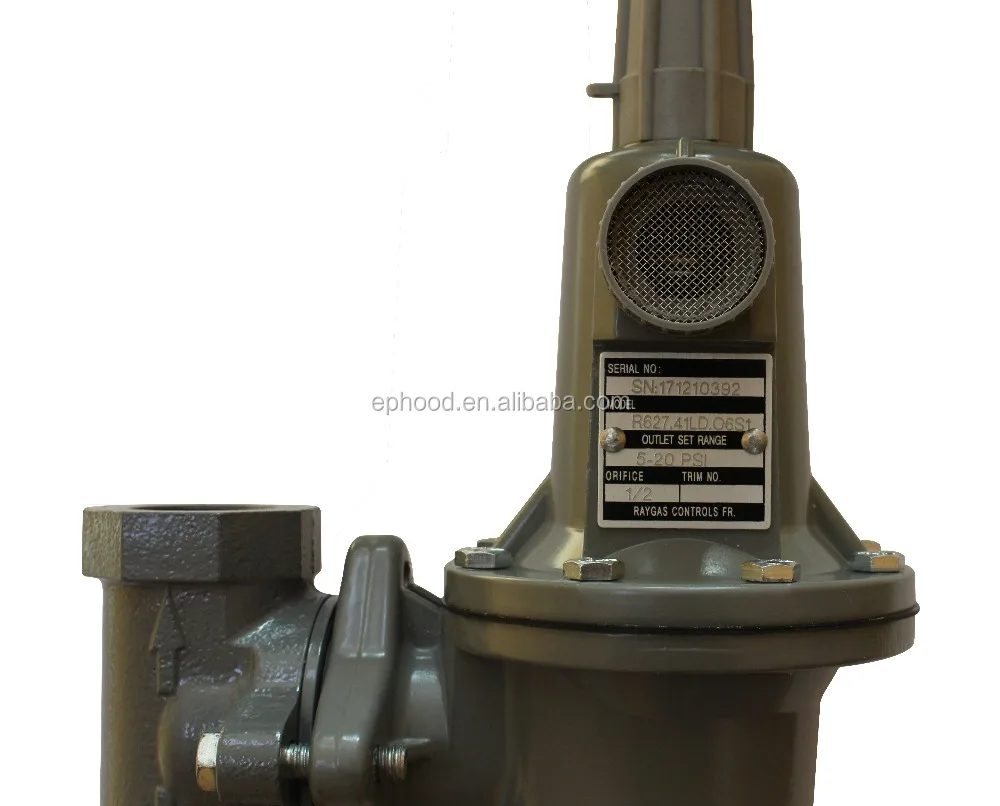

Pressure Reducing Regulator France Made Raygas 627 Ammonia Pressure Gas Regulator

Product Overview

Description

    The Raygas R627 Series direct-operated pressure reducing regulators are for mid-pressure and high-pressure Gas supply systems . The R627 Series can be used as farm tap or small city gate regulators, monitoring regulators, or high pressure industrial gates.

Features

• Internal Relief Valve Available
• Relief Operation Indicator
• Easy to Maintain
• Installation Adaptability
• Application Versatility
• Tamper-Resistant
• Wide Range of Flow Capabilities
• Tight Shutoff Capability



Body Size and End Connection Styles
1 x1-inch (DN 20 x 20) NPT

Allowable Inlet Pressure
Maximum Operating Pressure: 16Bar

Outlet Pressure
5 to 20 psi

15 to 40 psi

35 to 80  psi

70 to 150 psi

Orifice Size (Select One)

2.4mm,3.2mm,4.7mm,6.5mm,9.5mm,12.5mm,15mm

Materials For R627
Body…………Ductile Iron ( Max. working pressure 16Bar );
Spring Cage…………………Casting Aluminum; CF8M
Bonnet …………....…Alloy Aluminum; SS316;SS304
Diaphragm……………………..……NBR;FKM;EPDM
Springs and Fasteners………….....SS304 and Brass
Seat Disc & O-Rings……………………...…...NBR
Stem and Trim parts………….……….Stainless Steel
