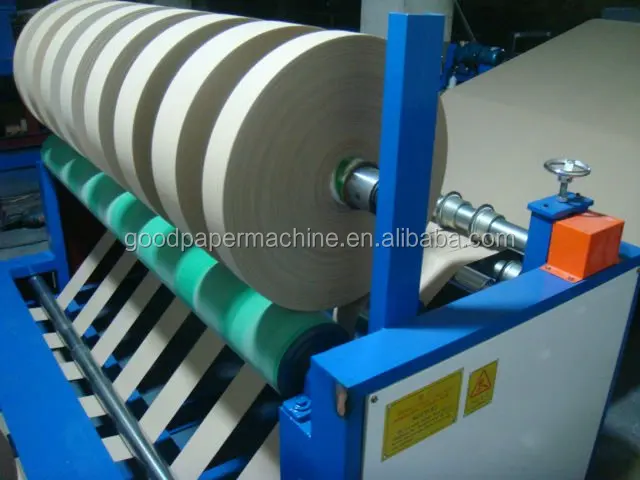

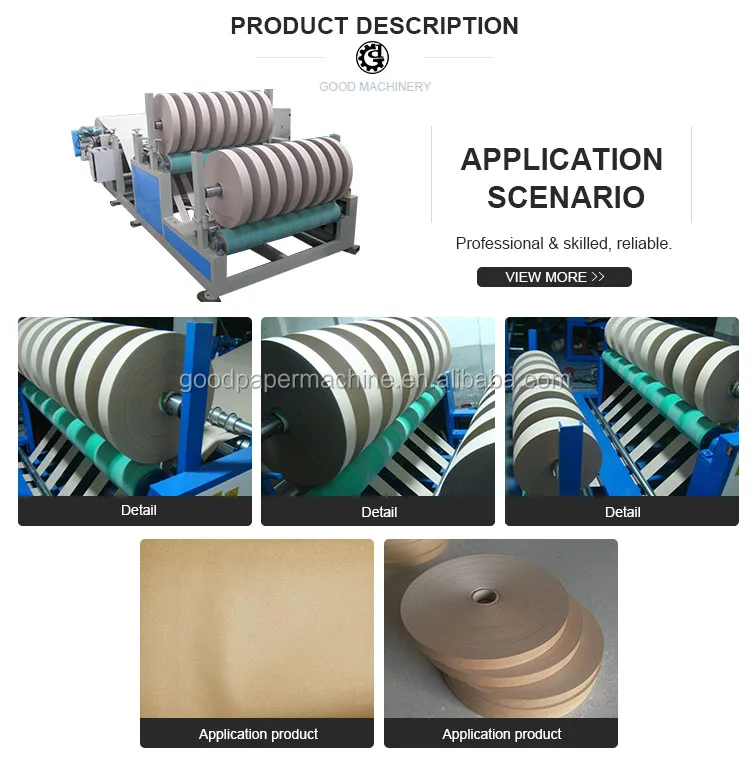

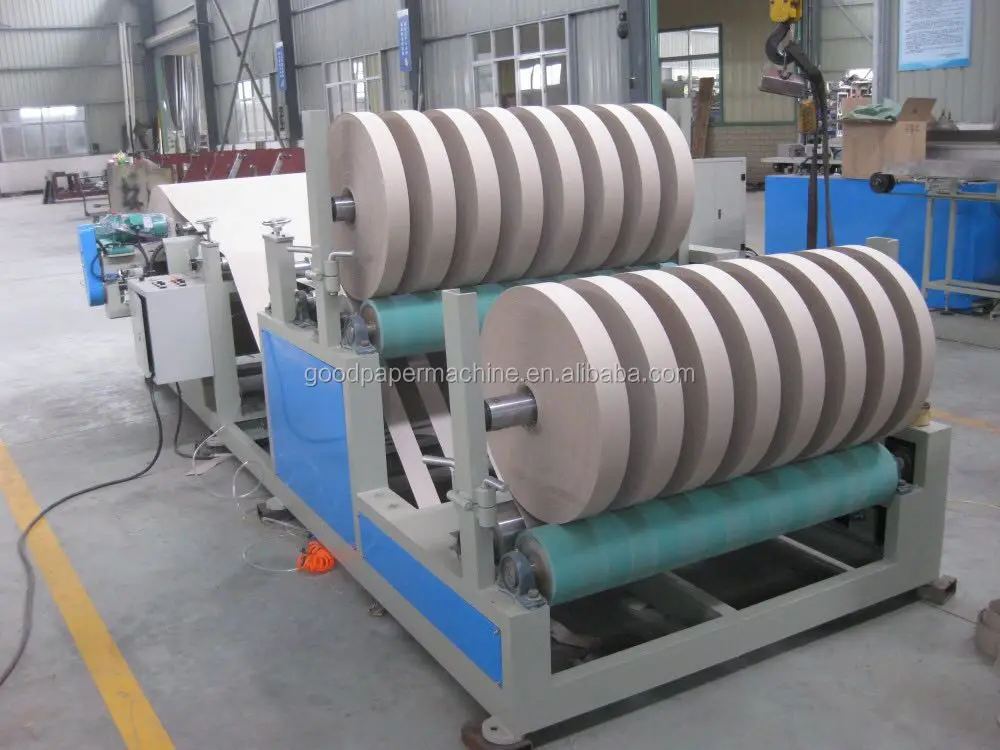

Automatic kraft tissue roll slitting craft paper core winding machine

This equipment is mainly used to cut craft paper, cut big roll of craft paper into required width,

the width of product can be adjusted freely according to client’s requirement.

This machine has compact and reasonable structure, easy operation, stable running, is the ideal

equipment for papermaking factory and paper processing factory

Main Parameters:

1.Width of product: ≥40mm.

2.Width of jumbo roll: ≤1800mm(can use 500mm)

3.Diameter of Jumbo Roll: 1200-1600mm

4.Requirement of grammage of jumbo roll: 50-600g/m2;

5.Cutting Speed:about120 m/Minute;

6.Outside diameter of finished roll: If 40mm≤width<80mm, then diameter of winded roll should ≤900mm. If width≥80mm, then diameter of winded roll can be 1300mm at maximum.

7. Diameter of paper core:≤76.2 mm

8.Total Power of machine:about 5 KW;(380V 50HZ, 3 phase)

9.Overall size of Equipment (L*W*H): About 5500 * 2400 *1900MM;

10.Weight of Equipment:about 3 tons.

11.Weight of jumbo roll:≤2tons

Video link: https://youtu.be/XJcRIwHAtwE

1.We also provide the door to door abroad installation, equipment debugging, technical training service;

2.Warranty:1 year quality assurance

3.Building customer files, solving various technical problems for user;

4.Our technical team give you 100% rest assured global presence service even over the warranty period.
